1. Important Safety Warning

Please comply with all warnings and operating instructions in this manual strictly. Save this

manual properly and read carefully the following instructions before installing the unit. Do not

operate this unit before reading through all safety information and operating instructions

carefully

1.1. Transportation

Please transport the UPS system only in the original package to protect against

shock and impact.

1.2. Preparation

Condensation may occur if the UPS system is moved directly from cold to warm

environment. The UPS system must be absolutely dry before being installed. Please

allow at least two hours for the UPS system to acclimate the environment.

Do not install the UPS system near water or in moist environments.

Do not install the UPS system where it would be exposed to direct sunlight or near

heater.

Do not block ventilation holes in the UPS housing.

1.3. Installation

Do not connect appliances or devices which would overload the UPS system (e.g.

laser printers) to the UPS output sockets.

Place cables in such a way that no one can step on or trip over them.

Do not connect domestic appliances such as hair dryers to UPS output sockets.

The UPS can be operated by any individuals with no previous experience.

Connect the UPS system only to an earthed shockproof outlet which must be easily

accessible and close to the UPS system.

Please use only VDE-tested, CE-marked mains cable (e.g. the mains cable of your

computer) to connect the UPS system to the building wiring outlet (shockproof

outlet).

Please use only VDE-tested, CE-marked power cables to connect the loads to the

UPS system.

When installing the equipment, it should ensure that the sum of the leakage current

of the UPS and the connected devices does not exceed 3.5mA.

1.4. Operation

Do not disconnect the mains cable on the UPS system or the building wiring outlet

(shockproof socket outlet) during operations since this would cancel the protective

earthing of the UPS system and of all connected loads.

The UPS system features its own, internal current source (batteries). The UPS

output sockets or output terminals block may be electrically live even if the UPS

system is not connected to the building wiring outlet.

In order to fully disconnect the UPS system, first press the OFF/Enter button to

disconnect the mains.

Prevent no fluids or other foreign objects from inside of the UPS system.

1.5. Maintenance, service and faults

The UPS system operates with hazardous voltages. Repairs may be carried out only

by qualified maintenance personnel.

Caution - risk of electric shock. Even after the unit is disconnected from the mains

(building wiring outlet), components inside the UPS system are still connected to the

battery and electrically live and dangerous.

Before carrying out any kind of service and/or maintenance, disconnect the batteries

and verify that no current is present and no hazardous voltage exists in the terminals

of high capability capacitor such as BUS-capacitors.

Only persons are adequately familiar with batteries and with the required

precautionary measures may replace batteries and supervise operations.

Unauthorized persons must be kept well away from the batteries.

Caution - risk of electric shock. The battery circuit is not isolated from the input

voltage. Hazardous voltages may occur between the battery terminals and the

ground. Before touching, please verify that no voltage is present!

Batteries may cause electric shock and have a high short-circuit current. Please take

the precautionary measures specified below and any other measures necessary

when working with batteries:

remove wristwatches, rings and other metal objects

use only tools with insulated grips and handles.

When changing batteries, install the same number and same type of batteries.

Do not attempt to dispose of batteries by burning them. This could cause battery

explosion.

Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin

and eyes. It may be toxic.

Please replace the fuse only with the same type and amperage in order to avoid fire

hazards.

Do not dismantle the UPS system.

2. Installation and setup

NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is

damaged. Please keep the original package in a safe place for future use.

NOTE: There are two different types of online UPS: standard and long-run models. Please

refer to the following model table.

Model

Type

Model

Type

Standard

1K-L

Long-run

2K-L

3K-L

2.1. Rear panel view

1K(L) & 2K(L)

3K(L)

1. Programmable outlets: connect to non-critical loads.

2. Output receptacles: connect to mission-critical loads.

3. AC input

4. Input circuit breaker

5. Network/Fax/Modem surge protection

6. Emergency power off function connector (EPO)

7. USB communication port

8. RS-232 communication port

9. SNMP intelligent slot

10.External battery connection (only available for L model)

2.2. Rack-Mounted the UPS

This UPS can be mounted in the 19” rack chassis. Please follow below steps to position this

UPS.

Step 1 Step 2

2.3. Setup the UPS

Step 1: Connect battery wires

For safety consideration, the UPS is shipped out from factory without connecting battery wires.

Before install the UPS, please follow below steps to re-connect battery wires first.

Step 1

Step 2

Step 3

Remove front panel.

Connect the AC input and

re-connect battery wires.

Put the front panel back to the

unit.

Step 2: UPS input connection

Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension

cords.

For 200/208/220/230/240VAC models: The power cord is supplied in the UPS package.

For 100/110/115/120/127VAC models: The power cord is attached to the UPS. The input

plug is a NEMA 5-15P for 1K and 1K-L models, NEMA 5-20P for 2K and 2K-L models.

Note: For Low voltage models: Check if the site wiring fault indicator lights up in LCD panel. It

will be illuminated when the UPS is plugged into an improperly wired utility power outlet (Refer

to Troubleshooting section). Please also install a circuit breaker (40A) between the mains and

AC input in 3K model for safety operation.

Step 3: UPS output connection

For socket-type outputs, there two kinds of outputs: programmable outlets and general

outlets. Please connect non-critical devices to the programmable outlets and critical

devices to the general outlets. During power failure, you may extend the backup time to

critical devices by setting shorter backup time for non-critical devices.

For terminal-type input or outputs, please follow below steps for the wiring configuration:

a) Remove the small cover of the terminal block

b) Suggest using AWG14 or 2.1mm2power cords. Suggest using AWG12-10 or

3.3mm2-5.3mm2power cords for NEMA type.

c) Upon completion of the wiring configuration, please check whether the wires are

securely affixed.

d) Put the small cover back to the rear panel.

Step 4: Communication connection

Communication port:

USB port RS-232 port Intelligent slot

To allow for unattended UPS shutdown/start-up and status monitoring, connect the

communication cable one end to the USB/RS-232 port and the other to the communication

port of your PC. With the monitoring software installed, you can schedule UPS

shutdown/start-up and monitor UPS status through PC.

The UPS is equipped with intelligent slot perfect for either SNMP or AS400 card. When

installing either SNMP or AS400 card in the UPS, it will provide advanced communication and

monitoring options.

PS. USB port and RS-232 port can’t work at the same time.

Step 5: Network connection

Network/Fax/Phone surge port

Connect a single modem/phone/fax line into surge-protected “IN” outlet on the back panel of

the UPS unit. Connect from “OUT” outlet to the equipment with another modem/fax/phone line

cable.

Step 6: Disable and enable EPO function

Keep the pin 1 and pin 2 closed for UPS normal operation. To activate EPO function, cut the

wire between pin 1 and pin 2.

Step 7: Turn on the UPS

Press the ON/Mute button on the front panel for two seconds to power on the UPS.

Note: The battery charges fully during the first five hours of normal operation. Do not

expect full battery run capability during this initial charge period.

Step 8: Install software

For optimal computer system protection, install UPS monitoring software to fully configure

UPS shutdown. You may insert provided CD into CD-ROM to install the monitoring software. If

not, please follow steps below to download and install monitoring software from the internet:

1. Go to the website http://www.power-software-download.com

2. Click ViewPower software icon and then choose your required OS to download the

software.

3. Follow the on-screen instructions to install the software.

4. When your computer restarts, the monitoring software will appear as an orange plug icon

located in the system tray, near the clock.

Step 8: External battery connection (for long-run models only)

Follow below chart to make external

battery connection.

It’s in closed status for UPS

normal operation.

2.4 Battery replacement

NOTICE: This UPS is equipped with internal batteries and user can replace the batteries

without shutting down the UPS or connected loads.(hot-swappable battery design)

Replacement is a safe procedure, isolated from electrical hazards.

CAUTION!! Consider all warnings, cautions, and notes before replacing batteries.

Note: Upon battery disconnection, equipment is not protected from power outages.

Step 1

Step 2

Step 3

Remove front panel.

Disconnect battery wires.

Pull out the battery box by

removing two screws on the front

panel.

Step 4

Step 5

Step 7

Remove the top cover of battery

box and replace the inside

batteries.

After replacing the batteries, put

the battery box back to original

location and screw it tightly.

Re-connect the battery wires.

Step 8

Put the front panel back to the unit.

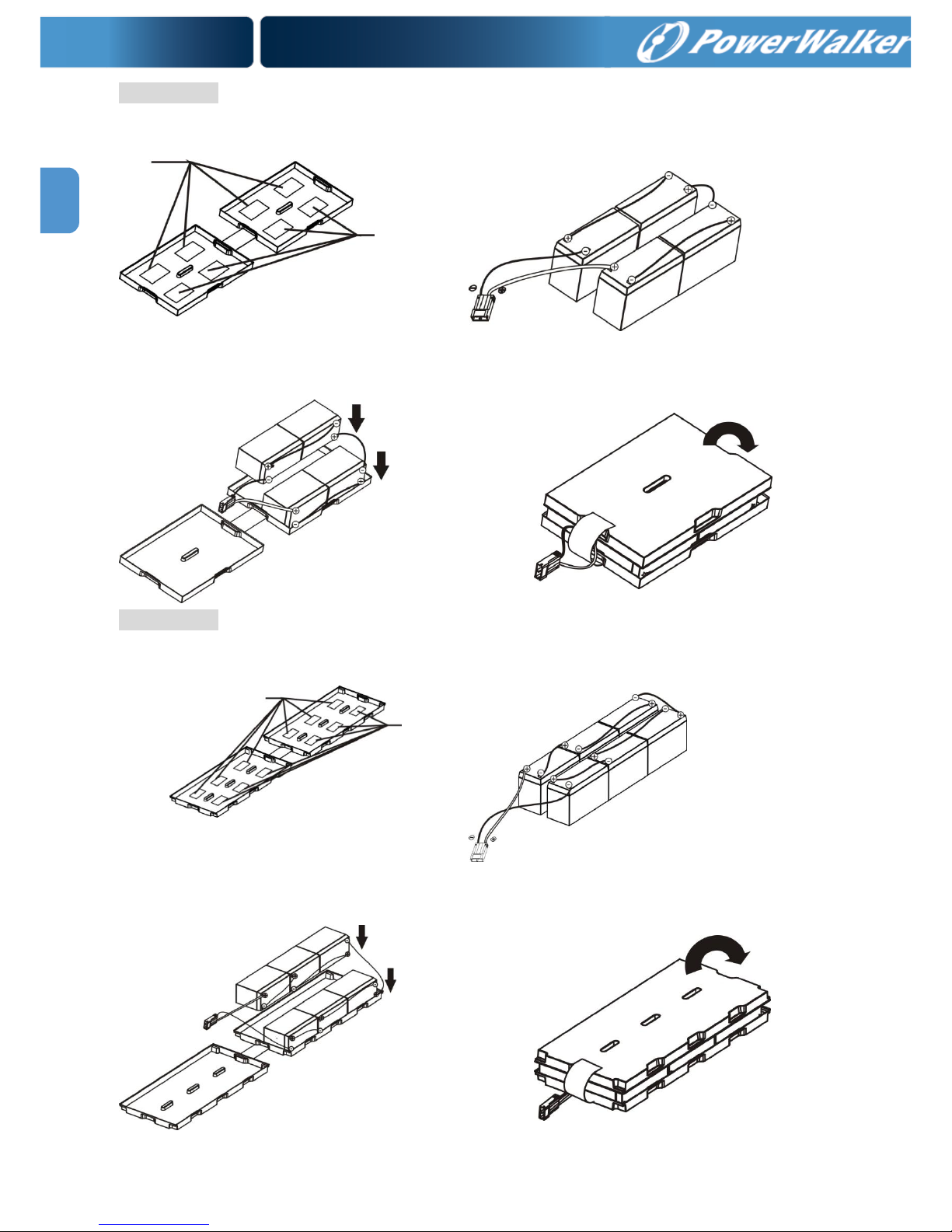

2.5 Battery kit assembly (option)

NOTICE: Please assemble battery kit first before installing it inside of UPS. Please select

correct battery kit procedure below to assemble it.

2-battery kit

Step 1: Remove adhesive tapes.

Step 2: Connect all battery terminals by

following below chart.

Step 3: Put assembled battery packs on

one side of plastic shells.

Step 4: Cover the other side of plastic shell as

below chart. Then, battery kit is assembly well.

Tapes

4-battery kit

Step 1: Remove adhesive tapes.

Step 2: Connect all battery terminals by

following below chart.

Step 3: Put assembled battery packs on

one side of plastic shells.

Step 4: Cover the other side of plastic shell as

below chart. Then, battery kit is assembly well.

6-battery kit

Step 1: Remove adhesive tapes.

Step 2: Connect all battery terminals by

following below chart.

Step 3: Put assembled battery packs on

one side of plastic shells.

Step 4: Cover the other side of plastic shell as

below chart. Then, battery kit is assembly well.

Tapes

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels PowerWalker UPS

PowerWalker

PowerWalker VFI 6000RT LCD Manuel utilisateur

PowerWalker

PowerWalker VI 400 SE Manuel utilisateur

PowerWalker

PowerWalker VFI 160K CPG 3/3 BX Manuel utilisateur

PowerWalker

PowerWalker VFI 6000CRM LCD Manuel utilisateur

PowerWalker

PowerWalker BP P96T Guide de l'administrateur

PowerWalker

PowerWalker VFI 10000P/RT LCD Manuel utilisateur

PowerWalker

PowerWalker VI 1200 Manuel utilisateur

PowerWalker

PowerWalker VI 650 SH Manuel utilisateur

PowerWalker

PowerWalker VI 3000RT LCD Manuel utilisateur

PowerWalker

PowerWalker VI 650 GX Manuel utilisateur

PowerWalker

PowerWalker VFI 6000 ICT Manuel utilisateur

PowerWalker

PowerWalker VI RT HID Series Manuel utilisateur

PowerWalker

PowerWalker VFI 10000CP 3/3 Manuel utilisateur

PowerWalker

PowerWalker VFI 1000R LCD Manuel utilisateur

PowerWalker

PowerWalker VFI 1000RT LCD Manuel utilisateur

PowerWalker

PowerWalker VFI CG PF1 Series Manuel utilisateur

PowerWalker

PowerWalker VFI 2000 RMG/S PF1 Manuel utilisateur

PowerWalker

PowerWalker VFI 1000 AT Manuel utilisateur

PowerWalker

PowerWalker VFI CPG PF1 3/3 Series Manuel utilisateur

PowerWalker

PowerWalker VFI 1000 Manuel utilisateur

PowerWalker

PowerWalker PowerWalker VFI 10000RT LCD Manuel utilisateur

PowerWalker

PowerWalker VFI 1000-3000 CG PF1 Manuel utilisateur

PowerWalker

PowerWalker VFI 6000 CG PF1 Manuel d'installation et d'exploitation

PowerWalker

PowerWalker VFI ICT IoT Series Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
