Package Contents

PP-8802 or PP-8803 Thermal Printer ( x 1)

Paper Separator for 2” Thermal Paper Roll (x1)

Thermal Paper Roll (x 1)

USB Cable (x 1)

Power Adaptor (x 1)

Power Cord (x 1)

User Manual (x 1)

Using poor-quality thermal papers which contain impurity

particles, for instance, sands, or metals, will scratch the

thermal paper head, and such a damage is not covered

under the warranty.

Overview

Top View

PP-8802/8803

Thermal Printer

User Manual

Cover Release

Button

Paper Exit

Printer Cover

Power LED

Error LED

Paper Out LED

FEED Switch

19760900030 Ver. C0

http://www.posiflex.com

Front View

Bottom View

Rubber Pad

Mounting

Holes

Power Button

Rubber Pad

Service

Window

Adjustment wheel

for paper end sensor

Views of I/O Interface

PP-8802

PP-8803

Loading 2” or 3” Paper Rolls

1. Press down the cover release button to open the top cover.

Cash drawer (CR) port

USB (Type B) Port

24 VDC-IN power jack

Serial DB-9 COM Port

LAN Port

USB (Type B) Port

Cash drawer (CR) port

24 VDC-IN power jack

Serial DB-9 COM Port

2. Before installing 2-inch paper roll in the thermal printer, follow the

instructions below to properly install plastic pad spacer and the

separator. If you are using 3” paper roll for the printer, please

skip to next step.

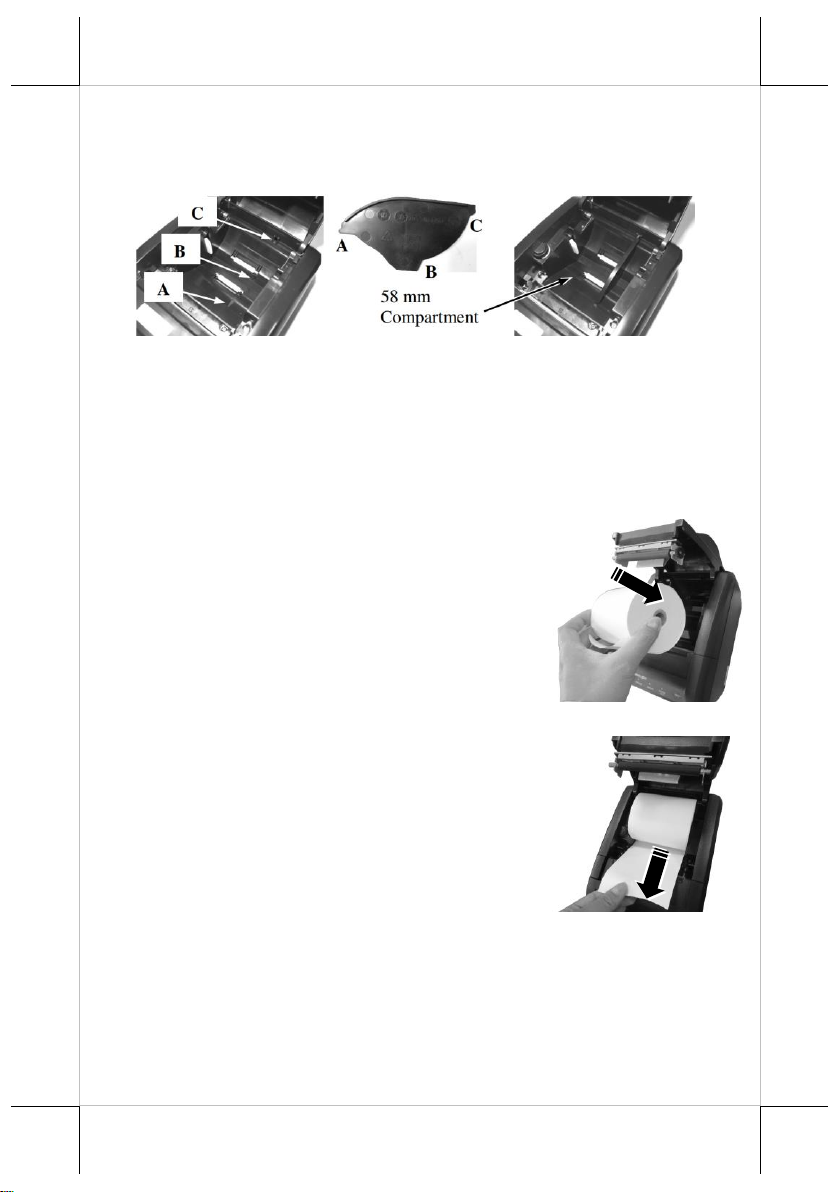

The application of 58 mm width (2-inch) paper roll in this printer can be

achieved through adoption of an option spacing plate and an internal DIP

switch setting. Please contact the service team for the DIP switch setting.

Please refer to the middle picture above for the 58 mm paper spacing plate

with its flange at top edge showing out. Insert the noted corners of the

spacing plate into the 3 dents inside the paper roll compartment as arrowed

in the left picture above with point A goes in first. Then the 58 mm paper

roll sub compartment is formed as in the right picture above.

3. To load the thermal printer with the 3-inch

paper roll, make sure the plastic pad is

removed from the printer compartment. Then,

carefully drop the thermal paper roll inside

the paper roll compartment of the printer as

illustrated in the figure.

4. Unroll the thermal paper and drag the loose

end of the paper till it extends towards the

paper cutter.

5. Make sure the loose end sticks out of the

opening of the paper roll compartment. Then,

close the top cover by gently pushing it back

at the center of the top side of the cover with

a click sound.

6. Make sure the paper roll is well loaded with

the end of the paper sticking out as shown in

the figure.

To avoid paper jam occurring, do NOT press Cover Release

Button during printing.

Connecting Power Adapter and I/O Cables

Please connect power adapter and I/O cables before operating the printer.

1. Well attach power adapter to DC-IN power connector on the I/O plate.

2. Connect PP-8802/8803 to the POS system using either USB or RS-232

cable.

2.1. If you are installing USB interface cable, plug Type-B

connector into Type-B USB port of printer. Then, properly

attach Type-A connector to your POS terminal.

2.2. If you are installing RS-232 cable, well attach the male

connector of RS-232 cable to printer and the other end to the

POS terminal.

In order to allow the printer to successfully detect what interface you are

using to transmit data, make sure ONLY ONE type of interface cable is

connected to avoid confusion. Also, reboot the printer after you

change the interface cable for the printer, which enables the printer to

automatically re-detect the type of interface which is currently used.

Mounting PP-8802/8803 onto a Wall (Optional)

Please follow the steps described below to mount POS printer on the wall

using wall-mount kits.

1. Define where the printer is mounted. Drill 2 holes about 3.15” or 80

mm apart. Each hole has to be at least 1/4” or 6.35 mm

diameter

and at least 1 and 3/16” or 30 mm in depth.

2. After inserting two plastic anchors into the

holes you drilled in Step 1, slightly tap the

plastic anchors with a hammer until they are

fully inserted into the drilled holes.

3. Insert the screws into the plastic anchor,

screw them in but leave them sticking out

from the wall surface to mount the printer.

4. As shown in the figure, locate two holes on

bottom of PP-8802/8803. Then, carefully

hang the printer onto the wall using the

plastic anchors with screws.

5. To get more detailed information of wall mounting, please refer to

relative wall mounting installation guide.

Troubleshooting Paper Jams

When it comes to the common printing problems, it is inevitable that you

might encounter the issue of paper jams at some point. The following steps are

provided to assist you in fixing the problem. Before proceeding, make sure that

your POS terminal is properly shut down.

1. To open the paper jams rescue compartment,

place your thumbs toward the center of the

compartment and then push the cover up in

the direction shown by the arrow.

2. In the paper jams rescue compartment, find

the adjustment wheel, which mainly allows

you to manually adjust the cutting position of

the cutter.

Adjustment wheel

3. Keep turning the wheel in a clockwise

direction until the cutter is completely moved

back to its start position. You may observe

the cutter position through the gap between

paper jams rescue compartment and the

printer compartment.

4. Push down cover release button to test

whether the cover can be open. If the cover is

still stuck, please repeat step 3 until the cutter

position is set to the proper position and you

are able to open the cover.

5. Remove the jammed paper, reinstall the

paper roll, and then push back the cover to

close the paper jams rescue compartment.

P.S. The adjustment wheel also can be turned by

using a screwdriver. The control hole is on the

right side of the compartment. Please refer to the

picture.

Restore Software Switch to Factory Default via Software Switch

Reset

Software Switch Reset is the specially-designed function aimed to facilitate

the factory reset process. Please go through the following instructions to reset

your printer to factory settings using Software Switch Reset.

1. Power off the printer.

2. Open the paper roll cover manually.

3. Keep pressing the feed button and then power on the printer. The

printer will emit one short beep sound.

4. Press the feed button of the printer 2times.

Screwdriver

5. Close the paper roll cover manually.

6. The printer will emit one short beep sound and then print a page

displaying software switch factory-default settings.

7. The printer will restart by itself.

Software switch number

Pin Number

SW1

Pin 1 ~ 8 = OFF

SW2

Pin 1 ~ 8 = OFF

SW3

Pin 1 ~ 8 = OFF

SW4

Pin 1 ~ 8 = OFF

Status LED Indicator

The below chart is provided to enumerate all the possible indicator

lights with their meanings for your reference.

LED

Status

Description

POWER LED

Solid green

System ON

Error LED

Solid red

Cover open

Flashing red

Printer busy

Paper-out LED

Solid red

Out of Paper

Performing a Self-Test of the Printer

1. Power off the printer.

2. Press and hold the feed button of the printer.

3. Power on the printer. The printer will emit one short beep sound.

4. Release the feed button of the printer.

5. The printer performs a self-test and prints out the self-test result.

If the paper-out LED indicator still turns bright in red, press the feed

button of the printer to make the printer print the remaining self-test

result.

6. Release the feed button of the printer and then the paper-out LED

indicator does not light.

Entering the Hexadecimal Dump Mode

To make the printer work in the hexadecimal dump mode, please go through

the following instructions.

1. Power off the printer.

2. Open the paper roll cover manually.

3. Press and hold the feed button of the printer.

4. Power on the printer. The printer will emit one short beep sound.

5. Release the feed button of the printer.

6. Close the paper roll cover manually.

7. The printer enters the hexadecimal dump mode and prints out the result

showing the “Hexadecimal Dump” message.

Cleaning

Cleaning the Printer Case

Before cleaning the printer case, be sure to power off the printer, and wipe the

dirt off the printer case with a soft wiping cloth we provide.

Do NOT clean the product with alcohol, benzene, thinner, or

other such solvents. Doing so may damage or break the parts

made of plastic and rubber.

Cleaning the Thermal Head and the Platen Roller

In most cases, it is strongly recommended to regularly cleaning the thermal

head to maintain receipt print quality (about once every 3 months). While

using the printer, always ensure that dust particles are removed from paper

rolls and the gear by using the platen roller with a cotton swab moistened with

water. Then, power on the printer only after water has dried.

After printing, the thermal head and its surroundings

can be overheated. Make sure that it is completely

cooled down before cleaning it.

Do not damage the thermal head with your fingers or

any other hard object.

Troubleshooting Common Printer Problems

The printer cannot print

Perform a self-test to check if printing is possible by following the steps

described below:

1. Close the paper cover.

2. While pressing the feed button, power on the printer. (Hold down the feed

button until printing starts.) The current printer status is printed.

3. Briefly press the feed button (less than one second) to continue the self-test.

The printer prints using the built-in character set. After the self-test printing,

the printer is reset and switches to standard mode.

LED Indicators are On/Flashing/Off

No lights is given by the LED indicators

Check whether the power supply cable is correctly connected to the printer and

the socket.

Error LED is on

Check whether the paper cover is closed.

Check if paper jam occurs or foreign substance enters the paper cutter.

When paper jams occur, refer to Troubleshooting Paper Jams section to

solve the problem.

The thermal head and its surroundings can be overheated, which may cause

printer malfunction. Printing starts again automatically when the thermal

head temperature falls.

Paper-out LED indicator is on

Check whether the paper roll is correctly installed.

Error LED indicator is flashing

Power off the printer; after 10 seconds, power it back on. If the error

LED indicator turns on again even after turning the power back on,

malfunction may occurs. Contact your dealer or Posiflex’ technical

service team.

Driver Download

Please download the relevant driver that you need from the Posiflex website

(http://www.posiflex.com/en-global/Download/download).

Specifications

PP-8802/8803

General

Printer Reliability

150 Km print length

Pulse Resistance

100 million pulses

NV Bit Image

Memory

24KB (max)

NV Graphics

256KB (max)

Receive Buffer

6KB

Printer Driver

Windows Driver(APD), UPOS(OPOS), Virtual COM

Driver, WEPOS

Software

Posiflex Uitlity (Android), PP-8800 Series Utility

(Windows Desktop), Development Tool, Monitoring

Tool

LED Indicators

Green LED - On= Power

Red LED - Error and/or Paper Out

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels POSIFLEX Imprimante

POSIFLEX

POSIFLEX PP-7900 Manuel utilisateur

POSIFLEX

POSIFLEX PP-6900 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP-6907 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP7000 Manuel utilisateur

POSIFLEX

POSIFLEX Aura PP-8800 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP-8000 Manuel utilisateur

POSIFLEX

POSIFLEX PP-7100 Manuel utilisateur

POSIFLEX

POSIFLEX Aura-900 Manuel utilisateur

POSIFLEX

POSIFLEX Aura PP-5200 Manuel utilisateur

POSIFLEX

POSIFLEX Aura PP7700 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP3000 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP4000 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP-7200L Manuel utilisateur

POSIFLEX

POSIFLEX PP-7600X Manuel utilisateur

POSIFLEX

POSIFLEX Aura - 6800 Manuel utilisateur

POSIFLEX

POSIFLEX PP7000 Manuel utilisateur

POSIFLEX

POSIFLEX PP3000 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP-8806 Manuel utilisateur

POSIFLEX

POSIFLEX PP3000 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP-8000 Manuel utilisateur

POSIFLEX

POSIFLEX AURASeries Instructions d'installation

POSIFLEX

POSIFLEX Aura PP7000-II Manuel utilisateur

POSIFLEX

POSIFLEX Aura PP-7000-III Manuel

POSIFLEX

POSIFLEX Aura-5200E Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur
