POSIFLEX PP-8800U Series Manuel utilisateur

Assembly Disassembly Guide

PP-8800U Series

Assembly Disassembly Guide

Table of Contents

Maintenance precautions..............................................................................................3

Preventive maintenance ................................................................................................3

Tools...............................................................................................................................4

Screws List......................................................................................................................4

Replacing Control Board ................................................................................................5

Replacing 3”Thermal Printer Mechanism......................................................................9

Assembly Disassembly Guide

Maintenance precautions

-Recommend to use the absolute alcohol for wiping & cleaning.

-NOT recommend to use naphtha and strongly corrosive solvents (e.g. with

Ammonia, formaldehyde, acetone… included) for cleaning.

Preventive maintenance

Maintenance items: dust, mildew, water vapor, oil stains, oxidation.

-Keep the operation environment with normal humidity & clean every day.

-Remove the dust buildup on the host terminal every month

-Clean the dirt/dust insides the terminal every year.

Assembly Disassembly Guide

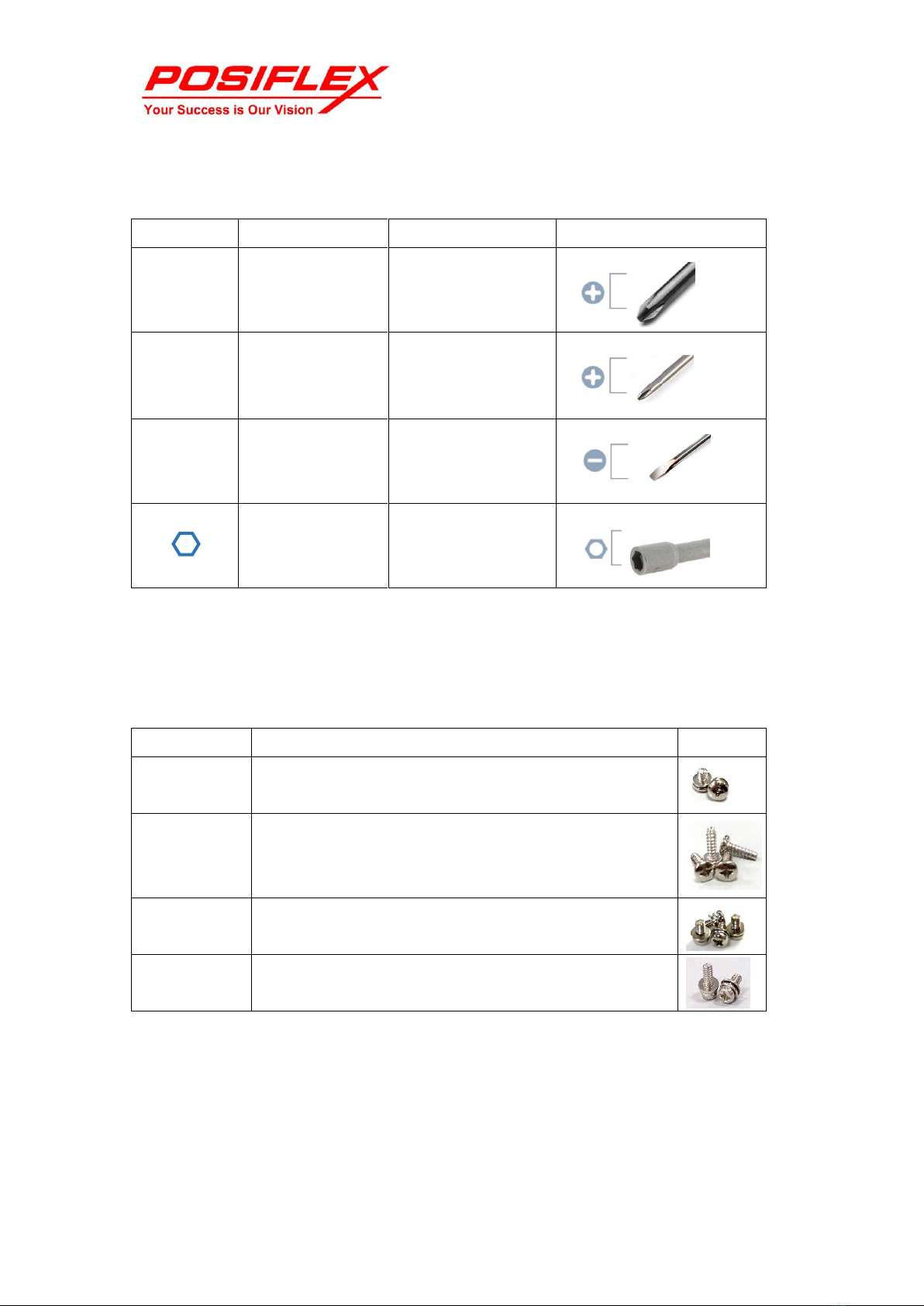

Tools

Screwdriver

Type

Specification


┿#2

Crosshead

Screwdriver

Point #2

┿#1

Crosshead

Screwdriver

Point #1

━

Slotted

Screwdriver

Thickness

0.4mm

Nut setter

Screwdriver

Hex Across Flat 5.0

Screws List

Parts No.

Specification


10684038062

BING HEAD SCREW#6/32-6L W/SW+W

10524030102

BING HEAD S-TAP SCREW ∮3-10L

10661030062

PAN HEAD SCREW M3-6L W/SW+PW

10661020052

PAN HEAD SCREW M2-5L W/SW+PW

Assembly Disassembly Guide

Replacing Control Board

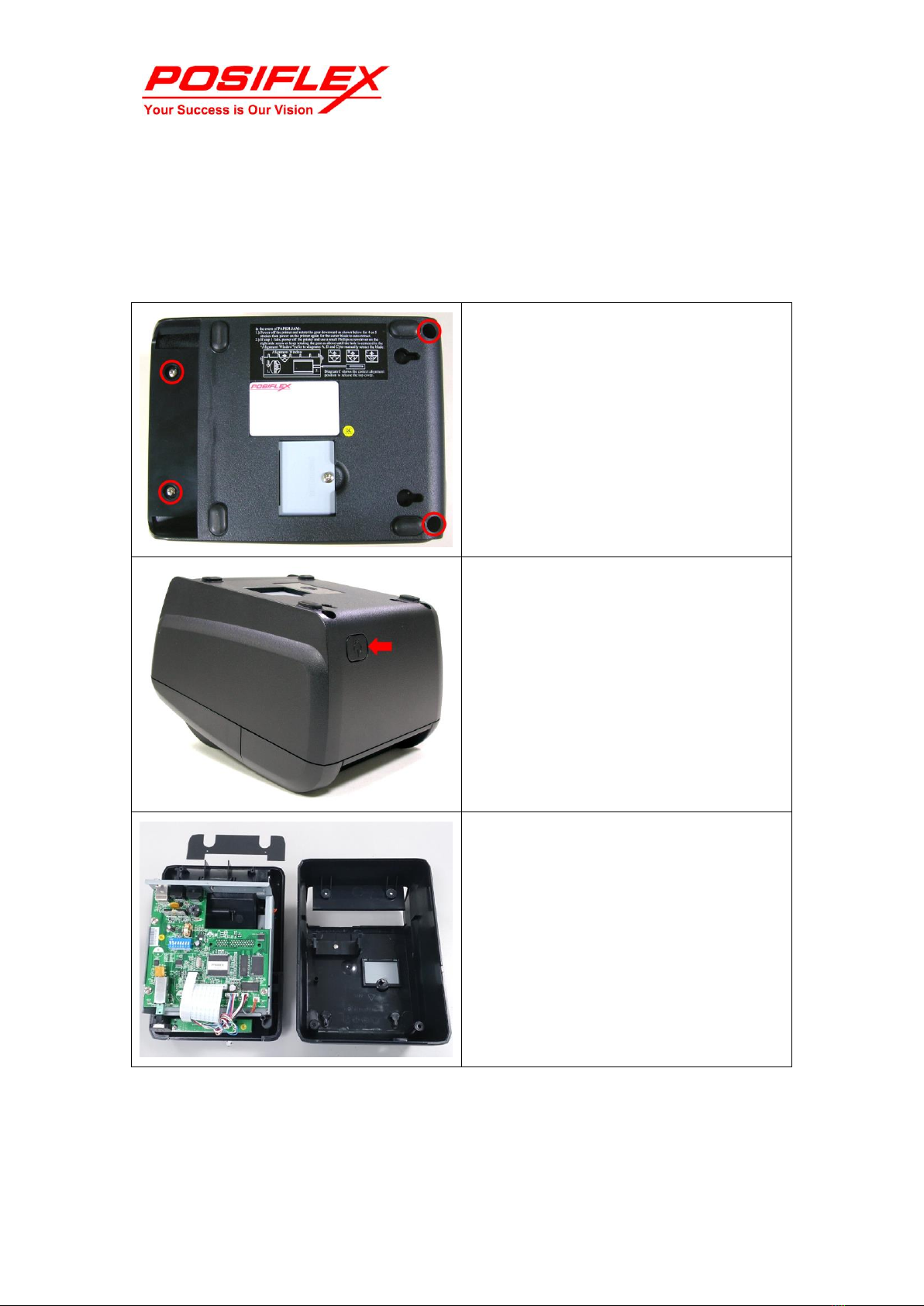

Loosen the four screws from bottom as

indicated in the picture.

Screwdriver ┿#2

Before remove the printer bottom cover,

please push the power button, so it’ll be

easier to take out the printer bottom cover.

Remove the plastic bottom cover as picture

shown.

Assembly Disassembly Guide

Unplug the cables as indicated in the

picture.

Loosen the three screws as indicated in the

picture.

Screwdriver ┿#2

Remove the plastic power button as

indicated in the picture.

Change a new control board.

P/N: 49775604102LN

Assembly Disassembly Guide

Install the new control board, then fasten

three screws as indicated in the picture to

fix it.

P/N:10684038062

Plug the cables as indicated in the picture

to the new control board.

Prepare the Bottom Plate as picture shown.

Place the Bottom Plate on the plastic

bottom cover, the shining side facing up, as

picture show.

Assembly Disassembly Guide

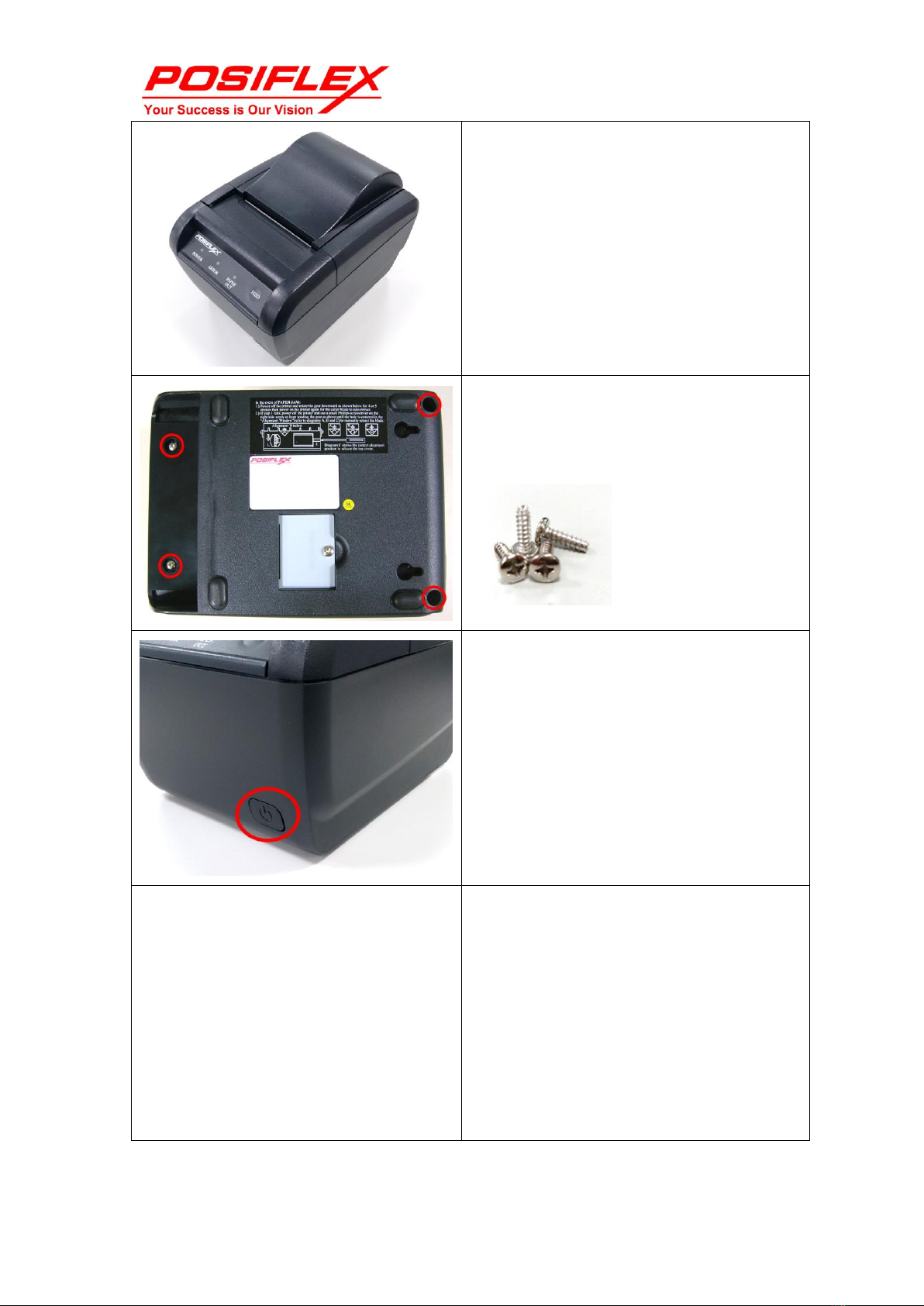

Install the printer bottom cover to the main

unit as picture shown.

Fasten the four screws as indicated in the

picture.

P/N: 10524030102

Install the power button as picture shown.

Assembly Disassembly Guide

Replacing 3”Thermal Printer

Mechanism

Loosen the four screws from bottom as

indicated in the picture.

Screwdriver ┿#2

Before remove the printer bottom cover,

please push the power button, so it’ll be

easier to take out the printer bottom

cover.

Remove the plastic bottom cover as

picture shown.

Assembly Disassembly Guide

Remove the LED cable from the control

board as indicated in the picture.

Open the paper cover first, then push the

cutter cover outward by following the

direction as indicated in the picture.

Loosen the four screws as indicated in

the picture while removing the paper

cover.

Screwdriver ┿#2

Remove the plastic paper cover as

picture shown.
