POSIFLEX PP-6900 Series Manuel utilisateur

Package Contents

Printer unit (PP-6900: for Windows; PP-

6901: for Android)

Thermal sensitive paper roll of 80 mm

width

One piece of spacer plate for the paper

roll of 58mm width

One of the interface cables:

USB cable for PP-6900/6901

Serial cable with 9 pin D sub

Female to 9 pin D sub Male

connectors for PP-6900S/6901S

serial model

Parallel cable with 25 pin D sub

Male to 25 pin D sub Female

connectors for PP-6900P parallel

model

No interface cable for PP-6900L

or PP-6900W/6901W

Power adaptor + power cord

(depending on a specific country or

region)

User Manual x1

Views of PP-6900/6901

Top View

PP-6900/6901

Thermal Printer

User Manual

19780901020 Ver. A0

http://www.posiflex.com

Paper Cover

Top Cover

Hood Release

Button

Power LED

Error LED Paper-Out

LED

Feed Button

Roll Paper

Exit

Front View

Bottom View

Power Button

Bottom Cover

Rubber Foot Rubber Foot

Wall Mount Hanging Hole

Window Plate Screw

Setup Window Plate

Rear View

QUICK START-UP

LOADING A PAPER ROLL

While loading a paper roll for PP-6900/6901, please

do NOT power ON your printer.

Start to load a paper roll according to the following steps.

Frame Ground Screw

USB Port

eripheral Port

ower Connector

Serial Port

Serial Adaptor

Fixation Screw

(I/O Area for PP-6900S/6901S)

Parallel Port

Parallel Adaptor

Fixation Screw

Wi-Fi Indicator

Reset Button

LAN Port

LAN Adaptor

Fixation Screw

(I/O Area for PP-6900L)

Reset

Button

(I/O Area for PP-6900P)

(I/O Area for PP-6900W/6901W)

1. Press down the hood release button to

release the paper cover.

2. Raise the released paper cover manually and

drop the thermal paper roll inside the printer

as shown in the right figure.

3. It is essential to close the paper cover by

pushing its middle leading edge, so as not to

apply uneven force, resulting in not fully

engaged activity, and make the tail of the

paper roll come out of the track between the

hood and the top cover.

Excessive paper will be cut off

automatically when the printer is powered

ON.

4. If you want to use a paper roll of 58mm

width, install the spacer plate in the

compartment of the printer, as shown in the

right figure, and then load the paper roll of

58mm width into the partition at the left

side of the plate.

When to Replace Paper Roll

When the printer gives a paper out signal or a

red line appears on the thermal sensitive

paper, it is time to replace the paper roll. Do

not wait till the print engine is dragging the

paper roll at the very end. Remove the

leftover and replace the old paper roll with a

new paper roll as guided above to prevent the

printer from excessive paper dust and lower

the possibility of consequent paper jam.

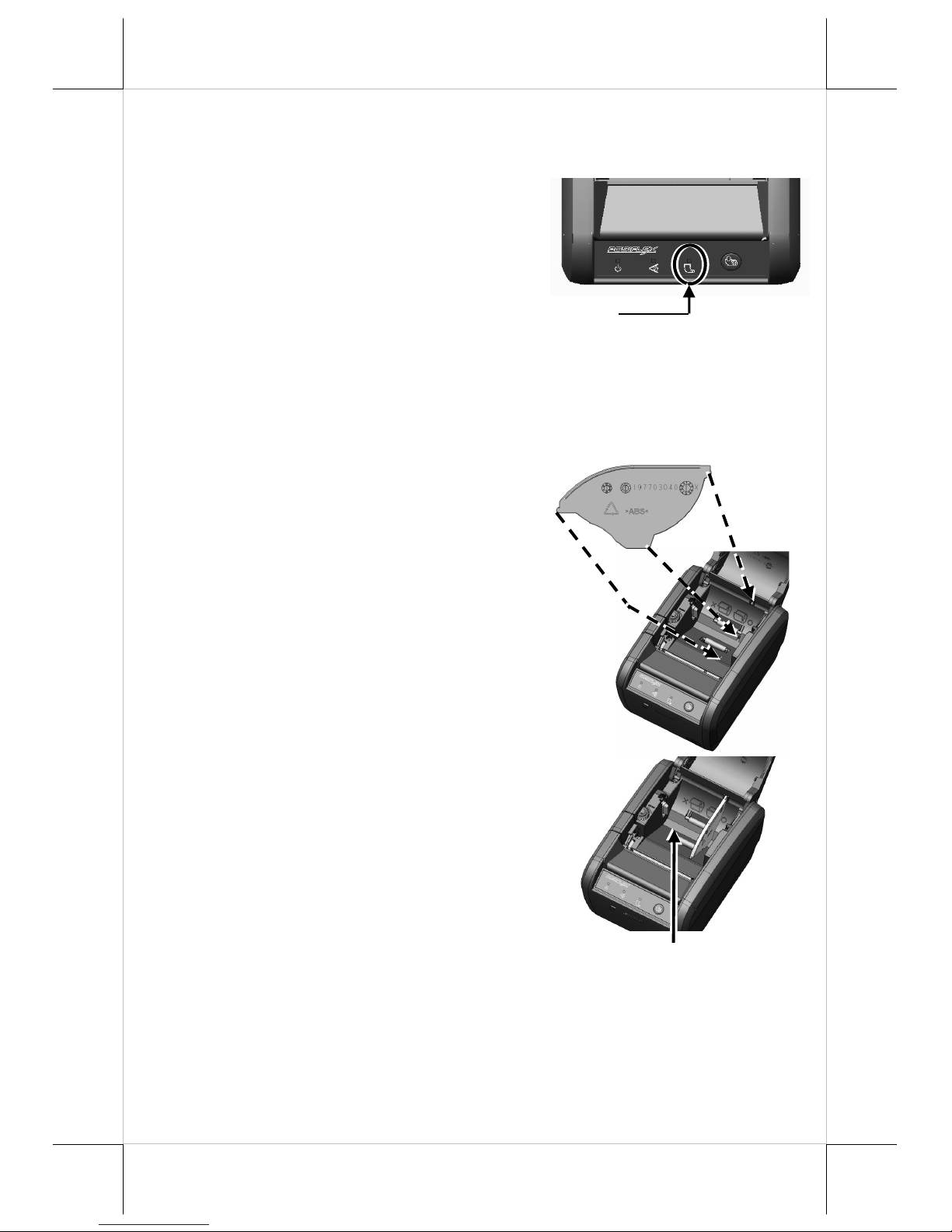

Spacer

Plate Installation for Paper Roll of 58mm Width

Before installing the 58mm-width paper roll,

please refer to the figure shown at the right

for mounting the spacer plate to the paper roll

compartment of the printer.

Note that the smooth side is toward the paper

roll.

Insert the noted corners of the spacer plate

into the 3 dents inside the paper roll

compartment as arrowed in numeric order.

Then the 58mm-width paper roll compartment

is formed.

58mm-width Compartment

Paper-out signal

ON DIP

PRINT HEAD CLEANING

The print head is located underneath the

roll paper passage at the exit. You can

clean the thermal sensitive elements of

the print head and paper roll sensor

gently by using a cotton swab moistened

with isopropyl alcohol solvent.

PRINTER SETUP

There are two different ways to set up PP-

6900/6901. The first way of setup is

implemented through the hardware DIP Switch

on the bottom of printer for setting up

functions such as baud rate, paper width and

others. The second one is implemented through a software utility to adjust the

switch, such as printer density and other functions.

Setup

through

Hardware DIP

Switch

On the bottom cover of the PP-6900/6901 series thermal sensitive printer,

there is a screwed metal plate for setup window. In this window, there is

an 8-position DIP switch for printer setup. Please use a proper tool to

change the switch setting, if necessary. The functions of each position

may evolve with the revisions of the firmware. The information below is

regarding DIP Switch Position Behavior Table.

DIP Switch Position Behavior Table

Switch

position

ON OFF

1~2 Baud rate definition (Refer to the table below)

3~4 Paper Width & Printable Width (Refer to the table below)

5 Print speed (200 mm / sec) Print speed (170 mm / sec)

6 USB interface (Default) Other interface

7 Auto Cutter Disable Auto Cutter enable

8 Firmware Update Enable Firmware Update Disable

Paper Roll Sensor

Thermal Sensitive Elements

Setup through software switch:

Another method of setting up PP-6900/6901 series is implemented

through the software switch setting, which means that software utility

must be used for setup of other functions.

For the above 2 setup procedures, please visit our web site

http://www.posiflex.com/up/Download/downlaod to download the PP-

6900/6901 jumper settings.

SPECIFICATIONS

PRINTER

ITEM SPECIFICATION

OS supported PP-6900: for Windows-based terminal

PP-6901: for Android-based terminal

Printing method Thermal sensitive line dot method

Effective printing width 64 mm / 72mm (Max.)

Thermal head configuration 512 dots line / 576 dots line

Printing speed 200 mm / sec. max.

Paper feed method Friction auto-feed

Paper load method Drop and use

Auto-cutter capability Partial cut (1 point at center left)/full cut

Paper cutting method Guillotine cutting

Manual cutter Saw tooth blade

Dot Pitch 0.125 x 0.125 mm

Life span of print length 100 km

Life span of paper cutting 1 million or more

Input power type DC

Input voltage 24 V + / - 5 %

Dimension (mm) 148 (W) x 205 (D) x 143 (H)

Weight 1.2 Kg net

PAPER

PAPER TYPE THERMAL ROLL PAPER

Paper roll formation External side is heat-sensitive side

Paper width 80 (or 58) + 0 / - 1 mm

Paper roll outer diameter 83 mm max.

Paper roll inner diameter 12 + 1 / - 0 mm

Paper thickness 60 ~ 80 um

POWER ADAPTOR

ITEM REQUIREMENT

Input voltage 100 V AC ~ 240 V AC

Input frequency 50 ~ 60 HZ

Input current 1.8 A MAX. @ 115 V AC

Output voltage + 24 V DC

Output power 50 W

Static load 0 A ~ 2.08A

Output regulation + / - 5 %

EMI standards VDE – A, FCC – A, VCCI – A

MULTIPLE INTERFACE ISSUE

For model PP-6900/6901, there is only 1 connector for host connection

through USB. For PP-6900P/6901P, there are 2 connectors for host

connection: USB and in addition to parallel port. For PP-6900S/6901S,

there are 2 connectors for host connection: USB Port and in addition to the

serial port. For PP-6900L/6901L, there are 2 connectors for host

connection: USB and in addition to the LAN port. Please always connect

only one interface at a time. Simultaneous multiple host connections

could result in unexpected results!

To get the detailed information on

※

※※

※

PP-6900/6901, please check this model

from Posiflex Global Website (http://www.posiflex.com/en-

global/Download/download).
