POSIFLEX PP-7600X Manuel utilisateur

Package Contents

PP-7600X POS Printer…………….(x1)

80mm-wide Thermal Paper………..(x1)

(For operational testing)

58mm Paper Spacer Plate………….(x1)

24V/60W Power Adapter………….(x1)

Power Cord………………………...(x1)

USB Cable…………………………(x1)

RS232 Cable (Optional)…………...(x1)

Soft Wiping Cloth………………….(x1)

(For shinning case only)

User Manual………………………..(x1)

Product Features

3" thermal printer with auto cutter

Printing speed up to 200 mm/sec

80 mm or 58 mm paper width support

Drop-and-load action for easy paper roll replacement

Control over 2 cash drawers through 1 D.K port

Interface: USB (True USB & Virtual COM selectable), Serial

and Ethernet

Paper near end sensor

Optional LD-2100 light bar modular

To avoid paper jam occurring, do NOT press the printer’s cover

open lever during printing.

When a paper jam occurs, press the cover open lever to release the

paper cover. Then, remove the jammed paper and reinstall the

paper roll. Next, close the paper cover properly and firmly.

If the auto cutter is also jammed, the paper cover will be locked.

Should the cutter jam be so serious to interfere the paper cover

release operation, please push the paper cover and press the cover

open lever several times. If the problem cannot be solved none the

less, please call your local service center for help right away.

PP-7600X

POS Printer

User Manual

19302901010 Ver. Original

http://www.posiflex.com

Views of the PP-7600X

Front View

Part Names

Description

Power Button

This button turns the printer power on or off.

Power LED Indicator

This indicator turns on when the printer power is

on.

Error LED Indicator

This indicator works when the printer has

something wrong. For more details, refer to the

Status LED Indicators section given below.

Paper-out LED

Indicator

This indicator turns on when the paper-out issue

occurs.

Feed Button

Press this button once to feed the paper roll for one

line. Hold down this button to continue feeding the

roll paper

Paper Cover

Open this cover when installing or replacing the

paper roll.

Cover Open Lever

Push this lever to open the paper roll cover.

Paper Exit

An opening where the paper is outputted

Paper-out LED Indicator

Wedge Groove

Power Button

Power LED Indicator

Error LED Indicator

Feed Button

Cover Open Lever

Paper Roll Exit

Paper Cover

Paper Near End Sensor

Paper Roller

Part Names

Description

Wedge Groove

Aligns and fixes the paper spacer plate

Paper Near End Sensor

(Provided for adjusting the detection position to suit

the diameter of the paper core used, and for

adjusting the detection position of remaining

amount of paper)

Rear View

Part Names

Description

I/O Cable Jack

for LD-2100

Connects the I/O cable of LD-2100

Printer Power

Connector

Connects the DC cable for the power adapter of PP-

7600X

Printer Power Connector

Cable Cover

I/O Cable Jack for LD-2100

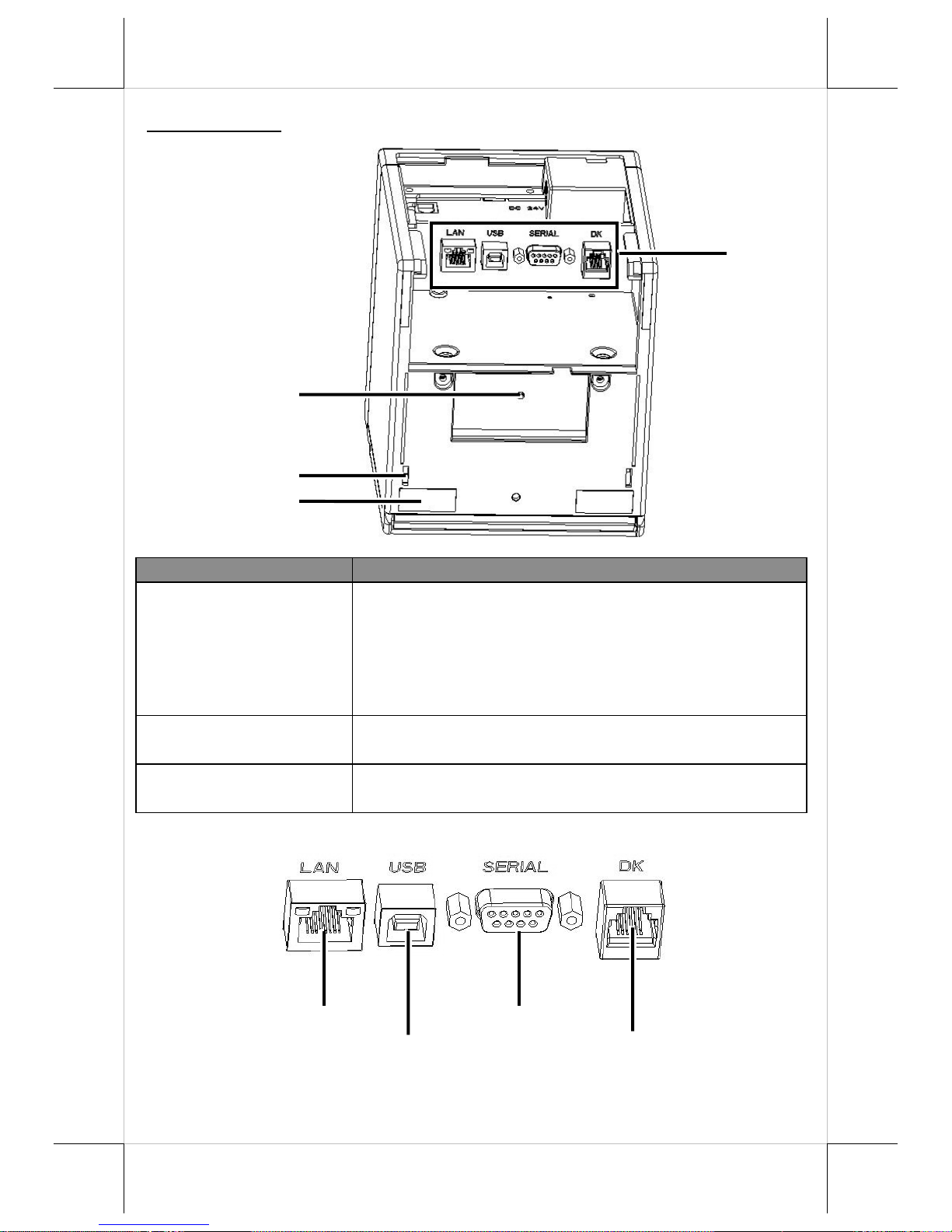

Bottom View

Part Names

Description

I/O Ports

LAN port connector (RJ45)

USB connector (Type-B)

Serial port connector (DB9)

DK (Drawer Kick) connector (RJ10)

Fixing Screw Hole

for LD-2100

Formed for fixing the optional LD-2100 light bar

Wedge Groove

for LD-2100

Formed for fixing the optional LD-2100 light bar

I/O Ports of the PP-7600X

Rubber Foot

I/O Ports

Wedge Groove

for LD-2100

Fixing Screw Hole

for LD-2100

Serial (DB9) Port

D.K (RJ10) Port

USB Port (Type-B)

LAN (RJ45) Port

Loading a Paper Roll

Before loading a paper roll, make sure you use a specified paper type. Follow

the steps below to load a paper roll.

1. Press down the cover open lever to

release the paper cover.

2. The paper cover ejects. Then, open the

paper cover manually.

3. Drop the thermal paper inside the paper

compartment of the printer, as shown in

the right figure.

4. Drag the paper roll to the portion where

the paper roller is installed.

Paper Roller

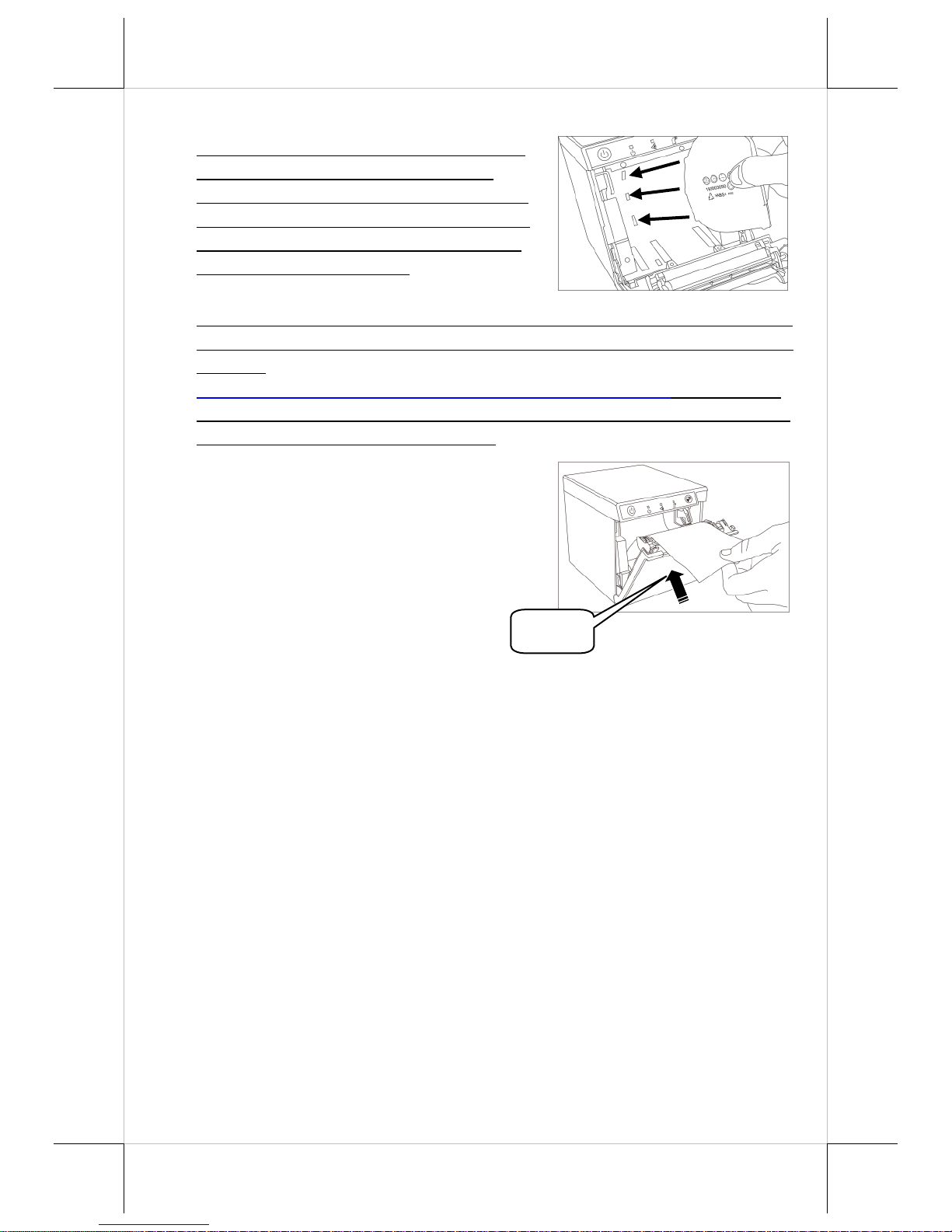

If you want to use a paper roll of 58mm

width, install the spacer plate in the

compartment of the printer, as shown in

the right figure, and then load the paper

roll of 58mm width into the partition at

the right side of the plate.

Next, set the paper width by using the PP-7600X software switch utility.

The software switch utility can be downloaded from the Posiflex’ global

website:

http://www.posiflex.com/en-global/Download/download. To get more

detailed information on the paper width jumper setting, contact directly

the Posiflex’ technical service team.

5. To avoid the paper cover not being

locked completely, push the central

portion of the paper cover to close.

Push

Connecting Power Adapter and I/O Cables

Follow the steps listed below to open the rear cover and connect cables.

1. Hold the concave portion of the cable cover

with thumb, as shown in the circled portion

of the figure.

2. Pull the cover in the direction indicated by

the arrow in the right figure.

3. Remove the cable cover.

4. Connect power adapter to the printer power

connector of the PP-7600X.

5. Connect I/O cable(s) to the I/O port(s) of the

PP-7600X.

Remove

Connect

to I/O ports

6. Make the cable cover wedge to the printer.

Determine that the cable cover is well

wedged to the printer.

7. Cover the I/O ports of the printer.

8. Determine that the cable cover is completely

closed.

Installing the Posiflex LAN POS Printer Manager

To allow you to easily do settings of the LAN printer, please install the LAN

POS printer Manager Utility (Utility Name: PP-7600 Series LAN and WIFI

POS printer Manager Utility). To download the manager, go to the Posiflex’

global website: http://www.posiflex.com/en-global/Download/download to

download the up-to-date utility.

After downloading the manager utility, it is suggested to do settings through

USB interface.

However, to avoid users doing settings by mistake, it is suggested that

professional technicians implement the setup. To do more advanced settings on

the printer, contact directly the Posiflex’ technical service team.

Installing the USB Printer Virtual COM Port Driver

If you use software programs that communicate with your POS terminal via a

serial interface (e.g. COM1...COM8), but your POS system does not have any

serial port, you will require a so-called virtual COM port driver. This virtual

COM port driver allows you to assign a virtual COM port connection number

to your POS terminal connected via a USB port and enables bidirectional

communication between your POS terminal and the printer.

To download the USB Printer Virtual COM Port Driver, go to the Posiflex’

global website: http://www.posiflex.com/en-global/Download/download to

download the up-to-date driver of the PP-7600X printer.

After downloading the driver, start to install it. When you finish installing the

driver, it is suggested to turn on your POS terminal again. The system will

automatically detect the PP-7600X printer.

Firmly Closed

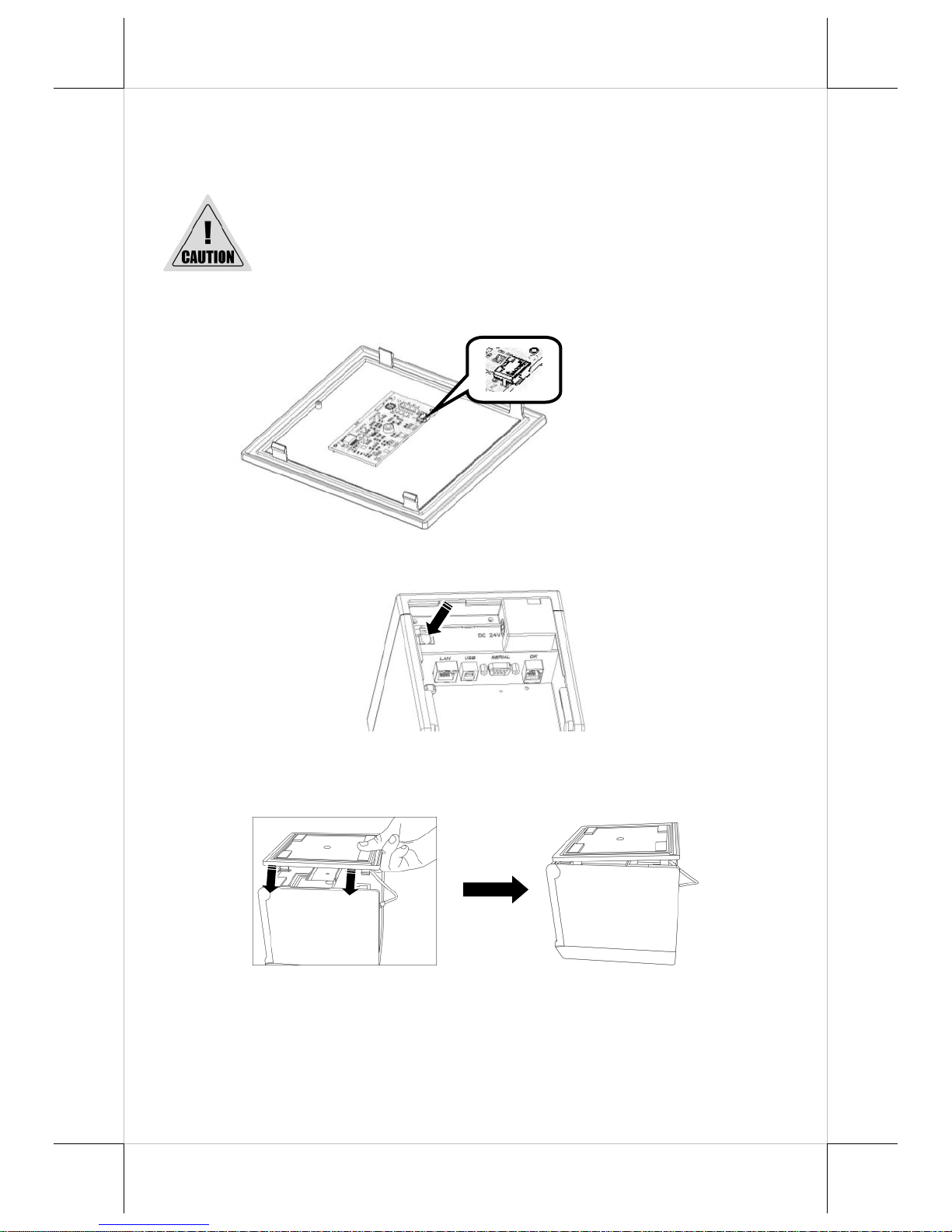

Installing the LD-2100 Light Bar (Optional)

Follow the steps below to install the LD-2100 light bar on the PP-7600X

printer.

Power off the printer when installing the LD-2100 light bar.

1. Securely connect the pin header of the LD-2100 I/O cable to the pin

connector on the LD-2100 control board.

2. Plug the RJ11 connector of the LD-2100 cable into the LD-2100 I/O

cable jack of the PP-7600X printer.

3. Install the LD-2100 light bar onto the bottom side of the PP-7600X by

making the four joints formed on the LD-2100 wedge to the four wedge

grooves formed on the PP-7600X.

4. Determine that the LD-2100 securely connects to

the PP-7600X.

5. Fix the LD-2100 to the bottom side of PP-7600X

with a screw.

6. The installation of LD-2100 light bar is

completed.

After installing the LD-2100 light bar, you can set up the LD-2100 by using

the Posiflex LD2100 Tool. For more detailed information, refer to the Posiflex

LD2100 Tool. To download the LD2100 Tool and its manual, go to the

Posiflex’ global website: http://www.posiflex.com/en-

global/Download/download.

Powering ON the PP-7600X Printer

1. Press the power button of the printer.

2. The power LED indicator stays bright and solid

green when the printer is powered ON.

LD-2100

Light Bar
