Package Contents

POS Printer………………………...(x1)

80mm-wide Thermal Paper………..(x1)

(For operational testing)

58mm Paper Spacer Plate………….(x1)

24V/60W Power Adapter………….(x1)

Power Cord………………………...(x1)

USB Cable…………………………(x1)

To avoid paper jam occurring, do NOT press the printer’s cover

open lever or pull the printed paper during printing.

When a paper jam occurs, press the cover open lever to release the

paper cover. Then, remove the jammed paper and reinstall the

paper roll. Next, close the paper cover properly and firmly.

If the auto cutter is still jammed, the paper cover will be locked.

Should the cutter jam be so serious to interfere the paper cover

release operation, please push the paper cover back and press the

cover open lever several times. If the problem cannot be solved

none the less, please call your local service center for help right

away.

FCC NOTES

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

PP-7900W

POS Printer

User Manual

PP-7900W Ver. A0

CE CLASS A WARNING

This equipment is compliant with Class A of CISPR 32. In a residential environment this

equipment may cause radio interference.

AVERTISSEMENT CE CLASSE A

Cet équipement est conforme à la classe A de CISPR 32. Dans un environnement résidentiel, cet

équipement peut provoquer des interférences radio.

WARRANTY LIMITS

Warranty will terminate automatically when the machine is opened by any person other than the

authorized technicians. The user should consult his/her dealer for the problem happening.

Warranty voids if the user does not follow the instructions in application of this merchandise. The

manufacturer is by no means responsible for any damage or hazard caused by improper application.

LIMITES DE GARANTIE

La garantie prend fin automatiquement lorsque la machine est ouverte par une personne autre que

les techniciens autorisés. L'utilisateur doit consulter son revendeur pour le problème qui se produit.

La garantie s'annule si l'utilisateur ne suit pas les instructions d'application de cette marchandise.

Le fabricant n'est en aucun cas responsable de tout dommage ou danger causépar une mauvaise

application.

警告使用者

為避免電磁干擾，本產品不應安裝或使用於住宅環境。

SAFETY INSTRUCTIONS

This equipment is not suitable for use in locations where children are likely to be present.

CONSIGNES DE SÉCURITÉ

Cet équipement ne convient pas àune utilisation dans des endroits où des enfants sont susceptibles

d'être presents.

WARNING

Power cord shall be connected to a socket-outlet with earthing connection.

ATTENTION

Le cordon d'alimentation doit être connecté à une prise de courant avec mise à la terre.

Views of the PP-7900W

Front View

Paper-out LED Indicator

Power Button

Power LED Indicator

Error LED Indicator

Feed Button

Cover Open

Lever

Paper Roll Exit

Paper Cover

Paper Near End

Sensor (Option)

Wedge Groove

Part Names

Description

Power Button

This button turns the printer on or off.

Power LED Indicator

This indicator turns on when the printer is on.

Error LED Indicator

This indicator works when the printer has

something wrong. For more details, refer to the

Status LED Indicators section given below.

Paper-out LED

Indicator

This indicator turns on when the paper-out issue

occurs.

Feed Button

Press this button once to feed the paper roll for one

line. Hold down this button to continue feeding the

roll paper

Paper Cover

Open this cover when installing or replacing the

paper roll.

Cover Open Lever

Push this lever to open the paper roll cover.

Paper Exit

An opening where the paper is outputted

Wedge Groove

A settled routine that makes the paper spacer plate

hard to escape

Paper Near End Sensor

(Option)

Provided for adjusting the detection position to suit

the diameter of the paper core used, and for

adjusting the detection position of remaining

amount of paper

Bottom View

Printer Power 24V

DC-IN Connector

CR Port

USB Type B Port

LAN Port

Loading a Paper Roll

Before loading a paper roll, make sure you use a specified paper type. Follow

the steps below to load a paper roll.

1. Press down the cover open lever to

release the paper cover.

2. The paper cover ejects. Then, open the

paper cover manually.

3. Drop the 80mm-wide thermal paper

inside the paper compartment of the

printer, as shown in the right figure.

Status Indicator for

WiFi Connection

Reset Button

4. Drag the paper roll to the portion where

the paper roller is installed.

If you want to use a paper roll of 58mm

width, install the spacer plate in the

compartment of the printer, as shown in

the right figure, and then load the paper

roll of 58mm width into the partition at

the right side of the plate.

Next, set the paper width by using PP-7900 Series thermal Printer

Software Switch Utility for Windows. The software switch utility can

be downloaded from the Posiflex’ global website:

https://download.posiflex.com/en-global/Download/index/driver/POS-

Printer/AURA_PP-7900W). To get more detailed information on the

paper width jumper setting, contact directly the Posiflex’ technical

service team.

5. To avoid the paper cover not being

locked completely, push the central

portion of the paper cover to close.

Connecting Power Adapter and I/O Cables

Follow the steps listed below to open the rear cover and connect cables.

1. Hold the concave portion of the cable cover

with thumb, as shown in the circled portion

of the figure.

Paper Roller

Push

2. Pull the cover in the direction indicated by

the arrow in the right figure.

3. Remove the cable cover.

4. Connect the power adapter and the other I/O

cables to the I/O ports of the printer.

Please follow the instruction given below to connect I/O cables

before powering on the printer.

Connect the POS printer with an USB cable, or a LAN cable to

your POS terminal. After being powered ON, the POS printer

will automatically detect its connected I/O port.

5. Make the cable cover wedge to the printer.

Determine that the cable cover is well

wedged to the printer.

6. Cover the I/O ports of the printer.

Remove

7. Determine that the cable cover is completely

closed.

Setting up the Printer

The PP-7900W can be set through the specific software switch setting utility

for setup of other functions. Please visit our web site

https://download.posiflex.com/en-global/Download/index/driver/POS-

Printer/AURA_PP-7900W to download the Thermal Printer Software

Switch Utility for Windows. After downloading the utility, please call your

service center for support before operating the software switch setup.

Please reboot the printer after the switch settings are done.

Installing the USB Virtual COM Port Driver

If you use software programs that communicate with your POS terminal via a

serial interface, but your POS system does not have any serial port, you will

require a so-called virtual COM port driver. This virtual COM port driver

allows you to assign a virtual COM port connection number to your POS

terminal connected via a USB port and enables bidirectional communication

between your POS terminal and the printer.

To download the USB Virtual COM Port Driver, go to the Posiflex’ global

website: https://download.posiflex.com/en-

global/Download/index/driver/POS-Printer/AURA_PP-7900W to download

the up-to-date driver of the POS printer.

After downloading the driver, start to install them. When you finish installing

the driver, it is suggested to turn on your POS terminal again. The system will

automatically detect the POS printer.

Restore Software Switch to Factory Default via Software

Switch Reset

Software Switch Reset is the specially-designed function aimed to facilitate the

factory reset process. Please go through the following instructions to reset your

printer to factory settings using Software Switch Reset.

1. Power off the printer.

2. Open the paper roll cover manually.

3. Keep pressing the feed button and then power on the printer. The printer

will emit one short beep sound.

Firmly Closed

4. Press the feed button of the printer 2times.

5. Close the paper roll cover manually.

6. The printer will emit one short beep sound and then print a page

displaying software switch factory-default settings.

7. The printer will restart by itself.

Doing WiFi/LAN Settings Reset

Among multiple built-in functions, LAN Settings Reset mainly

allows you to reset LAN settings to factory default. The

following steps are provided to help you complete the reset

process.

1. Power off the printer.

2. Open the paper roll cover manually.

3. Keep pressing the feed button and then power on the printer. The printer

will emit one short beep sound.

4. Press the feed button of the printer 4times.

5. Close the paper roll cover manually.

6. The printer will emit one long beep sound and then print a page displaying

LAN default settings.

7. The printer will restart by itself.

8. Ensure that WiFi/LAN settings is correctly set to factory default as follows:

WiFi/LAN Interface Information for Factory Default

IP Address

WiFi interface: 192.168.192.168

LAN interface: 192.168.192.166

NETMASK

255.255.255.0

GATEWAY

192.168.192.168

LINK STATUS

DISCONNECT

Performing a Self-Test of the Printer

1. Power off the printer.

2. Press and hold the feed button of the printer.

3. Power on the printer. The printer will emit one short beep sound.

4. Release the feed button of the printer.

5. The printer performs a self-test and prints out the self-test result.

If the paper-out LED indicator still turns bright in red, press the feed

button of the printer to make the printer print the remaining self-test result.

6. Release the feed button of the printer and then the paper-out LED indicator

does not light.

Configuration of WiFi/LAN Printer

Posiflex LAN WiFI Printer Manager through WiFi mode

The default IP address of PP-7900W in WiFi mode is 192.168.192.168.

1. Connect USB cable to the printer module and the POS terminal.

2. Turn on the printer.

3. Please visit our web site https://download.posiflex.com/en-

global/Download/index/driver/POS-Printer/AURA_PP-7900W to

download the Posiflex LAN WIFI Printer Manager Utility for

Windows.

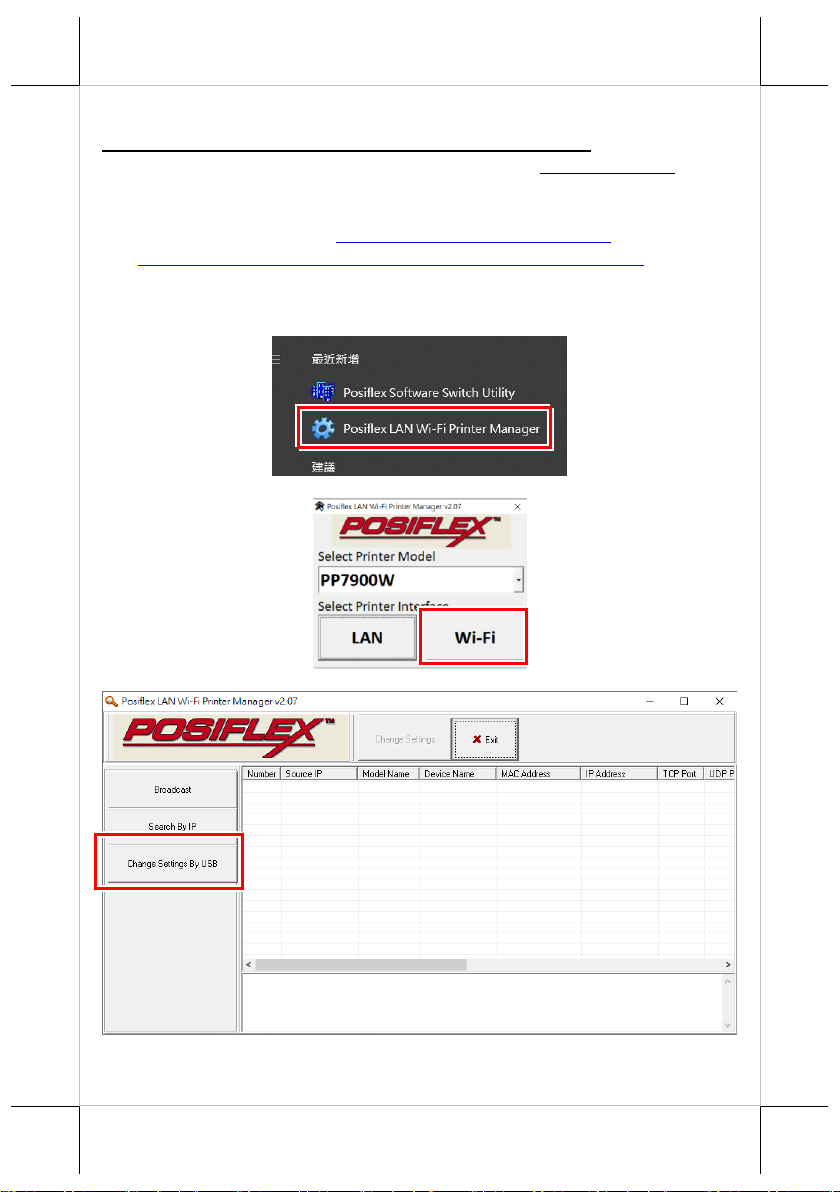

4. Open the Posiflex LAN WIFI Printer Manager Utility for Windows.

5. Select printer model and printer interface –Wi-Fi.

6. Select “Change Settings By USB”.

7. Make sure the WiFi hotspot of your host POS terminal is turned on.

Table des matières

Autres manuels POSIFLEX Imprimante

POSIFLEX

POSIFLEX AURASeries Instructions d'installation

POSIFLEX

POSIFLEX PP-8800U Series Manuel utilisateur

POSIFLEX

POSIFLEX PP-8902 Manuel utilisateur

POSIFLEX

POSIFLEX PP3000 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP3000 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP-7100 Manuel utilisateur

POSIFLEX

POSIFLEX Aura-900 Manuel utilisateur

POSIFLEX

POSIFLEX Aura-5200E Manuel utilisateur

POSIFLEX

POSIFLEX PP-8800S Series Manuel utilisateur

POSIFLEX

POSIFLEX AURASeries Manuel utilisateur

POSIFLEX

POSIFLEX PP-6900 Series Manuel utilisateur

POSIFLEX

POSIFLEX Aura - 6800 Manuel utilisateur

POSIFLEX

POSIFLEX PP2000 Series Manuel utilisateur

POSIFLEX

POSIFLEX Aura PP7700 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP5600 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP3000 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP6800 Manuel utilisateur

POSIFLEX

POSIFLEX PP4000 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP-6907 Series Manuel utilisateur

POSIFLEX

POSIFLEX Aura PP7000-II Manuel utilisateur

POSIFLEX

POSIFLEX Aura - 6800 Manuel utilisateur

POSIFLEX

POSIFLEX PP-8000 Manuel utilisateur

POSIFLEX

POSIFLEX Aura PP-7000-III Manuel

POSIFLEX

POSIFLEX PP-8900 Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur
