POSIFLEX PP-8806 Manuel utilisateur

Package Contents

PP-8806 Thermal Printer ( x 1)

Paper Separator for 2” Paper Roll (x1)

Thermal Paper Roll (x 1)

USB Cable (x 1)

Power Adaptor (x 1)

Power Cord (x 1)

User Manual (x 1)

To avoid paper jam occurring, do NOT press the printer’s cover

open lever or pull the printed paper during printing.

When a paper jam occurs, press the cover open lever to release the

paper cover. Then, remove the jammed paper and reinstall the

paper roll. Next, close the paper cover properly and firmly.

If the auto cutter is still jammed, the paper cover will be locked.

Should the cutter jam be so serious to interfere the paper cover

release operation, please push the paper cover back and press the

cover open lever several times. If the problem cannot be solved

none the less, please call your local service center for help right

away.

FCC NOTES

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

CE CLASS A WARNING

This equipment is compliant with Class A of CISPR 32. In a residential environment this

equipment may cause radio interference.

PP-8806

POS Printer

User Manual

19760902010 Ver. A0

http://www.posiflex.com

AVERTISSEMENT CE CLASSE A

Cet équipement est conforme à la classe A de CISPR 32. Dans un environnement résidentiel, cet

équipement peut provoquer des interférences radio.

WARRANTY LIMITS

Warranty will terminate automatically when the machine is opened by any person other than the

authorized technicians. The user should consult his/her dealer for the problem happening.

Warranty voids if the user does not follow the instructions in application of this merchandise. The

manufacturer is by no means responsible for any damage or hazard caused by improper

application.

LIMITES DE GARANTIE

La garantie prend fin automatiquement lorsque la machine est ouverte par une personne autre que

les techniciens autorisés. L'utilisateur doit consulter son revendeur pour le problème qui se produit.

La garantie s'annule si l'utilisateur ne suit pas les instructions d'application de cette marchandise.

Le fabricant n'est en aucun cas responsable de tout dommage ou danger causépar une mauvaise

application.

警告使用者

為避免電磁干擾，本產品不應安裝或使用於住宅環境。

SAFETY INSTRUCTIONS

This equipment is not suitable for use in locations where children are likely to be present.

CONSIGNES DE SÉCURITÉ

Cet équipement ne convient pas àune utilisation dans des endroits où des enfants sont susceptibles

d'être presents.

WARNING

Power cord shall be connected to a socket-outlet with earthing connection.

ATTENTION

Le cordon d'alimentation doit être connecté à une prise de courant avec mise à la terre.

Overview

Top View

Cover Release

Button

Paper Exit

Printer Cover

Power LED

Error LED

Paper Out LED

FEED Switch

Adjustment wheel

for paper end

sensor

Front View

Bottom View

Views of I/O Interface

Note1: The USB type A port of PP-8806 is a host interface to a Posiflex POS

display (PD series) only, such as PD26UE.

Note2: The USB type B port of PP-8806 is a standard USB port for connection

with the POS system.

Rubber Pad

Mounting

Holes

Power Button

Rubber Pad

Service

Window

24 VDC-IN

power jack

LAN Port

USB (Type B) Port2

CR Port

Serial DB-9 COM Port

USB (Type A) Port1

Loading 2” or 3” Paper Rolls

1. Press down the cover release button to open the top cover.

2. Before installing 2-inch paper roll in the thermal printer, follow the

instructions below to properly install plastic pad spacer and the

separator. If you are using 3” paper roll for the printer, please

skip to next step.

The application of 58 mm width (2-inch) paper roll in this printer can be

achieved through adoption of an option spacing plate and an internal DIP

switch setting. Please contact the service team for the DIP switch setting.

Please refer to the middle picture above for the 58 mm paper spacing plate

with its flange at top edge showing out. Insert the noted corners of the

spacing plate into the 3 dents inside the paper roll compartment as arrowed

in the left picture above with point A goes in first. Then the 58 mm paper

roll sub compartment is formed as in the right picture above.

3. To load the thermal printer with the 3-inch

paper roll, make sure the plastic pad is

removed from the printer compartment. Then,

carefully drop the thermal paper roll inside

the paper roll compartment of the printer as

illustrated in the figure.

4. Unroll the thermal paper and drag the loose

end of the paper till it extends towards the

paper cutter.

5. Make sure the loose end sticks out of the

opening of the paper roll compartment. Then,

close the top cover by gently pushing it back

at the center of the top side of the cover with

a click sound.

6. Make sure the paper roll is well loaded with

the end of the paper sticking out as shown in

the figure.

To avoid paper jam occurring, do NOT press Cover Release

Button during printing.

Connecting Power Adapter and I/O Cables

Please connect power adapter and I/O cables before operating the printer.

1. Well attach power adapter to DC-IN power connector on the I/O plate.

2. Connect PP-8806 to the POS system using either USB, RS-232 or

LAN cable.

2.1. If you are installing USB interface cable, plug Type-B

connector into Type-B USB port of printer. Then, properly

attach Type-A connector to your POS terminal.

2.2. If you are installing RS-232 cable, well attach the male

connector of RS-232 cable to printer and the other end to the

POS terminal.

2.3. If you are installing LAN cable, plug on side into the LAN

port of printer. Then, properly attach the other side into your

POS terminal.

In order to allow the printer to successfully detect what interface you

are using to transmit data, make sure ONLY ONE type of interface

cable is connected to avoid confusion. Also, reboot the printer after

you change the interface cable for the printer, which enables the

printer to automatically re-detect the type of interface which is

currently used.

Mounting PP-8806 onto a Wall (Optional)

Please follow the steps described below to mount POS printer on the wall

using wall-mount kits.

1. Define where the printer is mounted. Drill 2 holes about 3.15” or 80

mm apart. Each hole has to be at least 1/4” or 6.35 mm

diameter

and at least 1 and 3/16” or 30 mm in depth.

2. After inserting two plastic anchors into the

holes you drilled in Step 1, slightly tap the

plastic anchors with a hammer until they are

fully inserted into the drilled holes.

3. Insert the screws into the plastic anchor,

screw them in but leave them sticking out

from the wall surface to mount the printer.

4. As shown in the figure, locate two holes on

bottom of PP-8806. Then, carefully hang

the printer onto the wall using the plastic

anchors with screws.

5. To get more detailed information of wall mounting, please refer to

relative wall mounting installation guide.

Troubleshooting Paper Jams

When it comes to the common printing problems, it is inevitable that you

might encounter the issue of paper jams at some point. The following steps are

provided to assist you in fixing the problem. Before proceeding, make sure that

your POS terminal is properly shut down.

1. To open the paper jams rescue compartment,

place your thumbs toward the center of the

compartment and then push the cover up in

the direction shown by the arrow.

2. In the paper jams rescue compartment, find

the adjustment wheel, which mainly allows

you to manually adjust the cutting position of

the cutter.

3. Keep turning the wheel in a clockwise

direction until the cutter is completely moved

back to its start position. You may observe

the cutter position through the gap between

paper jams rescue compartment and the

printer compartment.

4. Push down cover release button to test

whether the cover can be open. If the cover is

still stuck, please repeat step 3 until the cutter

position is set to the proper position and you

are able to open the cover.

5. Remove the jammed paper, reinstall the

paper roll, and then push back the cover to

close the paper jams rescue compartment.

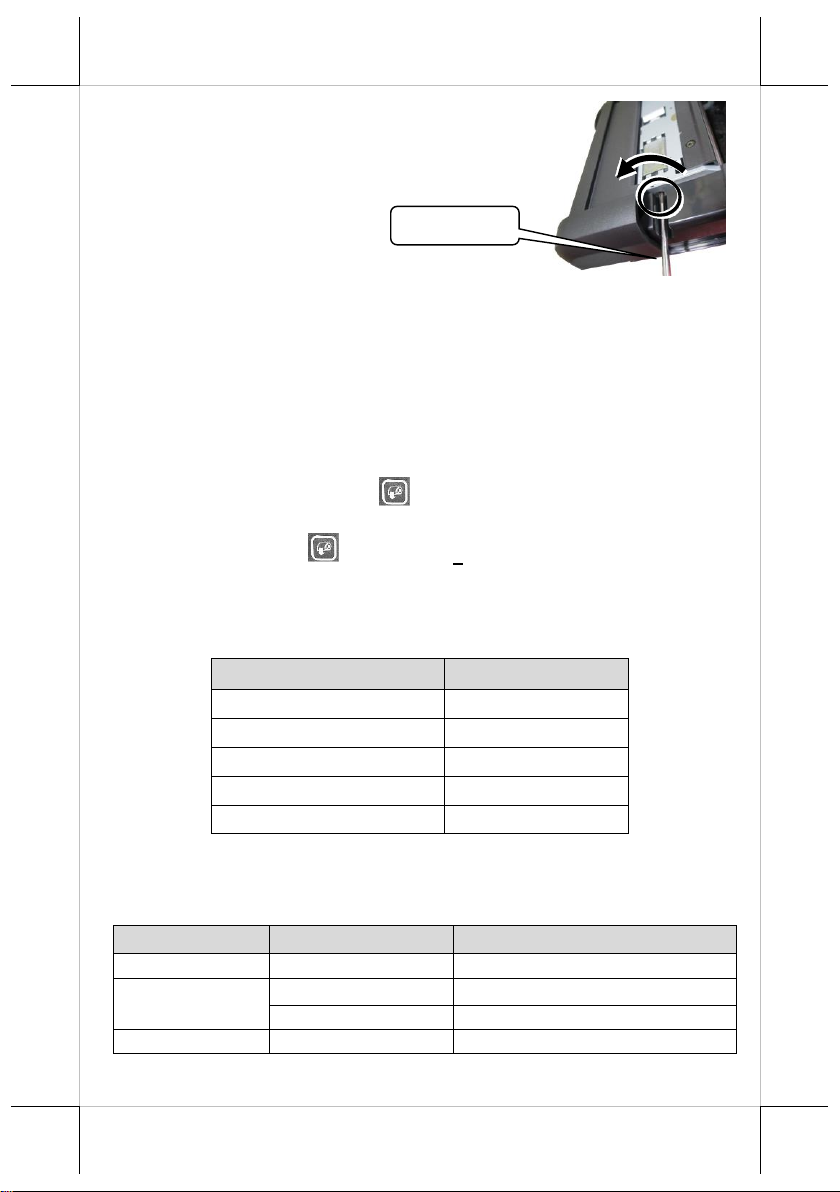

Adjustment wheel

P.S. The adjustment wheel also can be turned by

using a screwdriver. The control hole is on the

right side of the compartment. Please refer to the

picture.

Restore Software Switch to Factory Default via Software Switch

Reset

Software Switch Reset is the specially-designed function aimed to facilitate

the factory reset process. Please go through the following instructions to reset

your printer to factory settings using Software Switch Reset.

1. Power off the printer.

2. Open the paper roll cover manually.

3. Keep pressing the feed button and then power on the printer. The

printer will emit one short beep sound.

4. Press the feed button of the printer 2times.

5. Close the paper roll cover manually.

6. The printer will emit one short beep sound and then print a page

displaying software switch factory-default settings.

7. The printer will restart by itself.

Software switch number

Pin Number

SW1

Pin 1 ~ 8 = OFF

SW2

Pin 1 ~ 8 = OFF

SW3

Pin 1 ~ 8 = OFF

SW4

Pin 1 ~ 8 = OFF

SW5

Pin 1 ~ 8 = OFF

Status LED Indicator

The below chart is provided to enumerate all the possible indicator

lights with their meanings for your reference.

LED

Status

Description

POWER LED

Solid green

System ON

Error LED

Solid red

Cover open

Flashing red

Printer busy

Paper-out LED

Solid red

Out of Paper

Screwdriver

Performing a Self-Test of the Printer

1. Power off the printer.

2. Press and hold the feed button of the printer.

3. Power on the printer. The printer will emit one short beep sound.

4. Release the feed button of the printer.

5. The printer performs a self-test and prints out the self-test result.

If the paper-out LED indicator still turns bright in red, press the feed

button of the printer to make the printer print the remaining self-test

result.

6. Release the feed button of the printer and then the paper-out LED

indicator does not light.

Entering the Hexadecimal Dump Mode

To make the printer work in the hexadecimal dump mode, please go through

the following instructions.

1. Power off the printer.

2. Open the paper roll cover manually.

3. Press and hold the feed button of the printer.

4. Power on the printer. The printer will emit one short beep sound.

5. Release the feed button of the printer.

6. Close the paper roll cover manually.

7. The printer enters the hexadecimal dump mode and prints out the result

showing the “Hexadecimal Dump” message.

Doing LAN Settings Reset

Among multiple built-in functions, LAN Settings Reset mainly allows you to

reset LAN settings to factory default. The following steps are provided to help

you complete the reset process.

1. Power off the printer.

2. Open the paper roll cover manually.

3. Keep pressing the feed button and then power on the printer. The

printer will emit one short beep sound.

4. Press the feed button of the printer 4times.

5. Close the paper roll cover manually.

6. The printer will emit one long beep sound and then print a page displaying

LAN default settings.

7. The printer will restart by itself.

Table des matières

Autres manuels POSIFLEX Imprimante

POSIFLEX

POSIFLEX Aura PP-8800 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP-8000 Manuel utilisateur

POSIFLEX

POSIFLEX PP-7600 Manuel utilisateur

POSIFLEX

POSIFLEX Aura-5200E Manuel utilisateur

POSIFLEX

POSIFLEX Aura - 6800 Manuel utilisateur

POSIFLEX

POSIFLEX PP-7200L Manuel utilisateur

POSIFLEX

POSIFLEX Aura - 6800 Manuel utilisateur

POSIFLEX

POSIFLEX PP-8802 Manuel utilisateur

POSIFLEX

POSIFLEX AURASeries Instructions d'installation

POSIFLEX

POSIFLEX PP-7900 Manuel utilisateur

POSIFLEX

POSIFLEX Aura PP-5200 Manuel utilisateur

POSIFLEX

POSIFLEX PP-7900W Manuel utilisateur

POSIFLEX

POSIFLEX PP-8800S Series Manuel utilisateur

POSIFLEX

POSIFLEX PP-8800U Series Manuel utilisateur

POSIFLEX

POSIFLEX Aura PP7700 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP-8000 Manuel utilisateur

POSIFLEX

POSIFLEX PP-6907 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP7000 Manuel utilisateur

POSIFLEX

POSIFLEX Aura-900 Manuel utilisateur

POSIFLEX

POSIFLEX PP2000 Series Manuel utilisateur

POSIFLEX

POSIFLEX PP3000 Series Manuel utilisateur

POSIFLEX

POSIFLEX Aura PP-7000-III Manuel

POSIFLEX

POSIFLEX PP-6906 series Manuel utilisateur

POSIFLEX

POSIFLEX PP3000 Series Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur
