Peerless-AV HLG440-PH Mode d’emploi

1 of 4 ISSUED: 10-30-10 SHEET #:125-9164-2 09-14-11

Model: HLG440-PH, HLG440-PH-Q10

Installation and Assembly:

Desktop Swivel Mount for Philips 32HFL2082 and 40HFL2082 Displays

B C

D E

NOTE: Read entire instruction sheet before you start installation and assembly.

Before you start make sure all parts listed are included with your product.

H I

Mounting to Desktop Surface

Mounting using Bolt Down Method

HLG440-PH HLG440-PH-Q10

Description Qty Part # Qty Part #

swivel plate assembly 1 090-1983 10 090-1983

B10-32 x 3/8 flat head self drilling screw 3 560-2743 30 560-2743

C1/4-20 x 1-3/4" thin head carriage bolt 2 560-1764 20 560-1764

D1/4-20 slope nut 3 530-0035 23 530-0035

Eplastic cap 2 590-1294 20 590-1294

F4 mm allen wrench 1 560-9646 3 560-9646

GM5 x 20 mm socket pin screw 2 520-1065 20 520-1065

H#10 split lock washer 2 540-1035 20 540-1035

I#10 flat washer 2 540-9400 20 540-9400

Parts List

2 of 4 ISSUED: 10-30-10 SHEET #:125-9164-2 09-14-11

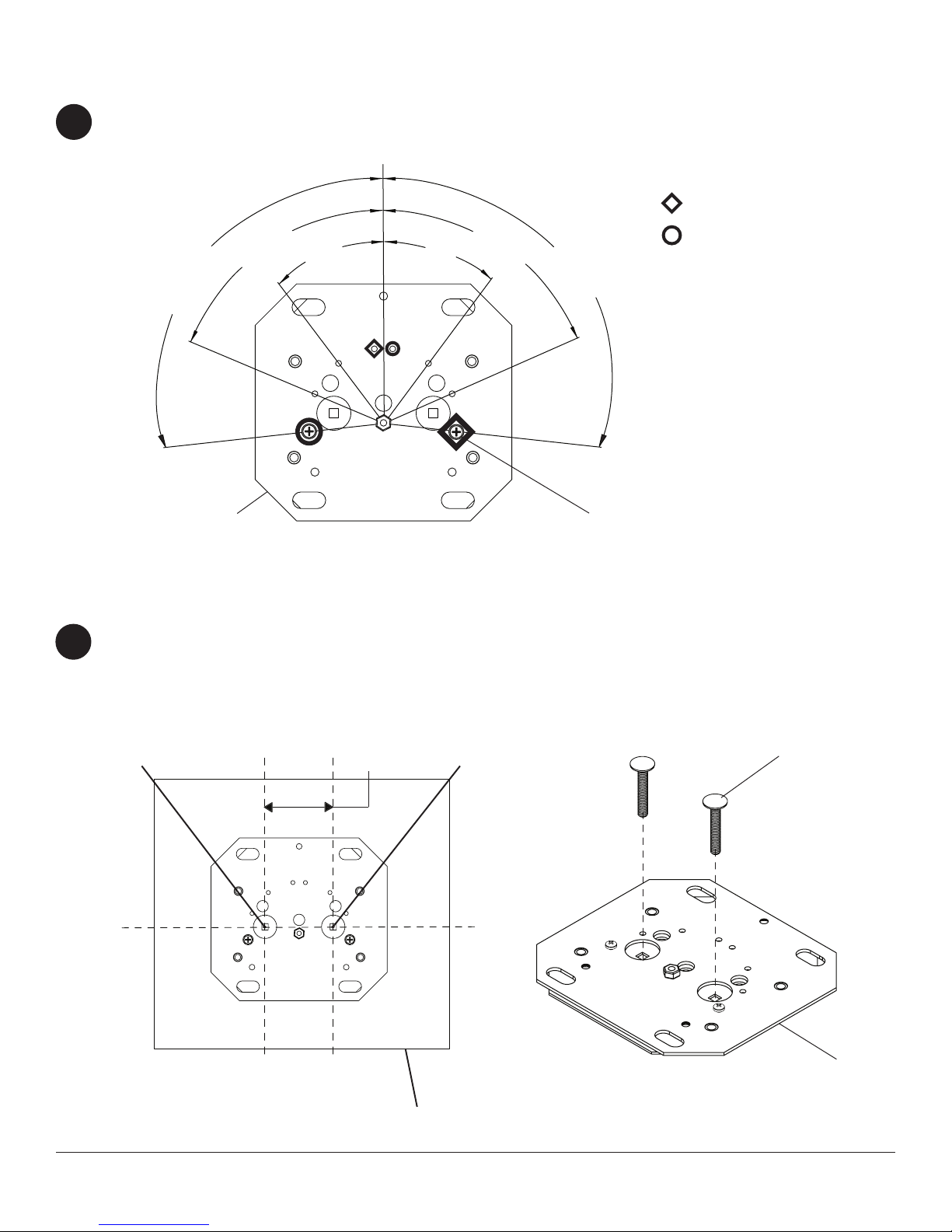

LEFT SIDE

Use swivel plate assembly (A) as a template to mark location of holes, point 1 and point 2, approximately 3" apart

on table. Drill two holes using a 1/4'' drill bit.

Place two 1/4-20 x 1-3/4" thin head carriage bolts (C) into slots of swivel plate assembly (A).

POINT 1 POINT 2

TABLE TOP

Choose swivel range below and identify swivel range holes of swivel plate assembly (A).

SWIVEL RANGE HOLE

Mounting using Bolt Down Method

90°

60°

90°

30° 30°

FRONT

(76 mm)

USE HOLES TO LOCK SWIVEL

PLATE ASSEMBLY 90° FROM

CENTER

RIGHT SIDE

3 of 4 ISSUED: 10-30-10 SHEET #:125-9164-2 09-14-11

Hand tighten slope nut (D) through 1/4-20 x 1-3/4" thin head carriage bolt (C) until snug against bottom of desktop

surface. Thread another slope nut (D) upside-down, about two turns from rst slope nut (D). Insert an open box

wrench between both slope nuts (D) and tighten. NOTE: Avoid jamming both slope nuts (D) together, doing so

may make it difcult to remove slope nut used for tightening rst slope nut (D) as shown in g 4.1. After slope nut is

secure remove bottom slope nut and add plastic cap (E) as shown in gure 4.2. Repeat with remaining

1/4-20 x 1-3/4" thin head carriage bolt (C).

Detail 1

TIGHTENING

SLOPE NUT

32" Display Base Attachment Location

(note orientation of plate to base)

BOTTOM OF DESKTOP

FIG 4.1 FIG 4.2

Secure swivel plate assembly (A) to bottom of display base using three 10-32 x 3/8" at head self drilling screws (B)

in 32" or 42" orientation.

NOTE: Make sure that screws in display base align with slots and holes in swivel plate assembly (A)

as shown below.

FRONT

NOTE: Do not overtighten slope nut (D)

plate may distort

42" Display Base Attachment Location

(note orientation of plate to base)

ARROW INDICATES FRONT OF SWIVEL

PLATE ASSEMBLY

.88"

FRONT

DISPLAY

BASE SCREWS

DISPLAY

BASE SCREWS

4 of 4 ISSUED: 10-30-10 SHEET #:125-9164-2 09-14-11

DISPLAY

DISPLAY BASE

NOTE: Display and base may appear

different than illustrated

Installation of Security Screws for Base to Display Attachment

32" Display Base (No Screws Required)

Attach display to base using hardware provided with display using the manufactures installation manual.

42" Display Base

Attach display to base using two M5 x 20 mm socket pin screws (G), two #10 split lock washers (H), and two

#10 at washers (I) into bottom holes as shown below. Tighten with 4 mm security allen wrench (F).

Use screws supplied with display for remaining holes.

All other brand and product names are trademarks or registered trademarks of their respective owners.

42" Display Base Attachment Location

(note orientation of screws)
