ParaBody LP5 Manuel utilisateur

LP5 LEG PRESS 5

CLASSH

PART#7357701

REV.B

Version: LP5A-101

Revision: 11/08/02

ASSEMBLY INSTRUCTIONS

WARNING:

Read and follow all directions

for each step to insure proper

assembly of this product.

THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF

EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!

1. Before using, read all the warnings and instructions

on the use of this machine. Use only for intended

exercise. DO NOT modify the machine.

2. Obtain a medical exam before beginning any

exercise program.

3. Keep body and clothing free of all moving objects.

4. Inspect the machine before use. DO NOT use it if it

appears damaged. DO NOT attempt to fix a broken or

ammed machine. Notify your authorized ParaBody

dealer before use and have repairs made by an

authorized service technician.

5. Be certain that weight pin is completely inserted.

Use only the pin provided by the manufacturer. If

unsure, call your authorized ParaBody dealer.

6. Never pin the weights or prop plate into an elevated

position. DO NOT use the machine if found in this

condition. DO NOT attempt to fix. Notify your

authorized ParaBody dealer.

7. Inspect cables and their connections before using

machine. Pay particular attention to the cable ends.

DO NOT attempt to fix. Notify your authorized

ParaBody dealer before use and have repairs made by

an authorized service technician.

8. Make sure all spring loaded pull pins are fully

engaged in the adjustment position and fully tighten

thumbscrew before use.

9. Children must not be allowed near this machine.

Supervise teenagers.

IMPORTANT SAFETY INFORMATION

TABLE OF CONTENTS

Safety Statement.............2

General Notes..................3

Tools Required................3

Parts List.........................4

NOTE: In a continual effort to improve our products, specifications are subject to change

ParaBody is a trademark of Brunswick Corporation

www.parabody.com

Assembly Instructions.....5-12

General Maintenance.......13

Warranty Statement.........14

Product Services.............15

Insert-Registration Card

Tools Required forAssembly

* 3/4” wrench

* 9/16” wrench

* Ratchet with 3/4” and 9/16” sockets

* Adjustable wrench

* Tape measure

NOTE:BOLTLENGTH IS MEASUREDFROMTHEUNDERSIDEOFTHEHEADOFTHE BOLT.

BOLT LENGTH RULER:

BoltLengthRuler

0123456

1/2 1/2 1/2 1/2 1/2 1/2

BOLT LENGTH

IMPORTANT NOTES

Please note:

* Thank you for purchasing the ParaBody LP5 Leg Press. Please read these

instructions thoroughly and keep them for future reference.

* This product must be assembled on a flat, level surface to assure its proper function. DO NOT

securely tighten any frame connections until the entire frame has been assembled, unless

otherwise stated.

PARTS LIST

PART #

ACU04-1444

ACU04-1447

ACU04-1449

ACU04-1445

ACU04-1446

ACU04-1448

ACU02-1298

ACU07-0135

ACUDA1E03830016NB

KEY

QTY

PART #

ACUDC1250100020B

ACUDB2E03811000B

ACUDA1E02143413NB

ACUDB2E01212000B

ACU11-0080

ACU05-0372

ACU06-0437

ACUDACM04006007YB

DESCRIPTION

3/8”FLATWASHER

3/8”LOCKNUT

1/2X4-3/4” BOLT

1/2”LOCKNUT

SPRINGPINKNOB

3/4X 4” SHAFT

BUMPER,1-1/2X2

SETSCREW,M4X0.7X6L

QTY

DESCRIPTION

FRAME

SEATADJUST

HANDLE

MAINARM

SECONDARM

FOOTPLATE

PULLEYBRACKET

PAD

3/8X3”BOLT

KEY

NOTE:Someofthecomponentmaybepre-assembled.

9−1/2"

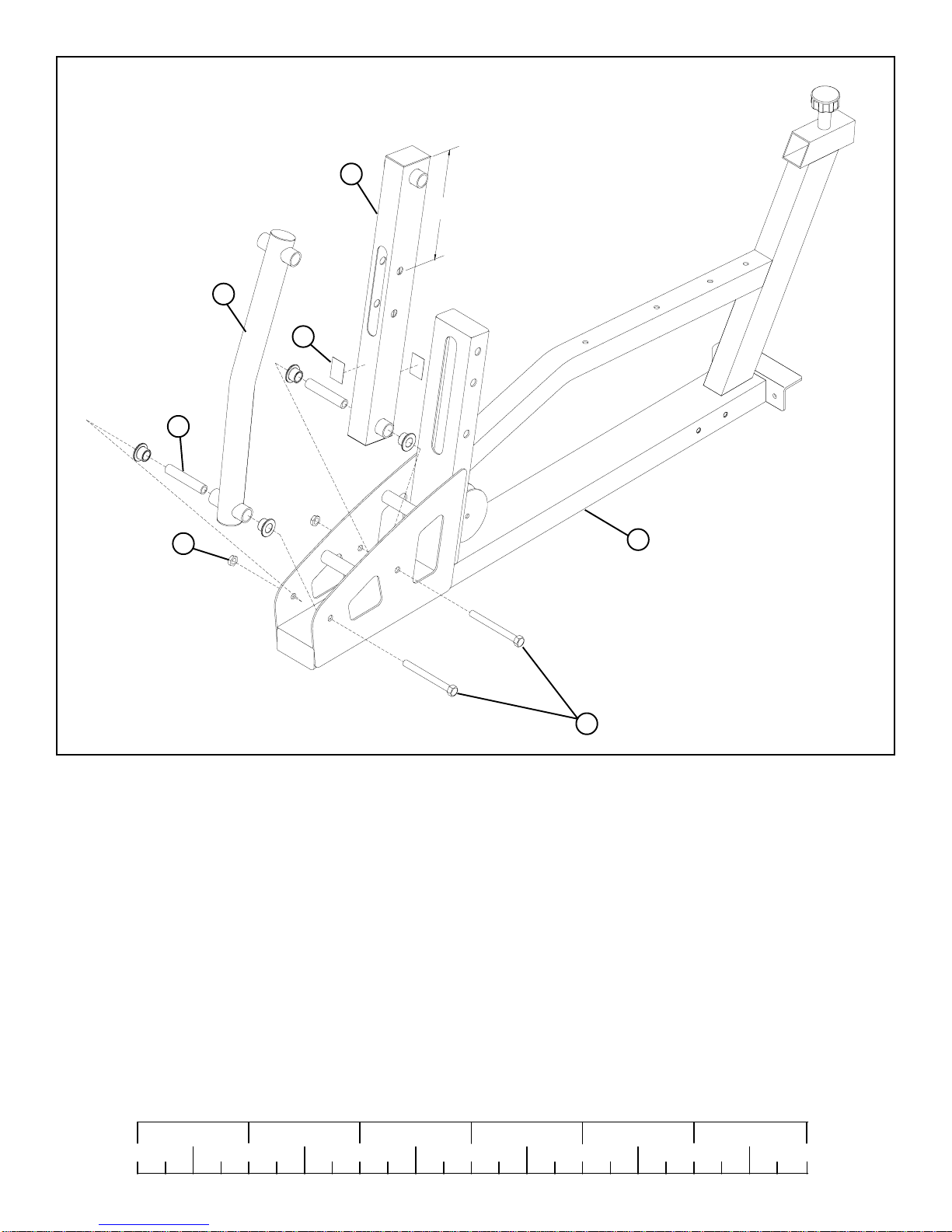

FIGURE 1

STEP 1:

• SECURELY assemble the SECONDARM (5) totheFRAME(1) using one 1/2 X 4-3/4” BOLT(12), one 3/4 X 4” SHAFT(15)

andone1/2” LOCK NUT (13). See FIGURE 1.

0123456

1/2 1/2 1/2 1/2 1/2 1/2

12 1/2X 4-3/4”

• SECURELYassemble theMAINARM (4) tothe FRAME (1)using one 1/2X 4-3/4” BOLT(12),two3/4” FLANGEBEARINGS(14), one

3/4X 4” SHAFT(15)and one 1/2” LOCK NUT(13).SeeFIGURE 1. (NOTE:MakesureMAINARM isorientatedcorrectly,tophole

shouldbe9-1/2”fromthetopofarmasshowninFIGURE1.)

• NOTE:FollowSTEP1fortheassemblyoftheLEGPRESStotheGS1,GS2,GS4andGS8GymSystems.IfyouhavetheCM3orGS6

GymSystemproceedtoSTEP2.

• Proceed to to STEP 3.

• SECURELYassemble two1-1/2 X 2“ BUMPERS (16)to each sideofthe MAINARM(4)where theMAINARM(4) contacts theFRAME

(1)SeeFIGURE1.

Forassemblyto the GS1, GS2, GS4, GS8 Gym Systems .

Make sure MAINARM

is orientated correctly

• NOTE: FLANGEBEARINGSSHOULDBEPRE-INSTALLED

11−1/4"

FIGURE 2

STEP 2:

• SECURELY assemble the SECONDARM (5) to the FRAME (1) using one 1/2 X 4-3/4” BOLT (12), one 3/4 X 4” SHAFT(15) and one

1/2”LOCKNUT(13).SeeFIGURE2.

• SECURELY assemble the MAINARM (4) to the FRAME (1) using one 1/2 X 4-3/4” BOLT(12), one 3/4 X 4” SHAFT (15) and one 1/2”

LOCKNUT(13).SeeFIGURE2.(NOTE:MakesureMAINARMisorientatedcorrectly,topholeshouldbe11-1/4”fromthetopofarm

asshowninFIGURE2.)

• NOTE:FollowSTEP2fortheassemblyoftheLEGPRESStotheCM3andGS6GymSystem.IfyouhavetheGS1,GS2,GS4orGS8

GymSystemsproceedtoSTEP3.

• Proceed to to STEP 3.

• SECURELYassemble two 1-1/2X2 BUMPERS (16) to eachside of the MAINARM(4) wherethe MAINARM(4) contactsthe FRAME

(1)SeeFIGURE2.

12 1/2X 4-3/4”

Forassemblytothe CM3andGS6 GymSystem.

Make sure MAINARM

is orientated correctly

• NOTE: FLANGEBEARINGSSHOULDBEPRE-INSTALLED

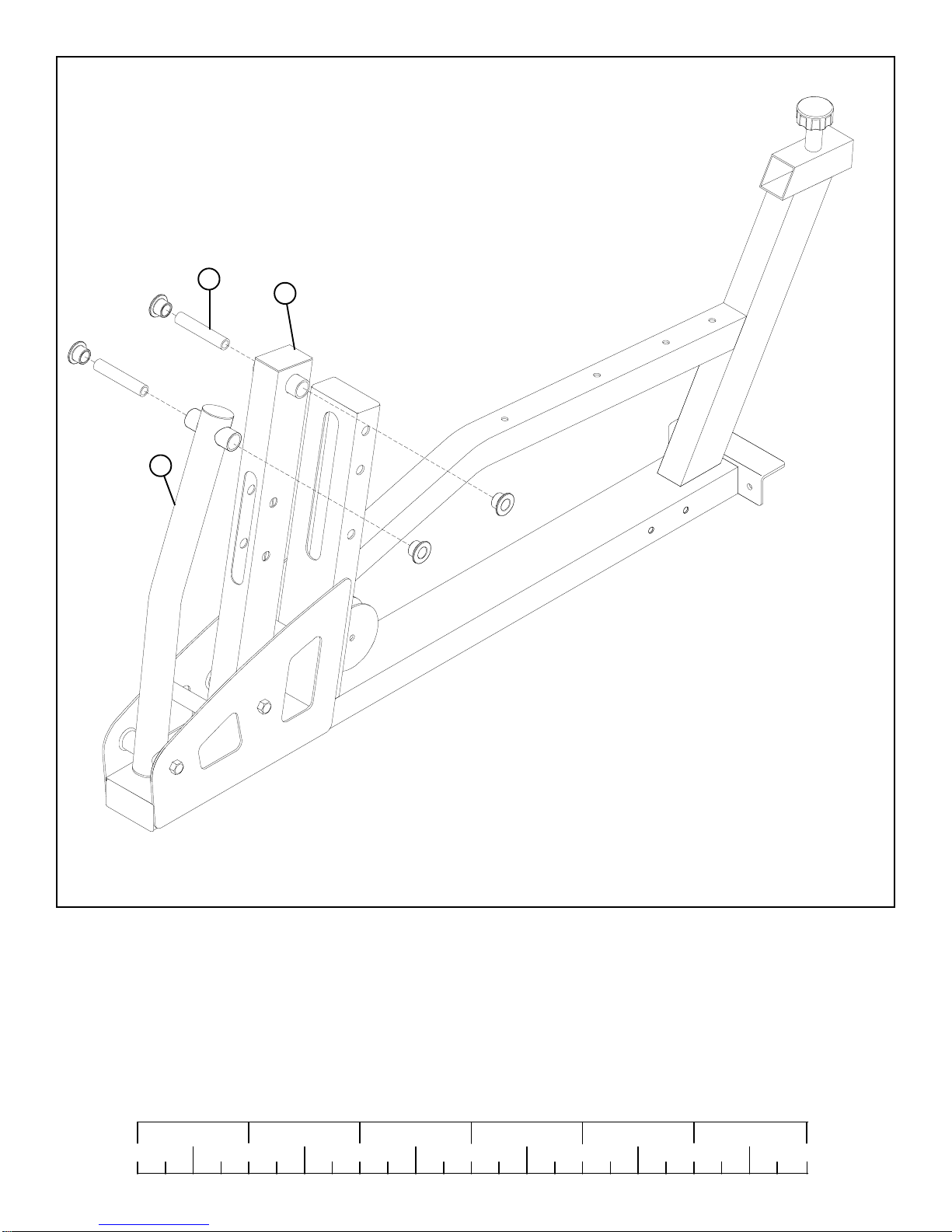

FIGURE 3

STEP 3:

• Insert one 3/4 X 4” SHAFT(15)thru pre-installed FLANGE BEARINGS in the SECONDARM (5) as shown in FIGURE 3.

• Insert one3/4 X 4” SHAFT(15) thru pre-installed FLANGE BEARINGS in theMAINARM (4)as shown in FIGURE 3.

0123456

1/2 1/2 1/2 1/2 1/2 1/2

STEP4:

FIGURE 4

• SECURELYassembletheFOOTPLATE(6) tothe SECONDARM(5) and theMAINARM(4)using two 1/2X 4-3/4”BOLTS(12)and two

1/2”LOCKNUTS(13).SeeFIGURE4.

12 1/2 X 4-3/4”

STEP5:

FIGURE 5

3/8 X 3” 9

• SECURELY assemble the HANDLE (3) to the FRAME (1) using two 3/8 X 3” BOLTS (9), four 3/8” FLATWASHERS(10) and two 3/

8”LOCK NUTS(11)as showninFIGURE 5.

0123456

1/2 1/2 1/2 1/2 1/2 1/2

STEP6:

FIGURE 6

• CAREFULLEYslide the SEATADJUST (2) into the FRAME (1) as shown.The SEAT can be adjusted by turning the SPRING PIN

KNOB (14) clockwise and pulling. The SEAT can be secured in place by releasing the pin into an adjustment hole and turning

clockwise until tight.

• Securely assemble one PLUNGER PIN(14)to the FRAME (1) as shown. (NOTE: ScrewPLUNGERPIN(14)in all the way)

• Securely assemble one M4 SET SCREW (17) to the plunger pin barrel on the FRAME (1) then back off 1/4 turn so PLUNGER PIN (14)

rotates freely until the threads come in contact with the M4 SET SCREW (17)
