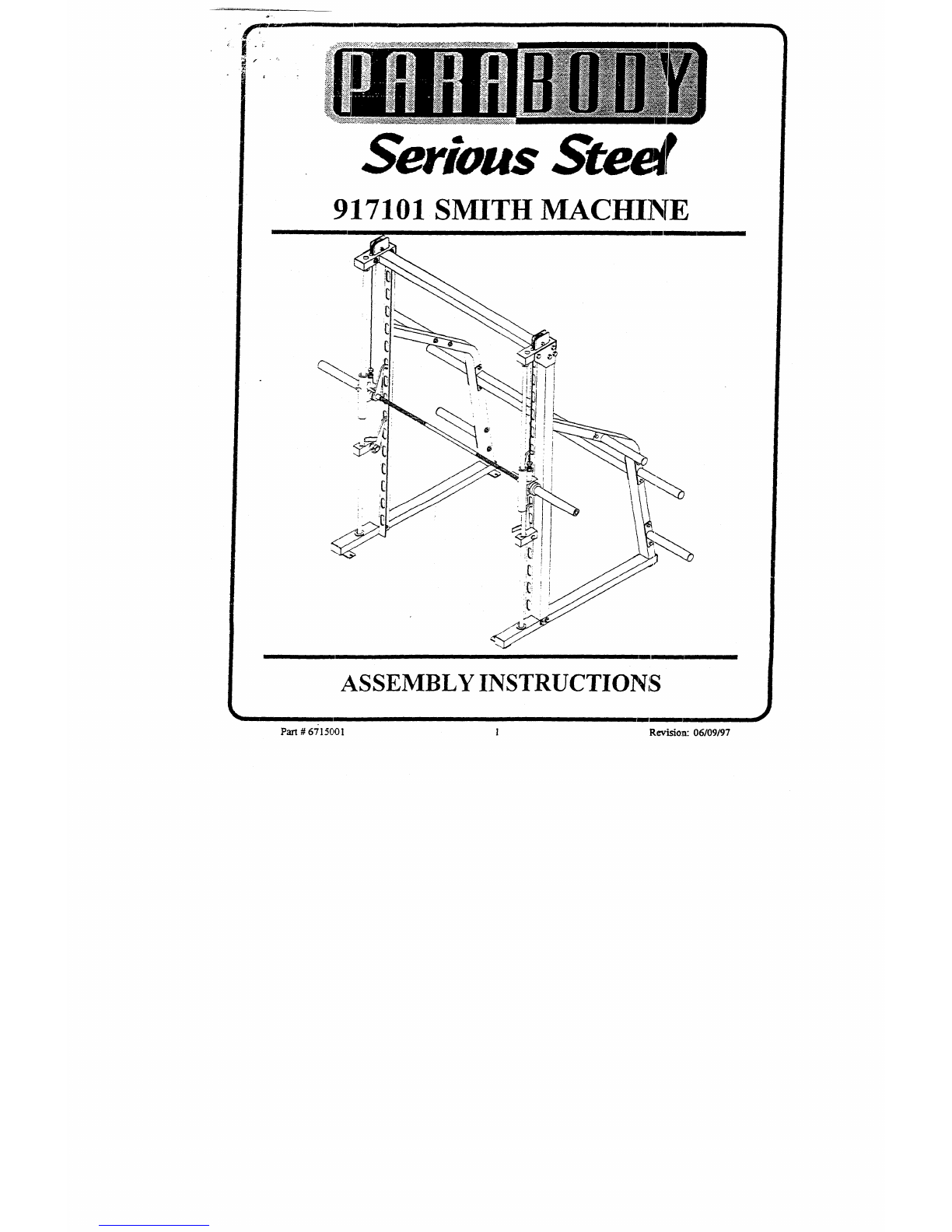

ParaBody 917101 Manuel utilisateur

917101 SMITH MACHINE

ASSEMBLY INSTRUCTIONS

I I

Part# 6"~15001 I Revision: 06/09/97

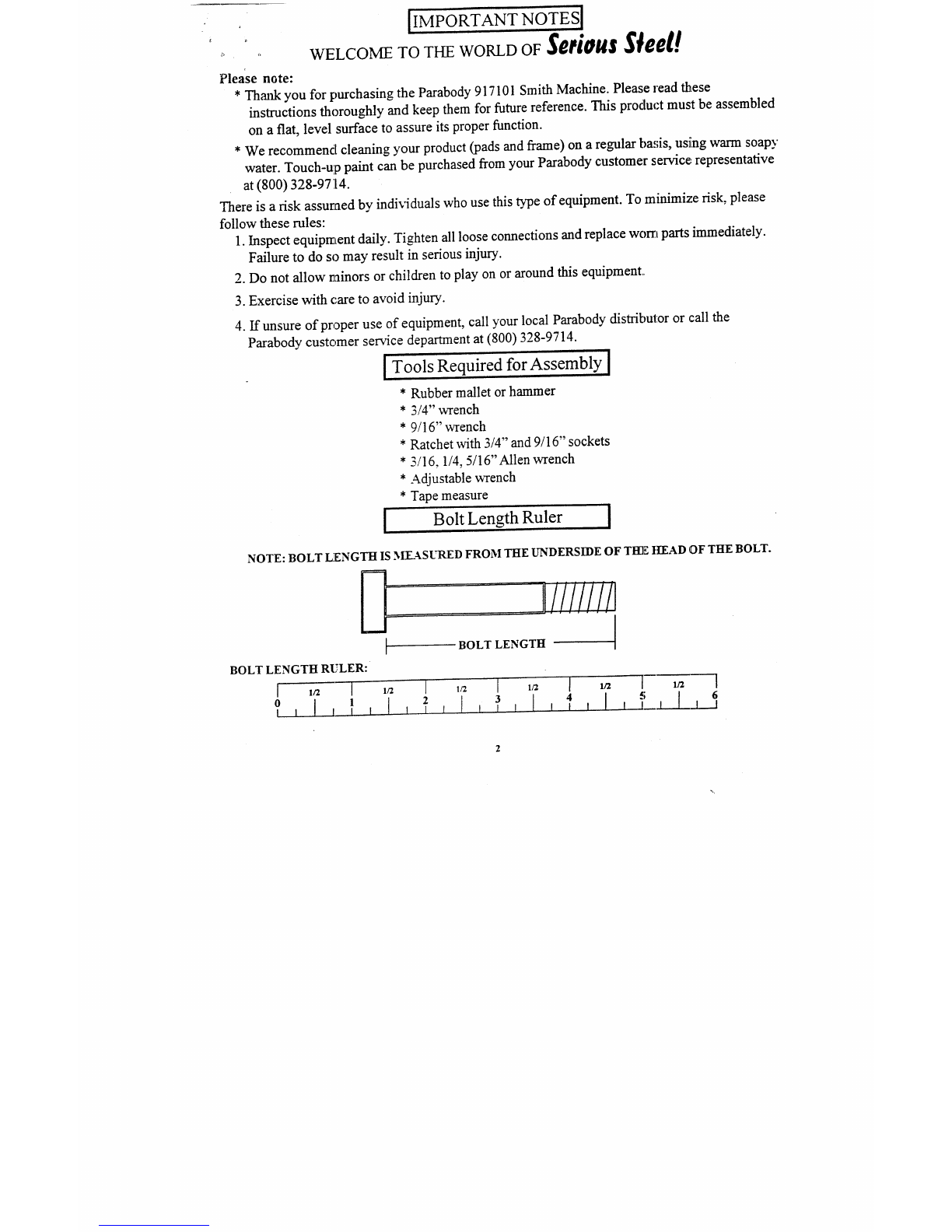

I IMPORTANTNOTESl

,~ o WELCOME TO THE WORLD OF t~it~U$

Plea’se note:

* Thmnkyou for purchasing the Parabody917101SmithMachine.Please read these

instructions thoroughly and keep themfor future reference. This product mustbe assembled

ona flat, level surface to assureits properfunction.

*Werecommendcleaning your product (pads and ff~me) on a regular basis, us~ing warmsoapy

water. Touch-uppaint can be purchasedfromyour Parabodycustomerservice representative

at (800) 328-97114.

Thereis a risk assumedby individuals whouse this type of equipment.Tominimizerisk, please

followthese rules:

1. Inspect equiprnentdaily. Tightenall loose connectionsand replace wornparts immediately.

Failure to do so mayresult in serious injury.

2. Donot allow minorsor children to play onor aroundthis equipment..

3. Exercisewithcare to avoidinjury.

4. If unsureof proper use of equipment,call yourlocal Parabodydistributor or call the

Parabodycustomerservice departmentat (800) 328-9714.

] Tools Requiredfor Assembly

* Rubber mallet or hammer

* 3/4" wrench

* 9/16" wrench

*Ratchetwith 3/4" and9/16" sockets

*3/16, 1/4, 5/16"Mienwrench

* Adjustable wrench

*Tape measure

| Bolt LengthRuler

NOTE: BOLTLENGTHIS MEASUREDFROMTHE UNDERSIDEOF Tl=l-E H~EADOF THE BOLT.

iJ!!!iiiil

BOLT LENGTH

BOLT LENGTHRULER:

KEY’

PART #

~712002

6711402

6711203

6708901

6711601

6711701

6710201

6710102

6710503

6710403

6710803

6709001

6709901

6709603

6675501

DESCRIPTION

BEARING HOUSING

SAFETY STOP

LOWER SUPPORT

SLEEVE ASS~LY

LEFT SAFETY HOOK

RIGHT SAFETY HOOK

SMITH BAR

BAR STOP

LEFT UPRIGHT

RIGI-1T UPRIGHT

UPPER SUPPORT

CHROME ANGLE

80" GUIDE ROD

COUNTER WEIGHT

PLATE HOLDER

PARTSLIST

QTY KEY PART # DESCRIPTION

216 3102937 1/2 ) 4-.1/2" BOLT

217 3102917 1/2 X4" BOLT

118 3102933 3/8 X 2" BOLT

219 3103003 5/8 X I-1/4’ SHOULDERBOLT

120 3102502 11~ " WASHER

121 3102801 1/2" LOCKN’IYr

122 3102802 318" LOCKNlYr

223 3203001 2" SlJA.I?’I" COLLAR

124 3203002 1" SHAI:T COLLAR

125 3202901 1-1/2" 1 J tRUSTBEARING

126 6708501 CAB"~ ASSENtBLY

227 3116101 4-] PULLEY

228 6714501 8’; 1" GLIDE

229 6695801 2-1/2" oD 7,UBBER BUMPER

QTY[

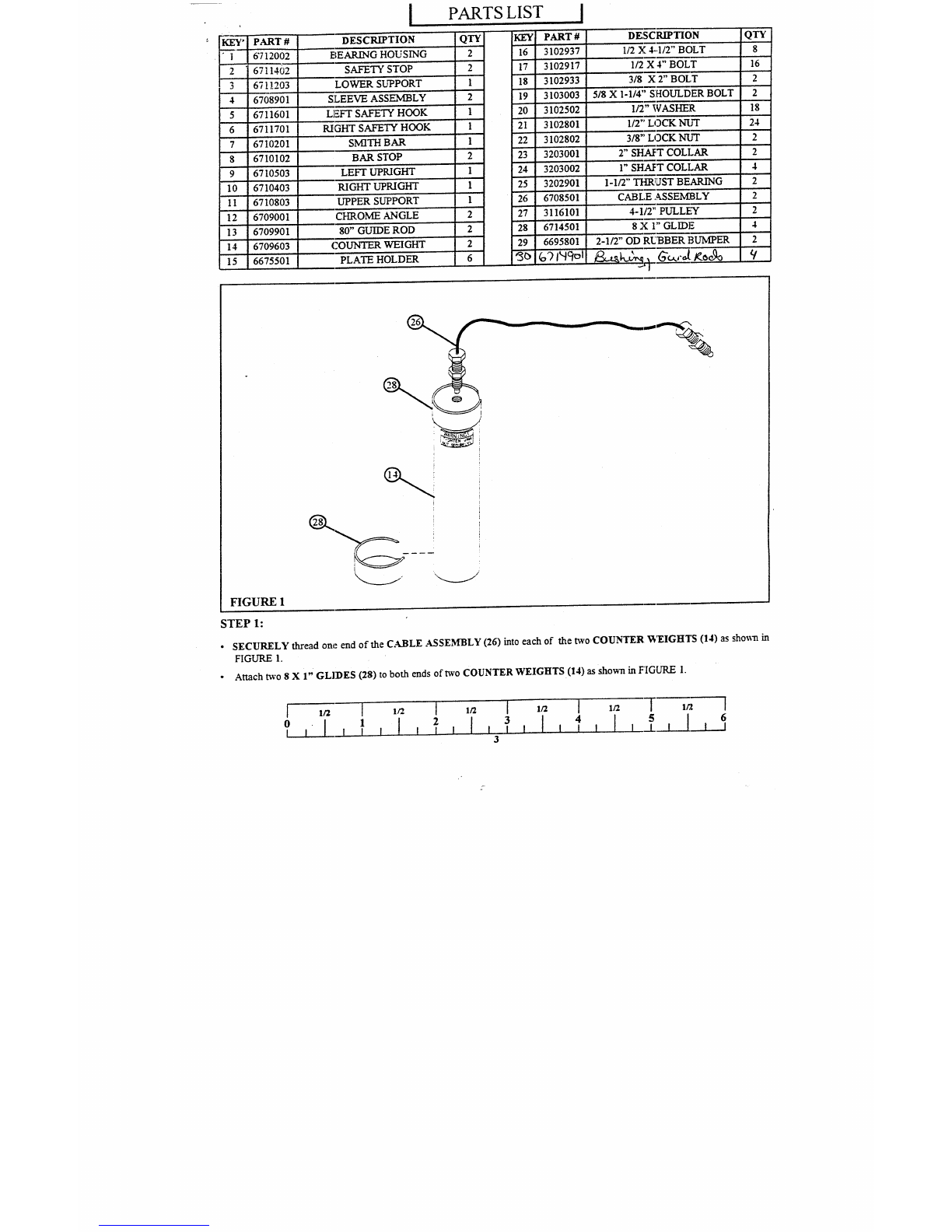

FIGURE I

STEP 1:

¯ SECURELYthread one end of the CA.BLE.ASSEMBLY(26) into each of the two COUNTER’WEIGHTS(14) as shown

FIGURE1.

¯Attach two 8 X 1" GLIDES(28) to both ends of t~vo COUNTERWEIGHTS(14) as shown in FIGURE

1[ I I I

0 [ I I I

I I 3

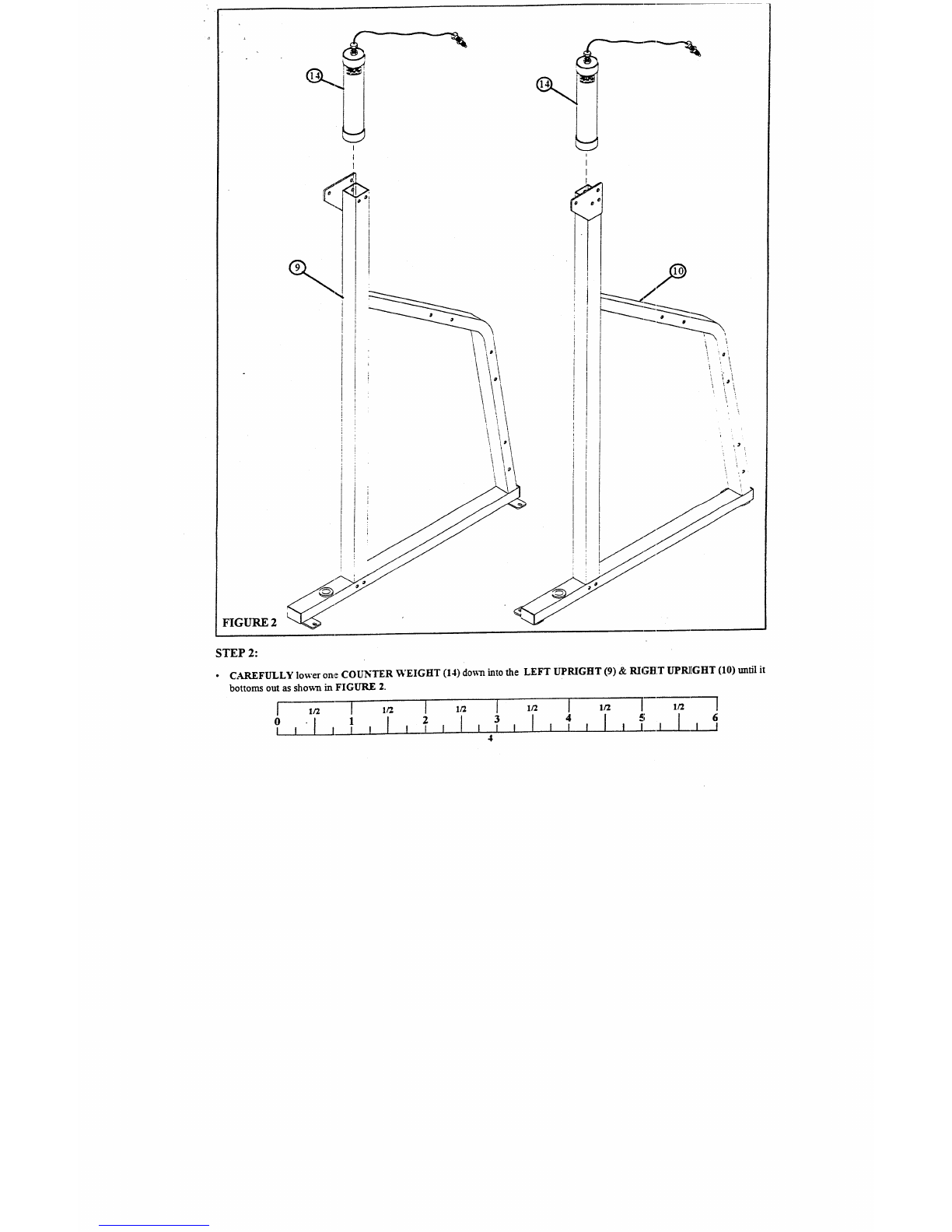

FIGURE 2

STEP 2:

¯CAREFULLYlower on,e COUNTERWEIGHT(14) do~-n into the LEFTUPRIGHT(9) & RIGBTUPR][GHT(10) untiI

bottomsout as sho~vnin FIGURE2.

5 64 I l J_l I I I

3I I 1 I

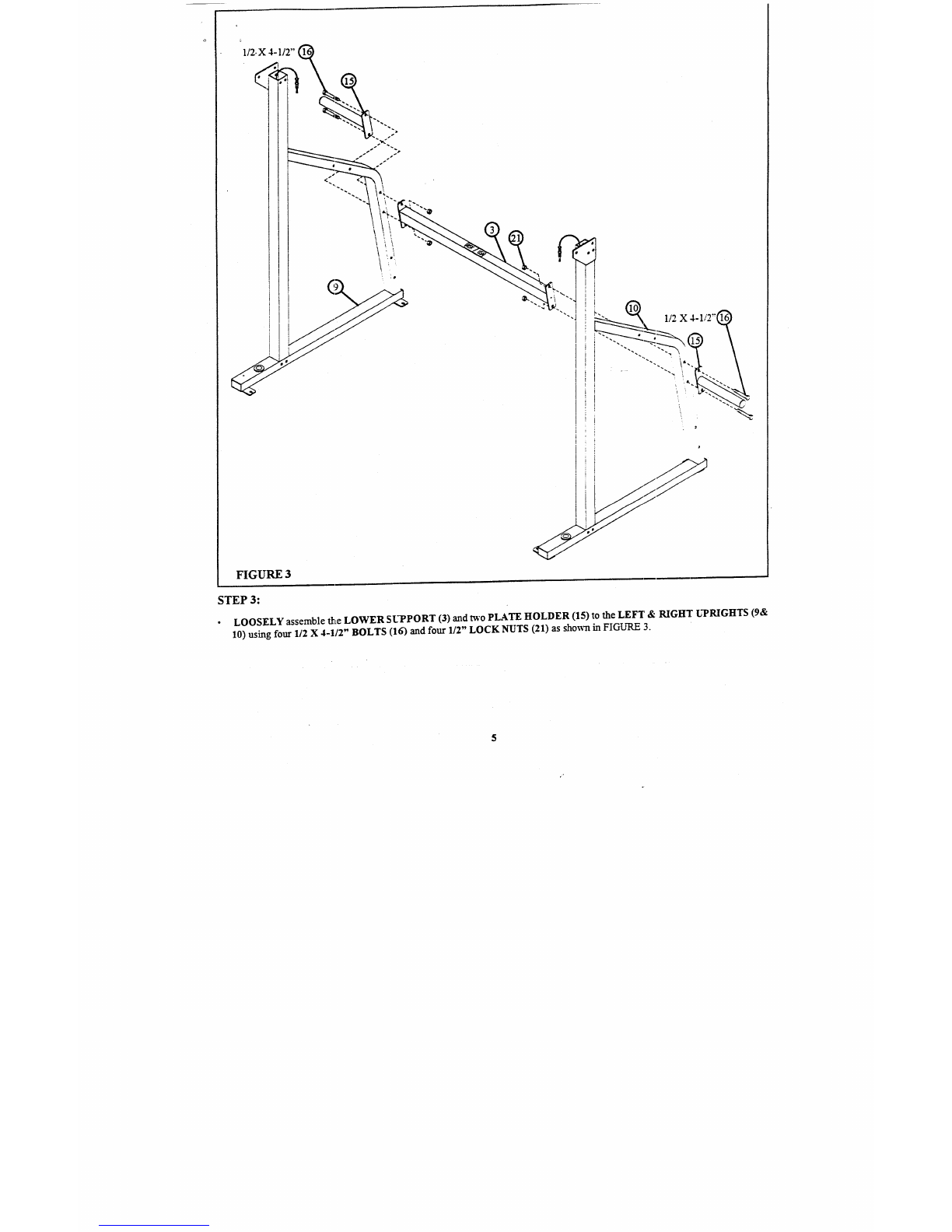

FIGURE 3

STEP3:

¯LOOSELYassemble the LOWERSUPPORT(3) and ~’o PLATEHOLDER(15) to the LEFT&RIGHTUPRIGHTS

10) using four 1/2 X4-1/2" BOLTS(16) andfour 1/2" LOCKNUTS(21) as shownin FIGURE

FIGURE 4

STEP 4:

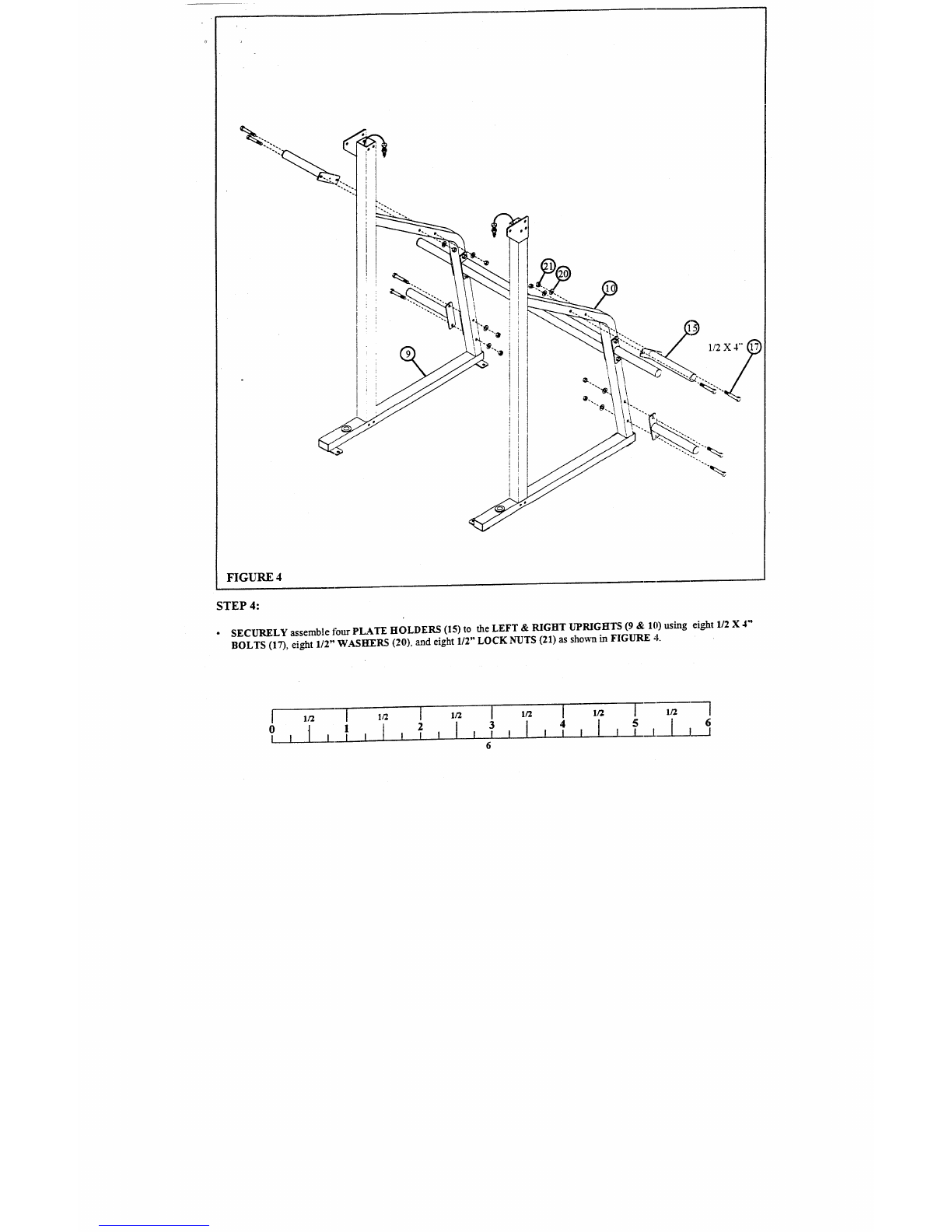

¯SECURELYassemble fottr PLATEHOLDERS(15) to the LEFT&RIGHTUPRIGHTS(9 &10) using eight 1/2

BOLTS(17), eight 1/2" WASHERS(20), and eight 1/2" LOCKN-t~TS(21) as sho~ain FIGURE

FIGURE5 1/2 X 4"~

STEP5:

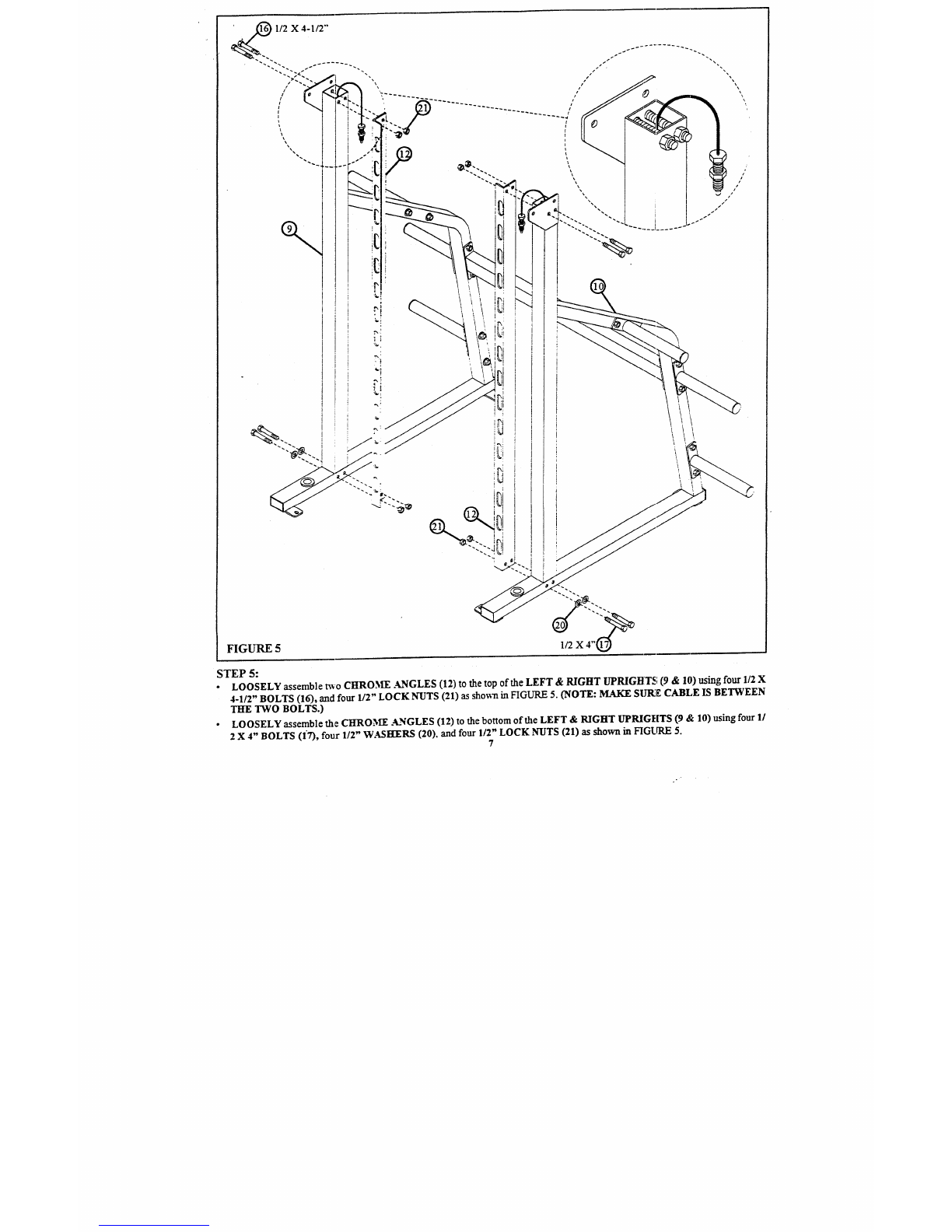

LOOSELYassemble t~vo CHROME.ANGLES(12) to the top of the LEFT&RIGHTUPRIGHTS(9 & 10) using four 1/2

4-1/2" BOLTS(16), and four 1/2" LOCKNUTS(21) as shown in FIGURE5. (NOTE: MAKESIYI~E CABLEIS BETWEEN

THE TWOBOLTS.)

LOOSELYassemble the CHROME.ANGLES(12) to the bottom of the LEFT& RIGHTUPRIGHTS(9 & 10) using four

2 X 4" BOLTS(17), four 1/2" WASH:ERS(20). and four 1/2" LOCKNUTS(21) as shown in FIGURE

FIGURE

STEP7:

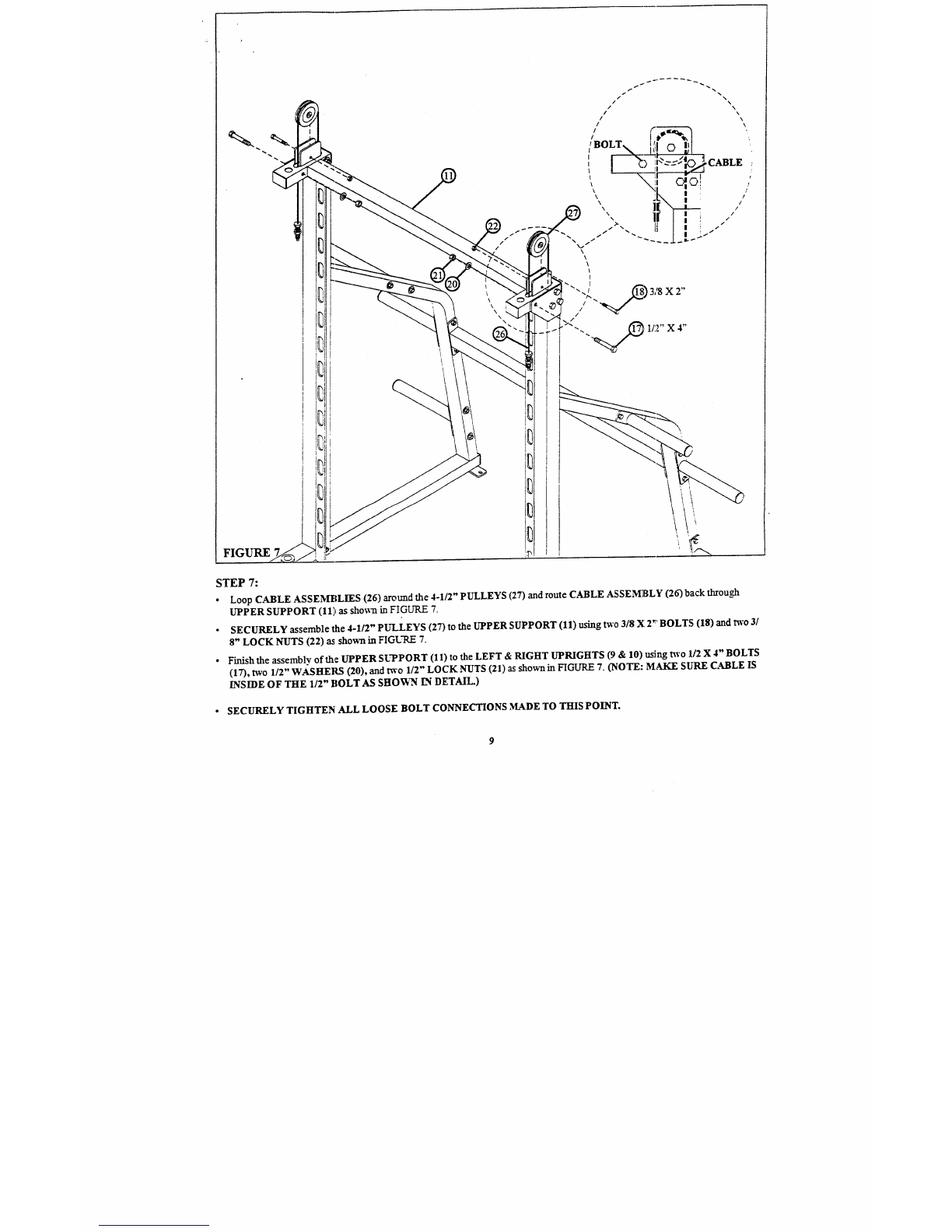

¯ Loop C.~BLEASSEMBLIES(26) around the 4-1/2" PULLEYS(27) and route CABLEASSENEBLY(26) back through

UPPERSUPPORT(11)as shown in FIGURE 7.

¯SECURELYassemble the 4-1/2" PUI_LEYS(27) to the UPPERSUPPORT(11) using t~’o 3/8 X 2" BOLTS(18) and

8" LOCKNUTS(22) as: shown in FIGURE

¯Finish the assembly of the UPPERSUPPORT(11) to the LEFT& RIGHTUPRIGHTS(9 &10) using Bvo 1/2 X 4" BOLTS

(17), two 112" W~SHEILS(20), and two 1/2" LOCKNUTS(21) as shown in FIGURE7. (NOTE:MAKESUREC.~BLE

INSIDE OF THE112" BOLTAS SHOVI,’,’N L-N DETAIL.)

¯SECURELY TIGHTEN ALL LOOSE BOLT CONNECTIONS MADETO THIS POINT.

FIGURE 6

\\\\\

~7~1/2X4"

STEP 6:

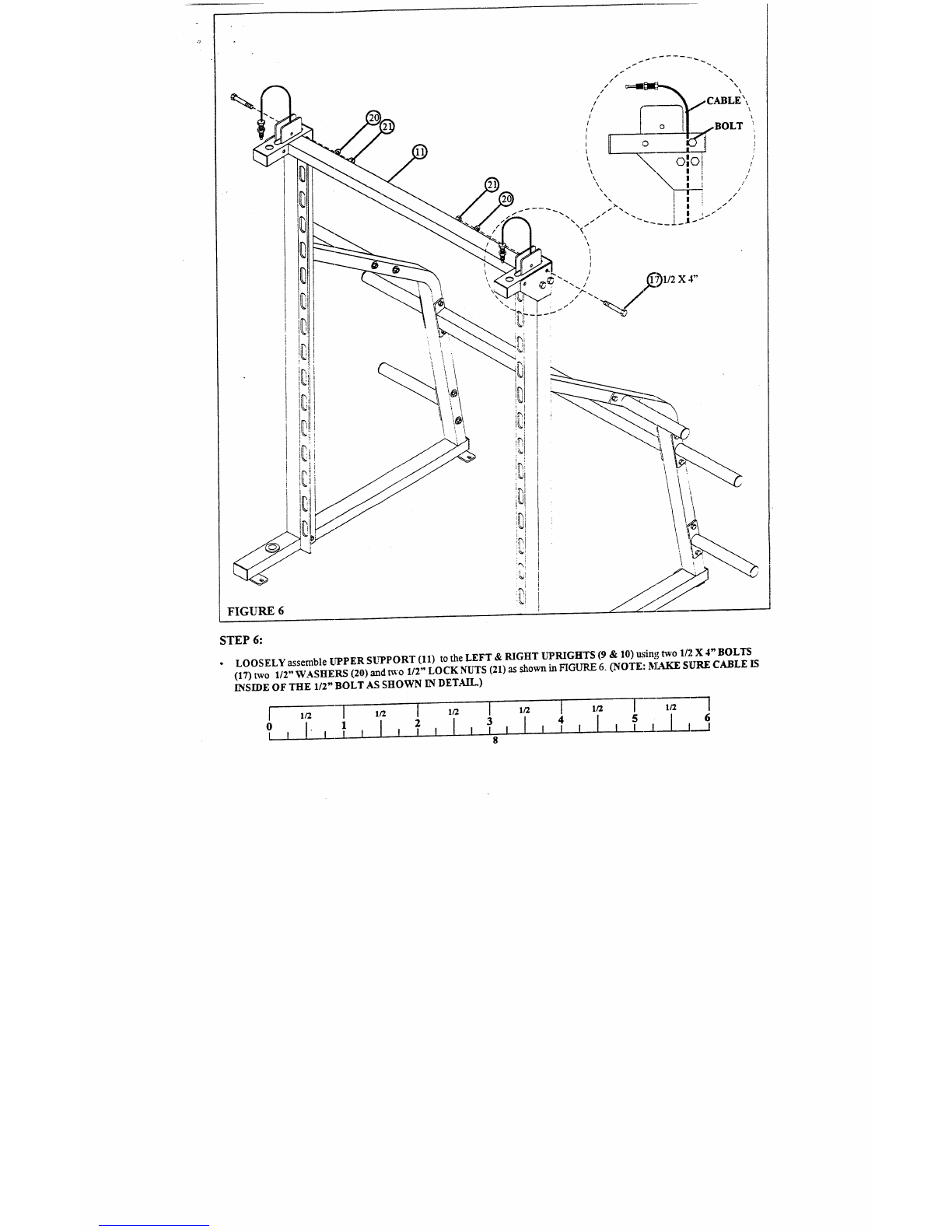

¯LOOSELYassemble UPPERSUTPORT(11) to the LEFT&RIGHTUPRIGHTS(9 &10) u.~-in!~, two 1/2 X4" BOLTS

(17) two 1/2" WASHERS(20)and ~o I/2" LOCKNUTS(21)as shown in FIGURE6. (NOTE:MAKESURECABLE

ENSI~EOFTHE1/2" BOLTAS SHOWNI~ DETAIL.)

I 1/2 i1/2 I 1/2 I I/2 I irz I 1/2 I

4I I I _.L

2[ I I I

I I

FIGURE 8

STEP 8:

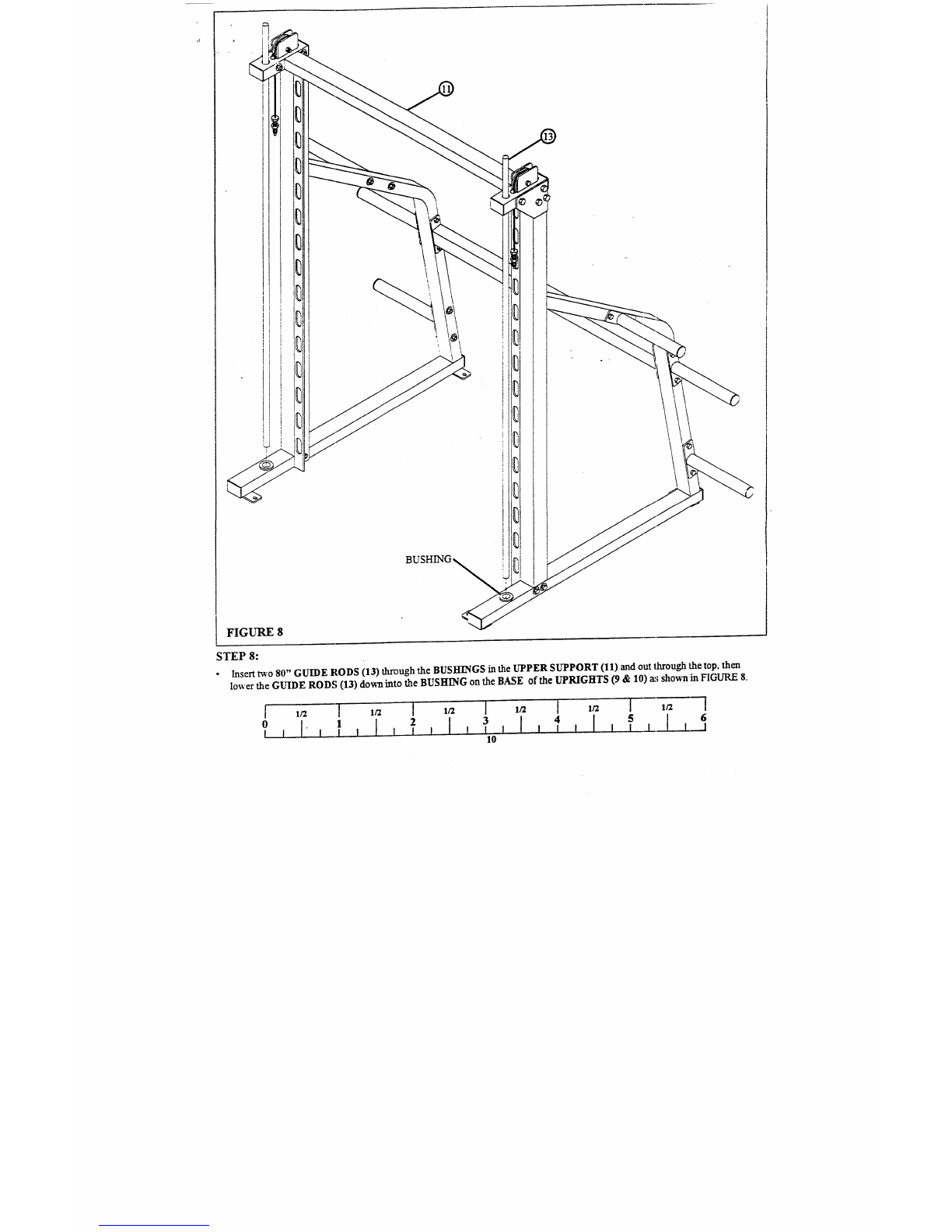

¯Insert va, o 80" GUIDEftODS(13) through the BUSHENGSin the UPPERSUPPORT(11) and out lhrough the top,

lower the GUIDERODS(13) dovminto the BUSHINGonthe BASEof the UPRIGHTS(9 &10) a~; shownin FIGURE

5 I I 1

4[ I I J-

0 [ ! I I

I I ~0
