ParaBody 360101 Manuel utilisateur

Serious Steel

1360101 375 LEG PRESS ADAPTERKITi

ASSEMBLY INSTRUCTION

Part# 6837701 1Eevision:07/06/99

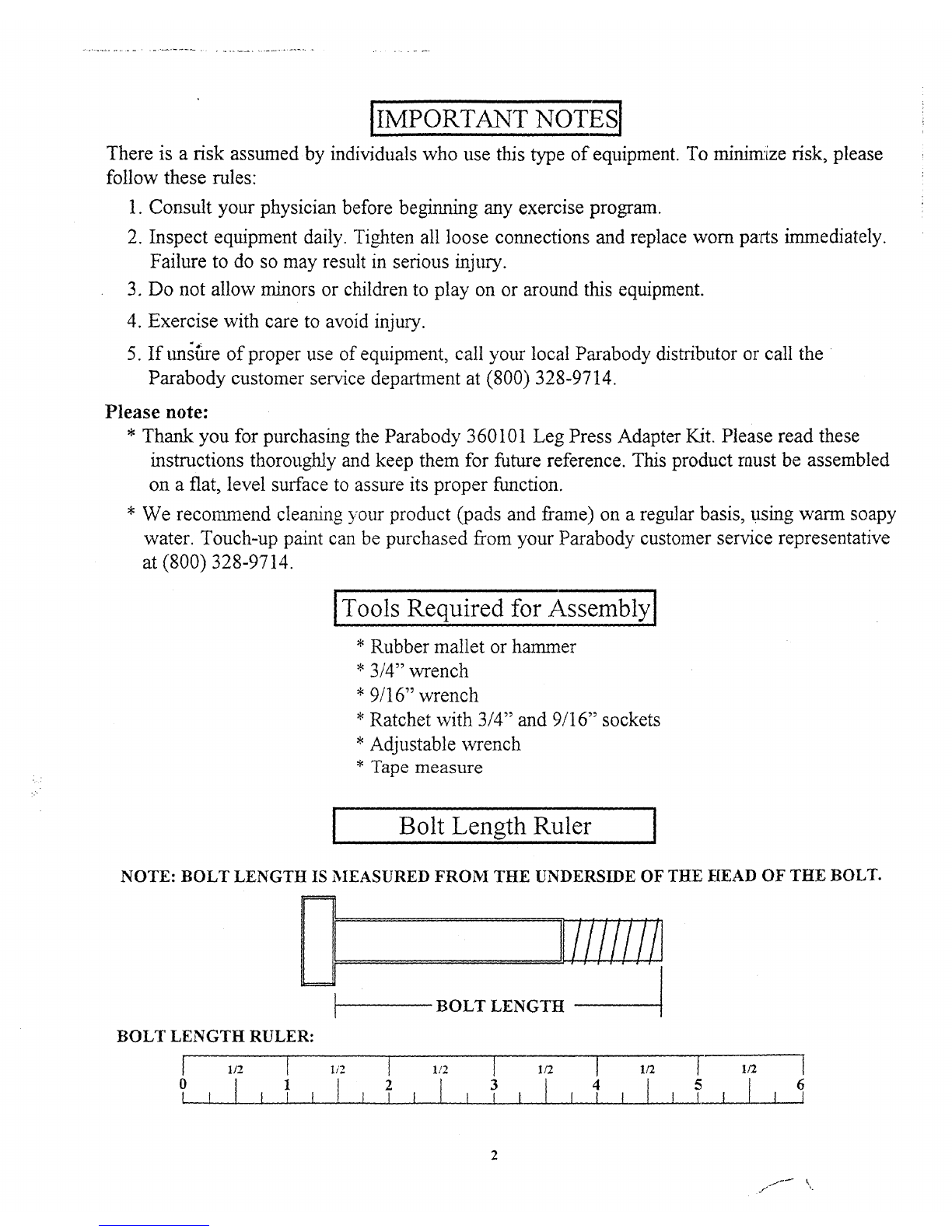

]IMPORTA~,,T N~)TES

There is a risk assumedby individuals whouse this type of equipment. To minirrrize risk, please

follow these rules:

1. Consult your physician before beginning any exercise program.

2. Inspect equipmentdaily. Tio~hten all loose connections and replace wornparts immediately.

Failure to do so mayresult in serious injury.

3. Donot allow minors or children to play on or around this equipment.

4. Exercise with care to avoid injury.

5. If un~fire of proper use of equipment,call your local Parabodydistributor or call the "

Parabody customer service departmentat (800)328-9714.

Please note:

* Thankyou for purchasing the Parabody 360101Leg Press Adapter Kit. Please read these

instructions thoroughly and keep them for future reference. This product faust be assembled

ona flat, level surface to assure its properfunction.

*Werecommendcleaning your product (pads and frame) on a regular basis, using warmsoapy

water. Touch-uppaint can be purchased from your Parabody customer service representative

at (800) 328-9714.

! TooI’s Required for Assembly]

* Rubber mallet or hammer

* 3/4" wrench

* 9/16" wrench

* Ratchet with 3/4" and 9/16" sockets

* Adjustable wrench

* Tape measure

Bolt LengthRuler

NOTE: BOLT LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT.

BOLT LENGTH RULER:

BOLT LENGTH

" ~

PART# DESCRIPTION

6838003 FRON~FLEG

6693902 Pig I .FY BRACKET

6838103 ’ BASE CONNECTION

3116i01 3-V2"eULLZY

6405201 2" SQ. ENDCAP

6-~700~ 2"SQ.COVERCAP

68~2701’ 2"SQ.r~UBB~BUM~ZR

3102501 3/8" %VASHER

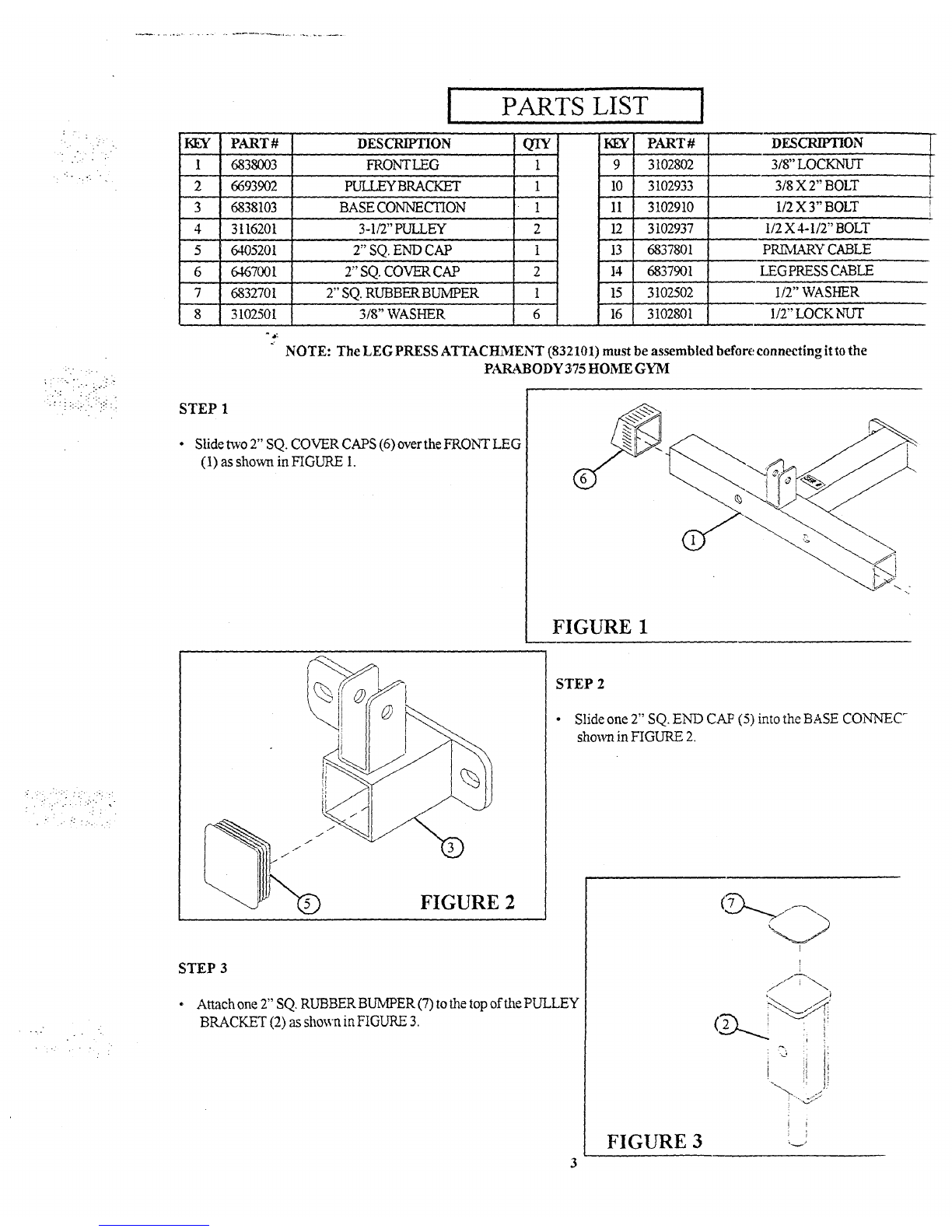

PARTS LIST

QIY KEY PART#

1 9 3102802

1 i0 3102933

212’ 3102937

1 ~ 6837801

2 14 6837901

1 15 ’3’102502

6 16 3102801

DESCRIPTION

3/8" LOCKNUT

3/8 X2" BOLT

1/2X3"BOLT’ ’ ’

lnx

PRLMARYCABLE

LEGPRESSCABLE

I/2" WASHER

.... I~2" LOCK~

NOTE:The LEGPRESSATTACHMENT(832101) must be assembled before connecting it to the

PARABODY375 ttOME GYI~I

STEP 1

¯ Slidetwo2" SQ. COVERCAPS(6) over the FRONTLEG

(I) as sho~vnin FIGURE

FIGURE1

FIGURE2

STEP 3

¯ Attachone 2" SQ, RUBBERBUMPER(7) tothe top ofthePULLEY

BRACKET(2) as shownin FIGURE

STEP 2

¯Slide one 2" SQ. ENDCAF(5) into the BASECONNEC

shownin FIGURE2.

3FIGURE3

STACK GUARD

FIGURE 4

BASE

~ 1/2 WASHER

1/2 X 4" BOLT

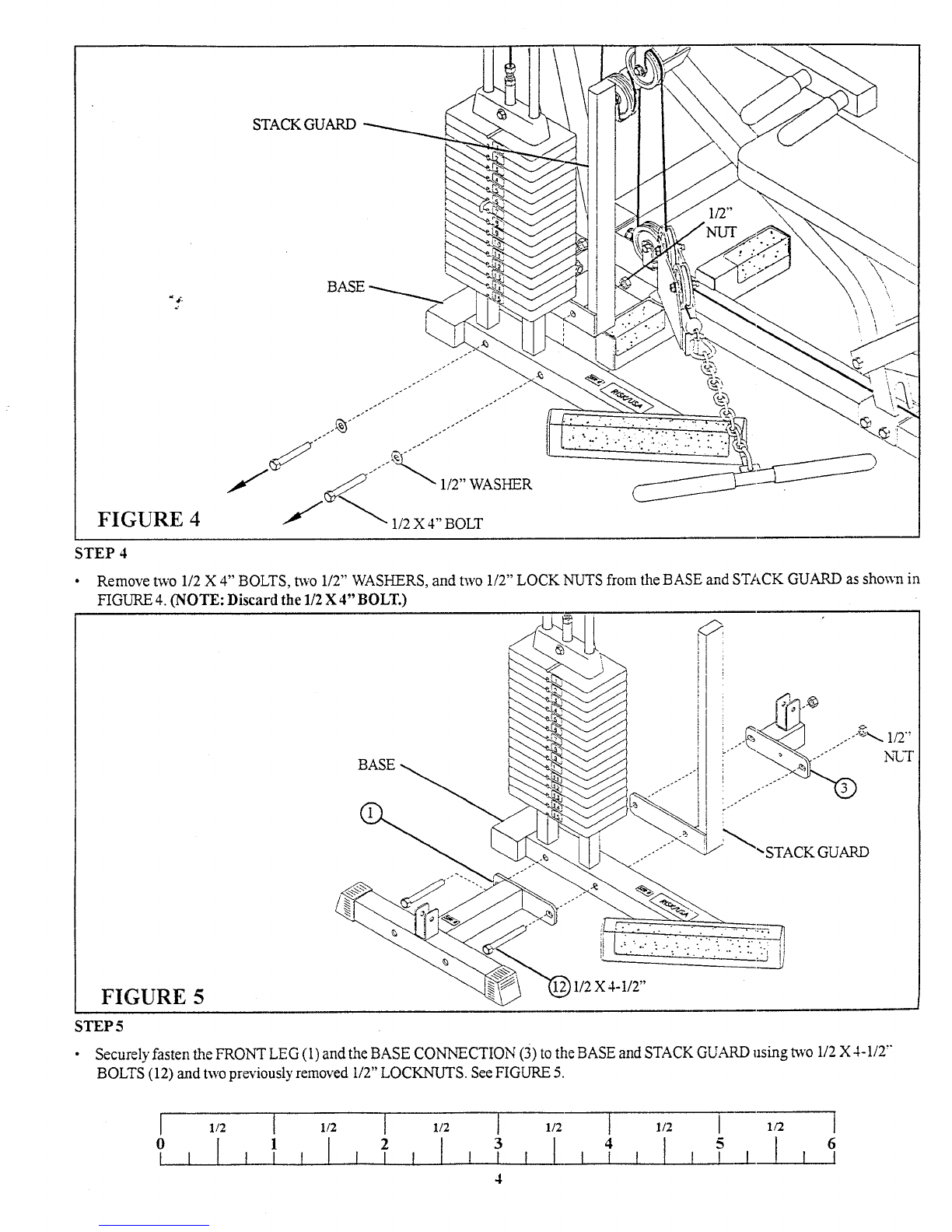

STEP 4

¯Removetwo 1/2 X4" BOLTS,two 1/2" WASHERS,and two 1/2" LOCKNUTSfrom the BASEand STACKGUARDas shown in

FIGURE4. (NOTE:Discard the 1/2 X 4" BOLT.)

BASE

,STACK GUARD

FIGURE5 I/2X4-1/2"

STEP5

¯Securely fasten the FRONTLEG(I) and the BASECONNECTION(3) to the BASEand STACKGUARDusing two 1/2 X 4-1/2’"

BOLTS(12) and two previously removed 1/2" LOCKNUTS.See FIGURE

[ 1/2 [ 1/2 [1/2 [ 1/2 [ 1/2 [ 1/2

I23 4 5 6

REMOVE

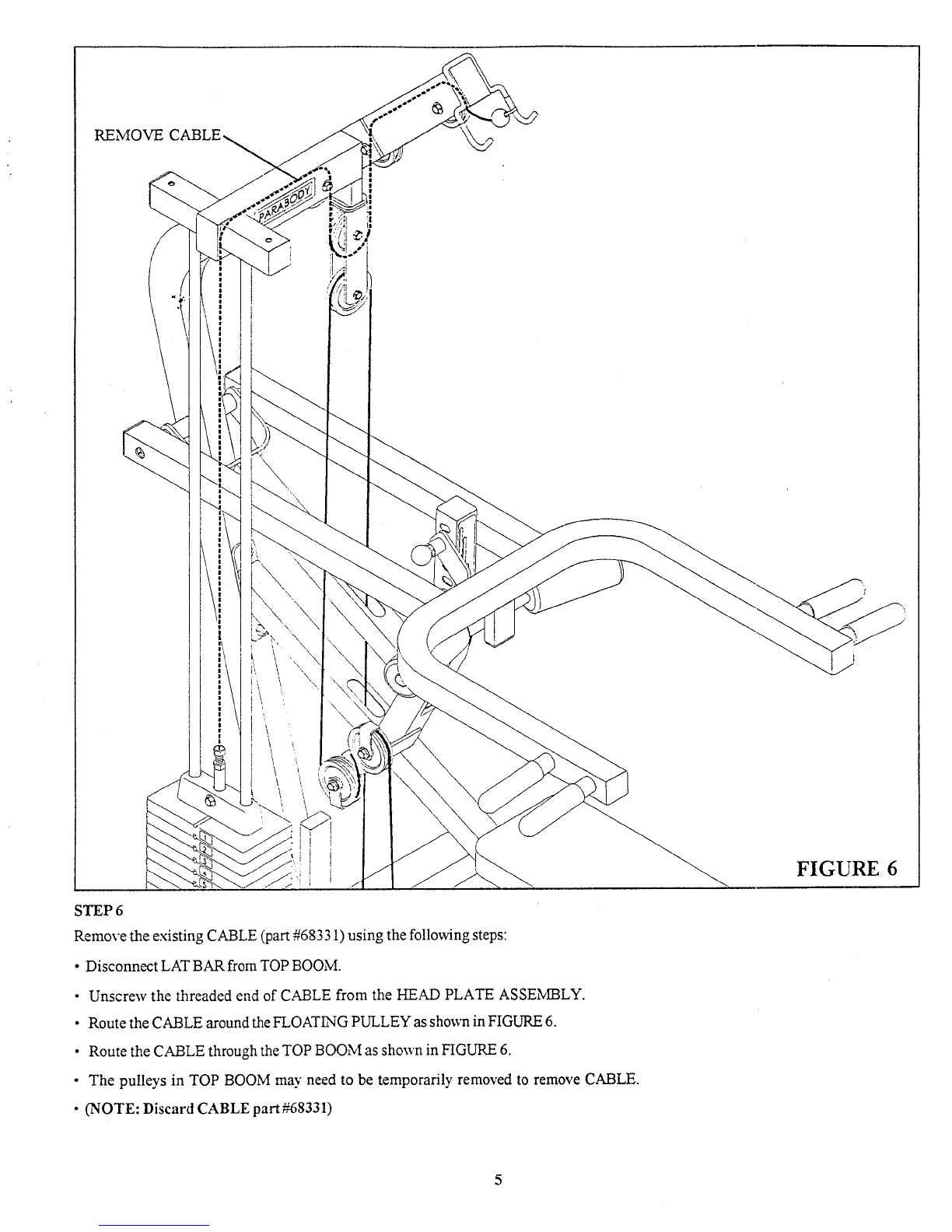

STEP 6

Removethe existing CABLE(part #68331)using the following steps:

¯ Disconnect LATBARfrom TOPBOOM.

¯ Unscrew the threaded end of CABLEfrom the HEADPLATEASSEMBLY.

¯ Route the CABLEaround the FLOAT~’GPULLEYas shown in FIGURE6.

¯ Route the CABLEthrough the TOPBOOMas shown in FIGURE6.

¯ The pulleys in TOPBOOMma.v need to be temporarily removed to remove CABLE.

¯ (NOTE:Discard CABLEpart ~q58331)

FIGURE 6

FIGURE 7

IMPORTANT: Cable must run

in all the pulley grooves.

;TEP7

Install the NEWPRIMARYCABLE(13) using the following steps:

¯ Route the CABLE(13) through the TOPBOOMas sho~a in FIGURE7. Thepulleys in TOPBOOMmayneed to be temporarily removed

to performthis step. (Note: Makesure the CABLEis running in all the pulley grooves.)

Route the CABLE(13) around the FLOATINGPULLEYBRACKETas shownin FIGURE

Route the CABLE(13) back over one pulley in the GUIDERODSUPPORT,downthrough the PULLEYE;RACKET(2) and over

second pulley in the GUIDERODSUPPORT.

Screw the threaded end of CABLE(13) into the HEADPLATEASSEMBLY.

I 1/2 ~ 1/2 I 1/2 ~ 1/2

FIGURE 8

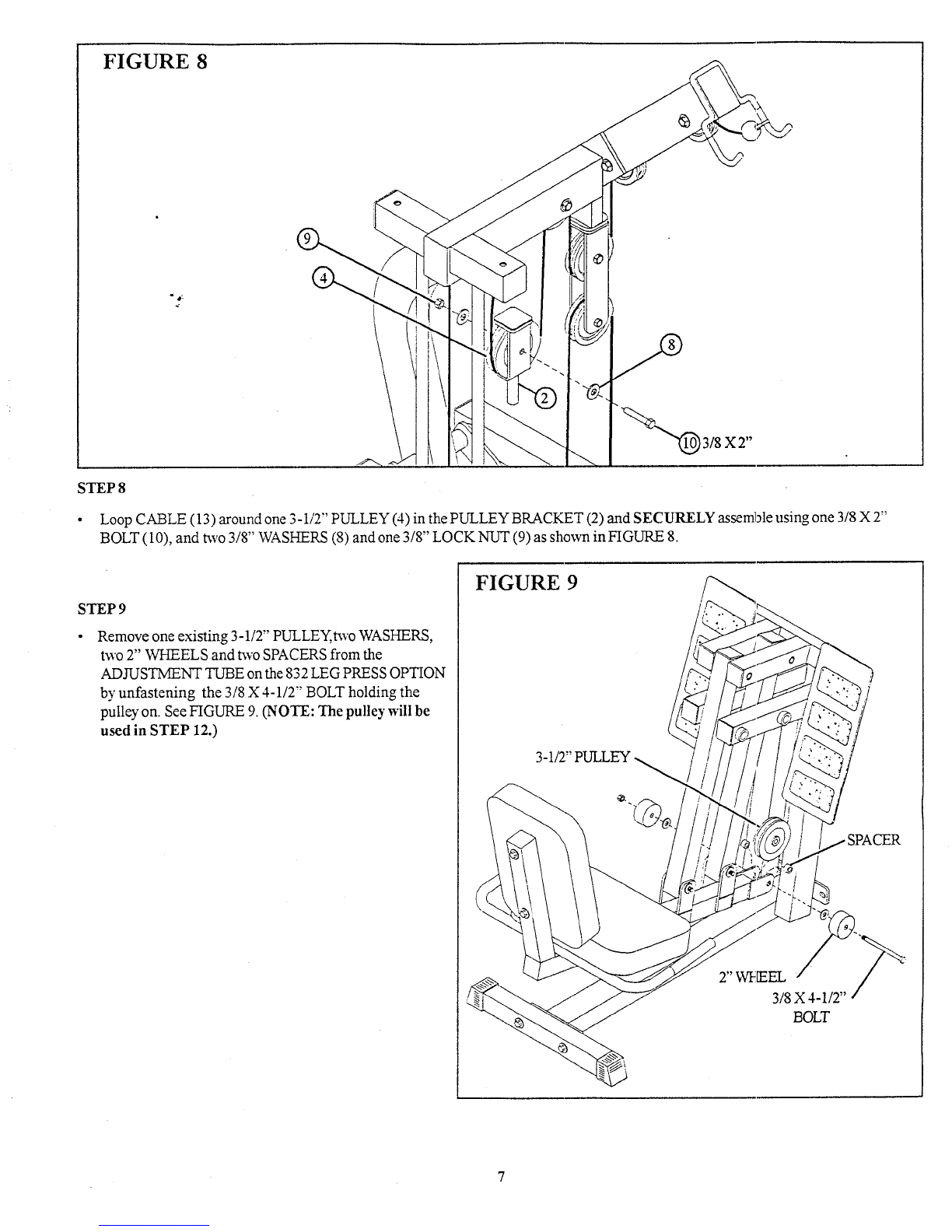

STEP8

~3/8 X2"

Loop CABLE(13) around one 3-1/2" PULLEY(4) in the PULLEYBRACKET(2) and SECURELYassemble using one 318 X2"

BOLT(10), and two 3/8" WASHERS(8) and one 3/8" LOCKNLrI"(9) as shownin FIGURE

FIGURE9

STEP9

¯Removeone existing 3-1/2" PULLEY,two WASHERS,

two 2" WHEELSand two SPACERSfrom the

ADJUSTMENTTUBEon the 832 LEGPRESSOPTION

by unfastening the 3/8 X 4-1/2" BOLTholding the

pulley on. See FIGURE9. (NOTE:Thepulley will be

used in STEP12.)

2" WHEEL

3/8 X4-1/2"

BOLT

WA SPACER

/ DONOT

3/8 X4-1/2" BOLT FIGURE 10

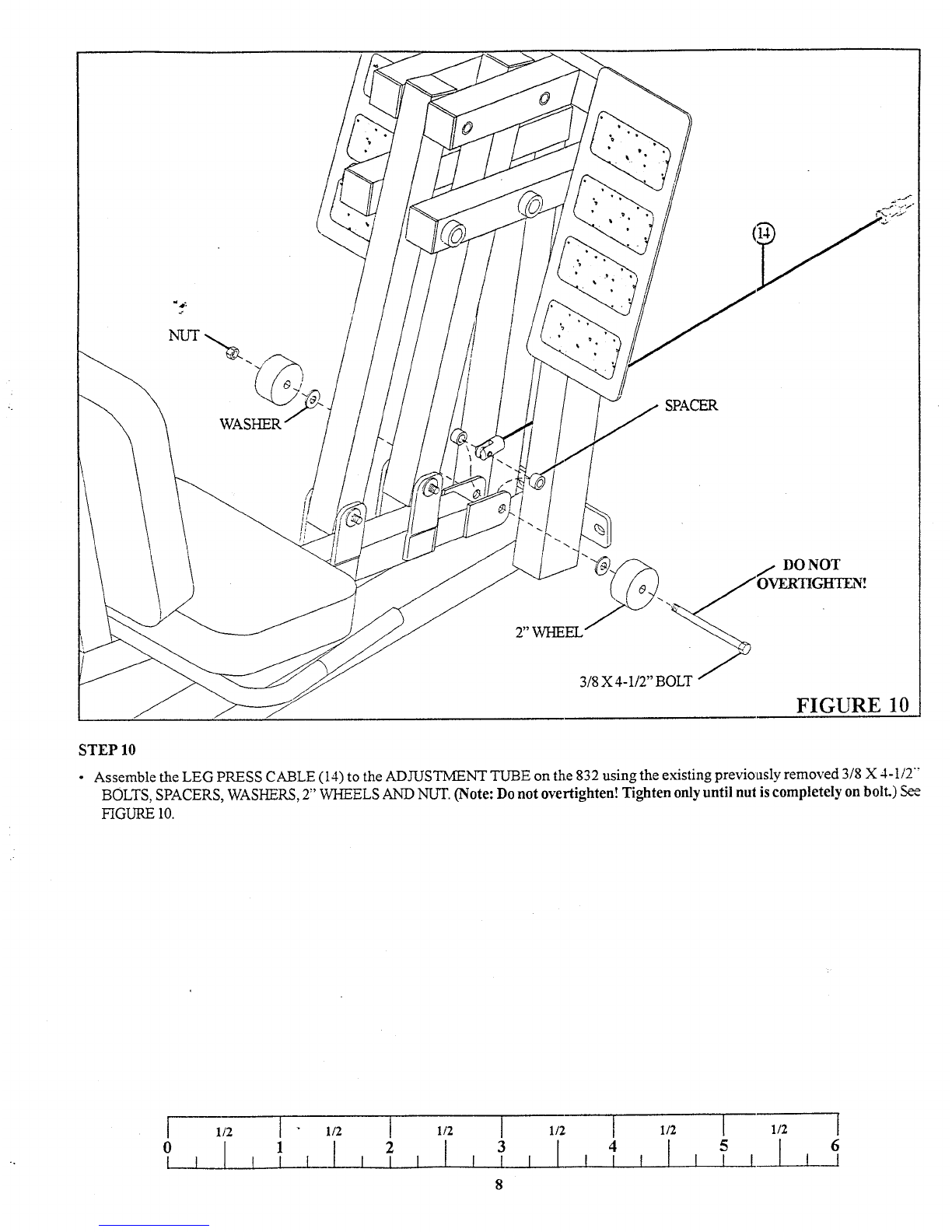

STEP 10

¯ Assemblethe LEGPRESSCABLE(14) to the ADJUSTMENTTUBEon the 832 using the existing previoasly removed3/8 X 4-1/2"’

BOLTS,SPACERS,WASHERS,2" WHEELSANDNUT.(Note: Do not overtighten! Tighten only until nut is completely on bolL)

FIGURE10.

1/2 I 1/2 I1/2 ] 1/2 I1/2 I1/2 1

1 2 [34 5 6

FIGURE 11

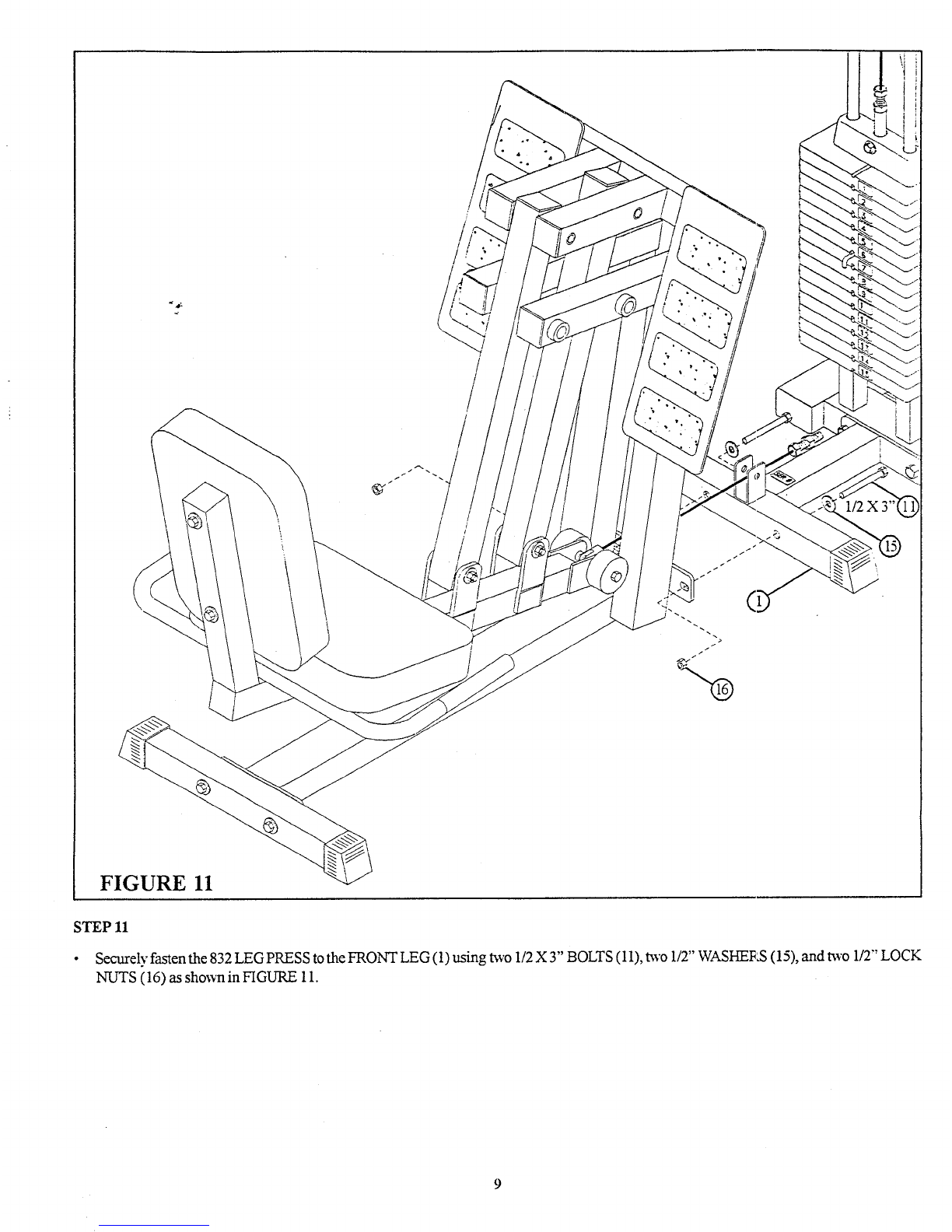

STEP11

¯Secure~yfastenthe832LEGPRESSt~theFRONTLEG(~)usingtw~/2X3~BOLTS(~)~tw~/2~WASHE~‘S(~5)~andtw~/2~L~CK

NUTS(16) as shownin FIGURE11.

3/8 X2",

FIGURE 12

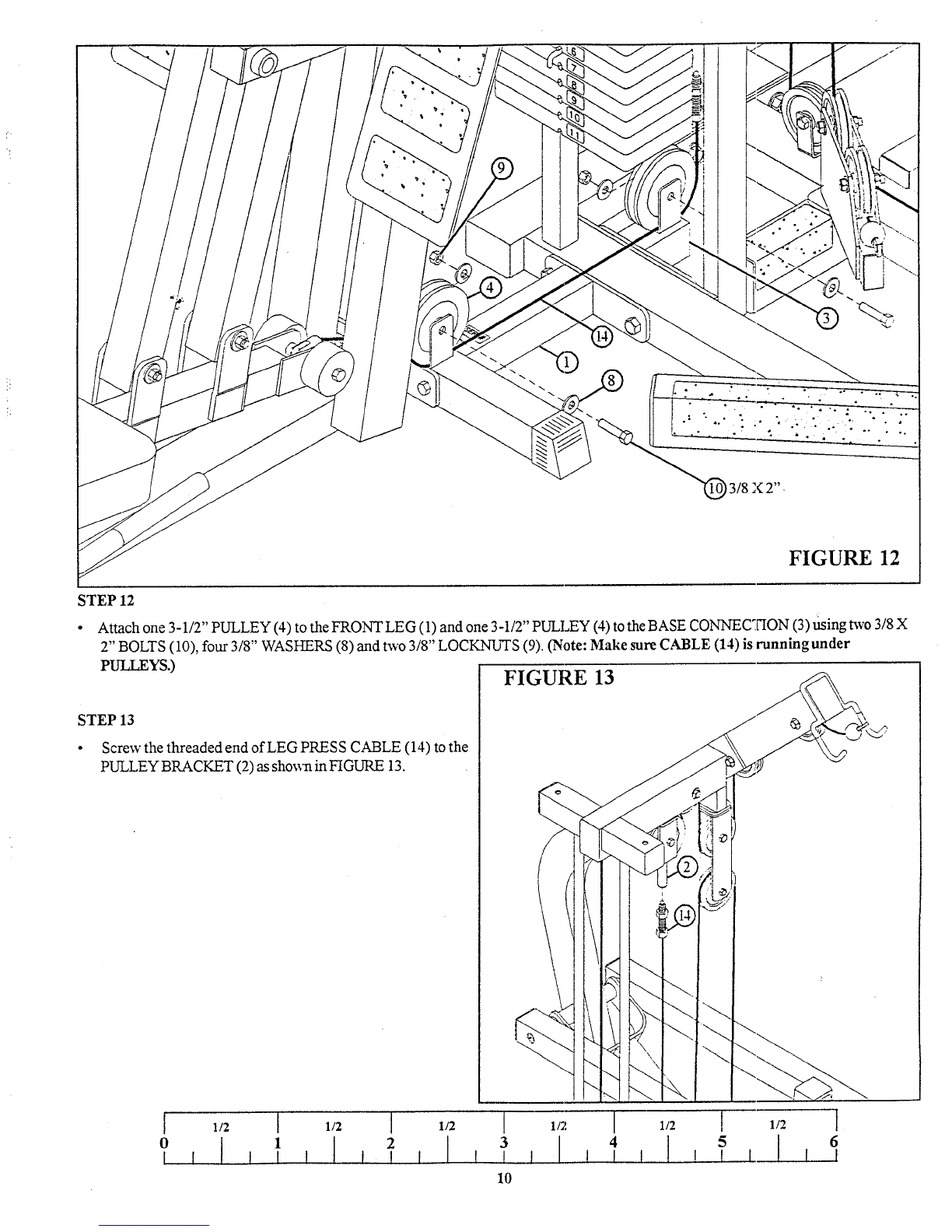

STEP12

¯Attach one 3-1/2" PULLEY(4) to the FRONTLEG(1) and one 3-1/2" PULLEY(4) to the BASECONNEC([’ION(3) Using

2" BOLTS(10), four 3/8" WASHERS(8) and two 3/8" LOCKNI_rTS(9). (Note: Makesure CABLE(14) is running

pUI~! ,~YS.)

STEP13

¯Screw the threaded end of LEGPRESSCABLE(14) to the

PULLEYBRACKET(2) as shox~n in FIGURE13.

FIGURE 13

345 6
