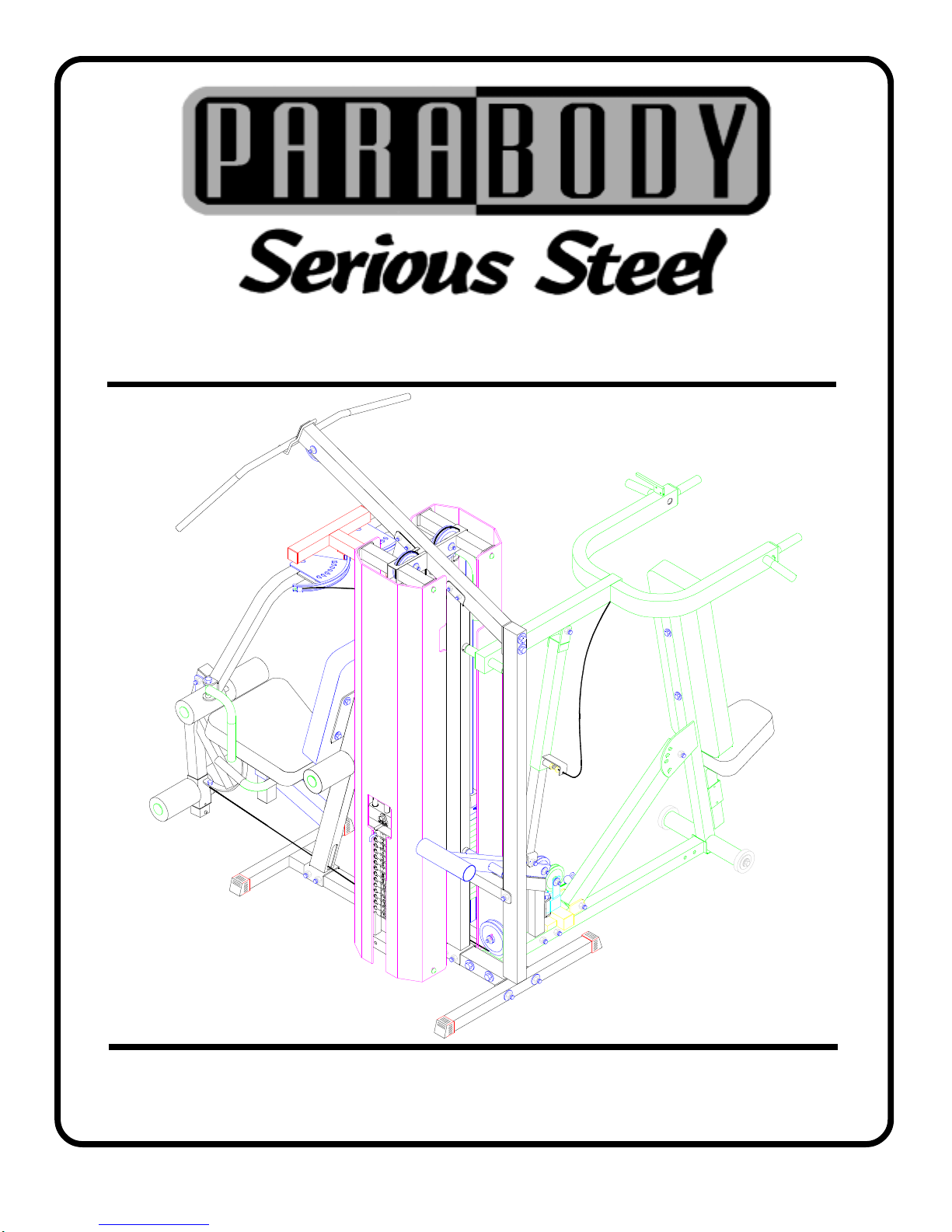

ParaBody 445104 Manuel utilisateur

445104 425 SECOND STACK OPTION

Part#6865201 Revision:2/15/001

ASSEMBLY INSTRUCTIONS

IMPORTANT NOTES

Please note:

Tools Required forAssembly

* Thank you for purchasing the Parabody 445104 Second Stack Option. Please read these

instructions thoroughly and keep them for future reference. This product must be assembled

on a flat, level surface to assure its proper function.

* Rubber mallet or hammer

* 3/4” wrench

* 9/16” wrench

* Ratchet with 3/4” and 9/16” sockets

* 7/32” Allen wrench

* Adjustable wrench

* Tape measure

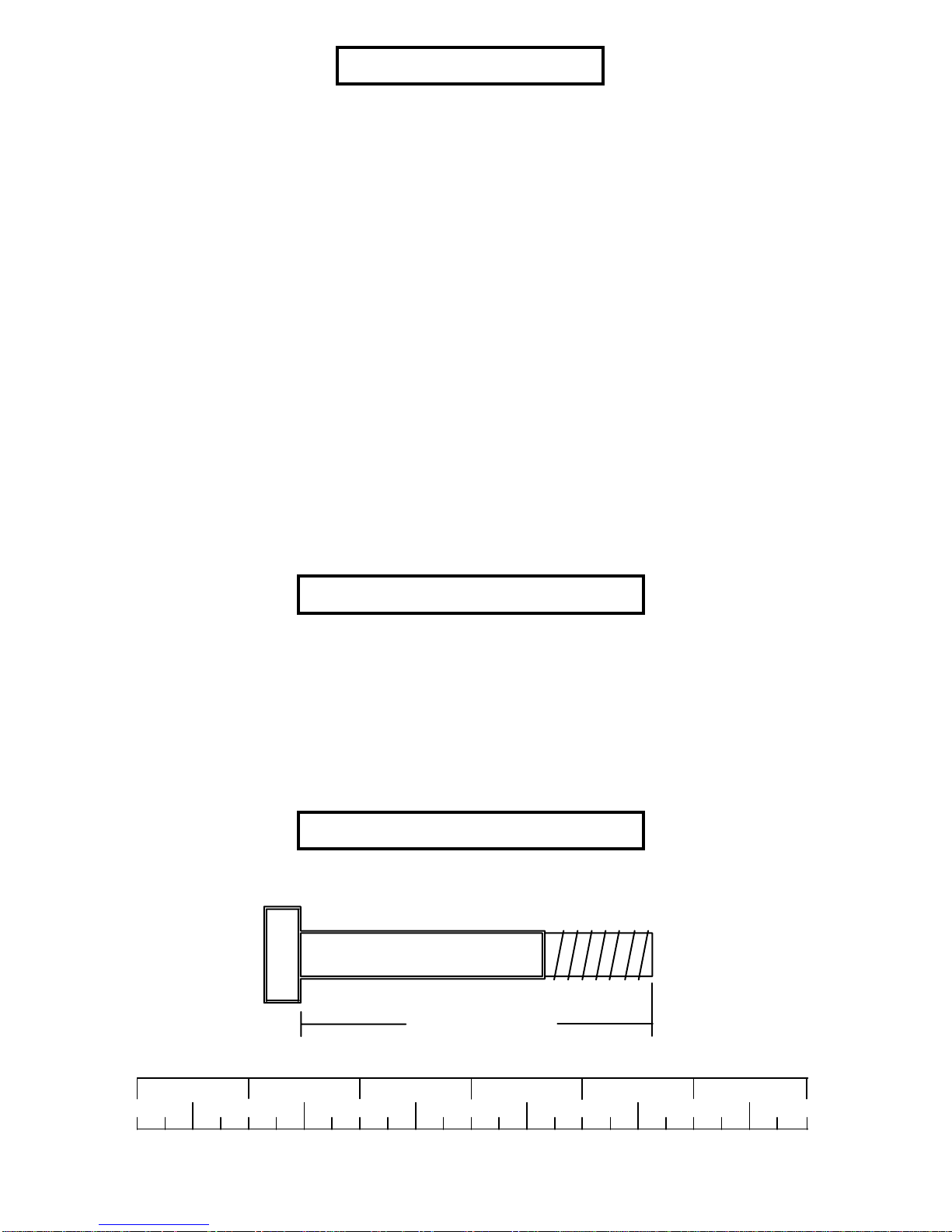

NOTE:BOLTLENGTHISMEASUREDFROMTHE UNDERSIDE OFTHEHEADOFTHEBOLT.

BOLT LENGTH RULER:

* We recommend cleaning your product (pads and frame) on a regular basis, using warm soapy

water. Touch-up paint can be purchased from your Parabody customer service representative

at (800) 328-9714.

Bolt Length Ruler

0123456

1/2 1/2 1/2 1/2 1/2 1/2

BOLT LENGTH

WELCOMETOTHEWORLDOF Serious steel!

There is a risk assumed by individuals who use this type of equipment. To minimize risk, please

follow these rules:

2. Do not allow minors or children to play on or around this equipment.

1. Inspect equipment daily. Tighten all loose connections and replace worn parts immediately.

Failure to do so may result in serious injury.

3. Exercise with care to avoid injury.

4. If unsure of proper use of equipment, call your local Parabody distributor or call the

Parabody customer service department at (800) 328-9714.

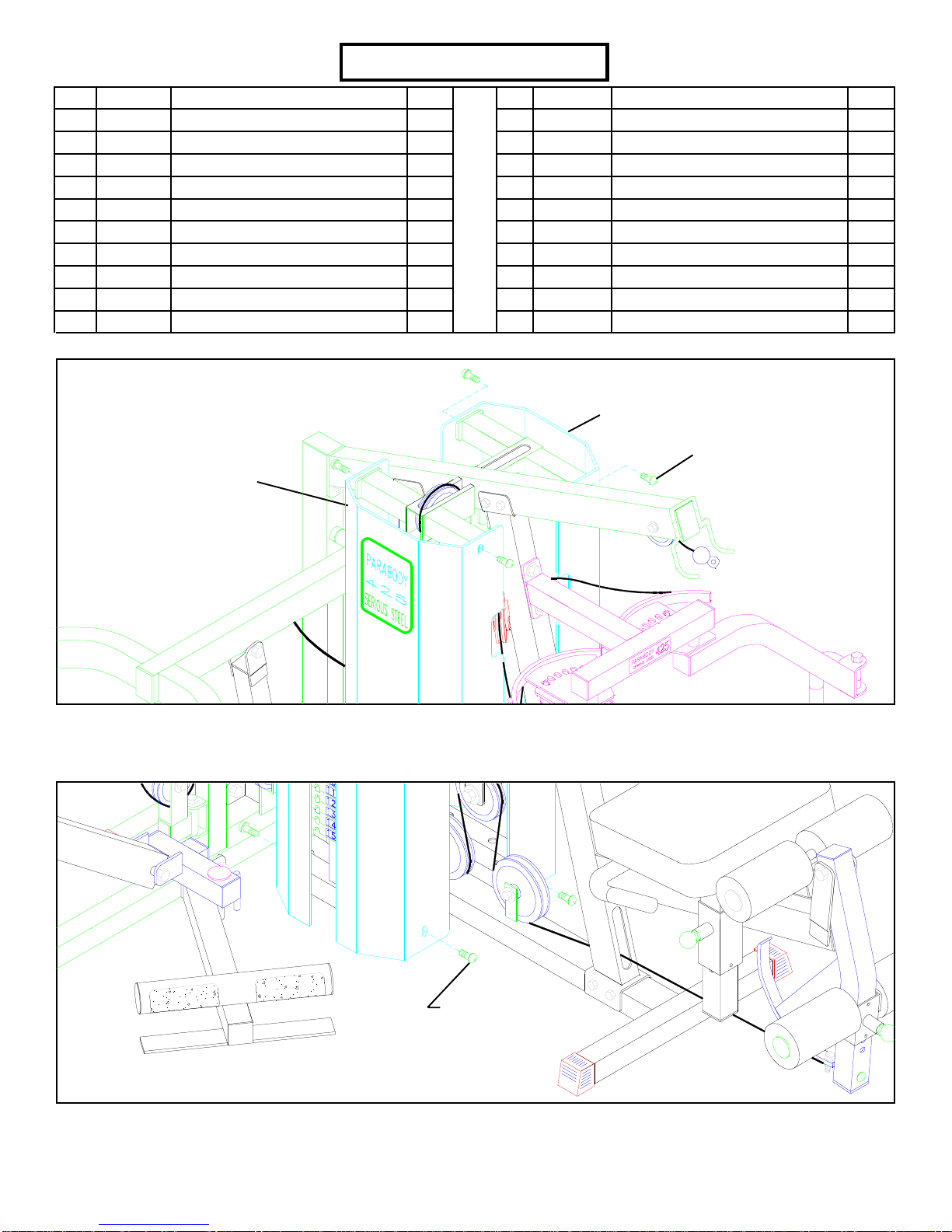

STEP 2

FIGURE 2

FIGURE 1

STEP 1

• REMOVE the four 3/8” X 1” BUTTON HEAD CAP SCREWS from the top of the front SHROUD & rear SHROUD. See FIGURE 1.

3/8” X 1” BUTTON

HEAD CAP SCREW

PART #

6523401

6266001

6375902

6714601

6747501

3116101

6214401

3108002

3117401

3102501

KEY

QTY

PART #

3102909

6480301

3102922

3102901

3102503

6214501

6382301

6189501

3102802

DESCRIPTION

3/8X1” BOLT

3/8”FLANGESPACER

3/8X2-3/4”BOLT

3/8X1-1/4”BOLT

3/4”WASHER

WEIGHTPLATE

WEIGHTPLATEBUSHING 10CT.

WEIGHTSTACKLABEL

3/8”LOCK NUT

QTY

DESCRIPTION

GUIDEROD

WEIGHTSTACKSHAFT

1-1/4SQ.X4-7/8”TUBE

HEADPLATE

PRESS-STACKCABLE

4-1/2”PULLEY

WEIGHTSTACKPIN

WEIGHTSTACKCUSHION

CAPPLUG

3/8”WASHER

KEY

PARTS LIST

• REMOVE the four 3/8” X 1” BUTTON HEAD CAP SCREWS from the bottom of the front SHROUD & rear SHROUD. Remove the

SHROUDS from the 425103 HOME GYM. See FIGURE 2.

REAR SHROUD

FRONT SHROUD

3/8” X 1” BUTTON

HEAD CAP SCREW

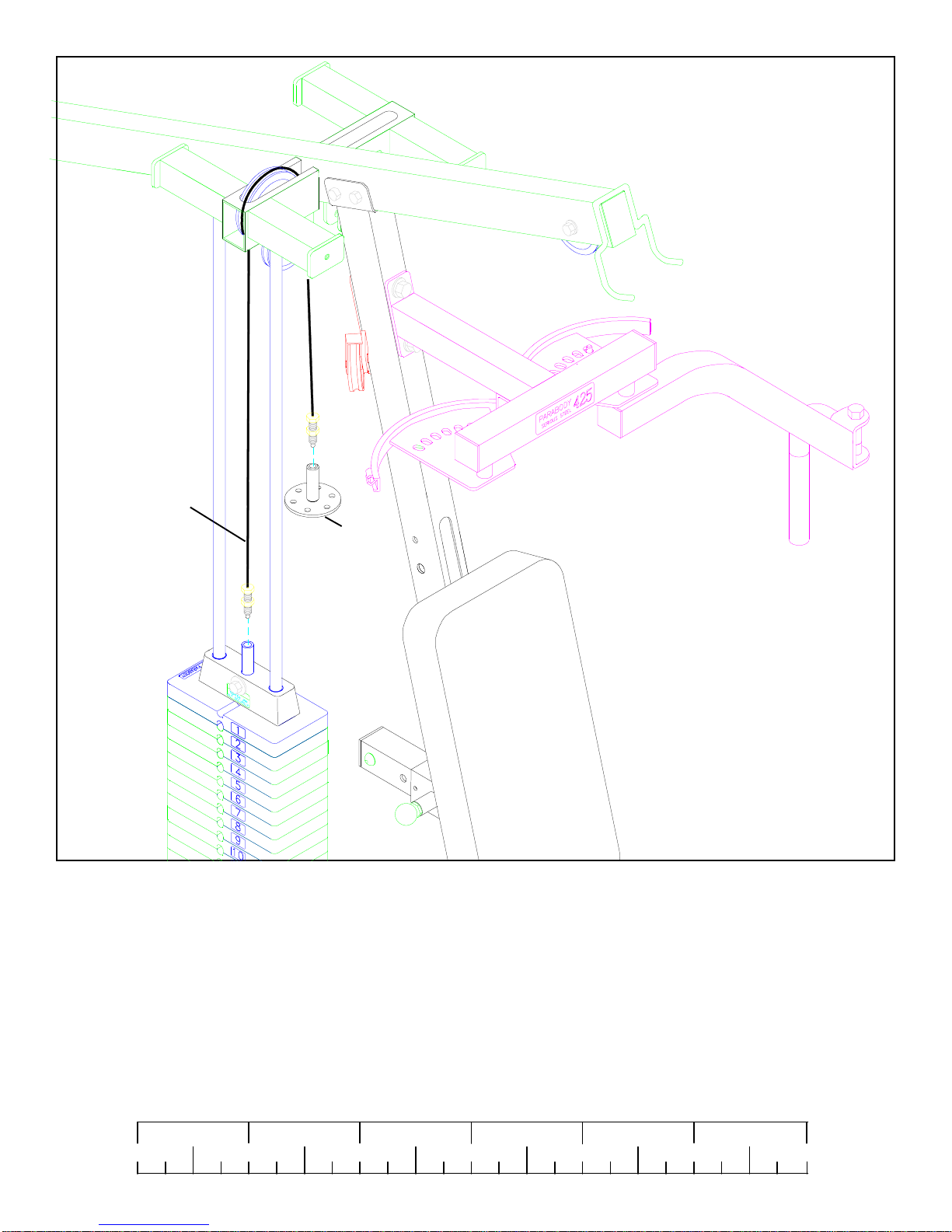

STEP 3

FIGURE 3

• Unscrew the threaded ends of the HEAD PLATE CABLE from the WEIGHT STACK SHAFT & the D-RING and remove HEAD

PLATE CABLE. The HEAD PLATE CABLE will be used later. See FIGURE 3. (NOTE: Remove pulleys for ease of removal.)

HEAD

PLATE

CABLE

(67250)

D-RING

0123456

1/2 1/2 1/2 1/2 1/2 1/2

PRESSCABLE

(67249)

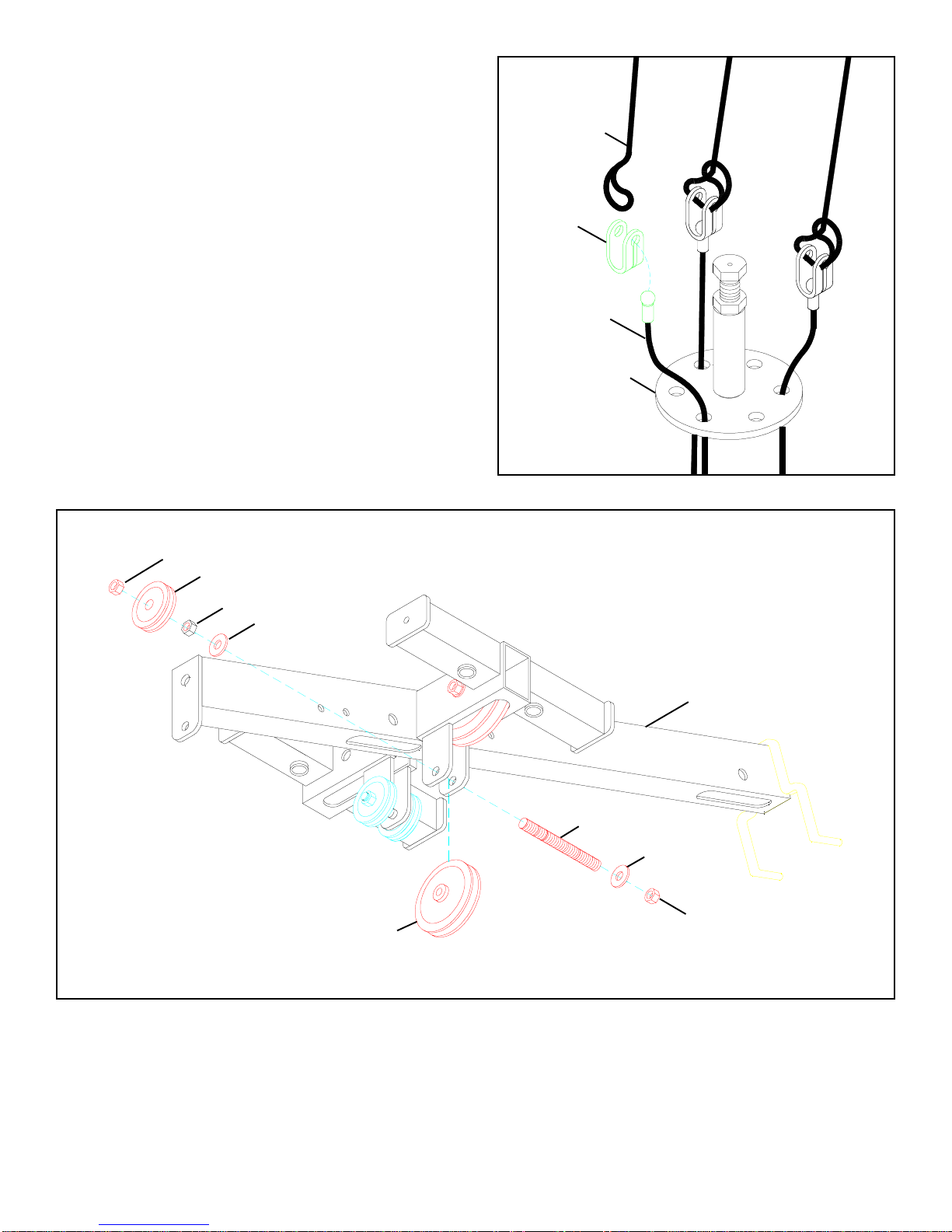

STEP4

• Removethe PRESSCABLE(67249)fromtheKEYHOLECLEVIS

andELASTICCORD.(NOTE:TheLATorLEGEXTCABLEcan

bemovedoveroneholeontheD-RINGsotheKEYHOLECLEVIS

areevenlyspaced.)

FIGURE 4

ELASTIC

CORD

D-RING

KEYHOLE

CLEVIS

• DiscardtheKEYHOLE CLEVIS and ELASTIC CORD.

FIGURE 5

STEP5

• (NOTE:Ifthe435101 LEGPRESSOPTION is installedproceedtoSTEP6otherwiseproceed toSTEP7.)

TOPBOOM

3/8”LOCKNUT

3/8”HEXNUT

3-1/2”PULLEY

3/8”WASHER

3/8”LOCK NUT

2”PULLEY

3/8”WASHER

3/8”THREADEDROD

• Removeone 3-1/2” PULLEY,one3/8”THREADED SHAFT,two3/8”WASHERS,one 2”PULLEY(two ifthe 435104is installed), one

3/8”HEX NUT and two 3/8”LOCK NUTS from the bracketon theTOP BOOM. See FIGURE 5.

• Discardthe 3-1/2” PULLEYand the 3/8”THREADEDSHAFT.

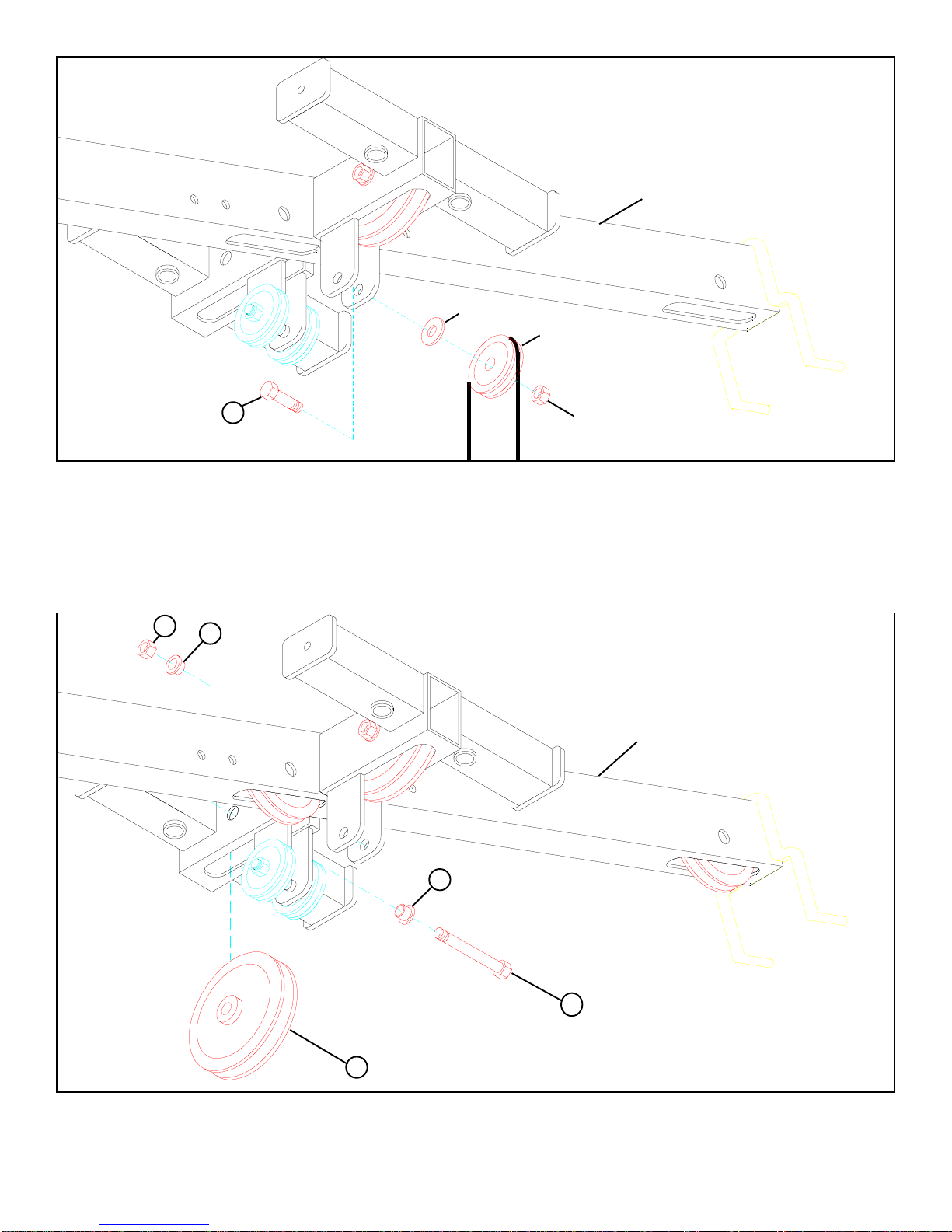

STEP6

FIGURE 6

• Assemble the previously removed 2” PULLEYto the bracket on the TOP BOOM using one 3/8 X 1” BOLT (11), one previously removed

3/8”WASHER,and one previously removed 3/8” LOCK NUT.See FIGURE 6.

• (NOTE:STEP6 isonly ifthe 435101LEGPRESS OPTIONis installed otherwise proceedtoSTEP7.)

• Assemblethe previously removed ELASTIC CORD over the 2” PULLEYas shownin FIGURE 6.

TOPBOOM

3/8”LOCKNUT

2”PULLEY

3/8”WASHER

3/8X 1” 11

FIGURE 7

STEP 7

• LOOSELYassemble one 4-1/2”PULLEY(6) to theTOPBOOMusing one3/8 X 2-3/4”BOLT(13),two3/8” FLANGE SPACERS (12),

andone3/8”LOCK NUT (19).SeeFIGURE7.

13 3/8 X 2-3/4”

TOP BOOM

FIGURE 8

STEP8

• Discard the two 3/8 X 1/2” SPACERS.

• Remove two 2” PULLEYS (5) to the rear bracket on the TOPBOOM using one 3/8”THREADED SHAFT (9), two 3/8”WASHERS,

two3/8” HEX NUTS(8), and two 3/8” LOCKNUTS (7) asshown in FIGURE 8.

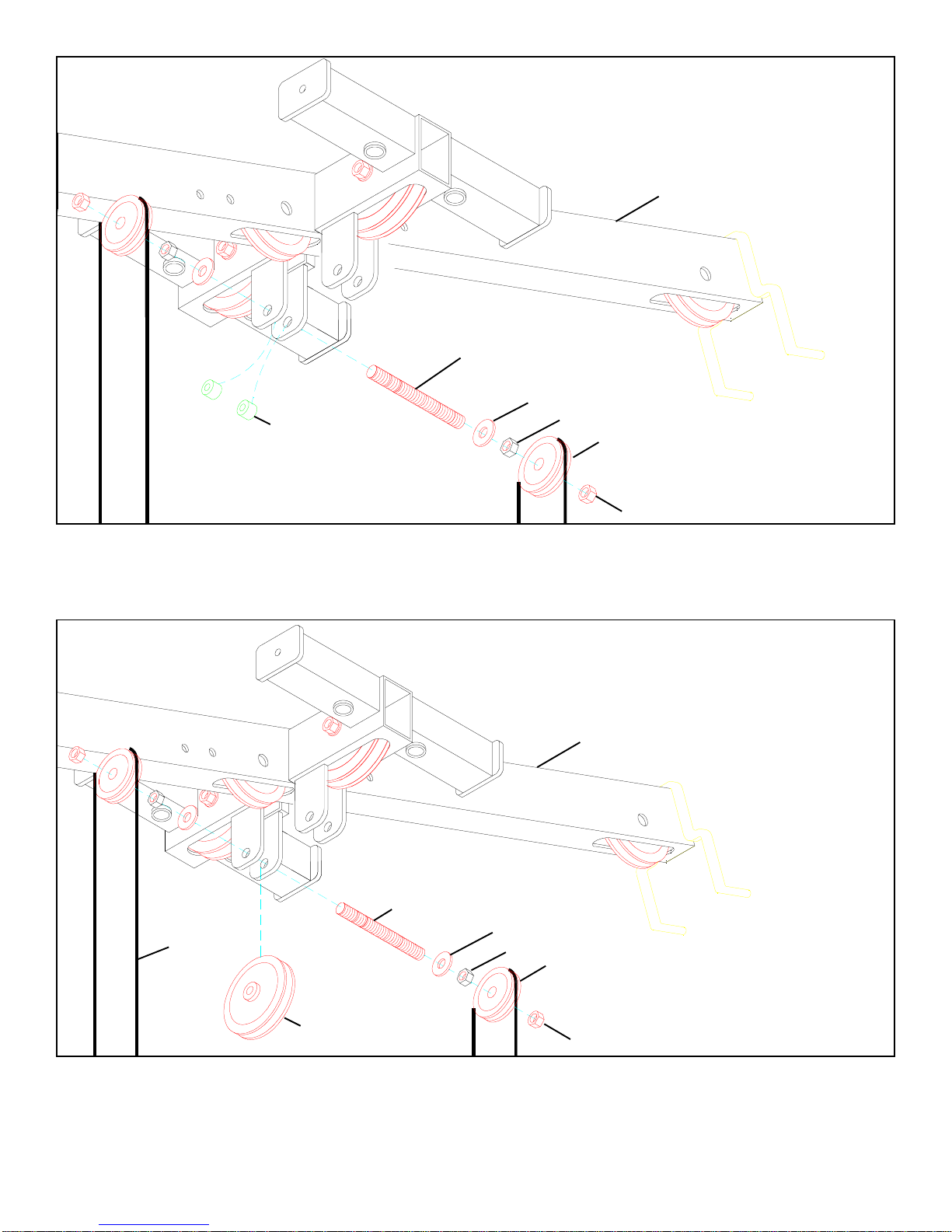

FIGURE 9

STEP9

• Position the elastic cords over the 2” PULLEYS as shown in FIGURE 9.

• SECURELY assemble the two previously removed 2” PULLEYS, one previously removed3/8”THREADEDSHAFT,one previously

removed3-1/2” PULLEY,two previously removed 3/8” WASHERS, two previously removed3/8” HEX NUTS, and two previously

removed 3/8” LOCK NUTS to the rear bracket on the TOP BOOM as shown in FIGURE 9.

TOPBOOM

3/8”LOCKNUT

3/8”HEXNUT

3-1/2”PULLEY

2”PULLEY

3/8”WASHER

3/8”THREADEDROD

TOPBOOM

3/8”LOCKNUT

3/8”HEXNUT

3/8 X 1/2”SPACER 2”PULLEY

3/8”WASHER

3/8”THREADEDROD

ELASTIC

CORD

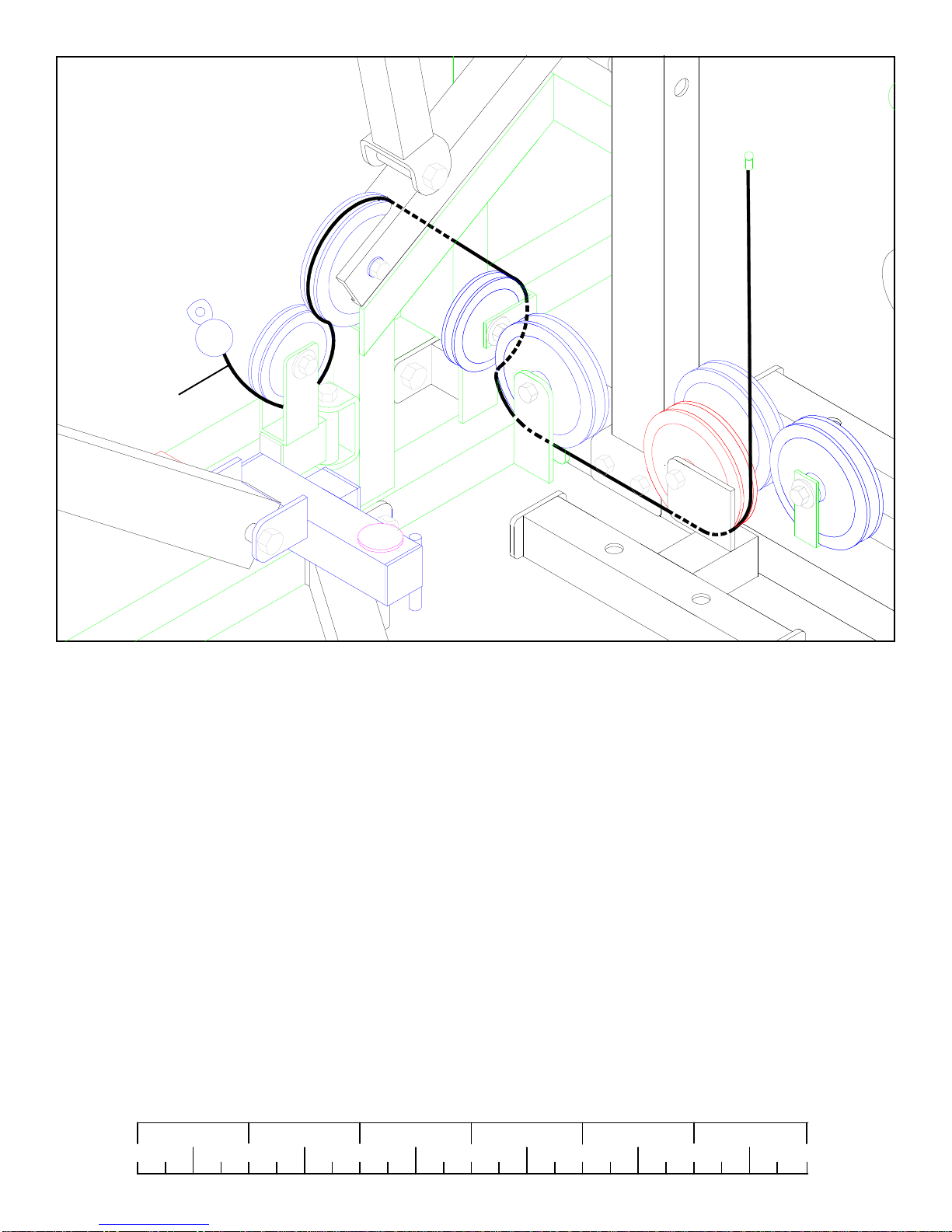

STEP10

• Carefullyremove and discard thePRESS CABLE asshown in FIGURE 10.

PRESSCABLE

(67249)

FIGURE 10

0123456

1/2 1/2 1/2 1/2 1/2 1/2

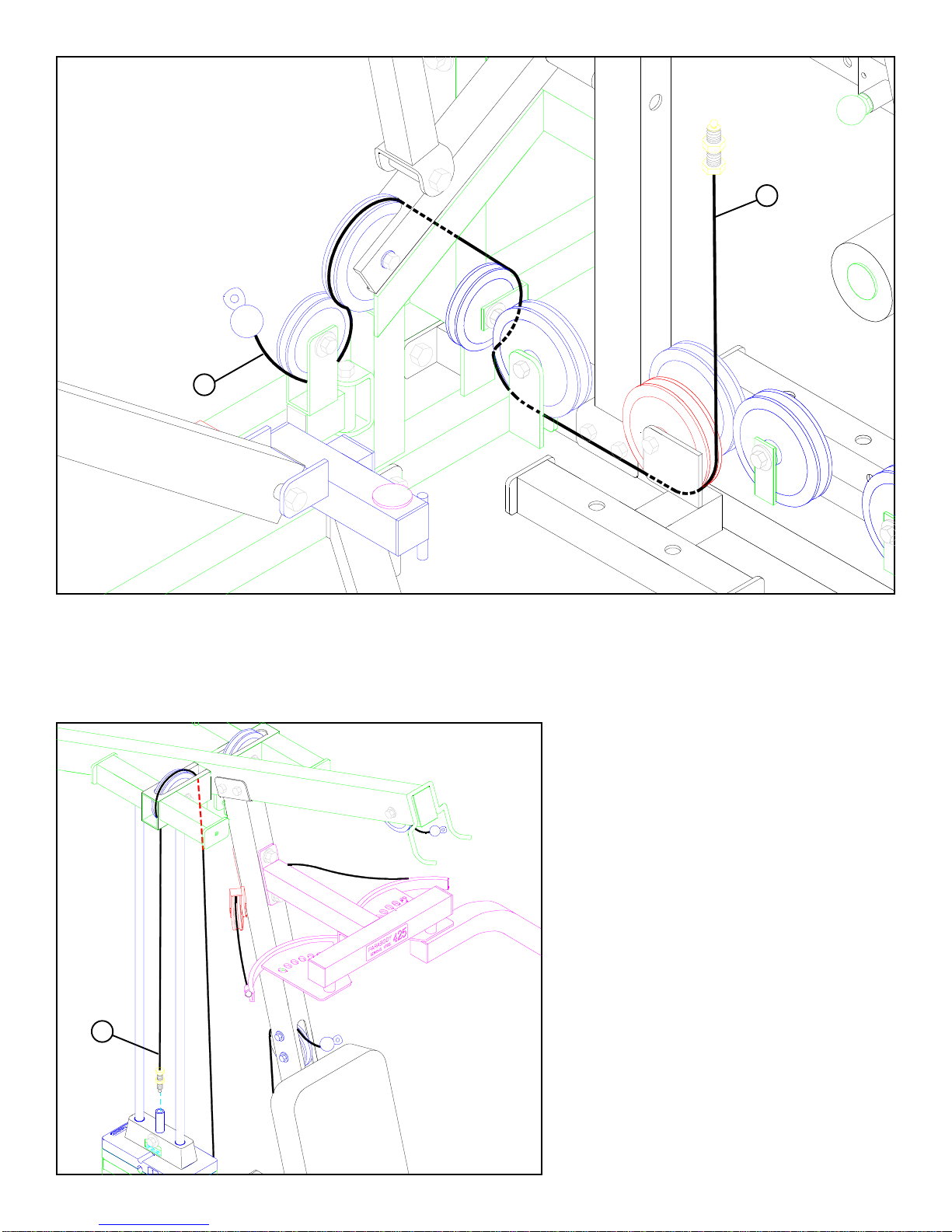

STEP11

• Route the new PRESS-STACK CABLE (5) around the pulleys and l-brackets as shown in STEP 11. (Remove pulleys for ease of

installation.)

FIGURE 11

FIGURE 12 STEP12

PRESS-STACK

CABLE

(67475)

PRESS-STACK

CABLE

(67475)

PRESS-

STACK

CABLE

(67475)

• To assemble the PRESS-STACK CABLE (5)

follow the cable routing as shown and use the

following steps:

• Screwthe threadedendofthePRESS-STACKCABLE

(5)approximately1” into theendof the SELECTOR

SHAFT of the HEAD PLATE on the WEIGHT

STACK asshown inFIGURE 12.

• Routethe thread end of PRESS-STACK CABLE (5)

up and over the PULLEY in the TOP BOOM above

the WEIGHTSTACK. (Removepulleyforease of

installation.)

• SECURELYtighten the pulley connection from the

previous step.

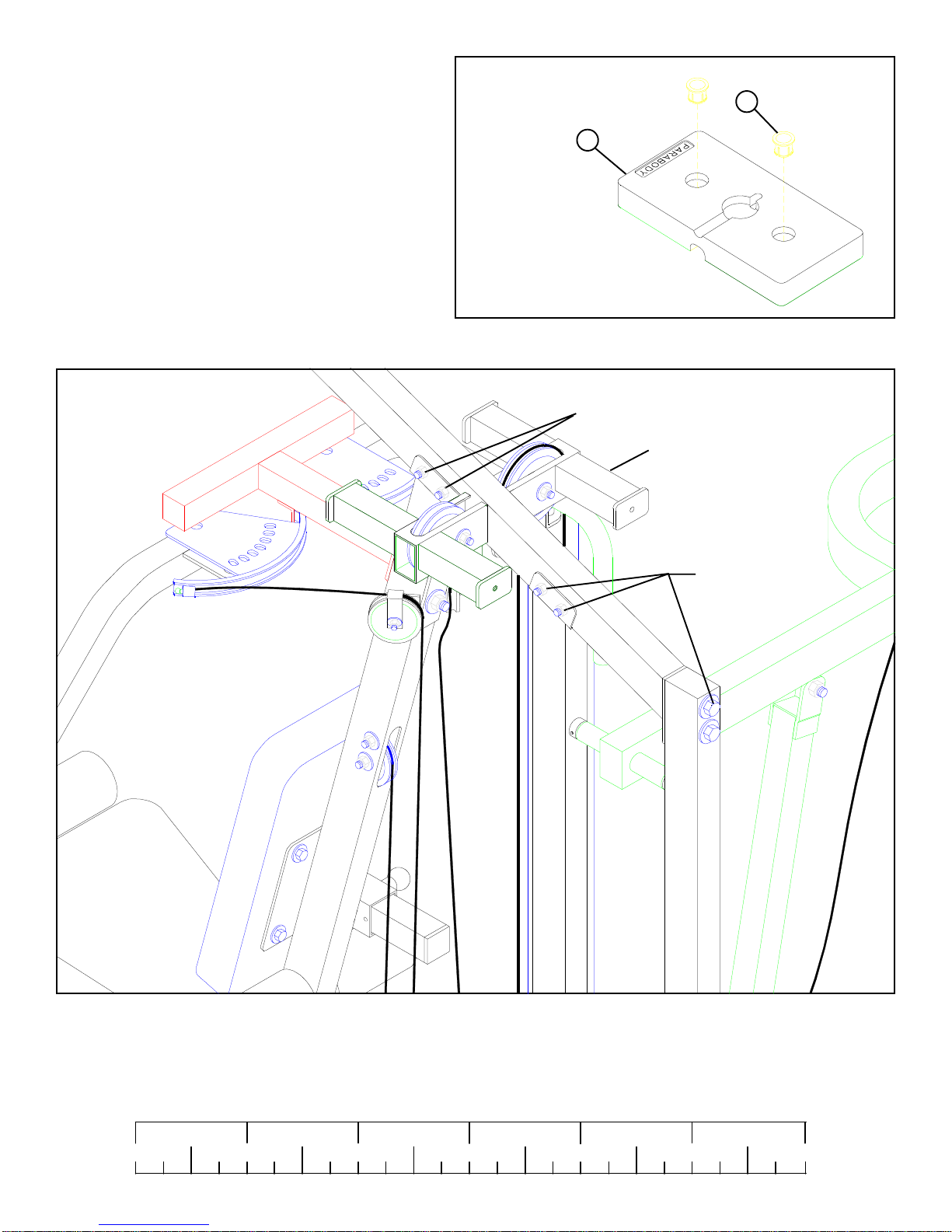

FIGURE 14

STEP14

• LOOSENthe bolts holding the TOP BOOM to the UPRIGHTS. Bolts will have to be removed to install GUIDE RODS (1). See

FIGURE14.

0123456

1/2 1/2 1/2 1/2 1/2 1/2

FIGURE 13

• Insert two WEIGHTPLATE BUSHINGS (17) into the top

side of each of the fifteen WEIGHTPLATES (16) as shown

inFIGURE13.

STEP13

LOOSEN!

TOP BOOM

LOOSEN!
