PARABODY INC.

EX500 VERTICAL KNEE RAISE ATTACI~MENT

PBF502

PRODUCT ASSEMBLY

INSTRUCTION SHEETS

TOOLS REQUIRED FOR ASSEMBLY:

3/4 INCH SOCKET

9/16 INCH SOCKET

ADJUSTABLE WRENCH

HAMMERor RUBBER MALLET

REVISION: G

If you experience any problems with the assembly of this product, please contact

your dealer or your PARABODYCustomer Service representative at:

1-800-328-9714.

PBF502 EX500 VERTICAL KNEE RAISE ATTACHMENT ASSEMBLY

PARTS LIST

SORT AND COUNT ALL PARTS BEFORE BEGINNING ASSEMBLY

HARDWARE:

ITEM

I0.

II.

12.

13.

NAME/DESCRIPTION QTY

3/8XI-1/4BOLT................................................................................................................... 2

3/8.X3BOLT......................................................................................................................... 6

1/2X3BOLT......................................................................................................................... 2

1/2X3-I/2BOLT................................................................................................................... 2

3/8WASHER......................................................................................................................... 10

1/2WASHER.......................................................................................................................... 8

3/8LOCKWASHER.............................................................................................................. 8

I/2LOCKWASHER.............................................................................................................. 4

3/8NUT.................................................................................................................................. 2

1/2NUT.................................................................................................................................. 4

2IN.SQ.ENDCAP............................................................................................... : ................ 4

5IN.GRIP.............................................................................................................................. 4

ANTI-SKIDST1LIP................................................................................................................. 1

WELDMENTS/PARTS:

ITEM NAME/DESCRIPTION QTY

DIPSUPPORTFRAME.............................................. (PB1847-1)....................................... I

STEPBRACE.............................................................. (PB1850-1)....................................... 1"

BACKPAD.................................................................. (PB1853-1)....................................... 1

ARMPAD.................................................................... (PB1855-1)....................................... 2

8 IN. CONNECTORPLATE....................................... (PB1893-1).......................................

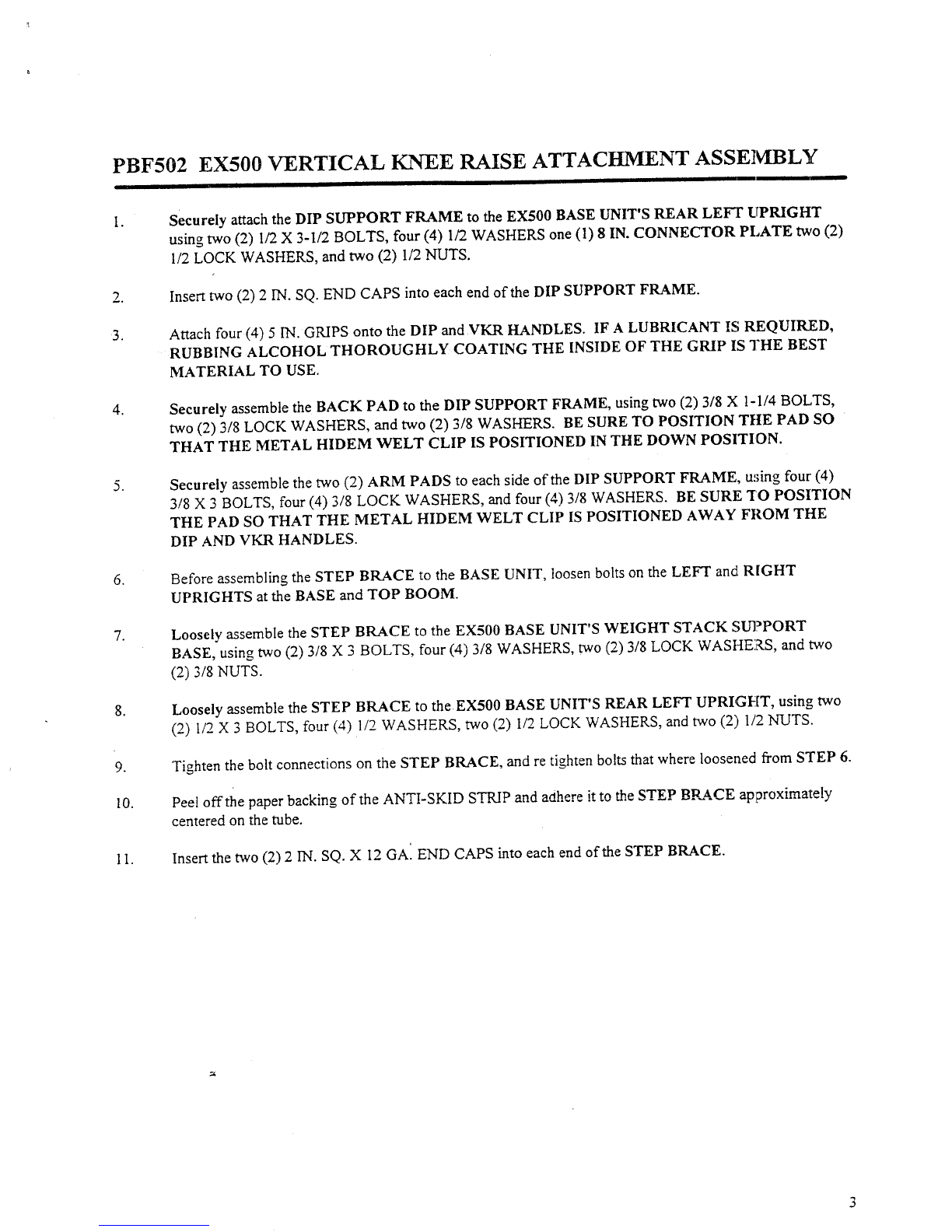

PBFS02 EX500 VERTICAL KNEE RAISE ATTACHMENTASSEM_BL¥

Securely attach the DIP SUPPORTFRAMEto the EX500 BASEUNIT’S REARLEFT UPRIGHT

using two (2) I/2 X 3-I/2 BOLTS,four (4) 1/2 WASHERSone (1) 8 IN. CONNECTORPLATEtwo

1/2 LOCKWASHERS,and two (2) 1/2 NUTS.

Insert two (2) 2 IN. SQ. ENDCAPSinto each end of the DIP SUPPORTFRAME.

Attach four (4) 5 IN. GRIPSonto the DIP and VKRHANDLES.IF A LUBRICANTIS REQUIRED,

RUBBING ALCOHOLTHOROUGHLYCOATING THE INSIDE OF THE GRIP IS THE BEST

MATERIAL TO USE.

Securely assemble the BACKPADto the DIP SUPPORTFRAME,using two (2) 3/8 X1-1/4 BOLTS,

two (2) 3/8 LOCKWASHERS,and two (2) 3/8 WASHERS.BE SURETO POSITIONTIlE PAD

THAT THE METALHIDEM WELTCLIP IS POSITIONED IN THE DOWNPOSITI.ON.

Securely assemble the two (2) ARMPADSto each side of the DIP SUPPORTFRAME,using four (4)

3/8 X 3 BOLTS,four (4) 3/8 LOCKWASHERS,and four (4) 3/8 WASHERS.BESURF,"I’O POSITION

THE PAD SO THAT THE METAL HIDEM WELT CLIP IS POSITIONED AWAYFROMTHE

DIP AND VKR HANDLES.

11.

Before assembling the STEPBRACEto the BASEUNIT,loosen bolts on the LEFTand RIGHT

UPRIGHTSat the BASEand TOP BOOM.

Loosely assemble the STEP BRACEto the EXS00 BASEUNIT’S WEIGHTSTACKSUPPORT

BASE,using two (2) 3/8 X 3 BOLTS,four (4) 3/8 WASHERS,two (2) 3/8 LOCKWASHERS,and

(2) 3/8 NUTS.

Loosely assemble the STEP BRACEto the EXS00 BASEUNIT’S REARLEFTUPRIGHT,using two

(2) I/2 X 3 BOLTS,four (4) 1/2 WASHERS,two (2) I/2 LOCKWASHERS,and two (2) 1/2

Tighten the bolt connections on the STEPBRACE,and re tighten bolts that whereloosened fromSTEP6.

Peel off the paper backing of the ANTI-SKIDSTRI.P and aahere it to the STEPB.u~4.CEapproximately

centered on the tube.

Insert the two (2) 2 IN. SQ. X12 GA’. ENDCAPSinto each end of the STEPBRACE.

I I
