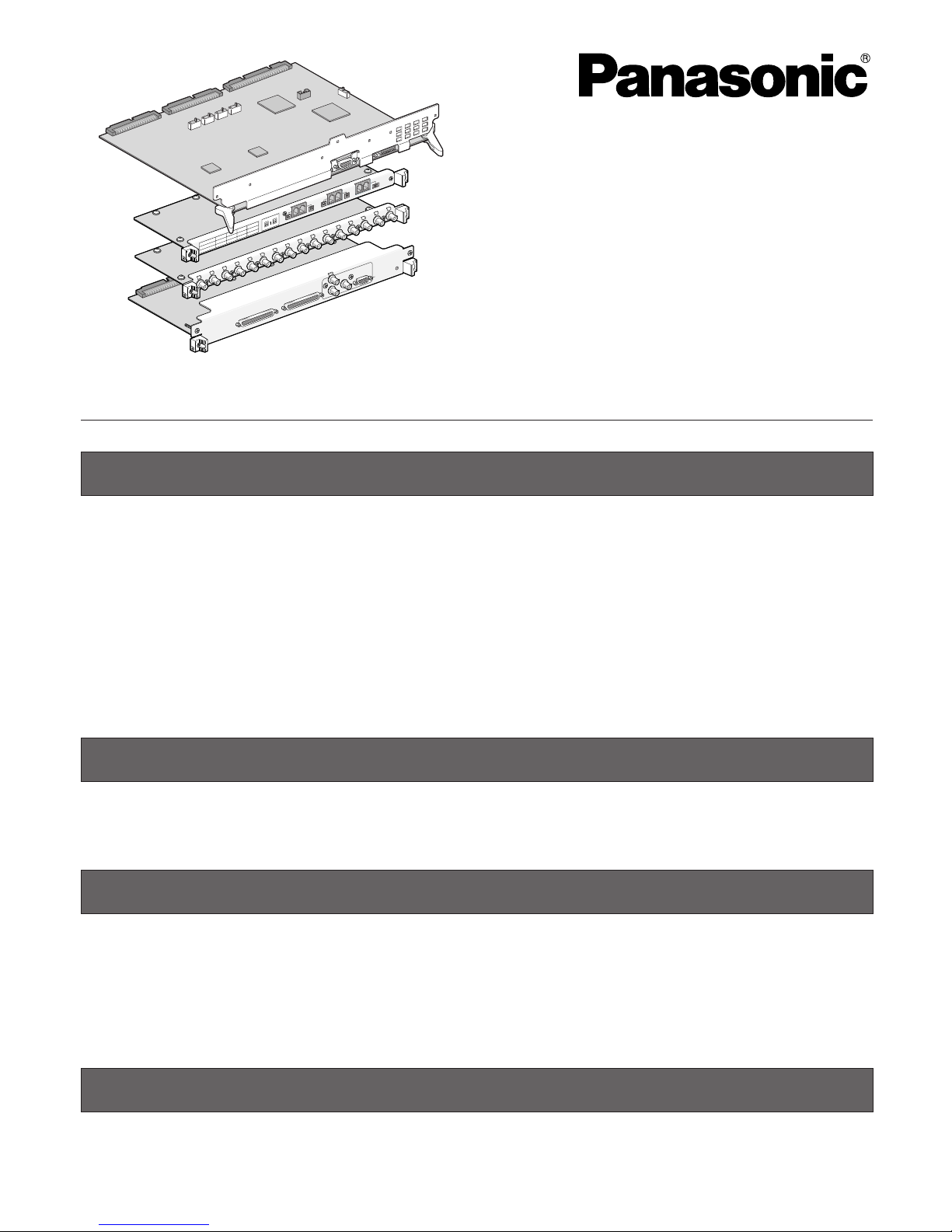

Video Output Board

Operating Instructions

Model No. WJ-PB65M16

Video Output Board 1 Only

ALARM OUT 1

ALARM OUT 2

OUT -3

MONITOROUT

TERM.ON

MODE

TERM.OFF

MODE

DATA 4

HDR4/TMNL8

HDR2/TMNL4

DATA 3

HDR3/TMNL7

HDR1/TMNL3

DATA 2

TMNL6

TMNL2

DATA 1

TMNL5

TMNL1/PSDATA

Video Output Board 2

Video Output Board 1

DATA DATA

MODE MODE MODE TERM

OUT X-3

EXTENSION

OFF

OUT IN

OUT X-1

Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.

PRECAUTIONS

Along with this document, refer to Matrix Switcher WJ-

SX650 Series Operating Instructions for major operating

REFERENCES

• Do not strike or give a strong shock to the unit.

It may cause damage or allow water to enter the unit.

• Pay attention to static electricity

Make certain to keep boards inside the anti-static sack

until it is installed.

Put your hand on a metallic surface, other than the

boards to discharge static electricity before installation.

Do not touch components mounted on the boards

directly by hand.

Hold only both edges of the boards when installing.

controls and their functions, switch settings, and board

mounting procedure.

PREFACE

Video Output Board WJ-PB65M16 is designed for monitor

output channel expansion of Matrix Switcher WJ-SX650

Series.

Important:

• The software versions of Video Output Board 1 and 2

must be the same.

FEATURES

• With a set of this board, up to 16 monitors can be

added.

•

Up to 32 alarm output signals can be supplied to exter-

nal devices connected to the ALARM OUT 1 and 2 ports.

If the software version of each board is different,

upgrade the lower version to the higher one. (Refer to

WJ-SX650 Series Operating Instructions for how to

check the software version.)

• Refer to the dealer for the version-up procedure. (Surely

follow the instructions and notes.)

Monitor Output (MONITOR OUT 1 to 16): 1 V[P-P]/75 Ω(BNC x 16)

Data Port (DATA 1 to 4)

DATA 1: Terminal Mode (TMNL) (PS·Data Mode (PS·DATA) selectable*)

DATA 2: Terminal Mode (TMNL)

DATA 3, 4: Terminal Mode (TMNL)/Digital disk recorder (HDR) selectable

6-conductor modular jack x 4 (With termination switches (MODE 1 to 4))

Alarm Output (ALARM OUT 1, 2)

Alarm Output: Open collector output x 32, Max. 24 V DC, 100 mA

Alarm Recover Output: Non-voltage make contact input x 16

Time Adjust Input*: Non-voltage make contact input x 1

Time Adjust Output*: Open collector output x 1, Max. 24 V DC, 100 mA

Extension Port (EXTENSION 1 IN, OUT)*: 6-conductor modular jack x 2 (With a termination switch (TERM: ON, OFF))

VS Input*: 1 V[P-P]/75 Ω(VS IN)

VS Output* (VS OUT (THRU)): VS loop-thru output

(VS OUT): 1 V[P-P]/75 Ω(VS)

Serial Port*: 9-pin D-sub connector x 2

Dimensions

Main Board: 338 mm (W) x 47 mm (H) x 236 mm (D)

{13-3/10" (W) X 1-9/10" (H) X 9-3/10" (D)}

OUT X-1 Board: 355 mm (W) X 38 mm (H) X 134 mm (D)

{14" (W) X 1-1/2" (H) X 5-3/10" (D)}

OUT X-2 Board, OUT X-3 Board: 355 mm (W) X 21 mm (H) X 117 mm (D)

{14" (W) X 4/5" (H) X 4-3/5" (D)}

* Not available when the MODE switches are set as Video Output Board 2

SPECIFICATIONS

STANDARD ACCESSORIES

Operating Instructions (This Document) ................................................ 1 pc.

Screws ..................................................................................................... 7 pcs.

Fixing bracket .......................................................................................... 2 pcs.

Warranty Card ......................................................................................... 1 pc.
