Assembly and Operating Instructions for

Phoenix 4 Burner Black and Phoenix 4

Burner SS Gas Barbecues

EN (Europe)

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children and pets away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions

may be dangerous and will invalidate your warranty. This does not affect your

statutory rights.

• Retain these instructions for future reference.

• Leak test annually, and whenever the gas bottle is removed or replaced.Check

that the hose connections are tight and leak test each time you reconnect the gas

bottle

• For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use must not be

stored in the vicinity of this or any other

appliance.

0359

Photographs are not to scale.

Specifications subject to

change without prior notice.

Pre-Assembled Component

Quantity varies according to model purchased

 Appearance, size, and construction may differ according to model purchased

1. Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

CODE PART QTY Phoenix 4 Burner

Black Phoenix 4 Burner

Stainless Steel

HOOD

A1 Hood (Pre-Assembled to Body) 1  

A2 Hood Handle 1  

A3 Heat Indicator and Nuts 1  

A4 Warming Rack 1  

BODY

B1 Barbecue Body 1  

B2 Burner 4  

B3 Control Panel 1  

B4 Knob 4  

B5 Hose (if supplied) 

B6 Flame Tamer 4  

B7 Cooking Grill 3  

B8 Drip Tray Left Bracket 1  

B9 Drip Tray Right Bracket 1  

B10 Drip Tray Handle 1  

B11 Drip Tray 1  

B12 Ignition Button 1  

TROLLEY

C1 Side Burner Shelf 1  

C2 Side Burner Grid 1  

C3 Right Side Shelf 1  

C4 Left Front Leg 1  

C5 Left Rear Leg 1  

C6 Right Front Leg 1  

C7 Right Rear Leg 1  

C8 Upper Body Support 1  

C9 Cabinet Side Panel 3  

C11 Left Door 1  

C12 Right Door 1  

C13 Door Handle 2  

C14 Basket 1  

C15 Cabinet Back Panel 1  

C16 Cabinet Bottom Panel 1  

C17 Gas Bottle Support 1  

C18 Caster 2  

C19 Lockable Caster 2  

C20 Electronic Ignition Assembly 1  

C21 Heat Shield 1  

HARDWARE

D1 ST4.0x10 Screw 35  

D2 M4x10 Bolt 4  

D3 M6x15 Bolt 16  

D4 M6x40 Bolt 16  

D5 M6 Nut 12  

C10 Cabinet Side Panel (with hole) 1  

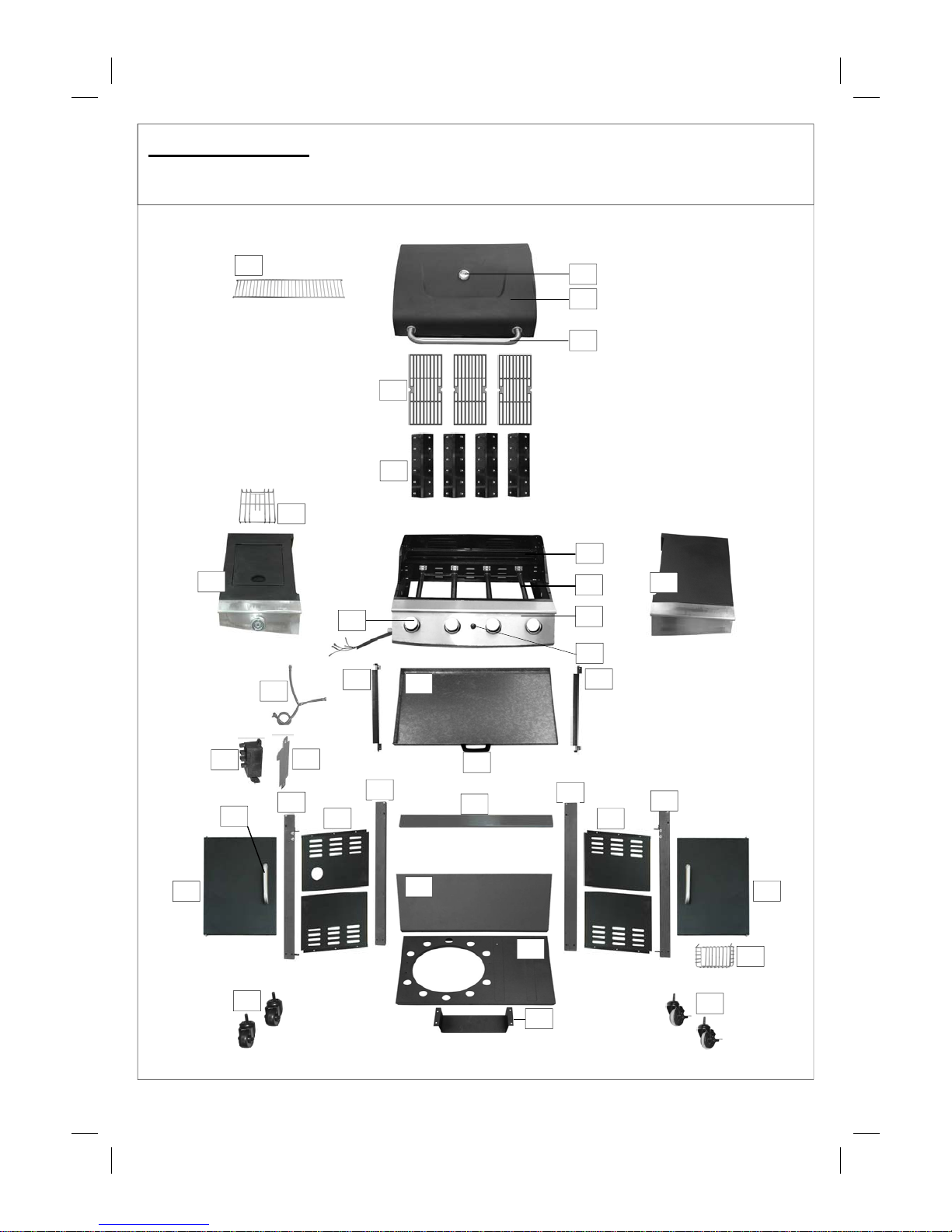

2. Parts Diagram

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

B12

C12

C19

C17

C21

C20

C18

B11

C10

C15

C16 C14

B8 B9

C11

B10

C13 C9

3. Hardware Reference Diagram

Specifications subject to change without prior notice. CODE PART ILLUSTRATION QTY

D4 M6x40

Bolt 16

D5 M6 Nut

CODE PART ILLUSTRATION QTY

D1 ST4.0x10

Screw 35

D2 M4x10

Bolt 4

D3 M6x15

Bolt

4. Assembly

IMPORTANT!

• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set

• The assembly of this barbecue requires 2 people.

• Carefully unpack the trolley and body boxes and remove all internal packaging before commencing

assembly. All loose items including the flame tamer and warming rack must be removed from the body.

• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

• Please read the Important Information section carefully before assembly and use of your

barbecue.

Attach the Legs (C4,C5,C6,C7) to the Cabinet Side Panels (C9,C10) using ST4.0x10 Screws (D1)

as shown.

Attach the left / right cabinet panel assembly to the Cabinet Bottom Panel (C16) using

ST4.0x10 Screws (D1), M6x40 Bolts (D4) and M6 Nuts (D5) as shown.

Left Cabinet Panel Assembly Right Cabinet Panel Assembly

ST4.0x10 Screw

M6x40 Bolt and M6 Nut

Attach the Cabinet Back Panel (C15) to the assembled portion of the cabinet using the ST4.0x10

Screws (D1).

NOTE: These screw holes have weld nuts, so no nuts are required for these screws.

Attach the Upper Body Support (C8) to the

front legs using M6x15 Bolts (D3). Attach the Gas Bottle Support (C17) to the

cabinet bottom panel using the M6x15 Bolts

(D3) and M6 Nuts (D5).

Screw the Casters (C18) into the left legs and the Lockable Casters (C19) into the right legs.

Carefully turn the completed cabinet over, right side up.

Carefully place the Barbecue Body (B1) onto the cabinet structure and fix using M6x40 Bolts (D4) as

shown.

WARNING: DO NOT RELEASE THE BARBECUE BODY WHILE THE BARBECUE HAS NOT BEEN

PROPERLY SEATED. THIS MAY RESULT IN INJURY OR DAMAGE TO YOUR BARBECUE.

CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or

becomes damaged when it is set on the ground.

Attach the Side Burner Shelf (C1) and Right Side Shelf (C3) to the barbecue body using M6x15

Bolts (D3), making sure that the side burner shelf is fixed onto the left side of the body.

Connect the gas hose to the barbecue.

Ensure the mating faces of the connection are clean and not damaged. Do not use any

sealing tape, paste, or liquid on the connection. The nut must be tightened with the use of

a spanner. Do not use force which may damage the assembly.

Insert M4x10 Bolts (D2) through the side burner shelf and side of the Control

Panel (B3) and tighten. Repeat this process for the right side shelf.

Fix the Electronic Ignition Assembly (C20) and Heat Shield (C21) to the front left leg by

inserting two ST4.0x10 Screws (D1) through the electronic ignition assembly and heat

shield and screw into the front left leg.

Phoenix 4 Burner Black / Stainless Steel

Electronic Ignition Assembly Diagram

Connect the wires to the electronic ignition

assembly as shown in the diagram to the

right.

Insert the electronic ignition battery (not sup-

plied) into the battery compartment, ensuring

the battery is correctly installed according to

the (+) (-) markings.

Connect the gas hose to the Side Burner Shelf (C1) as shown.

Ensure the mating faces of the connection are clean and not damaged. Do not use any

sealing tape, paste, or liquid on the connection. The nut must be tightened with the use

of a spanner. Do not use force which may damage the assembly.

Black

9V Battery

(not included)

Black Wires

(With Large Leads)

Wire

Switch

Black

Black Black
