Assembly and Operating Instructions for Outback®
Spectrum Hooded 3 Burner Gas BBQ
WARNING
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the ‘OPERATION’ section of this manual.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and
contact your local dealer.
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359
THG3302PC
2
Parts List
Quantities vary according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see ‘Hardware Reference Diagram’.
CODE PART QTY Outback® Spectrum Hooded 3
Burner Gas BBQ
HOOD
A1 Hood (Pre-Assembled to Body) 1
A2 Hood Handle 1
A3 Heat Indicator 1
A4 Warming Rack 1
BODY
B1 Barbecue Body 1
B2 Burner 3
B3 Control Panel 1
B4 Knob 3
B5 Hose and Regulator Assembly 1
B6 Cooking Grill 2
B7 Flame Tamer 3
B8 Drip Tray Left Bracket 1
B9 Drip Tray Right Bracket 1
B10 Drip Tray 1
B11 Drip Tray Handle 1
TROLLEY
C1 Side Shelf 2
C2 Left Front Leg 1
C3 Left Rear Leg 1
C4 Right Front Leg 1
C5 Right Rear Leg 1
C6 Screen 1
C7 Front Fixing Support 1
C8 Trolley Base 1
C9 Rear Fixing Support 1
C10 Leg Endcap 2
C11 Axle 1
C12 Wheel 2
C13 Hubcap 2
HARDWARE
D1 M5x15 Bolt 4
D2 Washer 4
D3 M5 Nut 4
D4 M6x125 Bolt 8
D5 Spacer 8
D6 M6x25 Bolt 24
D7 Axle Washer 2
D8 Locknut 2
B12 Charcoal Basket 1
Pre-Assembled Component
Quantity varies according to model purchased
Appearance, size, and construction may differ according to model purchased
3
Parts Diagrams
Quantities vary according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see hardware pack page.
C1
C2 C5
C6
C11
C12 C13
C3 C4
B6
B7
C8
C9
C1
D7
D8
C7
A4
C10
A2
A1
A3
B1
B2
B3
B5
B4
B9
B11
B8
B10
B12
4
Hardware Reference Diagram
Specifications subject to change without prior notice.
D1,D2,D3
D6
D4,D5
5
2
Assembly
IMPORTANT!
TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
Remove any internal components or packaging from the barbecue body.
Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
Please read the Important Information section carefully before assembly and use of your
barbecue.
1
Attach the Front Fixing Support (C7) , Trolley Base (C8), and Rear Fixing Support (C9) onto the
Legs (C2, C3, C4, C5) using the M6x25 Bolts (D6x8pcs).
Note:Ensure that the legs with the Velcro attached to them are at the front of the barbecue,
facing inwards.
Unscrew the Locknuts (D8) from both ends of the Axle (C11) and remove the Axle Washers (D7).
Slide the axle through the corresponding holes in the left legs. Place axle washers on each end of
the axle. Slide the Wheels (C12) over each end of the axle. Secure the wheels into place with the
locknuts. Place the wheel Hubcaps (C13) onto the outsides of the wheels.
(Photo depicts trolley
from the reverse side)
C3
C4
C5
C7
C8
C9
D6
C2
C4
C5
C3
D7 D8
C13 C12
C11
C2
6
4
3
Install the Side Shelves (C1) onto left and right legs using the M6x25 bolts (D6x16pcs) .
C1 C1
D5
D4
Remove any internal components or packaging from the Hood and Body.
Insert M6x125 Bolts (D4) through the trolley legs, the Spacers (D5), and keep the tip of the bolts
inside the spacers. While holding the barbecue body (B1) into position (2 people required),
screw the bolts into the barbecue body as shown.
CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly
or becomes damaged when it is set on the ground.
When positioning the body of the barbecue, ensure the control panel is on the same side
as the legs with Velcro fastenings.
7
6
5
Attach Drip Tray Left Bracket (B8) to barbecue body using M5x15 Bolts (D1x2pcs), Washers
(D2x2pcs) and M5 Nuts (D3x2pcs) as shown. Repeat above process for Drip Tray Right
Bracket (B9).
NOTE: Ensure that the big tabs of the brakets which stop the drip tray are located at the
front of the barbecue.
D1 D2
Insert the Drip Tray (B10) by sliding it underneath the barbecue body.
B10
B8
8
8
7
Place the Flame Tamers (B7) over the burners within barbecue body. Lay the Cooking Grills
(B6) in position.
NOTE: Ensure that the flame tamers lies directly underneath the grills.
B6
B7
Attach the Warming Rack (A4) to the Hood (A1) and Barbecue Body (B1) as shown. Make
sure that the swing legs fix to the body of the barbecue and the shorter fixed legs go through
the holes in the hood.
A4 Step 1
Step 2
Step 3
Step 4
9
9
(Rear view of the barbecue trolley.)
Attach the screen (C6) to the front left/right legs as shown.
C6
ASSEMBLY IS NOW COMPLETE.
10
Leak Test Diagram
PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND
MAINTENANCE
ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE
BARBECUE.
Leak test annually, and whenever the gas bottle is removed or replaced.
Leak Testing
Always perform a leak test in a well-ventilated area.
Step 1 - Confirm all control knobs are in the off position.
Step 2 - Turn the gas on / open the gas control valve on the gas bottle or regulator.
Step 3 - Check for leaks by brushing a solution of ½ water and ½ liquid detergent / soap over all the
gas system joints, including gas bottle valve connections, hose connections, and regulator
connections.
Step 4 - NEVER USE AN OPEN FLAME to test for leaks at any time.
Step 5 - If bubbles form over any of the joints there is a leak
Turn off the gas supply at the gas bottle
Retighten all joints
Repeat test
If bubbles form again do not use the barbecue and contact your local distributor for assistance.
Always wipe the mixed solution (½ water and ½ liquid detergent / soap) from all joints and connections
after leak testing.
13

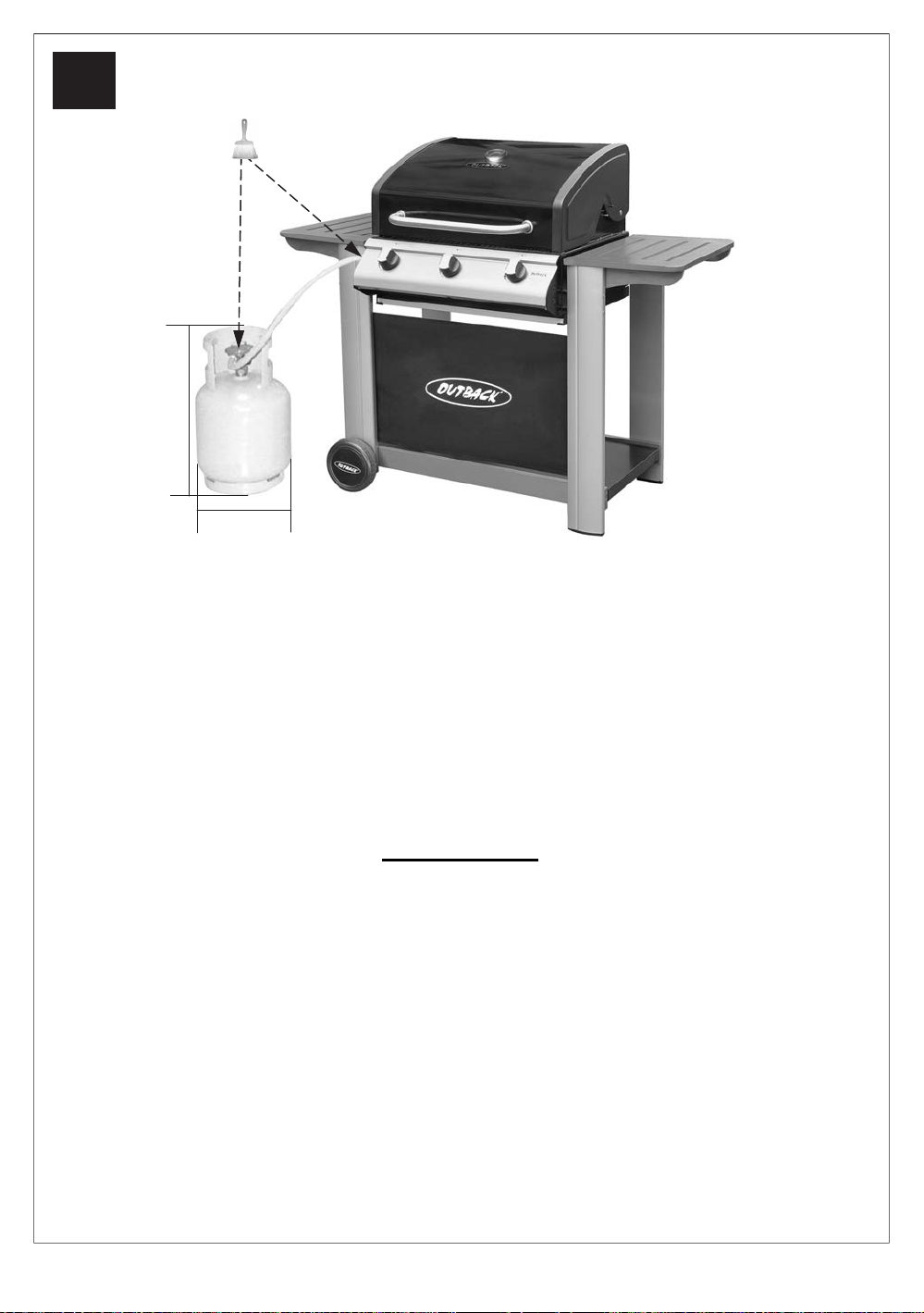

1. Maximum diameter or breadth is 320mm.
2. Maximum height (regulator included) is 700mm.
2
