NETGEAR XAVBI 301 Manuel utilisateur

N E TG EAR- rnstararionGuide

Powerline 2OO Mini (2-pock)

XAVBI 301

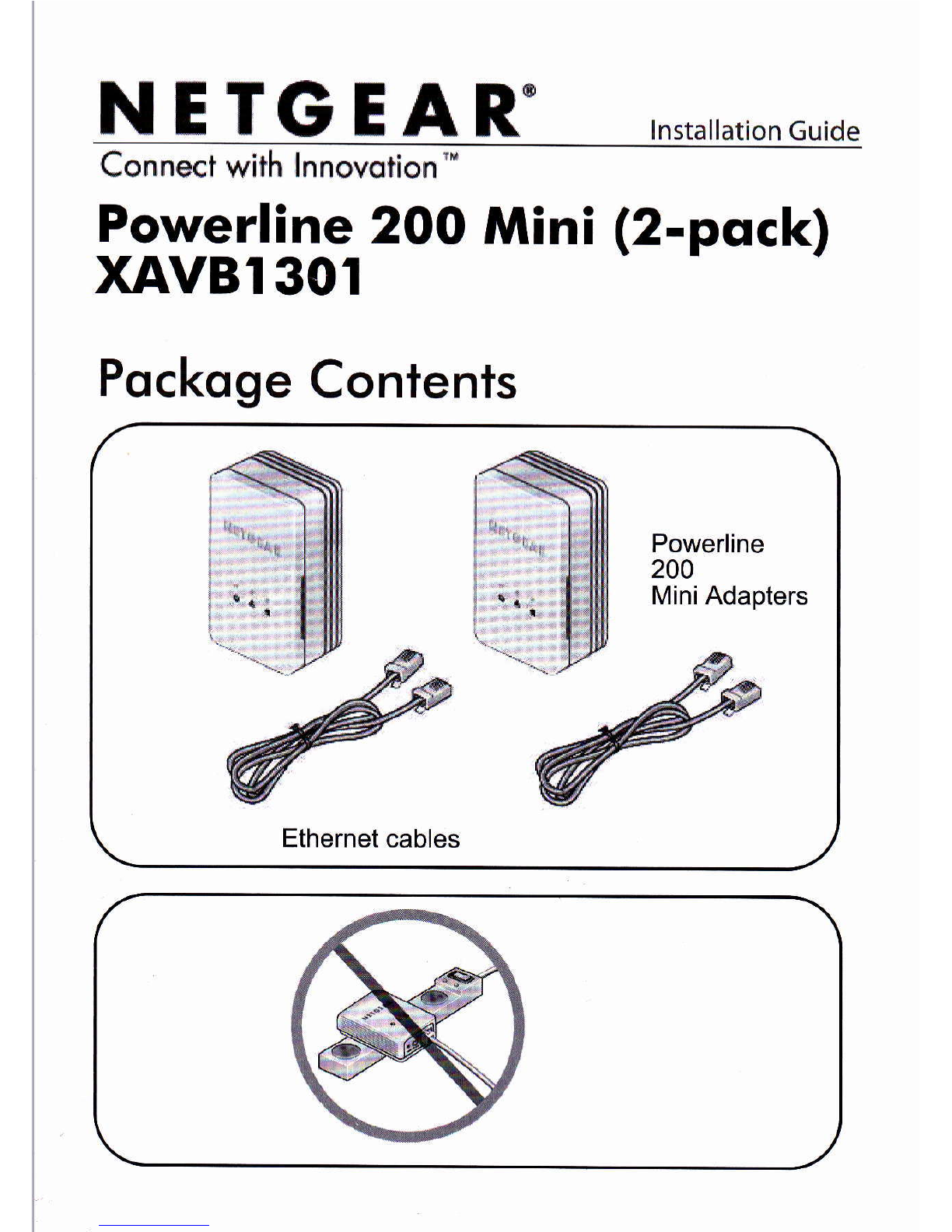

Pockoge Contents

Powerline

200

Mini Adapters

g, I

-()

r-: o

n.'t

<()

rTi C)

El cH

()B

'If i!)

=o,

.;o

@()

(-) -

o'-

.r-6

€d 3

6o O

l:X o.

EF='

oa 0)

<d(i

?xt

sE -8

=cO\

o. -9,

Eo o

5K 9)

azr Q-

EJ O

-,^ E

9 .j o

1;O..

661 3

B> i

^9< >

s)<\

o l\

px o-

6-F

o.- -

i> o

x?l-

UX Yn

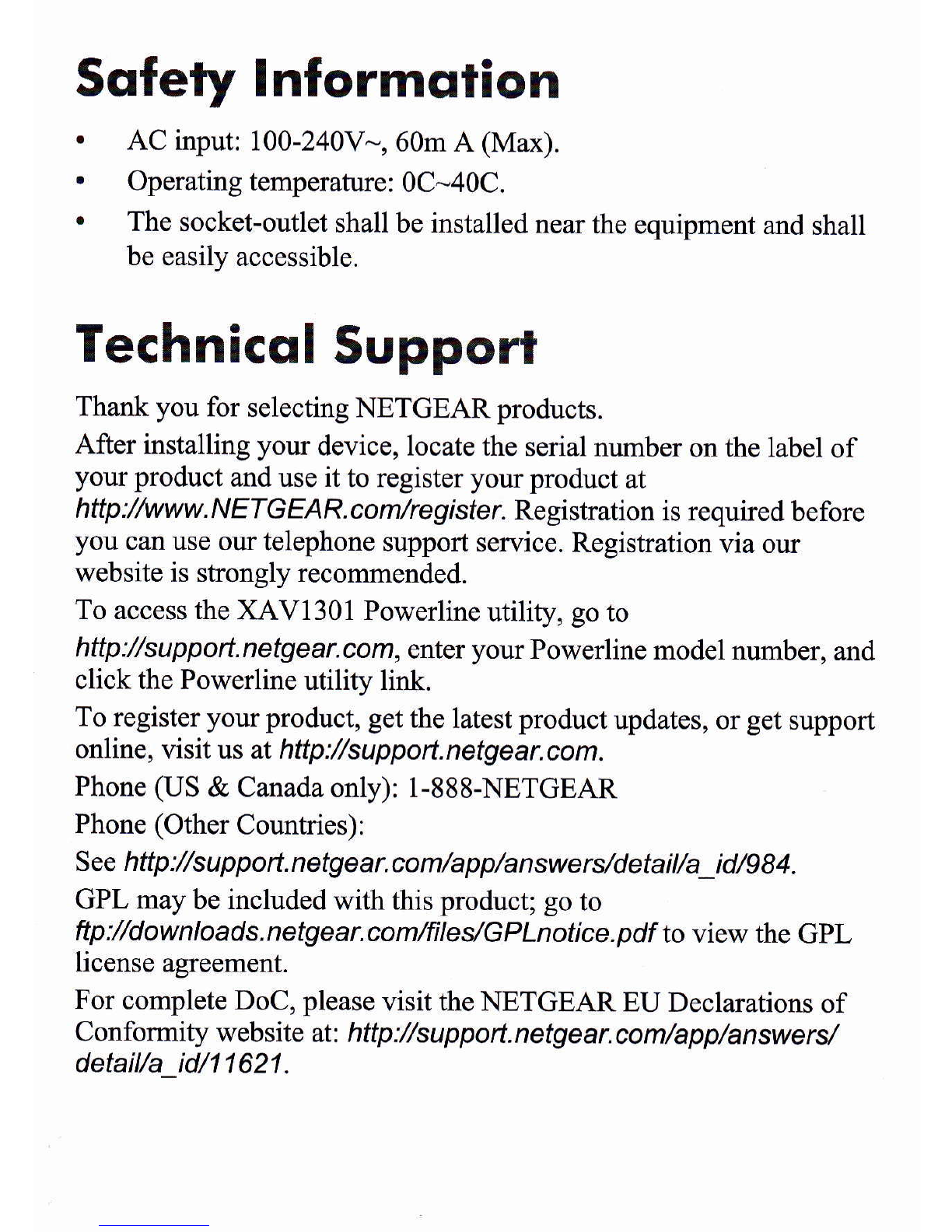

Sofety lnformqtion

. AC input: 100-240V-, 60m A (Max).

. Operating temperature: 0C-40C.

. The socket-outlet shall be installed near the equipment and shall

be easily accessible.

Technicql Support

Thank you for selecting NETGEAR products.

After installing your device, locate the serial number on the label of

your product and use it to register your product at

h ttp:

//www. N ET G EA R. co m/

regrsfer. Re gistration is required before

you can use our telephone support service. Registration via our

website is shongly recommended.

To access the XAVl301 Powerline utility, go to

httpt/support.netgear.com, enter your Powerline model number, and

click the Powerline utility link.

To register your product, get the latest product updates, or get support

online, visit us at http :

//s upp o rt. n etg e a r. co m.

Phone (US & Canadaonly): 1-888-NETGEAR

Phone (Other Countries):

See http ://support. n etge ar. com/ap p/a n swe rs/detaiUa_i d/9 84.

GPL may be included with this product; go to

ftp://down load s. netgear.com/files/G PLnotice. pdf to view the GPL

license agreement.

For complete DoC, please visit the NETGEAR EU Declarations of

Conformity website at: http ://su ppo rt. netge ar. com/app/an swers/

detaiUa id/l1621 .

tED ond Button Descriptions

Ethernet LED

Powerline LED

Security

Power LED

WE . Solid green. The electrical power is on.

. Solid amber. The adapter is in power saving

mode.

. Blinking green. The adapter is in the process of

setting up security.

. Off. There is no electrical power.

Ethernet

LED

ffie

. Solid. The Ethernet port is linked.

. Off. There is no Ethernet connection.

Powerline

LED

fa? . Solid. The adapter is connected to a Powerline

network.

. Off. The adapter has not found any other

compatible Powerline devices using the same

encryption key.

A Plug feature lets you pick the electrical

outlet with the strongest link rate, indicated by the

color displayed by the LED:

Green: Link

rate > 80 Mbps

(Best)

Amber: Link rate >

50 and < 80 Mbps

(Better) rate < 50

Mbps (Good)

Factory

Reset 1 second, then release it to

return the Powerline adapter to its factory default set-

tings.

Security

Button After you plug in your new AV adapter, press

Security button for 2 seconds, then press the Security

button on one of the other AV adapters in your exist-

ing network for 2 seconds. Both buttons must be

pressed within 2 minutes.

To power offyour AV adapter, press and hold the

Security button for 10 seconds or more, then release.

Pressing the Security button again powers the unit

back on.

Warning: Do not press the Security button on the Powerline

adapter until installation is complete and the adapters are

communicating with each other (indicated by the blinking

Powerline LED). Pressing this button too soon can temporarily

disable Powerline communication. If this should occur, use the

Factory Reset button to retum the Powerline adapter to its

factory default settings.

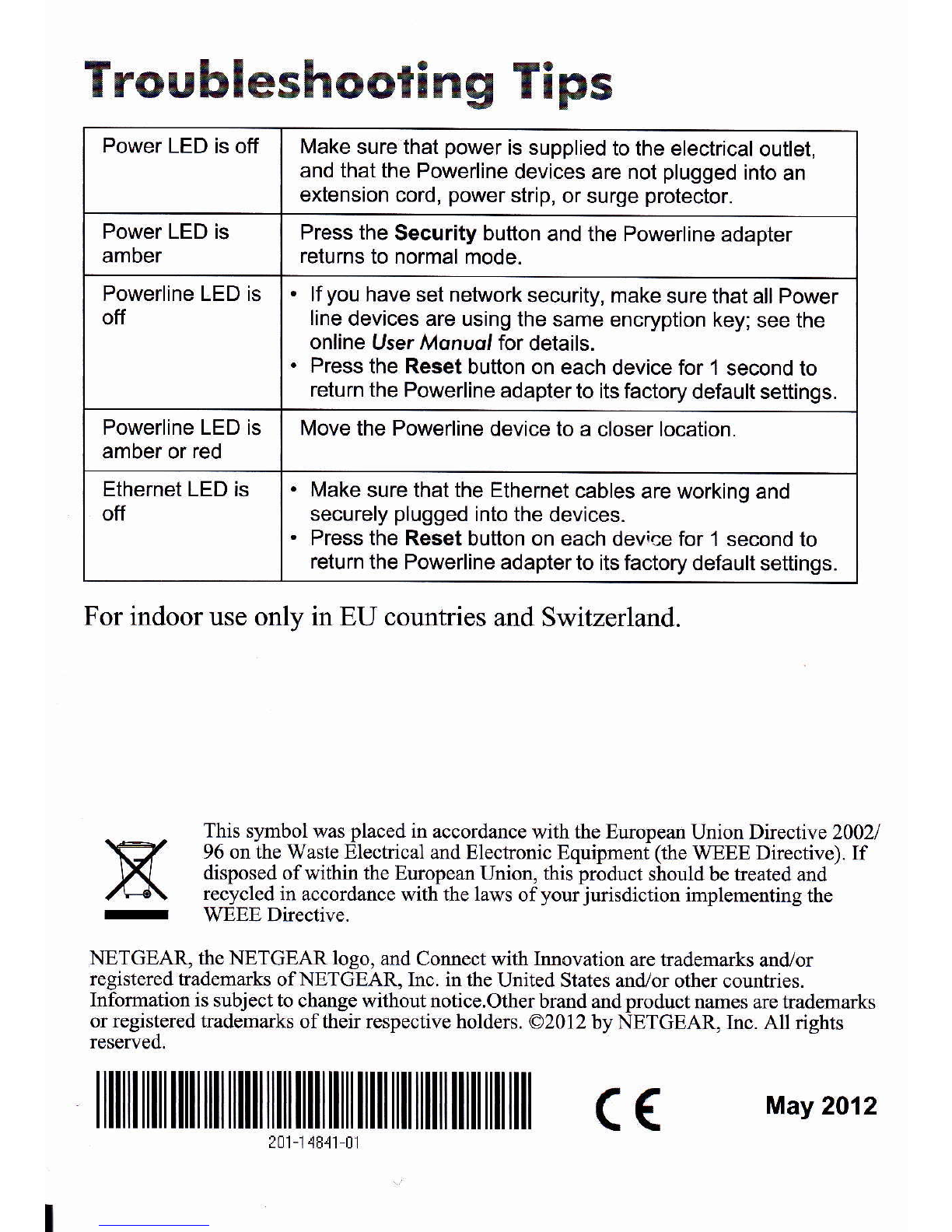

Troubleshooling Tips

Power LED is off Make sure that power is supplied to the electrical outlet,

and that the Powerline devices are not plugged into an

extension cord, power strip, or surge protector.

Power LED is

amber Press the Security button and the Powerline adapter

returns to normal mode-

Powerline LED is

off lf you have set network security, make sure that all Power

line devices are using the same encryption key; see the

online User Monuol for details.

Press the Reset button on each device for 1 second to

return the Powerline adapter to its factory default settings.

Powerline LED is

amber or red Move the Powerline device to a closer location.

Ethernet LED is

off Make sure that the Ethernet cables are working and

securely plugged into the devices.

Press the Reset button on each device for 1 second to

return the Powerline adapter to its factory default settings.

For indoor use only in EU countries and Switzerland.

This symbol was placed in accordance with the Euopean Union Directive 20021

96 on the Waste Electrical and Electronic Equipment (the WEEE Directive). If

disposed ofwithin the European Union, this product should be treated and

recycled in accordance with the laws ofyourjurisdiction implementing the

WEEE Directive.

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and,/or

registered trademarks ofNETGEAR, Inc. in the United States and/or other countries.

Information is subject to change without notice.Other brand and product names are trademarks

or registered trademarks oftheir respective holders. @2012 by NETGEA\ Inc. All rights

reserved.

llilllllillllllllllllllillllillililllllllllilllllllllllillilllillil ( €

?01-14841-01

May 2012
