Munters VX55 Manuel utilisateur

1© Munters Corporation, August 2018 QM1190r7

Instruction Manual

VX51 and VX55 with Munters Drive

51” and 55” Exhaust Fan

Models: VX51DFxxCT-Hx • VX51DFxxCP-Hx

VX55DFxxCT-Hx • VX55DFxxCP-Hx

Aerotech

VX51 & VX55

with RC Cone and

Munters Drive*

*Protected by U.S. Patent No. 6,386,828, 6616404;

6953320 and other Patents Pending

2QM1190r7

VX51 and VX55 Fans

with RC Cone and Munters Drive

Instructions for Use and Maintenance

Thank You:

Thank you for purchasing a Munters VX51 and VX55 Fan with RC Cone and Munters Drive. Munters equipment

is designed to be the highest performing, highest quality equipment you can buy. With the proper installation and

maintenance it will provide many years of service.

Please Note:

To achieve maximum performance and insure long life from your Munters product it is essential that it be installed and

maintained properly. Please read all instructions carefully before beginning installation.

Warranty:

For Warranty claims information see the “Warranty Claims and Return Policy” form QM1021 available from the

Munters Corporation office at 1-800-227-2376 or by e-mail at [email protected].

Conditions and Limitations:

• Products and Systems involved in a warranty claim under the “Warranty Claims and Return Policy” shall have been

properly installed, maintained and operated under competent supervision, according to the instructions provided

by Munters Corporation.

• Malfunction or failure resulting from misuse, abuse, negligence, alteration, accident or lack of proper installation

or maintenance shall not be considered a defect under the Warranty.

3© Munters Corporation, August 2018 QM1190r7

Index

Chapters Page

1. Unpacking the Equipment 4

1.1 Parts List 4

1.2 Fan Dimensions 4

2. Installation Instructions 5

2.1 Fan Installation 5

2.2 PT Style Shutter 10

2.3 PV Style Shutter 11

3. Electrical Wiring 12

3.1 Recommended Wire Routing 12

3.2 Electrical Wiring 14

3.3 Recommended Wiring 15

4. Operation and Maintenance 20

4.1 Operation 20

4.2 Maintenance 20

5. Troubleshooting 21

6. Winterizing 22

6.1 Winterizing 22

6.2 Winter Weather Protection 22

7. Exploded View and Parts List 23 -24

4QM1190r7

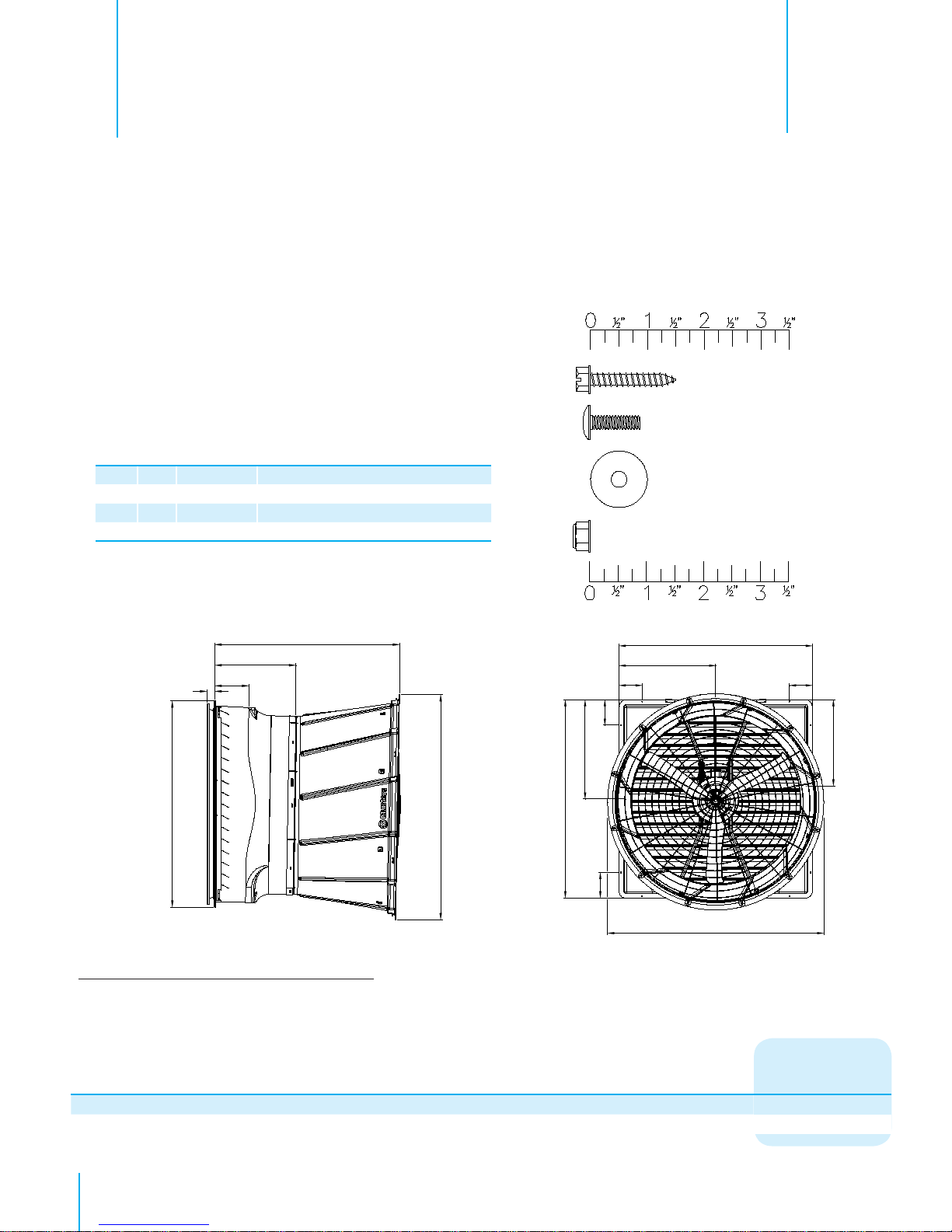

1.1 Parts List

Unpacking the Equipment 1.

Each Fan includes:

1 – Belt Drive Fan

1 – Cone

1 – Guard

1 – Shutter

1 – Hardware Package as follows:

[A]

[B]

[C]

[D]

Before beginning installation, check the overall condition of the equipment. Remove packing materials, and examine all

components for signs of shipping damage. Any shipping damage is the customer's responsibility and should be reported

immediately to your freight carrier. Fan is shipped complete with all accessories. Remove shutter, guard and cone sections

before proceeding with installation.

1.2 Fan Dimensions

K- Dia.

K - Dia.

Fan

Dia. ABC1*C2*DEF1*F2* G H I J K-Dia.

51" 7" 291⁄2"7

1⁄2"8"60

1⁄2" 59" 301⁄4"26

1⁄2"54

3⁄16"23

3⁄16" 11" 25⁄16" 65"

55" 73⁄8"31

3⁄8"7

3⁄4"7

3⁄4"63

5⁄8"62

3⁄4"27

7⁄8"31

7⁄8"58

9⁄16"25

15⁄16"11

3⁄4"2

5⁄16" 70"

561⁄4"W. x 573⁄4"H.

60" W. x 611⁄4" H.

WALL OPENING

(I.D., framed)

*Dimensions Plus/Minus 1⁄4", Field Verify

Fan Specifications: 60Hz shown (50Hz available)

Power: 230 VAC or 230/460 VAC

Phase: 1 or 3

HP1156 – 51”/55” Fan, One Piece Cone, PT/PV Shutter

ID Qty. Cat. No. Description

[A] 12 KS2105 #14 x 1.5” Lag Screw, SS

[B] 8 KS0650 1⁄4”-20 x 7⁄8” Truss Head Bolt, SS

[C] 8 KN1717 1⁄4”-20 Hex Flange, Nylock Nut, SS

[D] 8 KW3012 1⁄4” x 1” O.D. Flat Washer, SS

5© Munters Corporation, August 2018 QM1190r7

2.1 Fan Installation

Step 1

Construct framed opening to correct size according to the Wall Opening listed in chart A below.

See Figure 1A and 1B

Installation Instructions 2.

Minimum Spacing

'Z'

Chart A

Wall Opening

(W. x H.)

Fan Dia.

12” recommended; 10” minimum

51”

55”

561⁄4”W. x 573⁄4”H.

60” W. x 611⁄4” H.

Figure 1B Post Construction

Figure 1A Frame Construction

Ceiling

Framing

(see chart A) 12"

(see chart A)

See minimum

spacing notes in

Chart A Z

Center To Center

Dimension

66” Minimum

70” Minimum

Top of Post Wall

(see Chart A)

6 x 6 Post - 6'O.C.

'Z'

6QM1190r7

Installation InstructionsChapter 2

Step 2A

Insert fan into the framed opening from the inside. While lifting fan up tight to framing, fasten top of

fan with (3) Lag Screw [A].

See Figure 2A and 2B

.Next, fasten bottom of fan, then both sides with

remaining (9) Lag Screw [A]. Install flashing around opening tight to fan and caulk around fan to seal.

Figure 3

Wall Framing

2" Minimum Framing for fan, Bottom

Wall Opening (See Chart A, Page 4)

4" Minimum Framing for fan,

Top and Sides

Wall Framing

Figure 2A

Frame Construction

OUTSIDE INSIDE

2 x 4 Framing

#14 x 1.5" Lag Screws [A] #14 x 1.5" Lag Screws [A]

Post

2 x 8 Banner Boards

2 x 8 Header Boards

Figure 2B

Post Construction

INSIDEOUTSIDE

Step 2B

If fan needs to be mounted, so that shutter does not stick into building then frame fan as shown in Figure 3. Top

and sides require 4" minimum and bottom requires 2" minimum.

7© Munters Corporation, August 2018 QM1190r7

Installation InstructionsChapter 2

Figure 4

Figure 5A

Figure 5B

Step 3

Installing the one piece cone may require 2 people. If temperature is above 50°F then proceed to Step 5.

If temperature is below 50°F then proceed to Step 4.

Step 5

Look for the “TOP” label on the Polycone and set the top of the Polycone on top of the fan orifice

and install (2) Truss Head Bolts [B] through holes in fan outlet through the slots in the cone at about

the 10 and 2 o’clock positions and fasten with Washers [C] and Flange Nuts [D]. Truss head of

each bolt must be on the inside of the fan outlet; washers and flange nuts must be on outside of cone.

See Figure 5A and 5B. Finger tighten nuts only at this time.

Cone Tabs

51/55RC Cone

Locking Sheet Metal Pliers

Cone Tab

Hole at 10 O'clock

Top Cone Tab

51/55 RC Cone Flange Nut [D]

51/55RC Cone

(outside)

Fan Outlet

(inside)

Truss Head Bolt [B]

Washer [C]

Step 4

Using Locking Sheet Metal Pliers bend the cone tabs outward to allow the cone to slide onto the fan easier.

See Figure 4.

8QM1190r7

Installation InstructionsChapter 2

Figure 7A

Step 6

Work down the sides of the cone, sliding the cone tabs onto the fan until the bottom tab is in place. Keep

pressure on the cone to make sure tabs stay on the fan. Install (6) Truss Head Bolts [B], Washers [C] and

Flange Nuts [D] in the remaining holes in the fan outlet and slots in the cone to finish securing cone to fan.

See Figure 5B and Figure 6. Tighten all nuts at this time, making sure not to over tighten.

51/55 RC

Cone

Step 7

The snap-in guard has a slight conical shape to it so, when installed the center of the guard should protrude

out slightly. See Figure 7A.

51/55 RC Cone Guard

Note:

If installing your existing guard in the new

Polycone, then proceed to Step 9. If installing

the new snap-in guard then proceed to Step 7.

Figure 6

Remaining Holes

9© Munters Corporation, August 2018 QM1190r7

Figure 8B

Guard Mounting

Pad

Guard

eyelet

Installation InstructionsChapter 2

Figure 7B

Cone

Guard

Guard Tab

Guard Slot in cone

Figure 8A

Nut

Bolt

Guard Mounting Pad

Guard

Fan Outlet

Step 9

If installing your existing guard into the new cone, locate the flat guard mounting pads on the cone and drill

a 9⁄32” dia. hole in the center of each pad. Then insert existing guard into cone with the guard eyelets facing

away from you. Line up each eyelet with a hole in the guard pads. Secure guard to cone using (8) existing

Bolts and Nuts. See Figure 8A and 8B. Tighten all nuts at this time.

Step 8

Starting at the bottom of the cone, locate one of the guard tabs and put the guard tab through the guard slot

in the cone. See Figure 7B. Then work up around the guard and install each of the other guard tabs in each

of the corresponding guard slots. Some force may be required to snap the last tab into the last slot, pull out

on the center of the cone while pushing in on the guard tab until it snaps into place.

10 QM1190r7

Installation InstructionsChapter 2

Figure 9

PT Shutter

Step 11

Fasten shutter in place by rotating the side and top shutter clips

over the shutter flanges.

See Figure 10.

Installation is now complete, proceed to Electrical Wiring Section.

Figure 10

2.2 PT Style Shutter

Fixed Bottom

Shutter Clip

Note:

PT Shutter extends into room

2 5⁄16” from back of fan.

Step 10

Insert PT Shutter into fan by sliding the bottom flange of shutter into

bottom shutter clips and pressing shutter inward.

See Figure 9.
