MVP100GK

User Guide

Gatekeeper

MVP100GK

S000353B Revision B

This publication may not be reproduced, in whole or in part, without prior expressed written permission from Multi-

Multi-Tech Systems, Inc. makes no representations or warranty with respect to the contents hereof and

specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Furthermore,

Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time in the

content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or organization of such revisions

or changes.

Record of Revisions

Revision Date Description

A 08/01/04 Manual released.

B 09/20/04 Manual updated to include new 25 user license and version 8.06.A7 software.

Patents

This device covered by one or more of the following patents: 6,031,867; 6,012,113; 6,009,082; 5,864,560;

5,815,503; 5,812,534; 5,790,532; 5,764,628; 5,764,627; 5,754,589; 5,724,356; 5,673,268; 5,673,257; 5,628,030;

5,619,508; 5,617,423; 5,600,649; 5,592,586; 5,577,041; 5,574,725; 5,559,793; 5,546,448; 5,546,395; 5,535,204;

5,500,859; 5,471,470; 5,463,616; 5,453,986; 5,452,289; 5,450,425; 5,309,562; 5,301,274

Trademarks

Trademarks of Multi-Tech Systems, Inc.: Multi-Tech, and Multi-Tech logo.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

All products or technologies are the trademarks or registered trademarks of their respective holders.

Technical Support

Country By Email By Phone

France: [email protected] (33) 1-64 61 09 81

India: support@multitechindia.com 91 (124) 6340778

U.K.: [email protected]k (44) 118 959 7774

U.S. and Canada: [email protected] (800) 972-2439

Rest of the World: support@multitech.com (763) 717-5863

World Headquarters

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112

(763) 785-3500 or (800) 328-9717

Fax 763-785-9874

Internet Address: http://www.multitech.com

Contents

CHAPTER 1 - INTRODUCTION AND DESCRIPTION.............................................................. 4

Gatekeeper Basics......................................................................................................................................................................4

Features ......................................................................................................................................................................................6

Front Panel.................................................................................................................................................................................7

Back Panel ..................................................................................................................................................................................8

Specifications..............................................................................................................................................................................8

CHAPTER 2 - INSTALLATION................................................................................................. 9

Safety Warnings.........................................................................................................................................................................9

Safety Recommendations for Rack Installations ....................................................................................................................9

Cabling......................................................................................................................................................................................10

Loading Gatekeeper Software ................................................................................................................................................12

Gatekeeper Configuration ......................................................................................................................................................16

CHAPTER 3 – GATEKEEPER FUNCTIONALITY.................................................................. 27

Getting Started.........................................................................................................................................................................27

VOIP Network Example .........................................................................................................................................................29

CHAPTER 4 - GATEKEEPER PROTOCOLS........................................................................ 51

CHAPTER 5 – GATEKEEPER SOFTWARE .......................................................................... 53

Configuration ...........................................................................................................................................................................54

Statistics....................................................................................................................................................................................61

Connection................................................................................................................................................................................63

GateKeeper...............................................................................................................................................................................64

Software User License Agreement .........................................................................................................................................83

CHAPTER 6 - WARRANTY, SERVICE, AND TECH SUPPORT............................................ 84

Repair Procedures for U.S. and Canadian Customers.........................................................................................................84

Technical Support....................................................................................................................................................................85

Regulatory Information ..........................................................................................................................................................85

FCC Declaration ......................................................................................................................................................................86

INDEX...................................................................................................................................... 88

Chapter 1 – Introduction and Description

Multi-Tech Systems, Inc. MultiVOIP Gatekeeper User Guide 4

Chapter 1 - Introduction and

Description

Welcome to Multi-Tech’s new MultiVOIP™ Gatekeeper, Model MVP100GK, a turnkey hardware and software

solution that enables network managers and intranet managers to define and control how H.323 voice traffic is

managed over IP networks. The Gatekeeper is a complementary product to the MultiVOIP family. The

Gatekeeper is an industry-standard mechanism for call control and routing, basic telephony services, H.323

bandwidth usage control, total network usage control, and overall system administration and security policies. It

includes fast, easy-to-use interfaces that network managers can use to modify or update zone configurations

when an individual on the network needs additional services. And, it provides call centers with the capability to

perform needs-based call routing as well as providing a variety of other automatic call distribution features.

Figure 1-1. Gatekeeper

Gatekeeper facilitates interoperability between PBX dial plans and IP-based terminals. With it, call centers can

route call on the basis of need and implement other automatic call distribution features, as well.

Gatekeeper Basics

Gatekeepers are optional within H.323 networks. However, when they are present, gateways (voip units) and

other network endpoint devices (like terminals and Multipoint Control Units used in conferences) must use

Gatekeeper services. There are four functions that H.323 Gatekeepers must provide to the network and many

other functions, both standard and proprietary, that the Gatekeeper may offer to network participants.

Mandatory Gatekeeper Functions

The mandatory Gatekeeper functions are address translation, admission control, bandwidth control, and zone

management.

Address Translation

The Gatekeeper supports aliases, such as conventional E.164 phone numbers, for each endpoint registered

within the zone. Users call each other within a zone by simply dialing a number or string of characters instead of

an IP address. This function is particularly important when a phone on the circuit-switched network tries to call a

phone connected to a gateway on an IP network.

Admission Control

The Gatekeeper determines which network participants can and cannot make calls, according to established

network permissions and rules. The Gatekeeper controls admission using H.225 “RAS” messages (Registration,

Admission, Status).

Chapter 1 – Introduction and Description

Multi-Tech Systems, Inc. MultiVOIP Gatekeeper User Guide 5

Bandwidth Control

With the Gatekeeper, the network administrator can specify bandwidth limitations within a Gatekeeper’s zone and

can specify a bandwidth limit for gateway endpoints. The Gatekeeper controls bandwidth using H.225 RAS

messages. A Gatekeeper may determine there is no bandwidth available for a call or no additional bandwidth

available for an ongoing call requesting an increase. Dynamic (situation-dependent) changes in bandwidth

allocation are typically called “bandwidth management,” which is considered an optional Gatekeeper function.

Zone Management

The Gatekeeper allows or disallows call traffic within the Gatekeeper’s zone, depending upon established

permissions. The zone might be defined geographically (such as different branch locations), by physical network

connections (a range of IP addresses may comprise a zone, as may a subnet on a particular floor of a building),

or by a functional (organizational) paradigm.

Optional Gatekeeper Functions

The Gatekeeper supports the three main optional Gatekeeper functions: call control signaling, call authorization,

and bandwidth management.

Call Control Signaling

The Gatekeeper can, in “routed” mode, act as an intermediary for H.225 call-control signals between two

endpoints participating in a call. In “direct” mode, this function is turned off and the endpoints exchange H.225

call-control messages directly.

Call Authorization

The Gatekeeper can be programmed to restrict access (admission and registration) according to criteria set by

the user.

Bandwidth Management

This is essentially dynamic bandwidth control (see “Bandwidth Control” section above).

Chapter 1 – Introduction and Description

Multi-Tech Systems, Inc. MultiVOIP Gatekeeper User Guide 6

Features

•H.323 Version 2 compliance

•Admissions control determines whether H.323 devices are allowed to access resources (make calls)

•Address translation routes calls across your network

•Bandwidth control monitors and controls H.323 bandwidth usage to provide superior QoS

•Zone control and managemnt provides all defined call control services to all registered endpoints in the

gatekeeper’s zone

•Bandwidth management controls and limits the number of H.323 devices that are allowed to simultaneously

use the network

•Call routing allows you to direct calls to specified groups of gateways

•Call authorization/access authorizes or rejects a given call based on type of service, gateway restrictions or

lack of available bandwidth

•Support for Zone Prefix 1 and 2 where we accept calls from neighbouring gatekeepers (Inter Zone Calls)

using these two zone prefixes

•Intra-zone security mechanism to control calling activity within a zone using PBX-like prefix dialing

•Support for non-RAS endpoints such as Microsoft NetMetting

Chapter 1 – Introduction and Description

Multi-Tech Systems, Inc. MultiVOIP Gatekeeper User Guide 7

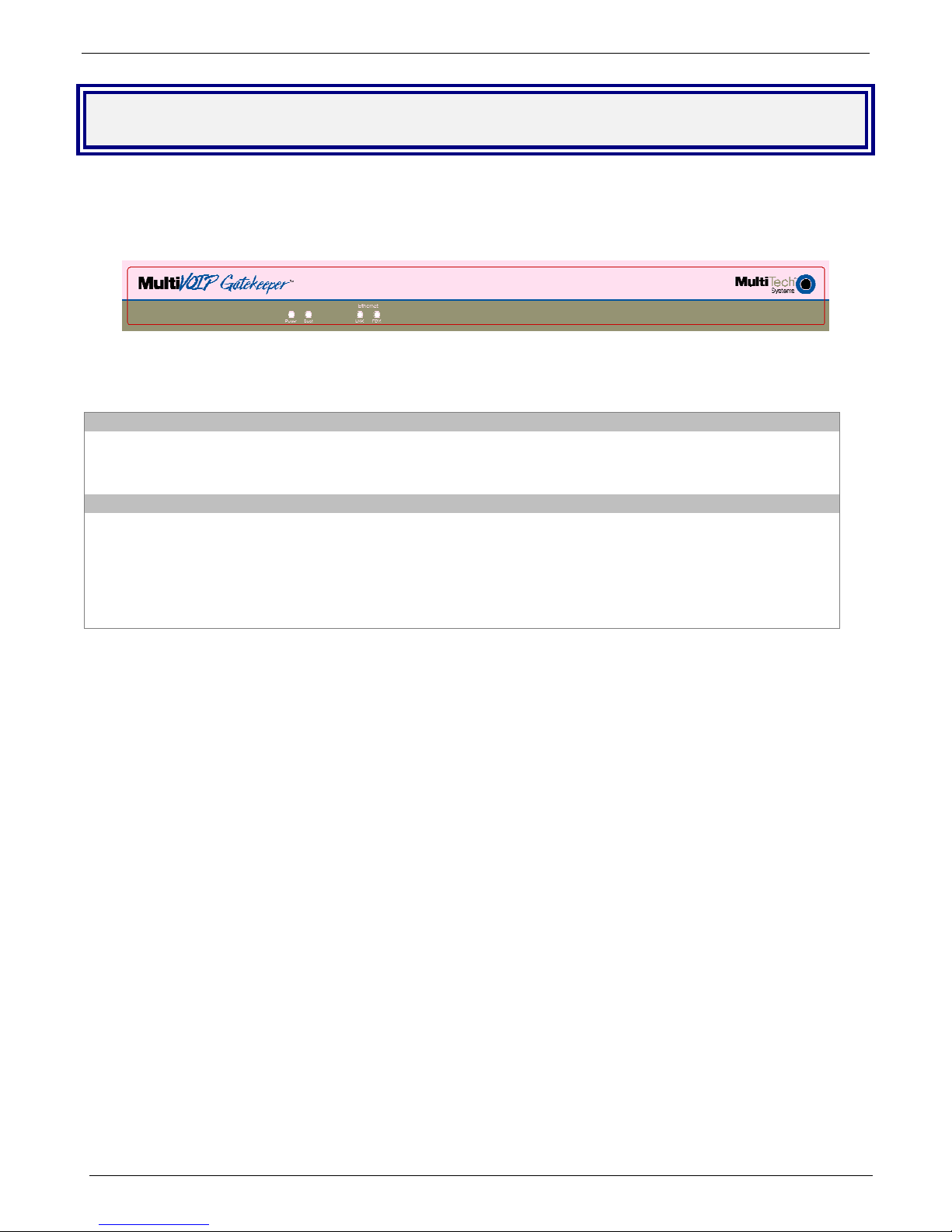

Front Panel

The front panel has 4 front panel LEDs that provide operating status.

The Front Panel

Figure 1-2. Front Panel

Front Panel LED Descriptions

LED

Power Indicates the presence of power.

Boot After power up, the Boot LED will be on briefly while the Gatekeeper is booting. It lights whenever the

Gatekeeper is booting or downloading a set of configuration data.

LED Description of Ethernet LEDs

LNK The LINK (LNK) LED indicates link integrity for the Ethernet port. When the LNK LED is on, the

Ethernet link is valid. When the LNK LED is blinking, the Ethernet link is active.

FDX The Full DupleX (FDX) LED indicates either 10Mbps, 100Mbps, or a collision has occurred on the

Ethernet link. When the FDX LED is off, the Ethernet link is responding at 10Mbps. When the FDX

LED is on, the link is responding at 100Mbps. When the FDX LED is blinking, a collision has

occurred.

Chapter 1 – Introduction and Description

Multi-Tech Systems, Inc. MultiVOIP Gatekeeper User Guide 8

Back Panel

The Gatekeeper back panel has a power plug, power switch, Command Port (RS232) for configuration, an

Ethernet jack (RJ45) for connection to your network, and a Command Modem for remote configuration.

Back panel

The back panel components are described in detail in the Cabling Procedure section in Chapter 2 of this manual.

Specifications

The Gatekeeper conforms to the following technical specifications.

• 10/100Mb EtherNet network

• Power requirement: 100-240V; 1.2 – 0.6V

• Frequency: 50-60 Hz

• Power Consumption: 27 Watts

• 1.75 inches high x 17.4 inches wide x 8.75 inches deep (4.5cm H x 44.2cm W x 22.2cm D)

• 7.1 lbs (3.2 kg)

Chapter 2 – Installation

Multi-Tech Systems, Inc. MultiVOIP Gatekeeper User Guide 9

Chapter 2 - Installation

This chapter explains how to set up and connect cables for the Gatekeeper. This product includes the Windows

operating system and Gatekeeper software, and is ready to be connected to an Ethernet concentrator.

Safety Warnings

1. Use this product only with UL- and CUL-listed computers.

2. To reduce the risk of fire, use only 26 AWG or larger telephone wiring.

3. Never install telephone wiring during a lightning storm.

4. Never install a telephone jack in a wet location unless the jack is specifically designed for wet locations.

5. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected

at the network interface.

6. Use caution when installing or modifying telephone lines.

7. Avoid using a telephone during an electrical storm; there is a risk of electrical shock from lightning.

8. Do not use a telephone in the vicinity of a gas leak.

Caution: Danger of explosion if battery is incorrectly replaced. A lithium battery on the Gatekeeper board

provides backup power for the time-keeping capability. The battery has an estimated life expectancy of ten years.

Contact Multi-Tech if you suspect a failed battery. If date and time is incorrect after having the unit powered off, it

may be due to a weak battery or incorrect setup.

Caution: The Ethernet ports are not designed to be connected to a Public Telecommunication Network.

Safety Recommendations for Rack

Installations

•Ensure proper installation of the Gatekeeper in a closed or multi-unit enclosure by following the

recommended installation as defined by the enclosure manufacturer. Do not place the Gatekeeper directly

on top of other equipment or place other equipment directly on top of the Gatekeeper.

•If installing the Gatekeeper in a closed or multi-unit enclosure, ensure adequate airflow within the rack so

that the maximum recommended ambient temperature is not exceeded.

•Ensure that the Gatekeeper is properly connected to earth ground via a grounded power cord. If a power

strip is used, ensure that the power strip provides adequate grounding of the attached apparatus.

•Ensure that the main supply circuit is capable of handling the load of the Gatekeeper. Refer to the power

label on the equipment for load requirements.

•Maximum ambient temperature for the Gatekeeper is 40 degrees Celsius (104°F).

This equipment should only be installed by properly qualified service personnel.

•Connect like circuits. In other words, connect SELV (Secondary Extra Low Voltage) circuits to SELV circuits

and TN (Telecommunications Network) circuits to TN circuits.

Chapter 2 – Installation

Multi-Tech Systems, Inc. MultiVOIP Gatekeeper User Guide 10

Unpacking

Check the items on the Gatekeeper shipping list to ensure that you have received the correct options and

accessories. Unpack the unit and inspect it for visible shipping damage. If damage is observed, do not power-on

the unit; contact Multi-Tech's Tech Support for advice. If no damage is observed, place the Gatekeeper in its final

location.

Cabling

Cabling your Gatekeeper entails making the proper connections for power, command port, and Ethernet network.

Figure 2-1 shows the back panel connectors and the associated cable connections. The following procedure

details the steps necessary for cabling your Gatekeeper.

1. Connect the power cord to a live AC outlet, then connect it to the Gatekeeper’s power receptacle shown at

top right in Figure 2-1.

Figure 2-1. Cabling

2. Connect the Gatekeeper to the PC (the computer that will hold the Gatekeeper software) using the RJ-45 to

DB9 (female) cable provided with your unit. Plug the RJ-45 end of the cable into the Command port of the

Gatekeeper and connect the other end (the DB9 connector) to the PC serial port you are using (typically

COM1 or COM2).

3. Connect a network cable to the Ethernet connector on the back of the Gatekeeper. Connect the other end

of the cable to your network.

4. If you intend to configure the Gatekeeper remotely using the Gatekeeper Windows GUI, connect an RJ-11

phone cable between the Command Modem connector (at the rear of the Gatekeeper) and a receptacle

served by a telco POTS line. See Figure 2-2

Autres manuels pour MultiVOIP MVP100GK Gatekeeper

Table des matières

Autres manuels Multitech Porte

Multitech

Multitech MultiVOIP 100 MVP120 Manuel utilisateur

Multitech

Multitech RF600 Manuel utilisateur

Multitech

Multitech MultiVOIP MVPGK1 Gatekeepers Manuel d'installation

Multitech

Multitech MultiVOIP GSM SIP-to-Cellular Gateways... Manuel utilisateur

Multitech

Multitech MultiVOIP MVP200 Manuel utilisateur

Multitech

Multitech MultiVOIP MVPFXS-8 Manuel utilisateur

Multitech

Multitech MultiVOIP GSM SIP-to-Cellular Gateways... Manuel utilisateur

Multitech

Multitech VoIP Manuel utilisateur

Multitech

Multitech RouteFinder RF550VPN Manuel utilisateur

Multitech

Multitech MULTIVOIP MVP-210 Manuel utilisateur

Multitech

Multitech MULTIVOIP MVP-210 Manuel

Multitech

Multitech MultiVOIP MVP200 Manuel utilisateur

Multitech

Multitech MULTIVOIP MVP-130 Manuel utilisateur

Multitech

Multitech CallFinder CF100FX2-G Manuel utilisateur

Multitech

Multitech OneBox Smart Building Manuel utilisateur

Multitech

Multitech MultiVOIP MVPFX2-2 Manuel utilisateur

Multitech

Multitech ProxyServer MTPSR1-202ST Manuel utilisateur

Multitech

Multitech MultiVOIP 400 MVP400 Manuel utilisateur

Multitech

Multitech Conduit 300 Series Instructions d'installation

Multitech

Multitech MultiVOIP MVP120 Manuel utilisateur

Multitech

Multitech MultiConnect Conduit AP MTCAP-LNA3-915 Manuel utilisateur

Multitech

Multitech MultiVOIP 400 MVP400 Manuel utilisateur

Multitech

Multitech CallFinder CF100FX2-G Manuel utilisateur

Multitech

Multitech RouteFinder RF550VPN Manuel utilisateur

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

Huawei

Huawei EchoLife HG620 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur
