EDS-G500E Series

Hardware Installation Guide

Moxa EtherDevice™ Switch

First Edition, July 2013

- 2 -

Package Checklist

The EDS-G500E is shipped with the following items. If any of these items

are missing or damaged, please contact your customer service

representative for assistance.

•1 EDS-G508E or EDS-G512E-4GSFP or EDS-G516E-4GSFP Ethernet

switch

•Hardware installation guide

•Documentation and software CD

•Moxa product warranty statement

•USB cable

•Protective caps for unused ports

Features

•Up to 12 10/100/1000BaseT(X) ports and 4 100/1000BaseSFP ports

•Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches),

RSTP/STP, and MSTP for network redundancy

•RADIUS, TACACS+, SNMPv3, IEEE 802.1x, HTTPS, and SSH to

enhance network security

•EtherNet/IP, PROFINET, and Modbus/TCP protocols supported for

device management and monitoring

- 3 -

Panel Views of EDS-G500E Series

Front Panel

EDS-G508E

EDS-G512E-4GSFP

Front Panel

1000BaseT(X) LED indicator

10/100BaseT(X) LED indicator

10/100/1000BaseT(X) ports

EDS-G508E: 1 to 8

EDS-G512E-4GSFP: 1 to 8

EDS-G516E-4GSFP: 1 to 12

System status LED:

•STATE LED indicator

•PWR1 LED indicator

•PWR2 LED indicator

•FAULT LED indicator

•MSTR/HEAD LED indicator

•CPLR/TAIL LED indicator

USB storage port

SFP port LED indicator

EDS-G512E-4GSFP: 9 to 12

EDS-G516E-4GSFP: 13 to 16

100/1000BaseSFP slots

Model Name

EDS-G516E-4GSFP

- 4 -

Top Panel

Rear Panel

Top Panel

Reset button

USB console port

DIP switches for Turbo Ring,

Ring Master, and Ring Coupler

Grounding screw

4-pin terminal block for digital

input and power input 2

4-pin terminal block for relay

output and power input 1

Rear Panel

Screw holes for wall mounting

kit

DIN-rail mounting kit

- 5 -

Mounting Dimensions

Unit = mm (inch)

- 6 -

DIN-Rail Mounting

The metal DIN-rail kit is fixed to the back panel of the EDS-G500E series

when you take it out of the box. Mount the EDS-G500E series on

corrosion-free mounting rails that meet the EN 60715 standard.

Installation

STEP 1—Insert the upper lip of the DIN rail into the DIN-rail mounting kit.

STEP 2—Press the EDS-G500E series towards the DIN rail until it snaps

into place.

Removal

STEP 1—Pull down the latch on the mounting kit with a screwdriver.

STEP 2 & 3—Slightly pull the EDS-G500E series forward and lift up to

remove it from the DIN rail.

- 7 -

Wall Mounting (Optional)

For some applications, you will find it convenient to mount Moxa EDS-

G500E series on the wall, as shown in the following illustrations:

STEP 1—Remove the

aluminum DIN rail attachment

plate from the rear panel

the EDS

-G500E series, and

then attach the wall mount

plates

with M3 screws, as

shown

in the figure at the

right.

STEP 2—

Mounting the EDS-G500E series on the

wall requires 4 screws. Use the

EDS-G500E series

with wall mount plates attached, as a guide to

mark the correct locations of the 4 screws. The

heads of the screws should be less than 6.0 mm

diameter, and the shafts should be less than 3.5

mm in diameter, as shown in the figure on at right.

NOTE

Before tightening the screws into the wall, make sure the screw

head and shank size are suitable by inserting the screw through

one of the keyhole-shaped apertures of the Wall Mounting Plates.

Do not screw the screws in all the way—leave about 2 mm to allow room

for sliding the wall mount panel between the wall and the screws.

STEP 3—Once the screws are

fixed

to the wall, insert the

four screw heads through the

wide parts of the

keyhole

-shaped apertures,

and then slide

the EDS-

G500E

downwards, as indicated

the figure

the right. Tighten

the four screws for

stability.

Wiring Requirements

WARNING

Do not disconnect modules or wires unless power has been

switched off or the area is known to be non

-hazardous. The

devices may only be connected to the supply voltage shown on

the type plate. The devices are designed

for operation with a

afety Extra-Low V

oltage. Thus, they may only be connected to

the supply voltage connections and to the signal contact with the

afety Extra-Low Voltages (SELV) in compliance with IEC950/

EN60950/ VDE0805.

- 8 -

ATTENTION

This unit is a built

-in type. When the unit is installed in another

piece of equipment, the equipment enclosing the unit must

comply with fire enclosure regulation IEC 60950/EN60950 (or

similar regulation).

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa EtherDevice Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum

current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

Please read and follow these guidelines:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

through the same wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring that shares similar electrical characteristics can be

bundled together

•You should separate input wiring from output wiring

•We advise that you label the wiring to all devices in the system.

Grounding the Moxa EDS-G500E Series

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface such as a metal panel.

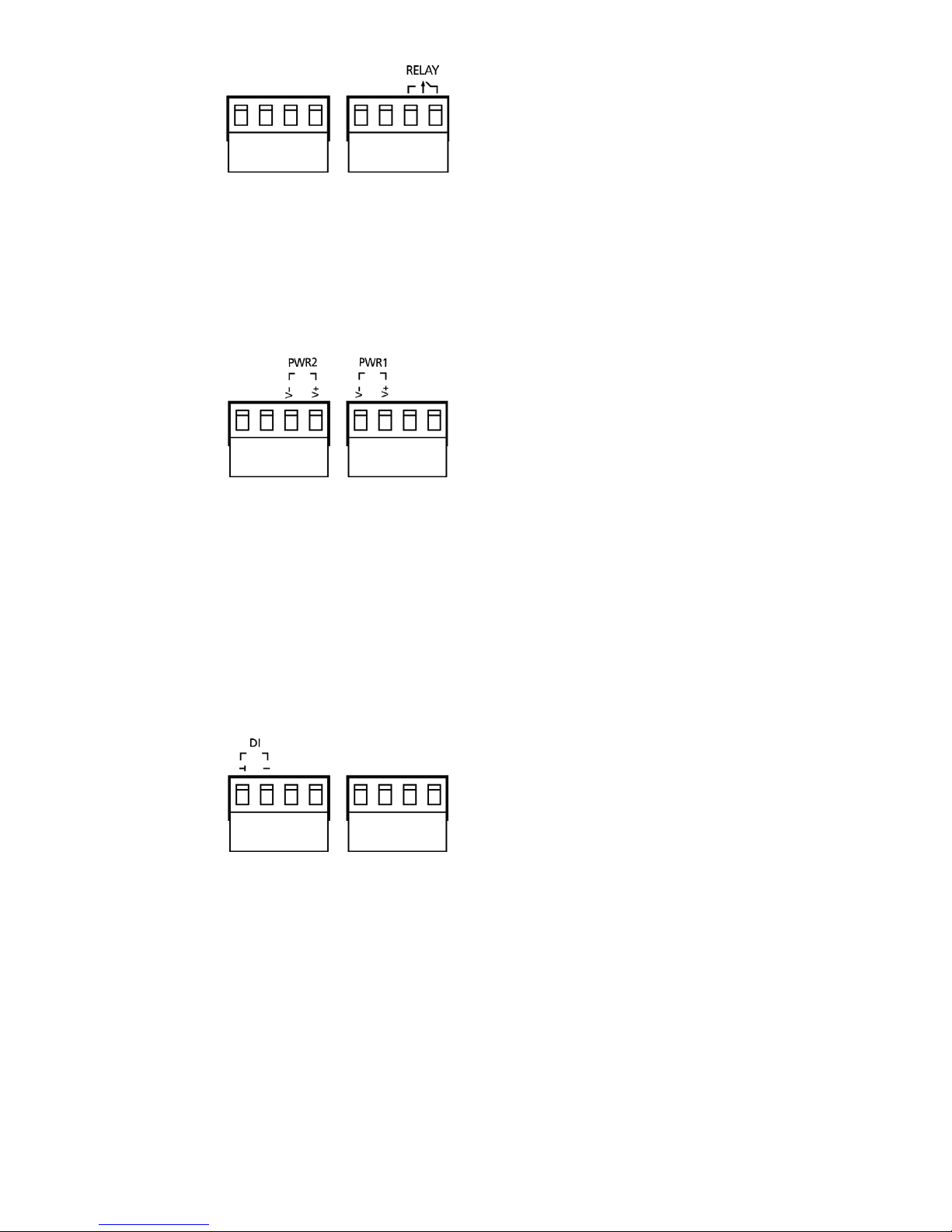

Wiring the Relay Contact

The EDS-G500E series has one set of relay output. This relay contact uses

two contacts of the terminal block on the EDS-G500E’s top panel. Refer to

the next section for detailed instructions on how to connect the wires to

the terminal block connector, and how to attach the terminal block

connector to the terminal block receptor. In this section, we illustrate the

meaning of the two contacts used to connect the relay contact.

- 9 -

FAULT:

The two contacts of the 6

pin terminal

block connector are used to detect

user

configured events. The two wires

attached to the

ault contacts form an

open circuit when a user

-configured

event is triggered. If a user

configured

event does not occur, the

fault circuit

remains closed.

Wiring the Redundant Power Inputs

The EDS-G500E series has two sets of power inputs—power input 1 and

power input 2. The top and front views of one of the terminal block

connectors are shown here.

STEP 1: Insert the negative/positive

DC wires into the V

-/V+ terminals,

respectively.

STEP 2:

To keep the DC wires from

pulling loose, use a small flat

-blade

screwdriver to tighten the wire

clamp

screws on the front of the terminal

block connector.

STEP 3:

Insert the plastic terminal

block connector prongs into the

terminal block receptor, which is

located on the EDS-G500E’s top panel.

Wiring the Digital Inputs

The EDS-G500E series has one set of digital input (DI). The DI consists of

two contacts of the 4-pin terminal block connector on the EDS-G500E's

top panel, which are used for the two DC inputs. The top and front views

of one of the terminal block connectors are shown here.

STEP 1: Insert the negative

(ground)/positive DI wires into the

┴

/I terminals, respectively.

STEP 2:

To keep the DI wires from

pulling loose, use a small flat

-blade

screwdriver to tighten the wire

clamp

screws on the front of the terminal

block connector.

STEP 3:

Insert the plastic terminal

block connector prongs into the

terminal block receptor,

which is

located on the EDS-G500E’s top panel.

Communication Connections

Each EDS-G500E series switch has 4 types of communication ports:

•1 USB console port (type B connector)

•1 USB storage port (type A connector)

•8 (EDS-G508E/EDS-G512E-4GSFP) or 12 (EDS-G516E-4GSFP)

10/100/1000BaseT(X) Ethernet ports

•4 100/1000Base SFP slots (EDS-G512E-4GSFP/EDS-G516E-4GSFP)

- 10 -

USB Console Connection

The EDS-G500E series has one USB console port (type B connector),

located on the top panel. Use the USB cable (provided in the product

package) to connect the EDS-G500E's console port to your PC's USB port

and install the USB driver (available in the software CD) on the PC. You

may then use a console terminal program, such as Moxa PComm Terminal

Emulator, to access the EDS-G500E’s console configuration utility.

USB Console Port (Type B Connector) Pinouts

Description

D– (Data -)

VCC (+5V)

D+ (Data+)

GND (Ground)

USB Storage Connection

The EDS-G500E series has one USB storage port (type A connector) on

the front panel. Use Moxa ABC-02-USB-T automatic backup configurator

to connect the EDS-G500E's USB storage port for configuration backup,

firmware upgrade or system log file backup.

ABC-02-USB Installation

Plug the ABC-02-USB into the USB storage port of the Moxa EDS-G500E

series. Securing the ABC-02-USB on the wall with an M4 screw is

suggested.

USB Storage Port (Type A Connector) Pinouts

Description

VCC (+5V)

D– (Data -)

D+ (Data+)

GND (Ground)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Moxa Technologies Changer

Moxa Technologies

Moxa Technologies PowerTrans PT-7528-24TX-WV Manuel utilisateur

Moxa Technologies

Moxa Technologies ToughNet TN-5816A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EOM-104 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-2005-ELP Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-405A Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-205 Manuel utilisateur

Moxa Technologies

Moxa Technologies PT-7528 Manuel

Moxa Technologies

Moxa Technologies MDS-G4000-L3-4XGS Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A Series Manuel

Moxa Technologies

Moxa Technologies PowerTrans PT-7828 Manuel

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205A-4PoE-1GSFP Manuel

Moxa Technologies

Moxa Technologies EtherDevice EDS-205A series Manuel

Moxa Technologies

Moxa Technologies EDS-4014 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies PowerTrans PT-508-MM-ST-48 Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-2016-ML Series Manuel utilisateur

Moxa Technologies

Moxa Technologies OnCell G3111 Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-2010-ML Series Manuel utilisateur

Moxa Technologies

Moxa Technologies TN-5305 Series Manuel

Moxa Technologies

Moxa Technologies ICS-G7526 Series Manuel

Moxa Technologies

Moxa Technologies EDS-G2008-EL Series Manuel utilisateur

Moxa Technologies

Moxa Technologies ioLogik E1200 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies TN-5305-T Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205-T Manuel

Moxa Technologies

Moxa Technologies PowerTransPT-7528 Series Manuel

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
