EDS-G509 Series

Quick Installation Guide

Moxa EtherDevice™ Switch

Version 5.1, March 2020

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Package Checklist

The Moxa EDS-G509 is shipped with the following items. If any of these

items is missing or damaged, please contact your customer service

representative for assistance.

•1 EDS-G509 EtherDevice Switch

•RJ45 to DB9 console port cable

•Protective caps for unused ports

•Wall Mounting Kit (optional—must be ordered separately)

•Quick installation guide (printed)

•Warranty card

Mounting Dimensions

Unit = mm (inch)

- 3 -

Panel Views of EDS-G509

Front Panel:

1. 1 to 4: 10/100/1000 BaseT(X)

port

2. 5 to 9: 10/100/1000 BaseT(X)

100/1000Base SFP slot combo

ports

3. PWR1: LED for power input 1

4. PWR2: LED for power input 2

5. FAULT: LED indicator

6. MSTR/HEAD LED

7. CPLR/TAIL LED

8. Model Name

9. 10/100/1000BaseT(X) LED

indicator (Amber: 10/100M

Green: 1000M)

Top Panel

1. Grounding screw

2. RS-232 console port

3. DIP switches

for Ring Master, Ring

Coupler, and Turbo Ring

4. Heat dissipation orifices

5. 6-pin terminal block for

DI 1, DI 2,

and PWR 2

6. 6-pin terminal block for PWR1,

Relay 1, and Relay 2

Rear Panel:

1. Grounding screw

2. Terminal block

3. Screw holes

for Wall Mounting Kit

4. DIN-Rail kit

- 4 -

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should already be fixed to the

back panel of the EDS-G509 when you take it out of the box. If you need

to reattach the DIN-Rail attachment plate to the EDS-G509, make sure

the stiff metal spring is situated towards the top, as shown in the

following figures.

STEP 1

—

Insert the top of the

DIN

-Rail into the slot just below

the stiff metal spring.

STEP 2

—

The DIN-Rail attachment

unit will snap into place as shown in

the following illustration.

To remove the EDS-G509 from the DIN-Rail, simply reverse Steps 1 and

2 above.

Wall Mounting (Optional)

For some applications, you will find it convenient to mount the Moxa

EDS-G509 on the wall, as shown in the following illustrations:

STEP 1—Remove the aluminum

DIN

-rail attachment plate from

the rear panel

of the EDS-G509

and then attach the

wall

-mounting plates with M3

screws

, as shown in the figure

the right.

STEP 2—Mounting the EDS-G509 on the wall requires 4

screws. Use the

EDS-G509, with wall-mounting plates

attached, as a guide to mark the correct locations of the

4 screws. The heads of the screws should be less than

6.0 mm in diameter, and the shafts should be less than

3.5 mm in diameter, as shown in the figure on at right.

NOTE

Before tightening the screws into the wall, make sure the screw

head and shank size are suitable by inserting the screw through

one of the keyhole-shaped apertures of the wall-mounting plates.

Do not screw the screws in all the way—leave about 2 mm to allow room

for sliding the wall-mounting panel between the wall and the screws.

- 5 -

STEP 3—Once the screws are fixed to

the wall, insert the four screw heads

through the wide parts of the

keyhole

-shaped apertures, and then

slide

the EDS-G509 downwards, as

indicated

in the figure at the right.

Tighten the four screws for

stability.

Wiring Requirements

WARNING

Do not disconnect modules or wires unless power has been

switched off or the area is known to be non

-hazardous. The

devices may only be connected to the supply voltage shown on

the type plate. The devices are designed for operation with a

afety Extra-Low V

oltage. Thus, they may only be connected to

the supply voltage connections and to the signal contact

with the

afety Extra-Low Voltages (SELV) in compliance with IEC950/

EN60950-1/ VDE0805.

ATTENTION

This unit is a built

-in type. When the unit is installed in another

piece of equipment, the equipment enclosing the unit

must

comply with fire enclosure regulation IEC 60950

-1/EN60950-1

(or similar regulation).

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa EtherDevice Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

- 6 -

Please read and follow these guidelines:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

through the same wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring sharing similar electrical characteristics can be bundled

together

•You should separate input wiring from output wiring

•We advise that you label the wiring to all devices in the system.

Grounding the Moxa EDS-G509

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface such as a metal panel.

Wiring the Relay Contact

The EDS-G509 has two sets of relay outputs—relay 1 and relay 2. Each

relay contact uses two contacts of the terminal block on the EDS-G509’s

top panel. Refer to the next section for detailed instructions on how to

connect the wires to the terminal block connector, and how to attach the

terminal block connector to the terminal block receptor.

In this section, we illustrate the meaning of the two contacts used to

connect the relay contact.

FAULT:

The two sets of relay

contacts of the 6

-pin terminal

block connector are used to detect

user

-configured events. The two

wires attached to the

fault

contacts form an open circuit

when a user

-configured event is

triggered. If a user

-configured

event does not occur, the

fault

circuit remains closed.

- 7 -

Wiring the Redundant Power Inputs

The EDS-G509 has two sets of power inputs—power input 1 and power

input 2. The top two contacts and the bottom two contacts of the 6-pin

terminal block connector on the EDS-G509’s top panel are used for the

two digital inputs. The top and front views of one of the terminal block

connectors are shown here.

STEP 1: Insert the

negative/positive DC wires into

the V

/V+ terminals, respectively.

STEP 2:

To keep the DC wires

from pulling loose, use a small

flat

-blade screwdriver to tighten

the wire

clamp screws on the front

of the terminal block connector.

STEP 3:

Insert

the plastic terminal

block connector prongs into the

terminal block receptor, which is

located on

the EDS-G509’s top

panel.

Wiring the Digital Inputs

The EDS-G509 has two sets of digital inputs, DI 1 and DI 2. Each DI

consists of two contacts of the 6-pin terminal block connector on the

EDS-G509’s top panel, which are used for the two DC inputs. The top and

front views of one of the terminal block connectors are shown here.

STEP 1: Insert the negative

(ground)/positive DI wires into the

┴

/I1 terminals, respectively.

STEP 2: To keep the DI wires from

pulling loose, use a small

flat

-blade screwdriver to tighten

the wire

clamp screws on the front

of the terminal block connector.

STEP 3:

Insert the plastic terminal

block connector prongs into the

terminal bl

ock receptor, which is

located on

the EDS-G509’s top

panel.

Communication Connections

Each EDS-G509 switch has 3 types of communication port:

•1 RJ45 console port (RS-232 interface)

•4 10/100/1000BaseTX Ethernet ports

•5 combination 10/100/1000T(X)/1000BaseSFP ports

RS-232 Connection

The EDS-G509 has one RS-232 (10-pin RJ45) console port, located on the

top panel. Use either an RJ45-to-DB9 (see the cable following wiring

diagrams) to connect the EDS-G509’s console port to your PC’s COM port.

You may then use a console terminal software, such as Moxa PComm

Terminal Emulator, to access the EDS-G509’s serial console. (Baudrate:

115200 bps, no parity, 8 data bit, 1 stop bit)

- 8 -

RJ45 (10-pin) Console Port Pinouts

Description

–

DSR

RTS

–

TxD

RxD

GND

CTS

DTR

–

RJ45 (10-pin) to DB9 (F) Cable Wiring

10/100/1000BaseT(X) Ethernet Port Connection

The 10/100/1000BaseT(X) ports located on Moxa EtherDevice Switch’s

front panel are used to connect to Ethernet-enabled devices. Most users

will choose to configure these ports for Auto MDI/MDI-X mode, in which

case the port’s pinouts are adjusted automatically depending on the type

of Ethernet cable used (straight-through or cross-over), and the type of

device (NIC-type or HUB/Switch-type) connected to the port.

In what follows, we give pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports. We also give cable wiring diagrams for

straight-through and cross-over Ethernet cables.

10/100Base T(x) RJ45 Pinouts

MDI Port Pinouts

MDI-X Port Pinouts

8-pin RJ45

Signal

Tx+

Tx-

Rx+

Rx-

Signal

Rx+

Rx-

Tx+

Tx-

- 9 -

1000BaseT RJ45 Pinouts

MDI

MDI-X

BI_DA+

BI_DB+

BI_DA-

BI_DB-

BI_DB+

BI_DA+

BI_DC+

BI_DD+

BI_DC-

BI_DD-

BI_DB-

BI_DA-

BI_DD+

BI_DC+

BI_DD-

BI_DC-

RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring

RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring

100BaseFX or 1000BaseSFP Fiber Port

The Gigabit Ethernet ports on the EDS-G509 series are SFP slots, which

require 100BaseFX SFP or Gigabit mini-GBIC fiber transceivers to work

properly. Moxa provides complete transceiver models for various distance

requirements.

Multi-mode:

1000BaseSX

0 to 550 m, 850 nm (50/125

μm, 400 MHz * km)

0 to 275 m, 850 nm (62.5/125 μm, 200 MHz * km)

1000BaseLX

0 to 1100 m, 1310 nm (50/125 μm, 800 MHz * km)

0 to 550 m, 1310 nm (62.5/125 μm, 500 MHz * km)

Single mode:

1000BaseLH

0 to 10 km, 1310 nm (9/125μm, 3.5 PS/(nm * km))

1000BaseLHX

0 to 40 km, 1310 nm (9/125μm, 3.5 PS/(nm * km))

1000BaseZX

0 to 80 km, 1550 nm (9/125μm, 19 PS/(nm * km))

- 10 -

Multi-mode:

100BaseFX

0 to 5 km, 1300 nm (50/125 μm, 800 MHz * km)

0 to 4 m, 1300 nm (62.5/125 μm, 500 MHz * km)

Single mode:

100BaseFX

0 to 40 km, 1310 nm (9/125 μm, 3.5 PS/(nm * km))

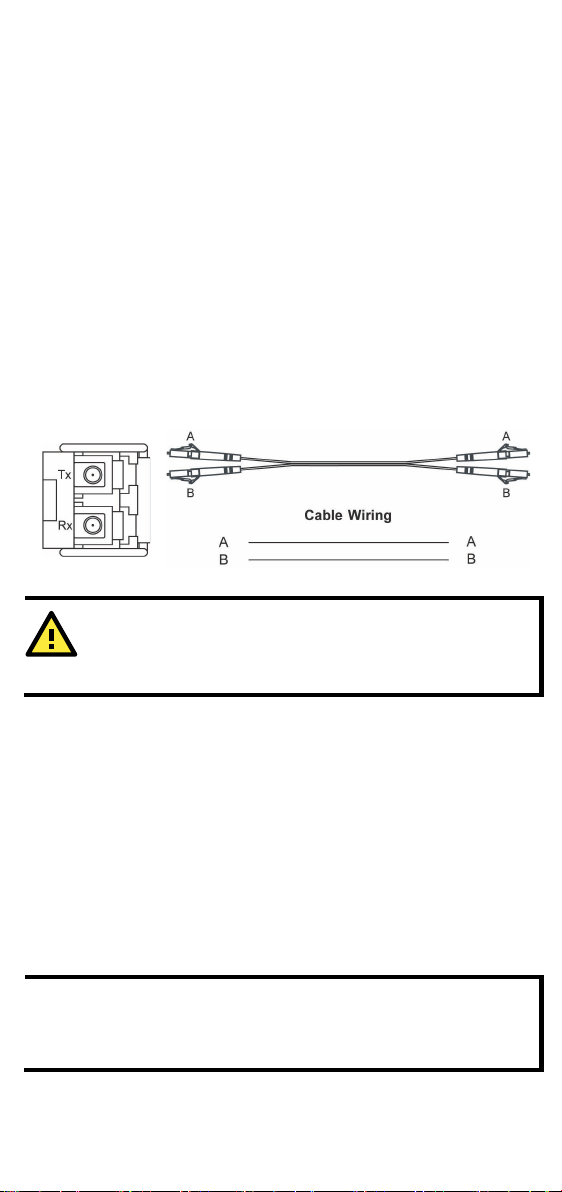

The concept behind the LC port and cable is quite straightforward.

Suppose you are connecting devices I and II. Unlike electrical signals,

optical signals do not require a circuit in order to transmit data.

Consequently, one of the optical lines is used to transmit data from device

I to device II, and the other optical line is used to transmit data from

device II to device I, for full-duplex transmission.

Remember to connect the Tx (transmit) port of device I to the Rx (receive)

port of device II, and the Rx (receive) port of device I to the Tx (transmit)

port of device II. If you make your own cable, we suggest labeling the two

sides of the same line with the same letter (A-to-A and B-to-B, as shown

below, or A1-to-A2 and B1-to-B2).

LC-Port Pinouts

LC-Port to LC-Port Cable Wiring

ATTENTION

This is a Class 1 Laser/LED product. To avoid causing serious

damage to your eyes, do not stare directly into the Laser Beam.

Turbo Ring DIP Switch Settings

EDS-G509 series are plug-and-play managed redundant Ethernet

switches. The proprietary Turbo Ring protocol was developed by Moxa to

provide better network reliability and faster recovery time. Moxa Turbo

Ring’s recovery time is less than 300 ms (Turbo Ring) or less than 50 ms

@ 250 switches (Turbo Ring V2)—compared to a 3- to 5-minute

recovery time for commercial switches—decreasing the possible loss

caused by network failures in an industrial setting.

There are 4 Hardware DIP Switches for Turbo Ring on the top panel of

EDS-G509 that can help setup the Turbo Ring easily within seconds. If

you do not want to use a hardware DIP switch to setup the Turbo Ring,

you can use a web browser, telnet, or console to disable this function.

NOTE

Please refer to the Turbo Ring DIP Switch section and Using

Communication Redundancy

section in the User’s Manual for

more detail information about the settings and usage of

Turbo

Ring and Turbo Ring V2.

Table des matières

Autres manuels Moxa Technologies Changer

Moxa Technologies

Moxa Technologies EDS-4014 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies ToughNet TN-5524-8PoE-P24-T Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-4012 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-G205-1GTXSFP-T Manuel

Moxa Technologies

Moxa Technologies SDS-3016 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A-PTP Series Manuel

Moxa Technologies

Moxa Technologies EtherDevice EDS-2016-ML Series Manuel utilisateur

Moxa Technologies

Moxa Technologies MDS-G4000-L3-4XGS Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-G2005-EL Series Manuel utilisateur

Moxa Technologies

Moxa Technologies PT-7710 Series Manuel

Moxa Technologies

Moxa Technologies PowerTrans PT-7528-24TX-WV Manuel utilisateur

Moxa Technologies

Moxa Technologies TN-5516A Series Manuel

Moxa Technologies

Moxa Technologies SPL-24 Manuel utilisateur

Moxa Technologies

Moxa Technologies PowerTrans PT-508-MM-ST-48 Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-2010-ML Series Manuel utilisateur

Moxa Technologies

Moxa Technologies TN-5308-LV Manuel utilisateur

Moxa Technologies

Moxa Technologies TN-5510A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-205A series Manuel

Moxa Technologies

Moxa Technologies PT-7528 Manuel utilisateur

Moxa Technologies

Moxa Technologies ToughNet TN-5516 Series Manuel

Moxa Technologies

Moxa Technologies ICS-G7748A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies ioLogik E1200 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies MDS-G4000 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A-3GT Manuel

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
