Moxa Technologies ToughNet TN-4500A Series Manuel utilisateur

P/N: 1802045000013

*1802045000013*

TN-4500A Series

Quick Installation Guide

Moxa ToughNet Switch

Version 4.0, May 2022

Technical Support Contact Information

www.moxa.com/support



- 2 -

Overview

The ToughNet TN-4500A Series M12 managed Ethernet switches are

designed for industrial applications in harsh environments. The TN

Series switches use M12 connectors to ensure tight, robust

connections, and guarantee reliable operation against environmental

disturbances, such as vibration and shock. The wide 24 to 110 VDC

dual power inputs increases the reliability of your communications.

The TN-4500A Series includes PoE, non-PoE, and fiber switches.

•TN-4512A non-PoE Series: 12 Fast Ethernet M12 ports.

•TN-4516A non-PoE Series: 16 Fast Ethernet M12 ports or 12 Fast

Ethernet with 4 Gigabit Ethernet ports. For 4GTXBP models, 4

Gigabit ports support bypass relay functionality.

•TN-4516A PoE Series: 12 Fast Ethernet M12 ports with PoE

functionality and 4 Gigabit Ethernet ports with PoE functionality. For

2GTXBP models, 2 out of 4 Gigabit ports support bypass relay

functionality.

•TN-4516A fiber Series: 12 Fast Ethernet M12 ports with PoE

functionality and 2 Gigabit Ethernet ports with PoE functionality; 2

Gigabit Ethernet ports with a Q-ODC fiber connector.

•TN-4520A PoE Series: 16 Fast Ethernet M12 ports with PoE

functionality and 4 Gigabit Ethernet with PoE functionality.

•TN-4524A PoE Series: 24 Fast Ethernet M12 ports, including 16

with PoE functionality.

•TN-4528A PoE Series: 24 Fast Ethernet M12 ports, including 16

with PoE functionality and 4 Gigabit Ethernet ports with PoE

functionality. For 2GTXBP models, 2 out of 4 Gigabit ports support

bypass relay functionality.

•TN-4528A fiber Series: 24 Fast Ethernet M12 ports, including 16

with PoE functionality and 2 Gigabit Ethernet ports with PoE

functionality; 2 Gigabit Ethernet ports with a Q-ODC fiber

connector.

The -40 to 75°C operating temperature and IP42-rated waterproof

enclosure allow deployment in harsh environments. The TN-4500A

Series Ethernet switches are compliant with mandatory sections of EN

50155, covering operating temperature, power input voltage, surge,

ESD, and vibration, as well as conformal coating and power insulation,

making the switches suitable for a variety of industrial applications.

Package Checklist

Your ToughNet TN-4500A switch is shipped with the following items. If

any of these items are missing or damaged, please contact your

customer service representative for assistance.

•1 Moxa ToughNet switch

•2 caps, female, metal, for M12 console and relay ports (preinstalled

on the switch)

•6/8/10/12/14 caps, male, metal, for M12 Ethernet ports

(preinstalled on the switch)

•Wall-mounting kit (including 4 screws)

•Quick installation guide (printed)

•Warranty card

- 3 -

Features

Anti-Vibration Circular Connectors for Robust Links

•M12 D-coded 4-pin female connectors for 10/100BaseT(X) Fast

Ethernet ports

•M12 X-coded 8-pin female connectors for 10/100/1000BaseT(X)

Gigabit Ethernet ports

•M12 A-coded 5-pin male connectors for console and relay outputs

•M23 6-pin male connectors for power input

•Q-ODC fiber connector for 1000Base-X (including 1000Base-LSX)

Gigabit Ethernet with 2 km multi-mode embedded transceiver

Isolated Power Inputs

•Supports 24 to 110 VDC (16.8 to 137.5 VDC)

High Performance Network Switching Technology

•IEEE 1588v2 PTP (Precision Time Protocol) for the precise time

synchronization of networks

•DHCP Option 82 for IP address assignment with different policies

•Turbo Ring and Turbo Chain (recovery time <20 ms @250

switches), and STP/RSTP/MSTP for network redundancy

•IGMP Snooping and GMRP for filtering multicast traffic from

industrial Ethernet protocols

•Port-based VLAN, IEEE 802.1Q VLAN, and GVRP protocol to ease

network planning

•QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic

classification and prioritization

•802.3ad, LACP for optimum bandwidth utilization

•TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance

network security

•SNMP v1/v2c/v3 for different levels of network management

•RMON for efficient network monitoring and proactive capability

•Bandwidth management prevents unpredictable network status

•Lock port allows access by only authorized MAC addresses

•Port mirroring for online debugging

•Automatic warning by exception through email, relay output

•Automatic recovery of connected devices’ IP addresses

•Line-swap fast recovery

•LLDP for automatic topology discovery through network

management software

•Loop protection prevents network loops

•Configurable through web browser, Telnet/serial console, CLI, and

Windows utility

Designed for Industry-Specific Applications

•Four Gigabit Ethernet ports to meet high bandwidth requirements.

•Complies with all EN 50155 mandatory test items*

•-40 to 75°C operating temperature range

•IP42 rugged high-strength case

•Wall mounting installation capability

•Bypass relay option on selected Gigabit Ethernet ports ensures non-

stop data communication in the event a switch stops working due

to a power failure

*This product is suitable for rolling stock railway applications, as

defined by the EN 50155 standard. For a more detailed statement, click

here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf

- 4 -

Recommended Optional Accessories

•CBL-M23(FF6P)/OPEN-BK-100-IP67: 1-meter M23 to 6-pin power

cable with IP67-rated female 6-pin M23 connector

•CBL-M12D(MM4P)/RJ45-100 IP67: 1-meter M12-to-RJ45 Cat-5E

UTP Ethernet cable with IP67-rated male 4-pin M12 D-coded

connector

•CBL-M12(FF5P)/OPEN-100 IP67: 1-meter M12-to-5-pin power cable

with IP67-rated female 5-pin M12 A-coded connector

•CBL-M12XMM8PRJ45-Y-200-IP67: 2-meter M12-to-RJ45 Cat-5 UTP

Ethernet cable with IP67-rated 8-pin male X-coded crimp type M12

connector

•CBL-M12XMM8P-Y-300-IP67: 3-meter M12-to-M12 Cat-5 UTP

Ethernet cable with IP67-rated 8-pin male X-coded crimp type M12

connector

•CBL-M12XMM8P-Y-100-IP67: 1-meter M12-to-M12 Cat-5 UTP

Ethernet cable with IP67-rated 8-pin male X-coded crimp type M12

connector

•M12D-4P-IP68: Field-installable M12 D-coded screw-type

connector, male 4-pin, IP68-rated

•M12A-5P-IP68: Field-installable M12 A-coded screw-type connector,

female 5-pin, IP68-rated

•M12X-8PMM-IP67-HTG: Field-installable M12 X-coded crimp type,

slim design connector, 8-pin male, IP67-rated

•A-CAP-M12F-M: Metal cap for M12 female connector

•A-CAP-M12M-M: Metal cap for M12 male connector

•A-CAP-M12F-M-PP: Metal cap for M12 female push-pull connector

•A-PLG-WPM23-01: M23 cable connector, 6-pin female, crimp type

- 5 -

TN-4512A Series Panel Layouts

1. Model name

2. Screw holes for panel

mounting kit

3. Console port

4. Grounding screw

5. Relay output port

Power input port (M23

6-pin shielded male

connector)

7. PWR1 LED: for power

input 1

8. PWR2 LED: for power

input 2

9. MSTR/HEAD LED: for

ring master or chain

head

10.

FAULT LED

11.

CPLR/TAIL LED: for

ring coupler or chain

tail

12.

10/100Base-TX port

LED

13.

10/100BaseT(X) port

(M12 D-coded 4-pin

female connector)

- 6 -

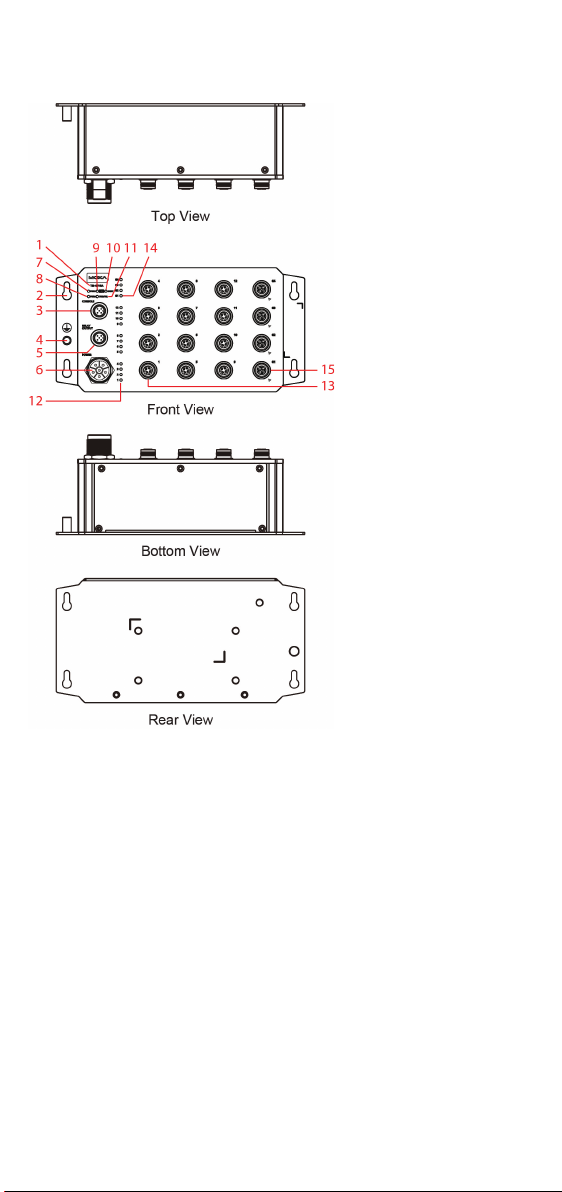

TN-4516A non-PoE Series Panel Layouts

1. Model name

2. Screw holes for wall

mounting kit

3. Console port

4. Grounding screw

5. Relay output port

6. Power input port (

M23

6-pin shielded male

connector)

7. PWR1 LED: for power

input 1

8. PWR2 LED: for power

input 2

9. MSTR/HEAD LED: for

ring master or chain

head

10.

FAULT LED

11.

CPLR/TAIL LED: for

ring coupler or chain

tail

12.

10/100Base-TX port

LED

13.

10/100Base-TX port

(M12 D-coded 4-pin

female connector)

14.

10/100/1000Base-TX

port LED

15.

10/100/1000Base-TX

port (M12 X-coded 8-

pin female connector)

- 7 -

TN-4516A PoE Series Panel Layouts

1. Model name

2. Screw holes for wall

mounting kit

3. Console port

4. Grounding screw

5. Relay output port

6. Power input port (

M23

6-pin shielded male

connector)

7. PWR1 LED: for power

input 1

8. PWR2 LED: for power

input 2

9. MSTR/HEAD LED: for

ring master or chain

head

10.

FAULT LED

11.

CPLR/TAIL LED: for

ring coupler or chain

tail

12.

10/100Base-TX port

LED

13.

10/100Base-TX port

(M12 D-coded 4-pin

female connector)

14.

10/100/1000Base-TX

port LED

15.

10/100/1000Base-TX

port (M12 X-coded 8-

pin female connector)

- 8 -

TN-4516A Fiber Series Panel Layouts

1. Model name

2. Screw holes for wall

mounting kit

3. Console port

4. Grounding screw

5. Relay output port

6. Power input port (

M23

6-pin shielded male

connector)

7. PWR1 LED: for power

input 1

8. PWR2 LED: for power

input 2

9. MSTR/HEAD LED: for

ring master or chain

head

10.

FAULT LED

11.

CPLR/TAIL LED: for

ring coupler or chain

tail

12.

10/100Base-TX port

LED

13.

10/100Base-TX port

(M12 D-coded 4-pin

female connector)

14.

10/100/1000Base-TX

port LED

15.

10/100/1000Base-TX

port (M12 X-coded 8-

pin female connector)

16.

10/100/1000Base-X

port (Q-ODC fiber

connector)

- 9 -

TN-4520A Series Panel Layouts

1. Model name

2. Screw holes for wall

mounting kit

3. Console port

4. Grounding screw

5. Relay output port

6. Power input port (

M23

6-pin shielded male

connector)

7. PWR1 LED: for power

input 1

8. PWR2 LED: for power

input 2

9. MSTR/HEAD LED: for

ring master or chain

head

10.

FAULT LED

11.

CPLR/TAIL LED: for

ring coupler or chain

tail

12.

10/100Base-TX port

LED

13.

10/100Base-TX port

(M12 D-coded 4-pin

female connector)

14.

10/100/1000Base-TX

port LED

15.

10/100/1000Base-TX

port (M12 X-coded 8-

pin female connector)

- 10 -

TN-4524A Series Panel Layouts

1. Model name

2. Screw holes for wall

mounting kit

3. Console port

4. Grounding screw

5. Relay output port

6. Power input port (

M23

6-pin shielded male

connector)

7. PWR1 LED: for power

input 1

8. PWR2 LED: for power

input 2

9. MSTR/HEAD LED: for

ring master or chain

head

10.

FAULT LED

11.

CPLR/TAIL LED: for

ring coupler or chain

tail

12.

10/100Base-TX port

LED

13.

10/100Base-TX port

(M12 D-coded 4-pin

female connector)

Autres manuels pour ToughNet TN-4500A Series

Table des matières

Autres manuels Moxa Technologies Changer

Moxa Technologies

Moxa Technologies PT-7728 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-4009 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies PowerTrans PT-7528-24TX-WV Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-P506A-4PoE Series Manuel utilisateur

Moxa Technologies

Moxa Technologies SPL-24 Manuel utilisateur

Moxa Technologies

Moxa Technologies PT-G510 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-2010-ML Series Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort 1220 Manuel utilisateur

Moxa Technologies

Moxa Technologies TN-5308-LV Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A Series Manuel

Moxa Technologies

Moxa Technologies EtherDevice EDS-P206A-4PoE Series Manuel

Moxa Technologies

Moxa Technologies EtherDevice EDS-505A Manuel

Moxa Technologies

Moxa Technologies EtherDevice Manuel utilisateur

Moxa Technologies

Moxa Technologies ICS-G7 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-516A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-2005-ELP Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A-PTP Series Manuel

Moxa Technologies

Moxa Technologies ToughNet TN-5510A-2GLSX-ODC Manuel

Moxa Technologies

Moxa Technologies EDS-2008-EL Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-G509 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies MDS-G4000-4XGS Series Manuel utilisateur

Moxa Technologies

Moxa Technologies ioLogik E1200 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies TN-5308 Manuel utilisateur

Moxa Technologies

Moxa Technologies NE-4100 Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
