DATA SHEET
SBG940E
SURFboard®Wireless Cable Modem Gateway
Highlights
Integrated, Euro-DOCSIS 2.0
SURFboard cable modem
Router with four-port 10/100
fast Ethernet switch
• Half-/full-duplex
• Auto-MDIX cross-over
cable detection
IEEE 802.11b/g wireless
access point
Advanced firewall
• Stateful packet inspection
• Intrusion detection
• Denial-of-service
attack prevention
Network up to 253 PCs1(full
Class "C" network)
• VPN pass-through
IPSec, PPTP, L2TP

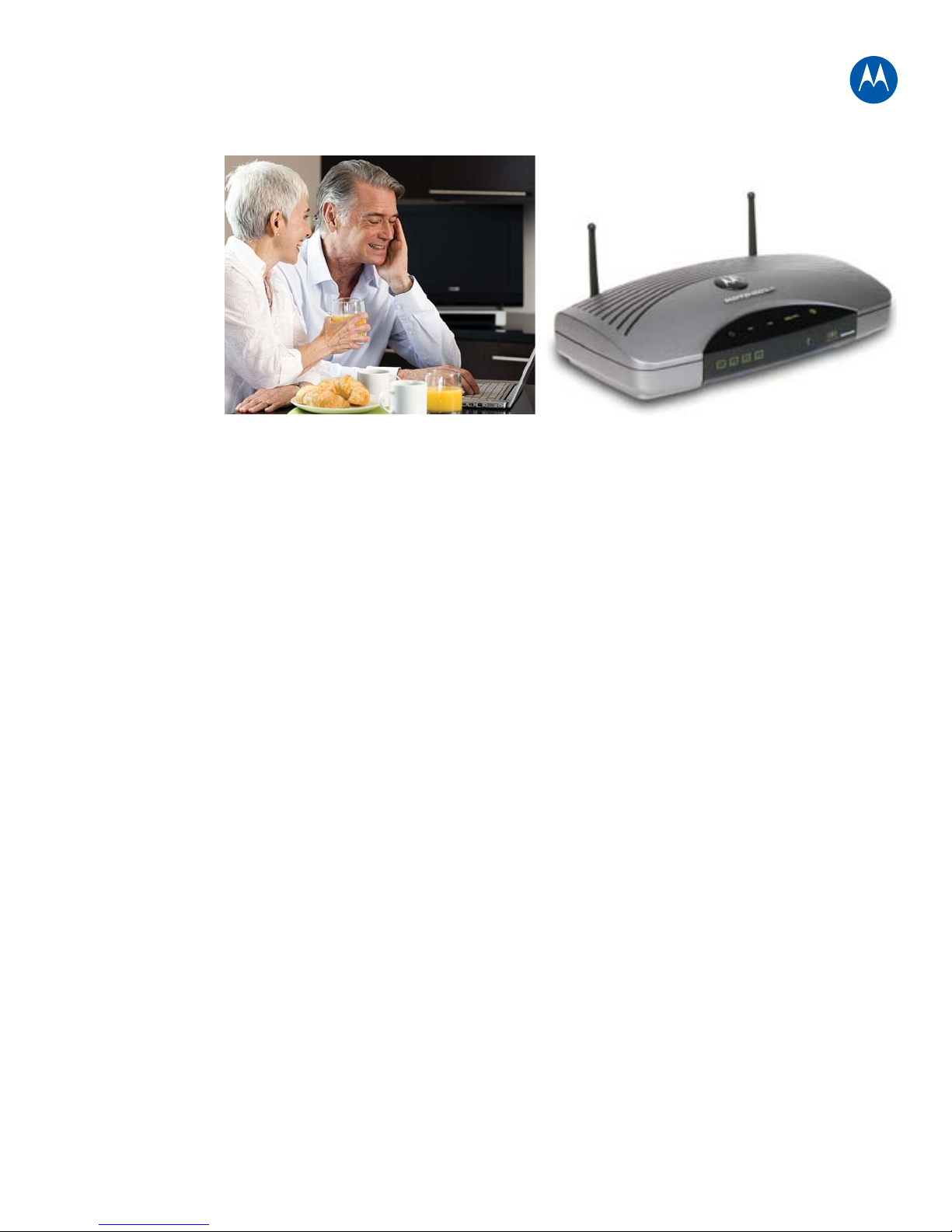

The Motorola SURFboard SBG940E delivers state-of-the-art high-speed wireless
Internet access, networking, and security in one convenient package.
Three Advanced Networking Products in One
Motorola’s SBG940E SURFboard Wireless Cable
Modem Gateway combines an industry-leading
SURFboard cable modem, IEEE 802.11b/g wireless
access point, and advanced firewall in one compact
unit. Eliminating the need for three separate
products, the SBG940E is a cost-effective and
efficient solution for customers who want to
maximize the potential of their existing resources.
The perfect networking solution for the home, home
office, or small business, the SBG940E allows
customers to create a secure, protected network to
share a broadband connection, files, and networked
printers and peripherals, with or without wires.
Euro-DOCSIS 2.0 = Upstream Capacity
Featuring the latest Euro-DOCSIS 2.0 A-TDMA and
S-CDMA technology, the SBG940E’s integrated
SURFboard cable modem provides up to three times
the upstream capacity of Euro-DOCSIS 1.0/1.1
systems. The SBG940E is interoperable and
backward-compatible with Euro-DOCSIS 1.0 and 1.1
for fast and timely deployment without service
interruption, allowing operators to maximize their
current infrastructure investments while offering
additional services.
Wireless Flexibility
The Motorola SBG940E merges the advantages of
the SURFboard cable modem with the mobility of a
wireless LAN (WLAN). It includes an integrated
IEEE 802.11b/g access point that (with optional
accessories) allows customers to roam throughout
the home or office while remaining connected to the
network. With the SBG940E, customers can place
computers and peripherals where it’s convenient,
not just where there’s an available connection.
Superior Transmission Power
The SBG940E offers an array of competitive
advantages by providing superior transmission
power. Its detachable antenna can be replaced by an
optional, external high-gain antenna (choose from
directional,bi-directional, or omni-directional), and its
adjustable output power can be configured,allowing
just the right amount of signal to fill the required
area without bleed-over to other homes or
businesses.
Secure Connection
Finally, Motorola’s SBG940E is secure. It includes an
advanced firewall that helps protect the network
from hackers and other outside interference while
allowing desired data to pass through with ease. The
firewall embedded in the gateway provides
commercial-class protection through built-in Denial
of Service attack prevention, Stateful Packet
Inspection, and Intrusion Detection.The firewall also
allows VPN tunnel protocols to pass through, hiding
the network from the outside world.
DATA SHEET
SBG940E
SURFboard Wireless Cable Modem Gateway
Wireless
STANDARDS COMPLIANCE
IEEE 802.11b/g
IEEE 802.11b DSSS
IEEE 802.11b/g OFDM
RF FREQUENCY RANGE
North America 11 channels with
center frequencies from
2.412 GHz to 2.462 GHz
Japan Up to 14 channels with
center frequencies from
2.412 GHz to 2.835 GHz
DATA RATE AND MODULATION
1 Mbps DBPSK
2 Mbps DQPSK
5.5 or 11 Mbps CCK
6, 9, 12, 18, 24, 26, 48, or 54 Mbps OFDM
CHANNELS
Europe 13
Spain 2
France 4
US 11
Japan 14
SEND AND RECEIVE
Transmit Power 17 dBm (EIRP)
Receive Sensitivity –65 dBm at 54 Mbps
Ethernet
ROUTER
Ethernet Standards Compliance IEEE 802.3, IEEE 802.3u
Uplink Ports Four
Environmental
TEMPERATURE, HUMIDITY, ALTITUDE
Operating Temperature 0 oC to 40 oC (–32 oF to 104 oF),
–150 to 10,000 ft
Storage Temperature –30 oC to 80 oC (–22 oF to 176 oF)
Humidity 5% to 95% RH, non-condensing
Mechanical Antenna One external removable
antenna with a unique
connector per FCC
requirements
One external, adjustable,
non-removable antenna
LED Indicators Power, Receive, Send, Online,
Internet, USB, Wireless,
Ethernet (four)
Interfaces One AC Power, one F-Type,
four RJ-45, one USB Series B
General
ELECTRICAL
Input Voltage Range 100 VAC to 240 VAC,
50 Hz to 60 Hz
Power Consumption 9 W (nominal)
PHYSICAL
Cable Interface F-connector, female, 75 Ω
CPE Network Wired Interface USB, Ethernet 10/100 Ethernet
(auto-sensing)
CPE Network Wireless Interface IEEE 802.11b/g
Data Protocol TCP/IP
Dimensions 11.5 in W x 5.5 in D x 2.5 in H
(290 mm W x 160 mm D x
70 mm H)
Weight 1.8 lb (816 g) (unit only)
Motorola, Inc. 101 Tournament Drive, Horsham, Pennsylvania 19044 U.S.A. www.motorola.com
MOTOROLA, the Stylized M Logo, and SURFboard are registered in the U.S. Patent and Trademark Office. Wi-Fi and the Wi-Fi Alliance logo are registered marks for the Wi-Fi
Alliance. All other product or service names are the property of their respective owners. © Motorola, Inc. 2008. All rights reserved.
548525-001-a 0208 5733 0K
DATA SHEET
SBG940E
SURFboard Wireless Cable Modem Gateway
Communication
DOWNSTREAM
Modulation 64 or 256 QAM
Max. Data Rate* 51 Mbps
Bandwidth 8 MHz
Symbol Rate 64 QAM 6.952 Msym/s,
256 QAM 6.952 Msym/s
Operating Level Range 64 QAM 43 to 73 dBμV,
256 QAM 47 to 77 dBμV
Input Impedance 75 Ω(nominal)
Frequency Range 108 MHz to 860 MHz
UPSTREAM
Modulation 8***, 16, 32***, 64***,
128**** QAM or QPSK
Max. Channel Rate** 30 Mbps
Bandwidth 200 kHz, 400 kHz, 800 kHz, 1.6
MHz, 3.2 MHz, 6.4*** MHz
Symbol Rates 160, 320, 640, 1280, 2560,
5120*** ksym/s
Operating Level Range
A-TDMA 68 to 114 dBμV (32 QAM,
64 QAM)
68 to 115 dBμV (8 QAM, 16
QAM)
68 to 118 dBμV (QPSK)
S-CDMA 68 to 113 dBμV (all modulations)
Output Impedance 75 Ω(nominal)
Frequency Range 5 MHz to 65 MHz (edge to edge)
*Actual speeds will vary, and are often
less than the maximum possible. Data
transmission speed is approximate and
depends on the configuration and
capacity of your network, as well as the
amount of traffic on the network.
** Actual data throughput will be less
due to physical layer overhead (error
correction coding, burst preamble, and
guard interval).
*** With A-TDMA- or S-CDMA-enabled
CMTS.
**** With S-CDMA-enabled CMTS.
Certain features may not be activated by
your service provider, and/or their
network settings may limit the feature’s
functionality. Additionally, certain features
may require a subscription. Contact your
service provider for details.
All features, functionality, and other
product specifications are subject to
change without notice or obligation.
