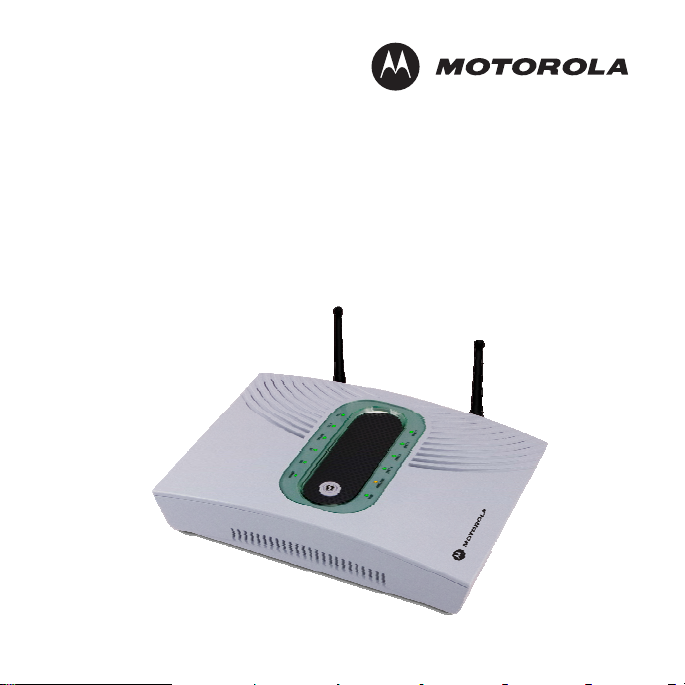

QUICK INSTALLATION GUIDE

SVG2500

SURFBOARD

WIRELESS VOICE GATEWAY

2 SVG2500 SURFBOARD WIRELESS VOICE GATEWAY

SVG2500 Networking and Digital Voice Service

A home network enables you to access information on two or

more computers in your home. You can connect your home

network to your cable TV system to connect to the Internet.

Your Motorola SVG2500 SURFboard®Wireless Voice Gateway is

the central connection point between your computers and the

Internet. It directs (routes) information between the computers

on your home network. A built-in cable modem transmits

information between your home network and the Internet.

The SVG2500 provides different network connection types. You

can use a wireless or a wired connection (or a combination of

the two) to connect your computers to the SVG2500. Your

network can use one or any combination of:

•Ethernet local area network (LAN)

•Wireless LAN (WLAN) with Wi-Fi®Protected Access (WPA)

encryption

•Universal Serial Bus (USB)

In addition, the SVG2500 provides digital voice service so you

can use your Internet connection with the SVG2500 as the

connection point for your voice service in your residence or

business with voice-over-IP (VoIP) telephone service.

QUICK INSTALLATION GUIDE 3

About This Guide

This guide provides information about:

•Network connections and requirements

•Battery installation

•Cable, Ethernet, USB, and wireless connections

•Starting the SVG2500 Configuration Manager

•VoIP telephone connection

•Network security

•Troubleshooting and help information

This guide contains an overview only. For in-depth information,

refer to the interactive SVG2500 User Guide on the SVG2500

SURFboard Wireless Voice Gateway Installation CD-ROM. If

desired, you can print all or part of the user guide.

For normal operation, you do not need to change most default

settings on your SVG2500.

4 SVG2500 SURFBOARD WIRELESS VOICE GATEWAY

SVG2500 Network and Telephone Connections

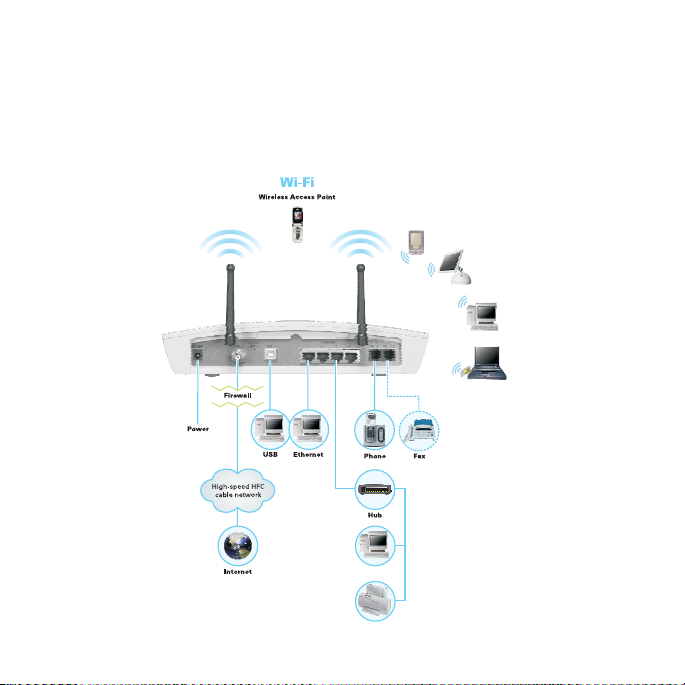

Networks are composed of multiple devices. The drawing

below shows a sample SVG2500 connection diagram.

QUICK INSTALLATION GUIDE 5

Basic SVG2500 Network Requirements

You can connect Microsoft®Windows®, Macintosh®, UNIX®, or

Linux®computers to the SVG2500 LAN using the following:

•A connection to your cable TV system in your residence or

business

•A subscription from an Internet service provider

•One or more computers with minimum:

•Ethernet — 10Base-T or 10/100Base-T Ethernet

adapter with proper driver software installed.

•Wireless — Any IEEE 802.11g or IEEE 802.11b

device. This includes any Wi-Fi certified wireless

device, such as a cellular telephone equipped with this

feature.

6 SVG2500 SURFBOARD WIRELESS VOICE GATEWAY

In addition, your computer must meet the following

requirements:

•PC with Pentium©class or better processor

•256 MB of memory

•10 MB of hard disk space available

•Windows®2000, Windows XP™, Windows Vista®,

Macintosh, Linux, or UNIX operating system with operating

system CD-ROM available

You can use any web browser such as Microsoft Internet

Explorer®, Netscape Navigator®, or Mozilla®Firefox®with the

SVG2500.

Note: UNIX, Linux, or Macintosh computers only use the

Ethernet connection.

QUICK INSTALLATION GUIDE 7

Installing the Battery

Before you begin the installation, you must first install the

battery in your SVG2500.

NOTE: A backup battery is not available for some models of the

SVG2500. Your Internet Service Provider determines if your

SVG2500 is supplied with a battery.

1. Place the SVG2500 on a soft surface to access the bottom

of the unit.

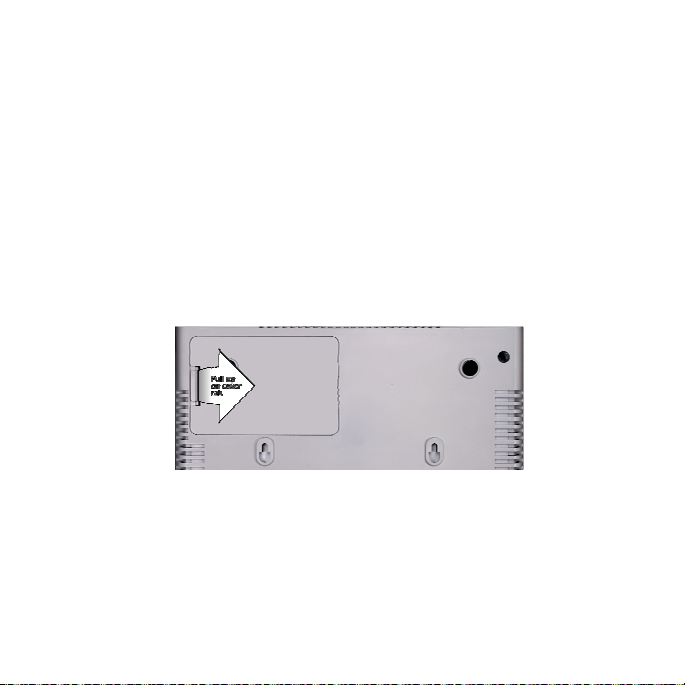

2. Pull up on the battery cover tab.

8 SVG2500 SURFBOARD WIRELESS VOICE GATEWAY

3. Align the key pins in the SVG2500 with the key slots on the

battery for proper contact.

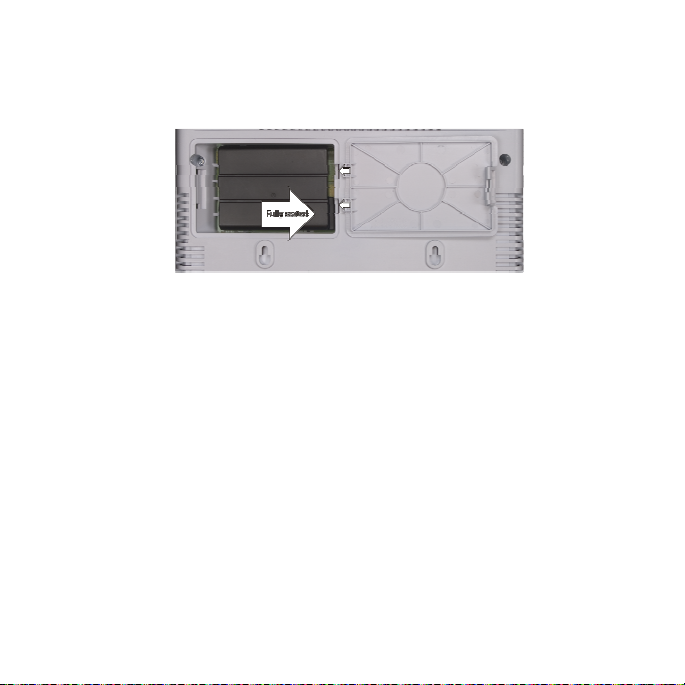

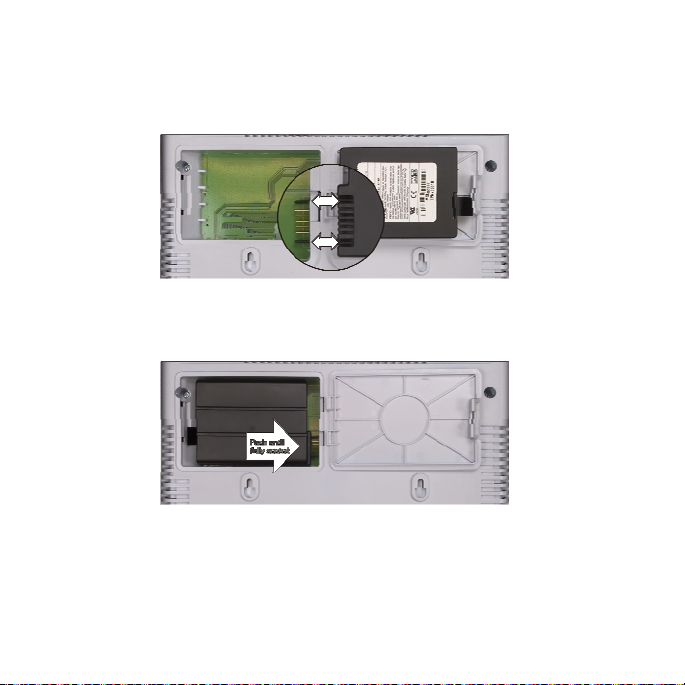

4. The battery connectors should mate with the connectors

on the SVG2500. Make sure the pull-tab is accessible and

does not prevent the battery cover from closing properly.

QUICK INSTALLATION GUIDE 9

5. Reinstall the battery cover with the alignment tabs seated

downward.

It may take up to 12 hours for the battery to reach full charge

when:

•It is installed for the first time.

•It is replaced.

•It is fully discharged.

Battery back-up times may vary based on many factors,

including the battery age, charging state, storing conditions, and

operating temperature, as well as by factors such as data

activity and length of active telephone calls.

10 SVG2500 SURFBOARD WIRELESS VOICE GATEWAY

Connecting the SVG2500

To connect to Ethernet or USB on a PC running a supported

Windows version, perform the procedures in the following

sections in this guide:

Ethernet A, B, and E

USB A, C, and E

Wireless A, D, and E

For Macintosh or Linux computers, follow the instructions in

the SVG2500 User Guide and the operating system

documentation.
