Motorola NETOPIA 2247/57-62 Manuel utilisateur

User Manual

The Motorola Netopia®2247/57-62

DSL Gateway

4-port Ethernet, 802.11b/g Wi-Fi

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS – POWER SUPPLY INSTALLATION.

Connect the power supply cord to

the power jack on the Motorola Gateway. Plug the power supply into an appropriate electrical outlet.

CAUTION:

Depending on the power supply provided with the product, either the direct plug-in power supply blades, power sup-

ply cord plug or the appliance coupler serves as the mains power disconnect. It is important that the direct plug-in power supply,

socket-outlet or appliance coupler be located so it is readily accessible.

(Sweden)

Apparaten skall anslutas till jordat uttag när den ansluts till ett nätverk

(Norway)

Apparatet må kun tilkoples jordet stikkontakt.

TELECOMMUNICATION INSTALLATION.

When using your telephone equipment, basic safety precautions

should always be followed to reduce the risk of fire, electric shock and injury to persons, including the follow-

ing:

• Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement or

near a swimming pool.

• Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electrical shock

from lightning.

• Do not use the telephone to report a gas leak in the vicinity of the leak.

PRODUCT VENTILATION.

The Motorola Gateway is intended for use in a consumer's home. Ambient temperatures around

this product should not exceed 104°F (40°C). It should not be used in locations exposed to outside heat radiation or trapping of its

own heat. The product should have at least one inch of clearance on all sides except the bottom when properly installed and should

not be placed inside tightly enclosed spaces unless proper ventilation is provided.

SAVE THESE INSTRUCTIONS

Motorola Part Number:

559665-001-00

transformation or adaptation) without written permission from Motorola, Inc. Motorola reserves the right to revise this publication and to make changes in

content from time to time without obligation on the part of Motorola to provide notiﬁcation of such revision or change. Motorola provides this guide with-

out warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and ﬁtness for a particular

purpose. Motorola may make improvements or changes in the product(s) described in this manual at any time. MOTOROLA and the Stylized M Logo are

registered in the US Patent & Trademark Ofﬁce. Microsoft, Windows, Windows Me, and Windows NT are either trademarks or registered trademarks of

Microsoft Corporation in the U.S and/or other countries. Macintosh is a registered trademark of Apple, Inc. Firefox is a registered trademark of the Mozilla

Foundation. All other product or service names are the property of their respective owners.

Safety Information

ENGLISH

Thank you for selecting the Motorola Netopia

2247- or 2257-62 DSL Gateway. This guide will help

you set up and conﬁgure your network.

Check your package contents. It should contain the items shown here:

If you don’t have everything, contact your supplier immediately.

Checklist

CD & User Manual

Motorola Gateway

Power Supply Telephone Cable Ethernet Cable

ENGLISH

1. Decide on a location for the Gateway.

Put the Gateway near a power source, a DSL wall outlet, and in a location where air can circulate

freely around it.

2. Power the Gateway.

Connect the power supply to the power jack on the back panel of the Gateway. Then, plug the

power supply into an electrical outlet. Turn on the Power switch.

The

Power

LED should light solid green.

3. Insert the Motorola Netopia

CD into your CDROM drive.

The Motorola Netopia

Installation Guide Wizard automates several tasks to get you up and

running easily. These tasks include making the cable connections, adding phones and conﬁguring

the Gateway. Run the Wizard on every Windows-based PC that will connect to your network.

The Installation Guide Wizard will start auto-

matically and the Welcome screen will appear

to step through the process.

Follow the on-screen instructions to make all

of your connections.

Connections

ENGLISH

When all of your connections are made, your network may look like this:

4. Enable Wireless Protected Setup (WPS) on your Wi-Fi devices.

Adding wireless clients to your network is easier using Wireless Protected Setup (WPS). Older,

non-WPS clients can still be added to the network by conﬁguring them the standard way with

WPA-PSK.

Make sure your wireless clients are running. Press the WPS push-button to begin the exchange,

which may last up to two minutes.

Do not power off your Gateway during the exchange.

The Gateway will display a success message when the exchange has completed.

Note:

Not all client wireless devices support WPS. Refer to their documentation.

DC Power

Rear View

Ethernet

Ports

Power Switch

DSL Port

WPS

Pushbutton

ENGLISH

When all of your connections are made, the status LEDs on the front of your Motorola IAD Gateway

will light, according to the following diagram:

Power -

Ethernet 1, 2, 3, 4 -

Flash green when there is

activity on the LAN.

Front View

Solid green when connected.

Green when power is on.

Wireless -

Flashes green when there is

activity on the wireless LAN.

Internet -

Green when device is

Flashes green when training.

Solid green when trained.

DSL -

Red if device malfunctions; flashes

red when updating embedded software.

connected. Flashes green

for activity on WAN port.

Solid green when WPS is successful.

WPS -

ENGLISH

You can access the conﬁguration pages at any time as follows:

1. Run a Web browser, such as Firefox, Safari, or Microsoft Internet Explorer, and

enter

http://192.168.1.254

in the URL Address text box.

Press Return.

2. Select your language from the pull-down menu and click

Device Conﬁguration

ChoIces in the Americas are: Choices in Europe are:

English English

Español Latinoamericano Français

Portugués do Brasil Deutsch

Italiano

ENGLISH

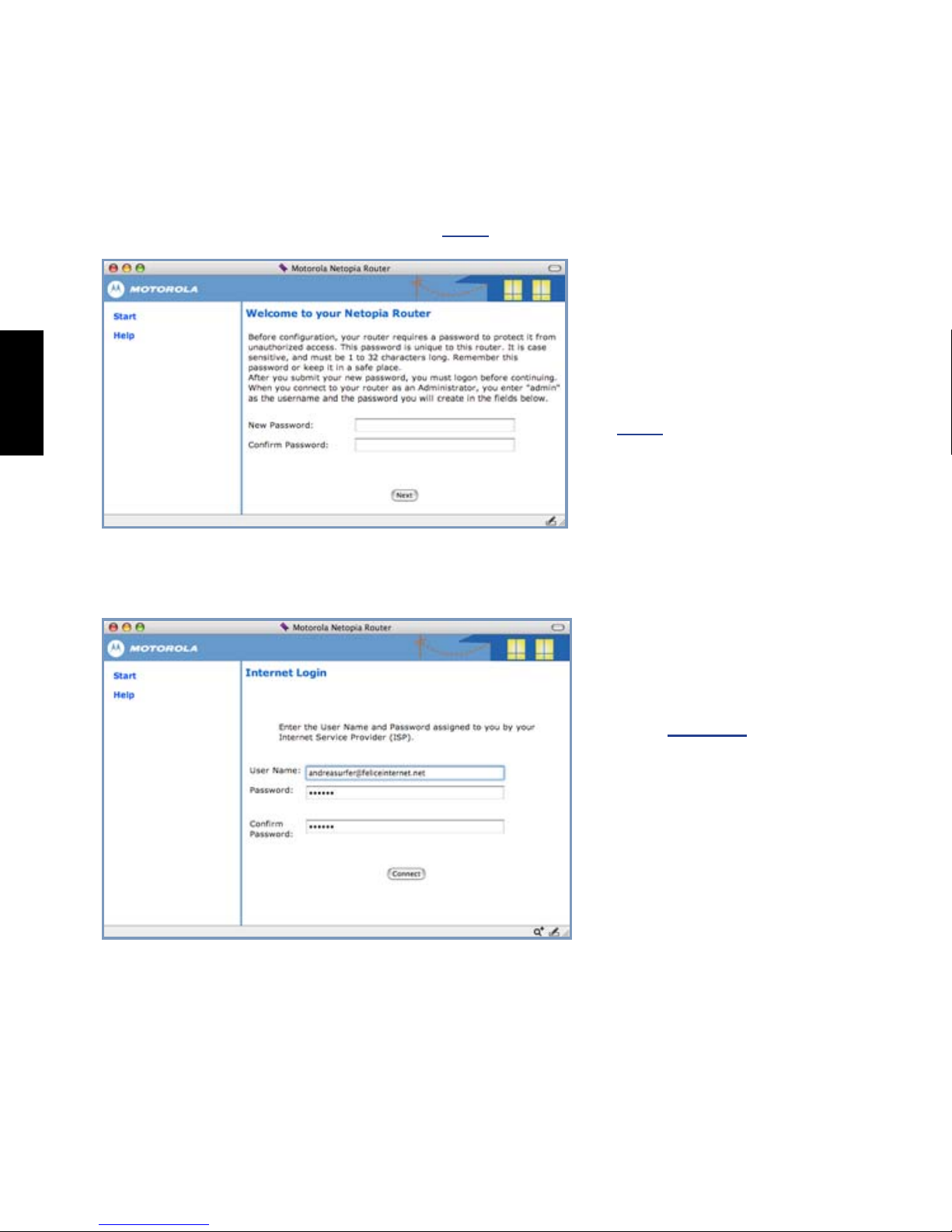

3. For security purposes you must create a password for your Gateway. Enter a New

Password, Conﬁrm it, and click the

button.

You will be asked to log in to your Gate-

way with a UserName and Password.

The default UserName is

admin

. Enter

the Password you just created. Type

these in their respective ﬁelds and click

the

button.

4. The browser displays the Internet Login page.

Enter the

User Name

and

Password

supplied by your Internet Service Pro-

vider.

Click the

Connect

button.

You will be redirected to an Internet

web page to register your new

Gateway.

ENGLISH

5. Register your Motorola Netopia

Gateway.

After your Gateway negotiates its connection to the Internet, your browser will be directed to the

Motorola product registration page. If it does not do this, navigate to:

http://www.netopia.com/equipment/products/product_reg.html

to register your Gateway.

ENGLISH

Record your subscriber information here for future reference:

Congratulations!

Your connection is up and running and you should be able to browse the Internet by

typing a URL address in your browser’s Address text box or by selecting any of your favorite bookmarks.

Should you require additional information, the “FAQs” on page 14 of this Guide contain Frequently

Asked Questions (and Answers) and “Basic Troubleshooting” on page 16 gives Basic Troubleshooting

tips. The latest

Administrator’s Handbook

with advanced conﬁguration instructions is also available on-

line at:

http://www.netopia.com/support/hardware/documentation.html

Required Information Your entries:

Your Telephone number:

Your ISP Username:

(example:

joesurfer@serviceprovider.com

)

Your ISP Password:

Service Provider support

contact information:

Support desk number -
