SPECIFICATION SHEET

Motorola Netopia®

2200 Series

ADSL2+ Gateways

Multiple LAN networking

options

Supports single-user

households and home

networking

Customer-friendly

installation

CD-less installation makes

setup simple

Compatible service delivery

Works with most DSL service

providers

Conﬁgured to support

Voice-over-IP (VoIP) and

streaming video services

Video-on-demand (VOD)

functionality

Highly integrated design

meets sensitive cost

targets for large-scale

deployments by service

providers

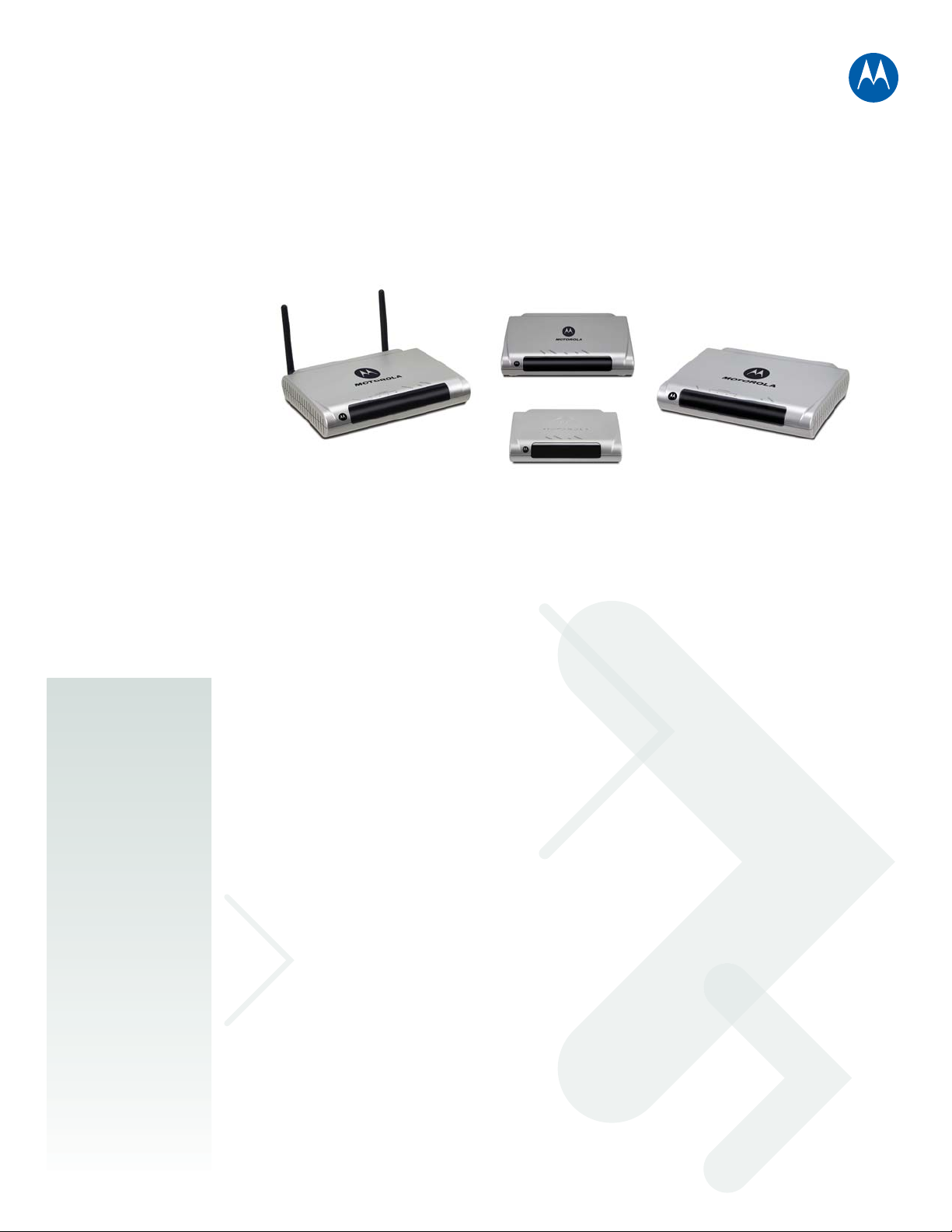

The affordable, reliable residential gateway for optimized data, video, and voice.

Low Price, High Value

With these low-priced gateways, experiencing

high-speed Internet is only the beginning. The 2200

Series has the ability to enable VoIP, experience

broadcast quality video, or set up a small home

network to share data, music, or video ﬁles. They are

easy to install and can be automatically conﬁgured

and remotely managed. The 2200 Series opens up

the Internet without the high cost.

Affordable Triple-Play for the Home

The Motorola Netopia®2200 Series ADSL2+

gateways are ideal for the home user who wants an

affordable gateway armed with the triple-play power

of voice, video, and data service delivery.

The Power of Choice

Customers have the choice of connecting through

an Ethernet port or a USB port for wired ADSL2+

connection. With available four-port Ethernet switch,

the gateway can link multiple computers and devices

to share data, music, and video ﬁles. Multiple

computers can connect to the same network printer

and print from anywhere in the home or small ofﬁce.

User-friendly Installation

Motorola’s integrated 2200 Series gateways include

advanced ﬁrewall and encryption protection. The

2200 Series is also equipped with an easy-to-use

Motorola Wi-Fi installation wizard, which allows

simpliﬁed conﬁguration of a secure Wi-Fi connection

on a user’s machine. When the Wi-Fi wizard is

ﬁnished, a secure WPA (Wi-Fi Protected Access)

encrypted wireless connection is established to the

gateway, protecting the user’s machine from hacker

attacks. Motorola’s embedded software enables Wi-

Fi deployments with high levels of quality, reliability,

and customer satisfaction, with low operational and

support costs for the service provider.

Service Assurance

By combining the highest-

performing and lowest cost

of ownership gateways in the

industry, with easy-to-use

Wi-Fi installation and pairing

tools as well as advanced

remote management features,

Motorola is offering an all-in-

one approach to broadband

home networking. In addition,

Motorola’s field-proven NBBS

device management software

platform provides the service

provider with intelligent

management, auto-

provisioning, and remote

management features to

improve accuracy, efficiency,

and customer satisfaction.

These value-adding features

enable remote device

administration for improved

accuracy and reduced support

costs. Motorola’s NBBS

platform is a scalable, carrier-

grade software platform that

enables cable operators to

remotely access, configure,

monitor, and troubleshoot

their full portfolio of consumer

devices, home networks, and

services.

SPECIFICATION SHEET

Motorola Netopia 2200 Series

ADSL2+ Gateways

Beneﬁts

Consumers: High Quality, Flexible Delivery, and

Video-on-Demand

The 2200 Series enables high-speed data, VoIP, and

IPTV triple-play service delivery with the following

beneﬁts:

Broadcast-quality video and crystal-clear•

voice quality provided by the Motorola VGx

Quality-of-Service (QoS) technology

Multiple Service delivery from different•

providers concurrently delivered to multiple TVs

or devices, while maintaining service quality

and rapid channel changing through support for

TR-101 and IGMPv3

VOD functionality• enabled though Real Time

Streaming Protocol (RTSP) support

Service Providers: Remote Management and

Troubleshooting, and Cost-Effective Deployment

For the service provider, comprehensive remote

manageability, including centralized remote

provisioning, troubleshooting, and management, is

offered through support of the DSL Forum TR-069

speciﬁcation.

The 2200 Series gateways are ideal for cost-sensitive

mass deployments to residential and small-ofﬁce

subscribers and feature Motorola’s legendary ease

of use, reliability, and security. The 2200 Series

gives providers new opportunities for competitive

differentiation and revenue generation.

The Motorola Netopia

2200 Series ADSL2+

Gateway (2246N-VGx)

The 2246N-VGx is built

for the user who wants

to branch out. It features

a four-port Ethernet

switch that allows the

user to set up a small

network of computers or

other Ethernet-enabled

devices, as well as

enable a VoIP adapter.

The Motorola Netopia

2200 Series ADSL2+

Gateway (2247-62)

The 2247-62 is equipped

with a built-in wireless

access point for connecting

to the Internet from

anywhere in the home

or small business—and

with the four-port Ethernet

switch, PCs and laptops in

a home network can share

the Internet from one IP

address. Extra ports can be

used to hook up network

peripherals like printers or

external storage devices.

SPECIFICATION SHEET

Motorola Netopia 2200 Series

ADSL2+ Gateways

With Motorola Netopia 2200 Series ADSL2+ Gateways, users can download

music and video ﬁles faster and enjoy VoIP and IPTV services, all with the

security of Motorola’s reliable ﬁrewall and quality-of-service standards.

The Motorola Netopia

2200 Series ADSL2+

Gateway (2210-02)

The 2210-02 is very

small, compact, light

weight, and equipped

with a single Ethernet

port for connecting to

a laptop or desktop.

Download music and

video ﬁles faster, and feel

secure with Motorola’s

reliable ﬁrewall and

quality-of-service

standards.

The Motorola Netopia

2200 Series ADSL2+

Gateway (2241N-VGx)

The 2241N-VGx is built

for the user who wants

to download music and

video ﬁles faster, and

all the while feel secure

with Motorola’s reliable

ﬁrewall and quality-of-

service standards. It is

equipped with two LAN

options for connecting a

PC or laptop—Ethernet

(standard) or USB 1.1.

SPECIFICATION SHEET

Motorola Netopia 2200 Series

ADSL2+ Gateways

WAN INTERFACE

ADSL2+ RJ-11

LAN INTERFACE

2210-02 One 10/100 Ethernet (RJ-45)

2220-02

2241N-VGx One 10/100 Ethernet (RJ-45),

2251N-VGx One USB 1.1

2246N-VGx Four-port 10/100 Ethernet switch

2256N-VGx (RJ-45)

2247-62 Built-in 802.11b/g wireless

2257-62 Four-port 10/100 Ethernet switch

(RJ-45), Wi-Fi Protected Setup (WPS)

button

LEDS

Power, Link, Status, Activity

Firmware

ENCODING AND LINE SPEED

ANSI T1.413 Issue 2

ITU 992.1 (G.dmt) Annex A, B, 992.2 (G.lite), 992.3 ADSL2

(G.dmt.bis), 992.4 ADSL2 (G.lite.bis), 992.5 ADSL 2+

PROTOCOL SUPPORT

ATM Adaptation Layer 5 (AAL5)

Up to eight Permanent Virtual Circuits (PVCs)

Bridged or routed Ethernet encapsulation

IP multicast pass-through

PPP over Ethernet gateway/pass-through

PPP over ATM

LLC and VC multiplexing

802.1x WAN Supplicant

NETWORKING

Bridging and routing

functions

Security

WIRELESS

(2247-62 and 2257-62)

Antennas Omni-directional, with

diversity support

3-D Reach®Express Wi-Fi®

EMEA 100 mW transmit power

North America 200 mW transmit power

Channel Set

North America 1–11

Europe 1–13

Data Rates 1, 2, 5.5, 6, 9, 11, 12, 18, 24,

36, 48, and 54 Mbps with

auto-rate fallback

Wireless Security

Hardware

WEP 64-bit, 128-bit, 256-bit

encryption; 802.1x, WPA,

WPA-PSK, 802.11i/WPA2,

Block Wireless Bridging,

MAC Address Filtering,

WMM (Wi-Fi Multimedia)

Support, Transmit Power

Control, Wi-Fi protected

setup

Network Address Translation

(NAT), IP Maps and Pinholes,

Static Routes, IP Multicast

Outbound Support Through

NAT, DHCP Client, Server,

and Relay, DNS Proxy, RIP1

and RIP2 on LAN/WAN,

Transparent bridged Ethernet

over ATM, TR-101 support

Network Address Port

Translation (NAPT), Stateful

Firewall, Conﬁgurable

Firewall Function, Virtual

DMZ/IP Pass-through,

Denial of Service Protection,

Software and Games Control,

VPN Pass-through for PPTP,

L2TP, and IPSec

Motorola Cares for the

Environment

Motorola believes in

“going green”

—we have

we have

a global commitment

to sustainability of the

environment. Motorola has

been working for years to

continually improve our

environmental profile.

We are in step with our

customers and their

increasing interest in

partnering with a company

that will help them reduce

their carbon footprint,

while offering compelling

products that will help

them grow their eco-

conscious customer base.

Motorola Gateways are

Designed to Minimize

Their Impact on the

Environment

Motorola’s 2200 Series

gateways comply with

international environmental

and energy efficient

standards -- including

ADSL L2/L3 low power

mode; lead free circuit

boards, as certified by

RoHS compliance; CEC low

power consumption power

supplies; ENERGY STAR®

qualified power supplies;

as well as low power wired

and wireless consumption

via Wireless Scheduler,

which auto disables

the gateway’s wireless

radio and / or places the

gateway’s Ethernet ports

into low power mode,

when these are not in use.

SPECIFICATION SHEET

Motorola Netopia 2200 Series

ADSL2+ Gateways

Motorola, Inc. 101 Tournament Drive, Horsham, Pennsylvania 19044 U.S.A. www.motorola.com

MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Ofﬁce. Netopia and 3-D Reach are registered trademarks of Netopia, Inc., a

wholly owned subsidiary of Motorola, Inc. Wi-Fi and the Wi-Fi Alliance logo are registered marks of the Wi-Fi Alliance. ENERGY STAR is a registered mark owned by the U.S.

541635-001-d 06/09 5962 - 0k

QOS AND TRAFFIC MANAGEMENT

VGx Virtual Gateway Technology

Differentiated Services (Diffserv)

IEEE 802.1p – Priority Bits

IEEE 802.1q – VLAN Tagging

IGMP v2/v3 Snooping/Forwarding with Fast Leave

TR-111 Support

Queuing Support (Weighted Fair Queuing [WFQ], Strict

Priority Queuing, and Basic Queuing)

Quality of Service 802.11e

WMM (Wi-Fi Multimedia, WMM-PS

(advance power saving algorithm for

dynamic network trafﬁc environment)

DEVICE MANAGEMENT

TR-069 remote management

Remote and local management options using Web UI

(HTTP) and CLI (Telnet)

Two-level password-protected access

Statistic and log reporting, remote syslog support

Seven-layer diagnostics

SNMP v1 and v2

Utilities Ping, traceroute, reverse DNS

Regulatory

COMPLIANCE

FCC Part 68, Part 15, Class B

CE Mark

UL Listed, CSA Approved

European EMC and Immunity

DSL Forum TR-068 support

Industry Canada

RoHS-compliant

Environmental

TEMPERATURE

Operating 0 °C to 40 °C (32 °F to 104 °F)

Storage –40 °C to 85 °C (–40 °F to 185°F)

RELATIVE HUMIDITY

5% to 90%, non-condensing

Physical

WIRED

2241N-VGx/2251N-VGx

Weight 1.2 lb (550 g)

Dimensions 1.06 in H x 4.36 in W x 5.71 in L

(2.69 cm x 11.07 cm x 14.50 cm)

2210-02/2220-02

Weight 0.9 lb (408 g)

Dimensions 1.2 in H x 3.4 in W x 4.4 in L

(3.0 cm x 8.6 cm x 11.2 cm)

Horizontal or vertical desktop placement

Wall-mounting keyholes

WIRELESS

2246N-VGx/2256N-VGx/2247-62/2257-62

Weight 1.2 lb (550 g)

Dimensions 1.2 in H x 5.2 in W x 6.8 in L

(3.0 cm x 13.2 cm x 17.2 cm)

Speciﬁcations are subject to change without notice.

COMPLIANT

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Motorola Porte

Motorola

Motorola RG2400 Manuel utilisateur

Motorola

Motorola SURFboard SVG2501 Manuel utilisateur

Motorola

Motorola SURFBOARD SBG1000 Guide de référence rapide

Motorola

Motorola CG4501 Manuel utilisateur

Motorola

Motorola SURFboard SVG1501 Manuel utilisateur

Motorola

Motorola HH1620 Manuel utilisateur

Motorola

Motorola SURFboard SVG1501U Manuel utilisateur

Motorola

Motorola VT2442 - VONAGE Manuel utilisateur

Motorola

Motorola SVG2500 SURFBOARD DIGITAL VOICE WIRELESS GATEWAY - annexe... Guide de démarrage rapide

Motorola

Motorola Netopia 2247-42 Manuel utilisateur

Motorola

Motorola RG2200 Manuel utilisateur

Motorola

Motorola SURFboard SBG901 Manuel utilisateur

Motorola

Motorola Netopia 2241N-VGx Manuel utilisateur

Motorola

Motorola HH1620 Manuel utilisateur

Motorola

Motorola Netopia 7107-65 Manuel utilisateur

Motorola

Motorola RG2200 Manuel utilisateur

Motorola

Motorola EASY START KIT HMEZ1000 - CELL PHONE SET UP Manuel utilisateur

Motorola

Motorola SURFboard eXtreme SBG6782-AC Manuel utilisateur

Motorola

Motorola SURFboard SBG6580 Manuel utilisateur

Motorola

Motorola Netopia 2247-N8 Manuel utilisateur

Motorola

Motorola Netopia 2247-N8 Manuel utilisateur

Motorola

Motorola Netopia 3347-02-ENT Manuel utilisateur

Motorola

Motorola BLADE series Manuel utilisateur

Motorola

Motorola NETOPIA 2210-02 ADSL2-RESIDENTIAL GATEWAY -... Manuel utilisateur

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

Huawei

Huawei EchoLife HG620 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur
