Monoprice MP Maker Pro Mk.1 Manuel utilisateur

MP Maker Pro Mk.1

P/N 33013

Quick Start Guide

ONLINE SUPPORT

Monoprice is pleased to provide free online support. For order related issues, contact the

Customer Service department through the Live Chat link on our website

www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-

6pm PT) or via email at [email protected]

For technical issues, contact the Technical Support department through the online chat

button on our website www.monoprice.com during regular business hours, 7 days a week.

You can also get assistance through email by sending a message to [email protected]

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the items listed

below. If anything is missing or damaged, please contact Monoprice Customer Service for a

replacement.

1x 3D printer base

2x Z-axis pillars

1x X-axis gantry

1x X-axis rail

2x X-axis spacers

1x MK10 full metal extruder

1x Ribbon cable for extruder

1x Filament spool holder

1x Filament spool stand

1x AC power cord

1x USB cable

1x 8GB SD™ card

1x Hex screw drivers

1x Hex key set

8x Hex bolts

2x Plastic belts

1x Spool 1.75mm PLA filament

1x Nozzle cleaning tool

1x User's manual

1x Quick start guide

ASSEMBLY AND MOUNTING

Remove all parts from the box and place them on a

flat work surface. The parts pictured are the base, the

two Z-axis pillars, the X-axis gantry, the X-axis rail,

and the MK12 extruder.

Place the base on its side. Locate the Z-axis pillar with

the sticker No.2. Slide the No.2 pillar into the base

vertical locker, then tighten the bolt at the bottom of

the base.

Tighten the locking bolt by turning it clockwise, then

flip the base onto its other side and install the other

Z-axis pillar onto the base using the same method.

Turn the base so that it rests on its feet and the Z-axis

pillars are vertical. Loosen the two locking bolts at the

top of the two Z-axis pillars (marked No.3 and No.4)

by about 5mm, so there will be sufficient space for

the X-axis gantry to slide in.

Remove the plastic end caps from the X-axis gantry,

then slide it under the bolt heads and locking

washers. Ensure that the No.3 and No.4 stickers are

mated. If there is insufficient space for the gantry to

fit under the bolt head, loosen it a bit more and try

again.

Insert the hex screw driver through the holes in the top

of the gantry and tighten the hex bolts. Double check

all bolts to ensure that they are tight and that the

gantry, pillars, and base assembly is steady and tight.

Insert the plastic end caps onto the ends of the X-axis

gantry.

Screw the X-axis spacers (No.5 and No.6) onto the X-

axis rail, but do not tighten them so much that the

spacers cannot move along the rail.

Mount the X-axis rail assembly by inserting the X-axis

spacers in between the rubber wheels on the Z-axis

steppers. You may need to slide the spacers a bit to

one side or the other. Ensure that the X-axis rail is

mounted symmetrically and that the extruder holder

is facing the front of the printer.

Using two hex bolts, secure the X-axis spacers to the

Z-axis steppers.

Insert the MK12 extruder into the extruder holder on

the X-axis rail.

Using the four remaining hex bolts, secure the

extruder the X-axis rail assembly in four places, two

on each side.

WIRING

Connect the wires and

cables as shown in the

image to the left. Route the

ribbon cable through the

ribbon cable clips before

connecting it at each end.

LEVELING

Turn the couplers on the Z-axis steppers to make the X-axis rail level. Use a small level on

the X-axis rail to ensure that it is level. It must be level for proper bed calibration. Plug the

included AC power cord into the printer, then plug the other end into a nearby AC power

outlet. Flip the power switch on the printer to turn it on.

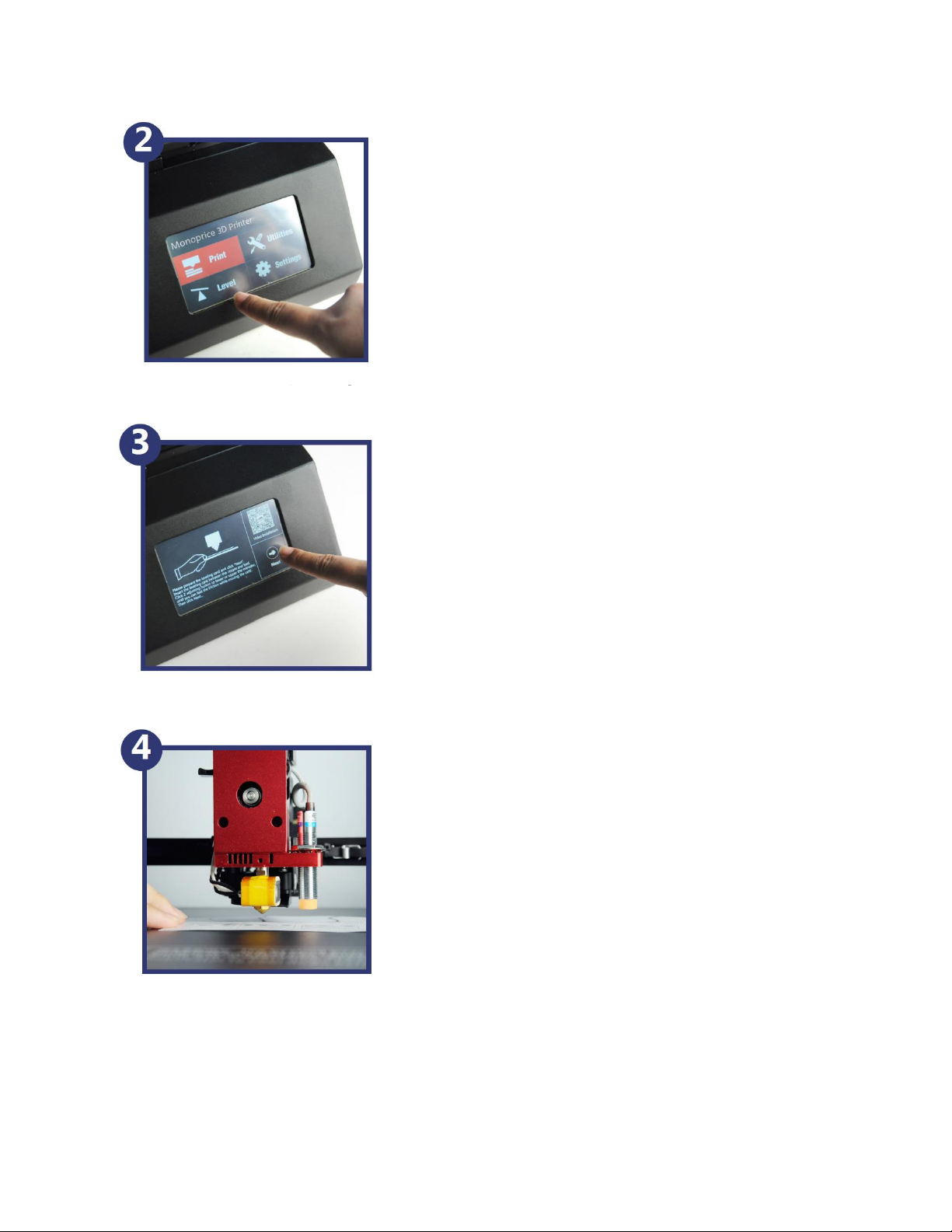

Touch the Level button on the Home page of the

printer screen, select Level.

Read the instructions on the screen, then touch Next

to continue.

Insert a sheet of printer paper between the nozzle

and the print bed.

While sliding the paper back and forth under the print

nozzle, touch the Z Up and Z Down buttons to adjust

the Global Z Offset until you feel a slight amount of

friction in moving the paper.

Remove the paper, then touch the Next button to

start the automatic leveling process. The printer will

move the print head around to different points to

learn the Local Z Offset variations from the Global Z

Offset.

Congratulations, your new 3D printer is now ready for use!
