Monoprice Maker Ultimate 2 Manuel utilisateur

Maker Ultimate 2 3D Printer

P/N 36045

Quick Start Guide

INTRODUCTION

Thank you for purchasing this Maker Ultimate2 3D Printer! This printer uses the FFF (Fused

Filament Fabrication) method of printing. It features a metal frame, fully enclosed

structure, and heated build platform. It can print 1.75mm ABS, PLA, metal fill, wood fill, and

other filament types with melting points below 250°C. It has a 200 x 150 x 150 mm print

area and can print at speeds up to 150mm/sec. It can print from a computer using a USB

connection or from sliced gcode files stored on a microSD™ card. It supports auto leveling,

has a removable and a heated glass build plate.

CUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring that your ordering,

purchasing, and delivery experience is second to none. If you have any problem with your

order, please give us an opportunity to make it right. You can contact a Monoprice

Customer Service representative through the Live Chat link on our website

www.monoprice.com or via email at [email protected]. Check the website for

support times and links.

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the items listed

below. If anything is missing or damaged, please contact Monoprice Customer Service for a

replacement.

1x 3D printer

1x 500g spool of PLA filament

1x Filament holder

1x 8GB microSD™ card

1x microSD™ card reader

1x Metal scraper

1x USB cable

1x Switch cable

1x Motor cable

1x Set of Allen keys

1x Roll yellow tape

1x Spanner

1x Stick of water washable glue

1x US power cord

1x UK power cord

1x EU power cord

5x User's manuals (English,

Deutsche, Español, Français,

Italiano)

MENU OPERATION

The Control Knob to the right of the LCD Display is used to manipulate the menu.

If on a menu or submenu, turn the Control Knob counterclockwise to move the

menu highlight up or to the left.

If on a menu or submenu, turn the Control Knob clockwise to move the menu

highlight down or to the right.

If on a menu or submenu, push the Control Knob to enter the highlighted submenu

or to select the highlighted entry for editing.

If editing a value, turn the Control Knob counterclockwise to decrease the value.

If editing a value, turn the Control Knob clockwise to increase the value.

If editing a value, push the Control Knob to save the displayed value and return to

the previous menu or submenu.

GETTING STARTED

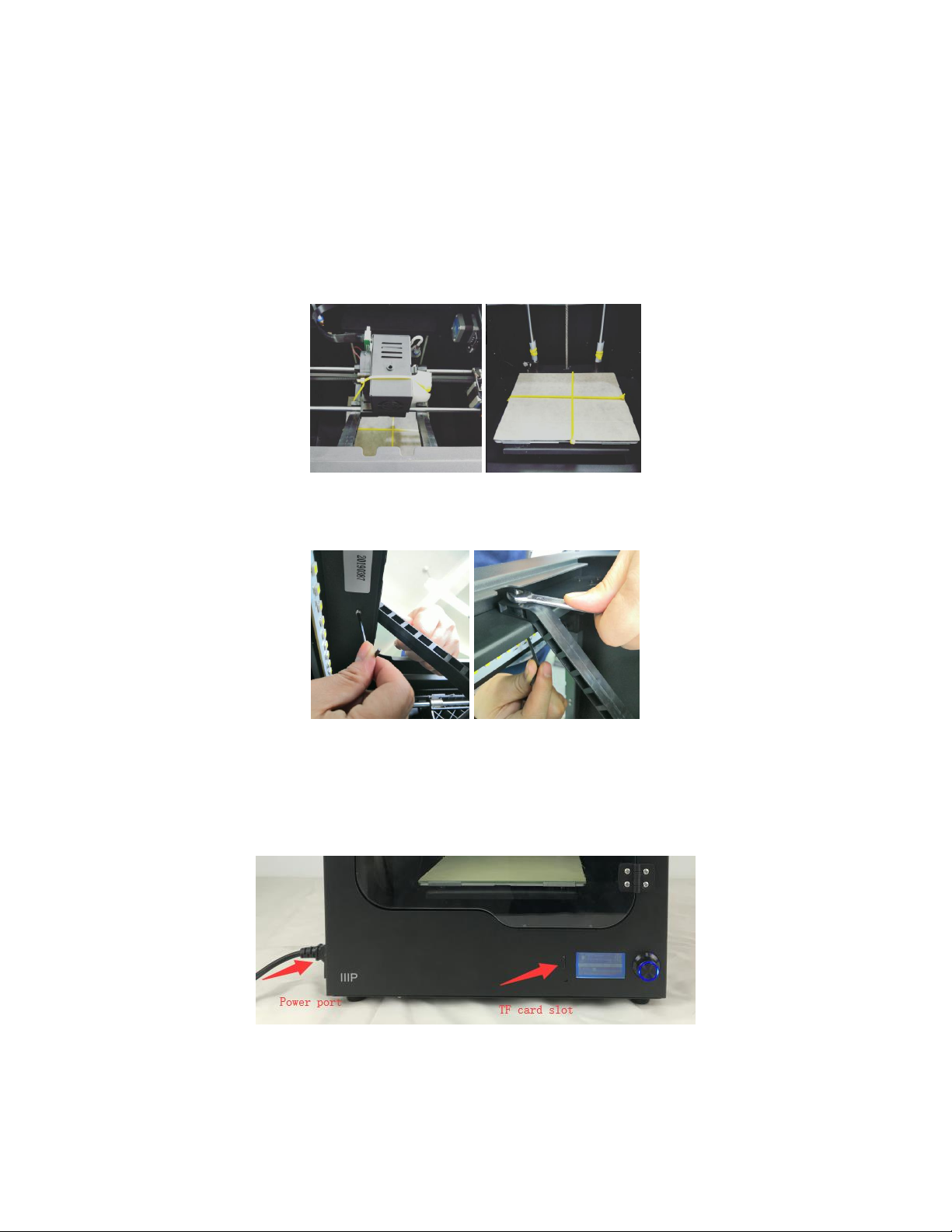

1. Open the box and remove the printer from the protective foam. Set it on a flat,

stable surface, then remove the plastic film.

2. Use a pair of scissors or side cutters to remove the zip tiers and silicon rubber

sheets on the Z-axis.

3. Use the included 2mm Allen wrench and the included spanner to remove the fixed

support on the Z-axis.

4. Remove the microSD™ card from the accessory box and insert it in the card slot to

the left of the display. Next, remove the included AC power cord, plug one end into

the AC power socket on the left side of the printer, then plug the other end into a

nearby AC power outlet.

5. Remove the filament holder from the accessory box and install it inside the printer.

Remove the spool of filament and hang it on the filament holder, then insert the

end of the filament into the sensor until it comes out of the tube.

6. Press the extruder handle, then insert filament into the hold to a depth of about

4cm.

7. Open the Control menu, then choose the Filament In options. Wait for the filament

to finish loading.

8. Go back to the Main menu, then select the Print from SD option. Locate and select

one of the gcode files on the microSD™ card to start your first print.
