METROLOGIC INSTRUMENTS, INC.

IS1650 Area Imaging

Bar Code Scanner

Installation and User’s Guide

work may be reproduced, transmitted, or stored in any form or by any means

without prior written consent, except by reviewer, who may quote brief

passages in a review, or provided for in the Copyright Act of 1976.

Trademarks

Metrologic is a registered trademark of Metrologic Instruments, Inc.

Products identified in this document are hereby acknowledged as

trademarks, registered or otherwise, of Metrologic Instruments, Inc. or their

respective companies.

TABLE OF CONTENTS

INTRODUCTION

Product Overview ............................................................................................. 1

Key Product Features....................................................................................... 1

Applications and Protocols ............................................................................... 2

Scanner and Accessories................................................................................. 3

Design Specifications ....................................................................................... 6

BASE MODEL CHARACTERISTICS

IS1650 Scanner................................................................................................ 8

Components.................................................................................................. 8

Dimensions ................................................................................................... 9

Caution and Serial Labels ........................................................................... 10

INSTALLATION

The PowerLink Cable ..................................................................................... 11

Cable Installation (Interface Specific) ............................................................. 12

RS232 IS1650-14........................................................................................ 12

Keyboard Wedge IS1650-47 ....................................................................... 13

Stand Alone Keyboard IS1650-47............................................................... 14

RS485 IS1650-106...................................................................................... 15

Low Speed USB IS1650-38 (Integrated)..................................................... 16

Full Speed USB IS1650-40 (Integrated)...................................................... 16

Full Speed USB IS1650-106 (Integrated).................................................... 16

Flex Stand Installation .................................................................................... 17

SCANNER CONFIGURATION

Configuration Modes ...................................................................................... 19

Bar Codes ................................................................................................... 19

MetroSet2.................................................................................................... 19

Serial Configuration..................................................................................... 19

Upgrading the Firmware................................................................................. 20

iii

TABLE OF CONTENTS

SCANNER OPERATION

Modes of Operation........................................................................................ 21

Audible Indicators........................................................................................... 22

Visual Indicators ............................................................................................. 23

Failure Modes................................................................................................. 24

Depth of Field by Minimum Bar Code Element Width .................................... 25

IR Activation Range........................................................................................ 26

MAINTENANCE

Daily Maintenance.......................................................................................... 27

TROUBLESHOOTING GUIDE

Troubleshooting Symptom / Solution Chart.................................................... 28

DEFAULT SETTINGS

Communication Parameters........................................................................... 32

SCANNER AND CABLE TERMINATIONS

Scanner Pinout Connections .......................................................................... 36

Cable Connector Configurations .................................................................... 38

PATENTS ............................................................................................................ 43

LIMITED WARRANTY .......................................................................................... 44

INDEX ................................................................................................................. 45

CONTACT INFORMATION AND OFFICE LOCATIONS............................................ 47

INTRODUCTION

PRODUCT OVERVIEW

The IS1650 is a high performance area imaging bar code scanner that utilizes a

high-resolution CMOS imaging sensor for unrivaled image quality. The IS1650 is

the choice of 2D imaging scanners that delivers superior performance for

presentation and fixed-mount applications. The IS1650 employs Omniplanar,

Inc.’s SwiftDecoder™ software, for reliable decoding of all 1D and 2D bar code

symbologies.

Omnidirectional scanning capabilities and an extended depth of field provides

aggressive scanning of all standard 1D, RSS, PDF417, microPDF, Composite,

Matrix and Postal Codes symbology types. In addition, the IS1650 scanner

supports OCR (A, B, & MICR) as a licensed option.

The IS1650 provides a built-in object detection sensor (IR) that instantly turns on

the scanner when an object is presented within the scanner’s field of view.

Whether fixed mount or in stand, the IS1650 delivers aggressive, convenient

hands-free scanner. Firmware updates are easily loaded into Flash memory.

KEY PRODUCT FEATURES

The IS1650 is equipped with a multitude of standard features including:

•Automatic Scanning Operation

•Supports Multiple Interfaces Including USB and Keyboard Wedge

•Custom Edit the Bar Code Data

•OPOS and JPOS System Compatible

•User Replaceable Cables

•RoHS Compliant

•Supports Customer Software Plug-Ins

Decoding and functional capability of the unit is restricted through the

use of license numbers provided by Metrologic. Units will not support

key features such as, but not limited to, the ability to decode PDF, 2D

or OCR fonts without the proper licenses. Desired licenses can be

specified at the time of sale or call a Metrologic representative for more

information. Standard models ship with the ability to read all 1D, PDF

and 2D bar codes. OCR fonts are disabled by default and must be

specifically requested at an additional cost.

INTRODUCTION

APPLICATIONS AND PROTOCOLS

The model number on each scanner includes the scanner number and factory

default communications protocol.

SCANNER VERSION

IDENTIFIER COMMUNICATION PROTOCOL(S)

14 RS232 (TX, RX, RTS, CTS, DTR)

38 Low Speed USB and RS232 Transmit/Receive

40 Full Speed USB and RS232 Transmit/Receive

47 Keyboard Wedge, Stand-Alone Keyboard and

RS232 Transmit/Receive

IS1650 -

106 RS485S, Full Speed USB, and

RS232 Transmit/Receive

SApplicable for IBM®Host applications.

The IS1650-47 with a built-in PC Keyboard Wedge Interface is designed for

Keyboard emulation use only. Many RS232 configurable functions are also

available as keyboard wedge functions.

The following are the most important selectable options specific to the keyboard

wedge.

Keyboard Type

•**AT (includes IBM® PS2 models 50, 55, 60, 80)

•IBM PS2 (includes models 30, 70, 8556)

Keyboard Country Type

•*USA •Italian •Swiss

•Belgian •Japanese •Swedish/Finnish

•French •Russian Cyrillic •Turkish

•German •Slovenian •United Kingdom

•Hungarian •Spanish

** For additional information on the IS1650’s default settings refer to

pages 32-35. For information on how to change the default settings, refer to

help files in MetroSet2 or the MetroSelect Single-Line Configuration Guide

(MLPN 00-02544).

INTRODUCTION

SCANNER AND ACCESSORIES

BASIC KIT

Part # Description

IS1650 Area Imaging Bar Code Scanner

00-02544 MetroSelect®Single-Line Configuration Guide*

00-02281 Area Imaging Supplemental Configuration Guide*

00-02287 IS1650 Series Area Imaging Bar Code Scanner

Installation and User’s Guide*

* Also available for download on the Metrologic website - www.metrologic.com

OPTIONAL ACCESSORIES

Part # Description

AC to DC Power Transformer

Regulated 5.2VDC @ 1 AMP output.

46-00525 120V United States

46-00526 220V-240V Continental European

46-00870 220V-240V United Kingdom

46-00528 220V-240V Australia

46-00529 220V-240V China

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s Customer Service Department at

1-800-ID-METRO or 1-800-436-3876.

INTRODUCTION

SCANNER AND ACCESSORIES

OPTIONAL ACCESSORIES

Part # Description

IS1650 Scanner Interface Specific Cables

59-59000-3 RS232 PowerLink Cable with Built in Power Jack,

straight, black

59-59002-3 Keyboard Wedge PowerLink Cable with Adapter Cable,

straight, black

59-59020-3 Stand Alone Keyboard PowerLink Cable, straight, black

59-59235-N-3 USB Power/Communication Cable, straight, black

59-59213-N-3 USB Full Speed Cable Locking Plus-Power™ Type A,

straight, black

59-59214-N-3 USB Full Speed Cable Locking Plus-Power™ Type A,

straight, black, extended length

MVC-3M106S-IB9 Metrologic Voltage Converter (MVC) Cable*

±12VDC to +5.2VDC, straight, black

* Contact a Metrologic customer service representative for additional

information on the MVC cable series and the host connections available.

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s Customer Service Department at

1-800-ID-METRO or 1-800-436-3876.

INTRODUCTION

SCANNER AND ACCESSORIES

OPTIONAL ACCESSORIES

Part # Description

00-02001 IS1650 Series Stand Installation Guide

46-00710 Flex Stand, Kit

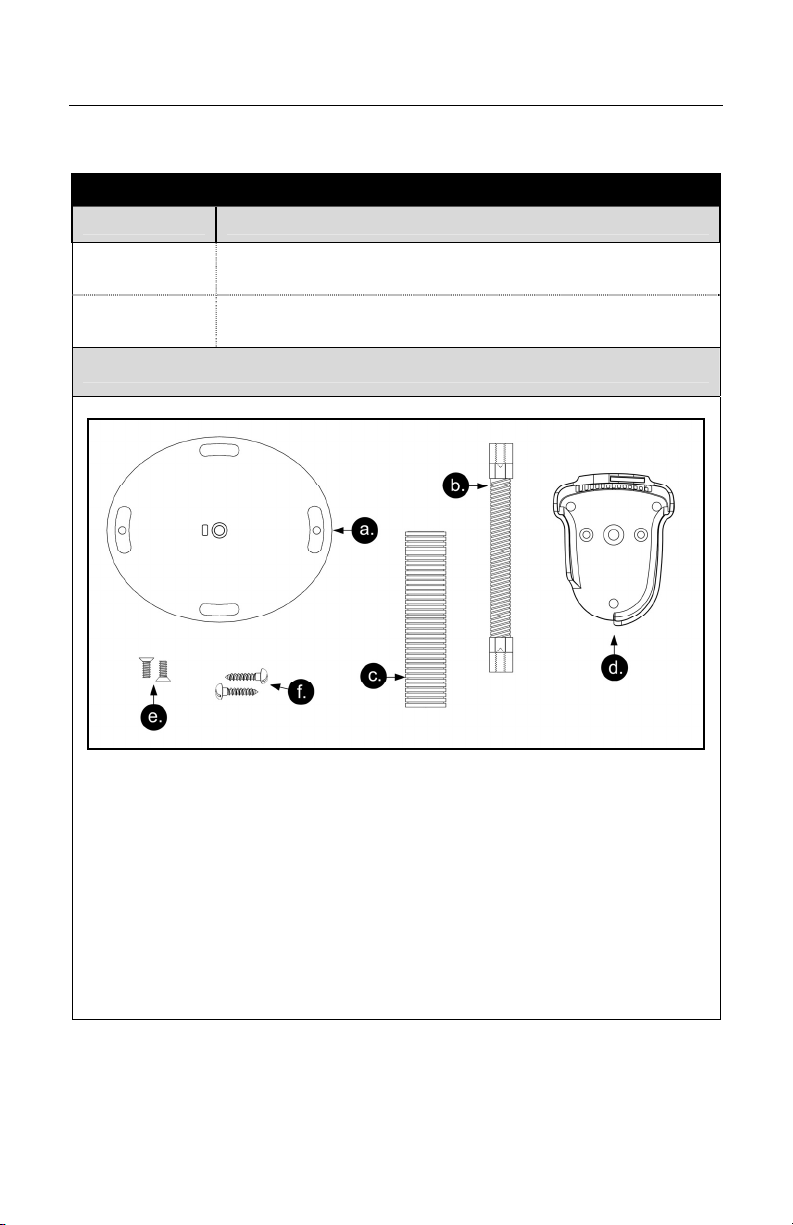

Flex Stand, Kit Components

a. Stand Base...............................................................................Qty. 1

b. Flexible Shaft............................................................................Qty. 1

c. Flexible Shaft Cover ................................................................Qty. 1

d. Scanner Cradle.........................................................................Qty. 1

e. 1/4" – 20 x 1/2" Flat Head Phillips ...........................................Qty. 2

f. #8 Round Head Wood Screw ....................................................Qty. 2

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s Customer Service Department at

1-800-ID-METRO or 1-800-436-3876.

INTRODUCTION

DESIGN SPECIFICATIONS

IS1650 DESIGN SPECIFICATIONS

OPERATIONAL

Light Source: LED 645 nm

Pulse Duration: 10 µs to 8000 µs

Maximum Output: 0.76 mW Peak

Depth of Scan Field: 0 mm – 330 mm (0" – 13") for

0.330 mm (13 mil) Bar Code at Default Setting

49 mm W x 19 mm H (1.9" W x 0.8" H) at 20 mm (0.8")

Field of View: 264 mm x 106 mm (10.4" W x 4.2" H) at 280 mm (11.0")

Minimum Bar Width: 0.038 mm (3.5 mil) 1D; 0.254 mm (10.0 mil) 2D

Long Range: 0 mm – 203 mm (0" – 8") from Window

Infrared Activation: Short Range: 0 mm – 101 mm (0" – 4") from Window

Motion Tolerance: 47 cm/sec (18"/sec) 100% UPC in stand

Decode Capability:

Autodiscriminates All Standard 1-D, RSS, PDF417,

microPDF, MaxiCode, Data Matrix, QR Code, UCC, EAN

Composites, Postals, Aztec, *OCR (A, B, MICR)

* Optional Decode Capability

Image Transfer†:

BMP, TIFF, or JPEG output

†RS232 and USB only.

System Interfaces:

PC Keyboard Wedge, RS232 (FULL & TTL),

RS485S, Stand Alone Keyboard, USB (Low/Full Speed)

SApplicable for IBM®Host applications.

Print Contrast: 20% Minimum Reflectance Difference

Number Characters Read: Up to 80 Data Characters on 1D;

1850 Text Characters for PDF417

Beeper Operation: 7 tones or no beep

Blue Unit Powered, Ready to Scan

White Good Read

Indicators (LED)

Default Settings:

Yellow In Stand

Specifications are subject to change without notice.

Autres manuels pour FocusE IS1650

Table des matières

Autres manuels Metrologic Lecteur de codes-barres

Metrologic

Metrologic QuantumT MS3580 Manuel utilisateur

Metrologic

Metrologic Stratos MS2420 Manuel utilisateur

Metrologic

Metrologic StratosS MS2222 Manuel utilisateur

Metrologic

Metrologic TECH 7 Manuel utilisateur

Metrologic

Metrologic MS5100 Eclipse Series Manuel utilisateur

Metrologic

Metrologic MS6200 Pulsar Series Manuel utilisateur

Metrologic

Metrologic Fusion MS3780 Manuel utilisateur

Metrologic

Metrologic StratosS MS2220 Manuel utilisateur

Metrologic

Metrologic MS 1690 Focus Series Manuel utilisateur

Metrologic

Metrologic 1070 Manuel utilisateur

Metrologic

Metrologic MS2020 Stratos Manuel utilisateur

Metrologic

Metrologic Tire and Rubber Guide de l'utilisateur

Metrologic

Metrologic MS7820 Solaris Manuel utilisateur

Metrologic

Metrologic Stratos MS2422 Manuel utilisateur

Metrologic

Metrologic Fusion MS3780 Manuel utilisateur

Metrologic

Metrologic MK5145-31A38 Manuel utilisateur

Metrologic

Metrologic Eclipse MS5145 Manuel utilisateur

Metrologic

Metrologic MS5100 Eclipse Series Manuel utilisateur

Metrologic

Metrologic MS9520 Voyager Manuel utilisateur

Metrologic

Metrologic Cubit IS6520 Series Manuel utilisateur

Metrologic

Metrologic MS6130 Manuel utilisateur

Metrologic

Metrologic MK1690-61A38 Manuel utilisateur

Metrologic

Metrologic Stratos MS2x20 Series Instructions d'installation et d'utilisation

Metrologic

Metrologic MS9500 Voyager Series Manuel utilisateur

Manuels Lecteur de codes-barres populaires d'autres marques

POSMicro

POSMicro Datalogic PowerScan D7100 Manuel utilisateur

Marson

Marson MT780 Guide de configuration rapide

NCR

NCR RealPOS Manuel utilisateur

Motorola

Motorola SE3300 Guide de configuration rapide

Element

Element P130BT Manuel utilisateur

Motorola

Motorola Symbol LS3008 Manuel d'installation et d'exploitation

Meec tools

Meec tools OBD-II / VAG Manuel utilisateur

SICK

SICK CLP 100 Manuel utilisateur

Royal Tag SA

Royal Tag SA I-Read Manuel utilisateur

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuel utilisateur

Meteor

Meteor 8310 Manuel utilisateur

Denso

Denso BHT-500B Manuel utilisateur

Datalogic

Datalogic Heron HD3130 Manuel utilisateur

Motorola

Motorola MP6000 Instructions de montage

Newland

Newland NLS-HR15-BT Manuel utilisateur

ARTDEV

ARTDEV AS-1310 Manuel utilisateur

Aopos

Aopos AS290 Manuel utilisateur

ENS

ENS 367-5455 Manuel utilisateur
