METROLOGIC INSTRUMENTS, INC.

MS1890 Series

Area Imaging Bar Code Scanner

Installation and User’s Guide

work may be reproduced, transmitted, or stored in any form or by any means

without prior written consent, except by reviewer, who may quote brief

passages in a review, or provided for in the Copyright Act of 1976.

Trademarks

Metrologic is a registered trademark of Metrologic Instruments, Inc.

Products identified in this document are hereby acknowledged as

trademarks, registered or otherwise, of Metrologic Instruments, Inc.

or their respective companies.

ABLE OF

ONTENTS

Introduction

Product Overview ............................................................................................. 1

Scanner and Accessories................................................................................. 2

Scanner Components....................................................................................... 4

The PowerLink Cable ....................................................................................... 5

Labels............................................................................................................... 6

Maintenance..................................................................................................... 6

Installing the Scanner to the Host System

RS232 MS1890-14........................................................................................... 7

Keyboard Wedge MS1890-47 .......................................................................... 8

Stand Alone Keyboard MS1890-47 .................................................................. 9

IBM MS1890-11 ............................................................................................. 10

Full Speed USB MS1890-40 (Integrated)....................................................... 11

Low Speed USB MS1890-38 (Integrated) ...................................................... 11

Scanner Operation

Two Modes of Operation ................................................................................ 12

Audible Indicators........................................................................................... 13

Visual Indicators ............................................................................................. 14

Failure Modes................................................................................................. 15

Depth of Field by Minimum Bar Code Element Width .................................... 16

IR Activation Range........................................................................................ 17

Troubleshooting Guide ....................................................................................... 18

Design Specifications ......................................................................................... 22

Applications and Protocols ................................................................................. 24

Default Settings – Communication Parameters.................................................. 25

Configuration Modes .......................................................................................... 29

Upgrading the Flash ROM Firmware.................................................................. 30

iii

ABLE OF

ONTENTS

Scanner and Cable Terminations

Scanner Pinout Connections .......................................................................... 31

Cable Connector Configurations .................................................................... 33

Limited Warranty ................................................................................................ 35

Regulatory Compliance

Safety ............................................................................................................. 36

EMC ............................................................................................................... 37

Patents ............................................................................................................... 39

Index .................................................................................................................. 40

Contact Information and Office Locations........................................................... 42

NTRODUCTION

Product Overview

The MS1890 is a rugged, high performance hand-held area imaging bar code

scanner that utilizes a high-resolution CMOS imaging sensor for superior image

quality. The MS1890 utilizes Omniplanar, Inc.’s Swiftdecoder

software for

reliable decoding of both 1D and 2D bar code symbologies. Sharp images can

be captured and transmitted in a variety of outputs, including: .jpg, .bmp, and .tiff.

Omnidirectional scanning capabilities and an extended depth of field provides

aggressive scanning of all standard 1D, RSS, PDF417, microPDF, EAN/UCC

Composite, Matrix and Postal Codes symbology types. Firmware updates are

easily loaded via Flash ROM.

The MS1890 provides a built in object detection sensor (IR) that instantly turns

on the scanner when an object is presented within the scanner’s field of view.

Model Number Interface

MS1890 – 11 IBM 468X/469X, RS232-TXD, RXD, RTS, CTS

MS1890 – 14 RS232 (TX, RX, RTS, CTS, DTR)

MS1890 – 38 Low Speed USB

MS1890 – 40 Full Speed USB

MS1890 – 47 Keyboard Wedge, Stand-Alone Keyboard and

RS232 Transmit/Receive

NTRODUCTION

Scanner and Accessories

ASIC

Part # Description

MS1890 Area Imaging Bar Code Scanner

00-02544 MetroSelect

Single-Line Configuration Guide*

00-02281 Area Imaging Bar Code Supplemental Configuration Guide*

00-02293 MS1890 Series Area Imaging Bar Code Scanner

Installation and User’s Guide*

Available on the Metrologic website - www.metrologic.com

PTIONAL

CCESSORIES

Part # Description

AC to DC Power Transformer - Regulated 5.2VDC @ 1A output.

46-00525 90VAC to 255VAC United States, Canada and Japan

46-00526 90VAC to 255VAC Continental European

46-00527 90VAC to 255VAC United Kingdom

46-00528 90VAC to 255VAC Australia

46-00529 90VAC to 255VAC China

53-53700x-3 RS232 PowerLink Cable with Built in Power Jack

2.7 m (9 ft.) coiled cord, long strain relief, black

53-53702x-3 Keyboard Wedge PowerLink Cable with Adapter Cable

2.7 m (9 ft.) coiled cord, long strain relief, black

53-53720x-3 Stand Alone Keyboard PowerLink Cable

2.7 m (9 ft.) coiled cord, long strain relief, black

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor, or call Metrologic’s Customer Service Department at

1-800-ID-METRO or 1-800-436-3876.

NTRODUCTION

Scanner and Accessories

PTIONAL

CCESSORIES

Part # Description

53-53713x-N-3 USB Full Speed Cable Locking Plus-Power™ Type A,

2.7 m (9 ft.) coiled cord, long strain relief, black

53-53713x-N-3

USB Full Speed Cable Locking Plus-Power™ Type A,

4.5 m (15 ft.) coiled cord, long strain relief, black

This cable is for use with full speed

USB (-40) interface only.

53-53735x-3 USB Low Speed Communication Cable Type A

2.7 m (9 ft.) coiled cord, long strain relief, black

MVCI-3M106C-IB9

IBM Applications

Metrologic Voltage Converter (MVC) Cable*

±12VDC to +5.2VDC

* Contact a Metrologic customer service representative for additional

information on the MVC cable series and the host connections available.

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor, or call Metrologic’s Customer Service Department at

1-800-ID-METRO or 1-800-436-3876.

NTRODUCTION

Scanner Components

No. Item Description

1 Blue LED See Visual Indicators (on page 14)

2 White LED See Visual Indicators (on page 14)

3 Yellow LED See Visual Indicators (on page 14)

4 Red Window LED Aperture

5 Trigger See Modes of Operation (on page 12)

6 Utility Hook

7 Cable Boot See The PowerLink Cable (on page 5)

8 Cable Release Pin-Hole See The PowerLink Cable (on page 5)

9 Cable Connection 10-pin RJ45, Female Socket,

See Scanner Pinout Connections (on page 31)

Figure 1. Scanner Components

NTRODUCTION

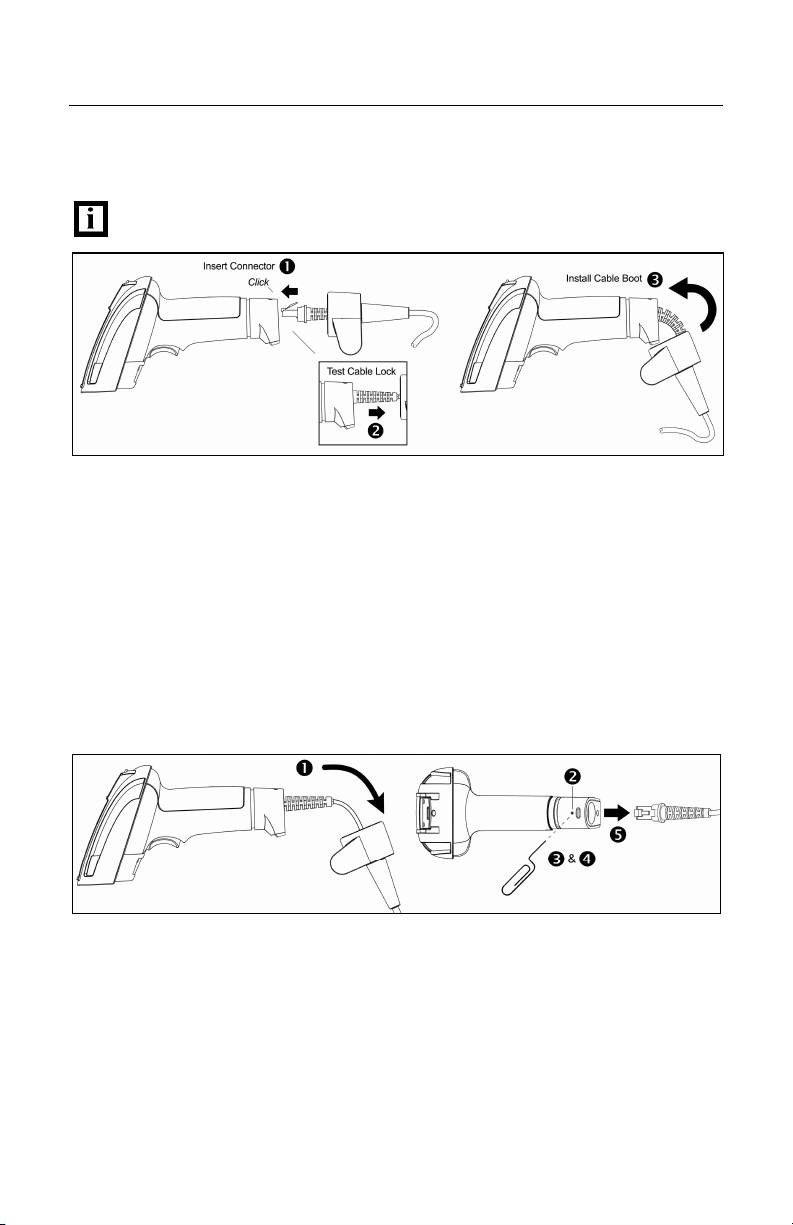

The PowerLink Cable

Connecting

Important: If the PowerLink cable is not fully latched, the unit can

power intermittently.

Figure 2. Connecting the PowerLink Cable

1. Insert the 10-pin RJ45 end of the cable into the socket on the MS1890.

There will be an audible click when the connector locks into place.

2. Gently pull on the cable strain relief to insure the cable is installed.

3. Install the cable boot cover over the cable strain relief and onto the end of

the unit’s handle.

Disconnecting

Before removing the cable from the scanner, Metrologic recommends that the

power on the host system is off and the power supply has been disconnected

from the PowerLink cable.

Figure 3. Releasing the PowerLink Cable

1. Remove the cable boot to reveal the cable connection.

2. Locate the small ‘pin-hole’ on the handle of the unit near the cable.

3. Bend an ordinary paperclip into the shape shown above.

4. Insert the paperclip (or other small metallic pin) into the small ‘pin-hole’.

5. There will be a faint ‘click’ when the lock releases. Pull gently on the

strain-relief of the PowerLink cable to remove the cable from the unit.

NTRODUCTION

Labels

Each scanner has a label located on the underside of the head. This label

provides the unit’s model number, date of manufacture, serial number, CE, and

caution information. The following figure gives an example of the label and its

location.

Figure 4. Label Samples and Location

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner

must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950-1.

To maintain compliance with standard CSA-C22.2 No. 60950-1/UL 60950-1 and norm

EN/IEC 60950-1, the power source should meet applicable performance requirements for

a limited power source.

Maintenance

Smudges and dirt can interfere with the proper scanning of a bar code.

The output window should be routinely cleaned with glass cleaner sprayed onto a

lint free, non-abrasive cloth.

Autres manuels pour MS1890 Focus

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Metrologic Lecteur de codes-barres

Metrologic

Metrologic Cubit MS6520 Series Manuel utilisateur

Metrologic

Metrologic MS7320 InVista Series Manuel utilisateur

Metrologic

Metrologic MS5100 Eclipse Series Manuel utilisateur

Metrologic

Metrologic MS5100 Eclipse Series Manuel utilisateur

Metrologic

Metrologic IS1000 Series Manuel utilisateur

Metrologic

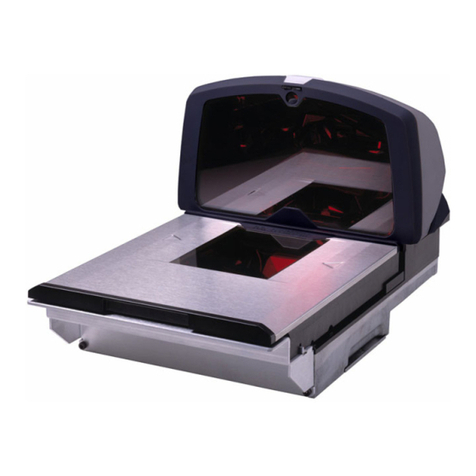

Metrologic MS2020 Stratos Manuel utilisateur
