Metrologic MS7320 InVista Series Manuel utilisateur

METROLOGIC INSTRUMENTS, INC.

MS7320 InVista®Series

Installation and User’s Guide

work may be reproduced, transmitted, or stored in any form or by any means

without prior written consent, except by reviewer, who may quote brief

passages in a review, or provided for in the Copyright Act of 1976.

Products and brand names mentioned in this document are trademarks of

their respective companies.

TABLE OF CONTENTS

Introduction ........................................................................................................... 1

Scanner and Accessories ..................................................................................... 2

Installation

For OCIA Interface ............................................................................................ 4

For Keyboard Wedge Interface ......................................................................... 5

For Stand-Alone Keyboard Interface................................................................. 6

For USB Interface.............................................................................................. 7

For RS232 or Light Pen Interfaces.................................................................... 8

For IBM 46xx Interface .................................................................................... 10

Of a Secondary Scanner ................................................................................. 11

Scanner Parts ..................................................................................................... 14

Maintenance........................................................................................................ 14

Cable Cover Installation and Removal................................................................ 15

Face Plate Removal............................................................................................ 15

Scanner Labels ................................................................................................... 16

Indicators

Audible ............................................................................................................ 17

Visual............................................................................................................... 18

Failure Mode ................................................................................................... 19

Power Save Modes and the Multi-Function Button............................................. 20

Scan Volume....................................................................................................... 22

Depth of Field by Minimum Bar Code Element Width......................................... 23

Flex Stand Installation......................................................................................... 25

EAS Deactivation Antenna.................................................................................. 28

Troubleshooting Guide........................................................................................ 29

Design Specifications.......................................................................................... 34

RS232 Demonstration Program.......................................................................... 36

Applications and Protocols.................................................................................. 37

Default Settings................................................................................................... 38

iii

TABLE OF CONTENTS

Scanner and Cable Terminations

Scanner Pinout Connections........................................................................... 44

Cable Connector Configurations (Host End) ................................................... 46

Limited Warranty................................................................................................. 48

Laser and Product Safety.................................................................................... 49

Patents................................................................................................................ 51

Index ................................................................................................................... 52

INTRODUCTION

The MS7320 InVista®offers an outstanding combination of features, versatility,

performance, and durability. This fixed mount laser bar code scanner provides

ease of use and high throughput speeds by featuring a large, dynamic, and

aggressive scan volume.

The MS7320 is equipped with a multitude of standard features including:

•Automatic Scanning Operation

•Firmware Updates via Flash ROM

•EAS Deactivation Antenna

•A Configurable Depth of Field

•Supports Multiple Interfaces Including USB and Keyboard Wedge

•Custom Edit the Bar Code Data

•OPOS and JPOS System Compatible

•RS232 Auxiliary Port for Adding Peripherals

•PowerLink, User Replaceable Cables

•Field Replaceable Outer Window

•Sunrise 2005 Compliant

SCANNER INTERFACE

MS7320-13 RS232, IBM 46xx, OCIA, Aux

MS7320-37 RS232, Light Pen, Keyboard Wedge, Stand-Alone

Keyboard, USB, Aux

SCANNER AND ACCESSORIES

BASIC KIT

Part # Description

MS7320 InVista Series Scanner

00-02407 MetroSelect®Configuration Guide

00-02896 MS7320 InVista Series Installation and User’s Guide

52-52511 24” EAS Cable

Guides also available for download at www.metrologic.com.

OPTIONAL ACCESSORIES

Part # Description

54-54xxx* Straight PowerLink Cable with built in power jack.

2.1 m (7') cord with short strain relief

xxx* specifies connection to the host.

Contact a customer service representative for additional information.

54-54002 Keyboard Wedge PowerLink Cable with Adapter Cable

MVC** Metrologic Voltage Converter Cable,

±12VDC to +5.2VDC

** Contact a Metrologic Customer Service representative for additional

information on Metrologic’s MVC cable series and the host connections

available.

54-54020 Stand Alone Keyboard Wedge PowerLink Cable

54-54165 USB PowerLink Cable (Type A)

54-54667 RS232 AUX PowerLink Cable

SCANNER AND ACCESSORIES

OPTIONAL ACCESSORIES

Part # Description

AC to DC Power Transformer - Regulated 5.2V@ 1A output

46-46759 120V United States

46-46616 220V – 240V Continental European

46-46615 220V – 240V United Kingdom

46-46984 220V – 240V China

46-46985 220V – 240V Australia

46-00174 3" Flex Stand

46-00157 6" Flex Stand

46-00175 12" Flex Stand

REPLACEMENT PARTS

Part # Description

46-46925 Standard Window Face Plate

46-46852 Pedestal Base

For use with 46-00174, 46-00175, and 46-00157 flex stands.

Other items may be ordered for the specific protocol being used. To order

additional items, contact the dealer, distributor or call Metrologic’s Customer

Service Department at 1-800-ID-METRO or 1-800-436-3876.

INSTALLATION FOR OCIA INTERFACE

1. Turn off the host system.

2. Connect the MVC cable to

the 10-pin OCIA interface jack. It is

the 2nd round opening from the left

side of the MS7320 (see figure 1).

3. Connect the other end of the MVC

cable to the host.

Before continuing verify that the MVC

cable is connected to the appropriate

interface jack on the scanner. An

incorrect cable connection can cause

communication problems or potential

damage to the scanner.

Plugging the scanner into the

serial port of the PC does not

guarantee that scanned

information will appear at the

PC. A software driver and

correct configuration settings

are also required for proper

communication.

4. Turn on the host system.

5. Scan the Load OCIA Defaults bar

code to configure the MS7320 for

OCIA communication.

6. Snap on the cable cover.

For additional communication options for OCIA interfaces refer to the

MetroSelect Configuration Guide (MLPN 00-02407).

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet the

requirements for SELV (Safety Extra Low Voltage) according to EN 60950.

To maintain compliance with standard CSA C22.2 No. 60950-00/UL 60950 and norm EN 60950, the power

source should meet applicable performance requirements for a limited power source.

³999993

Load OCIA Defaults

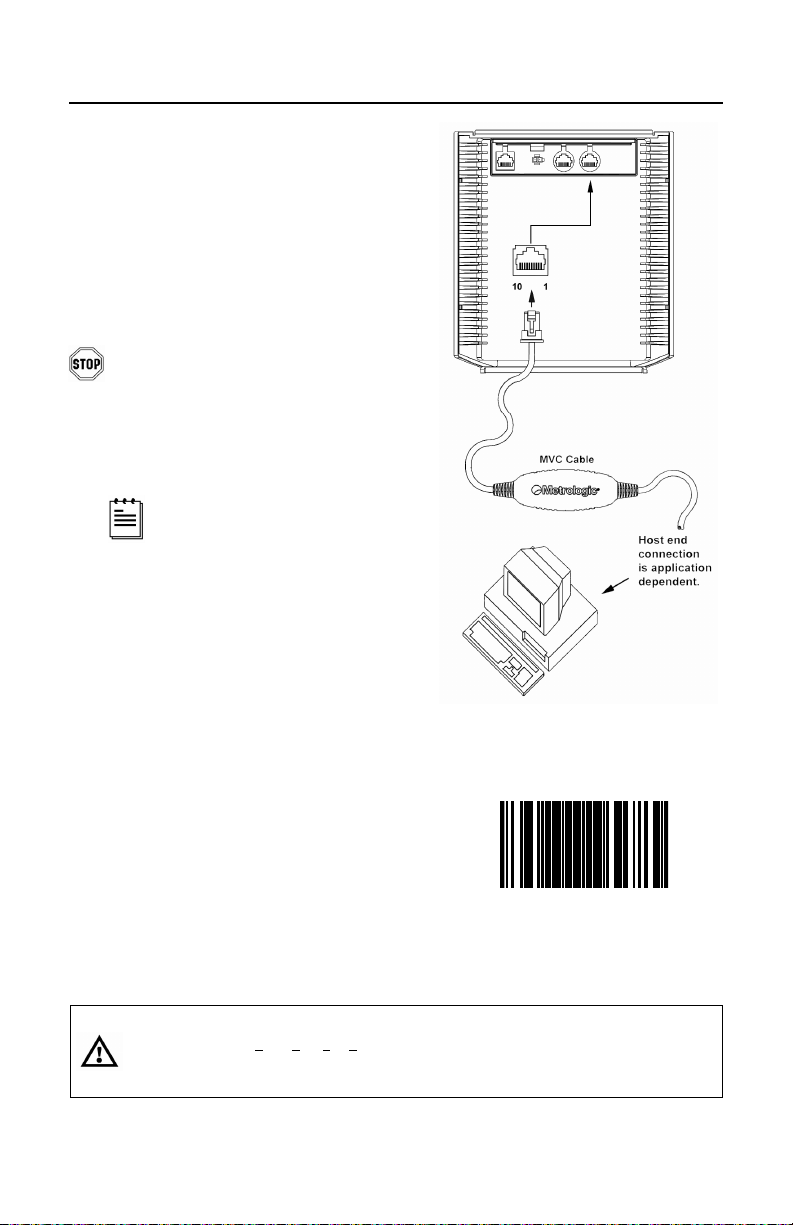

Figure 1: OCIA, Interface

Figure 2. Keyboard Wedge Interfaces

INSTALLATION FOR KEYBOARD WEDGE INTERFACE

1. Turn off the host system.

2. Disconnect the keyboard from the host.

3. Connect the PowerLink cable to the 10-pin

KBW interface jack. It is the 2nd round

opening from the left side of the MS7320

(see figure 2).

4. Connect the “Y” end of the

PowerLink cable to the keyboard

and the keyboard port on the host.

If necessary use the male/female

adapter cable supplied with the scanner

for proper connections.

Before continuing verify that the

PowerLink cable is connected to the

appropriate interface jack on the scanner.

An incorrect cable connection can cause

communication problems or potential

damage to the scanner.

5. Connect the external power supply

to the power jack on the PowerLink cable.

6. Check the AC input requirements

of the power supply to make sure

the voltage matches the AC outlet.

7. Connect AC power to the transformer.

The outlet should be near the equipment

and easily accessible.

8. Scan the Load Keyboard Wedge Defaults

bar code to configure the MS7320 for

Keyboard Wedge communication.

9. Turn on the host system.

10. Snap on the cable cover.

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet the

requirements for SELV (Safety Extra Low Voltage) according to EN 60950.

To maintain compliance with standard CSA C22.2 No. 60950-00/UL 60950 and norm EN 60950, the power

source should meet applicable performance requirements for a limited power source.

Load Keyboard

Wedge Defaults

³999994

INSTALLATION FOR STAND-ALONE KEYBOARD INTERFACE

1. Turn off the host system.

2. Disconnect the keyboard from the host.

3. Connect the PowerLink cable to the 10-pin

Stand-Alone Keyboard interface jack. It is

the 2nd round opening from the left side of

the MS7320 (see figure 3).

4. Connect the other end of the PowerLink

cable to the keyboard port on the host.

Before continuing verify that the

PowerLink cable is connected to the

appropriate interface jack on the scanner.

An incorrect cable connection can cause

communication problems or potential

damage to the scanner.

5. Connect the external power supply to the

power jack on the PowerLink cable.

6. Check the AC input requirements of the

power supply to make sure the voltage

matches the AC outlet.

7. Connect AC power to the transformer.

The outlet should be near the equipment

and easily accessible.

8. Scan the two bar codes in numbered

sequence in order to configure the

MS7320 for Stand-Alone Keyboard

communication.

Note:

When scanning the bar codes, cover the

code not being scanned to ensure the

codes are read in the proper sequence.

9. Turn on the host system.

10. Snap on the cable cover.

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet the

requirements for SELV (Safety Extra Low Voltage) according to EN 60950.

To maintain compliance with standard CSA C22.2 No. 60950-00/UL 60950 and norm EN 60950, the power

source should meet applicable performance requirements for a limited power source.

³999994

Scan 1

Load Keyboard

Wedge Defaults

³5155153

Scan 2

Enable Stand-Alone

Keyboard Wedge

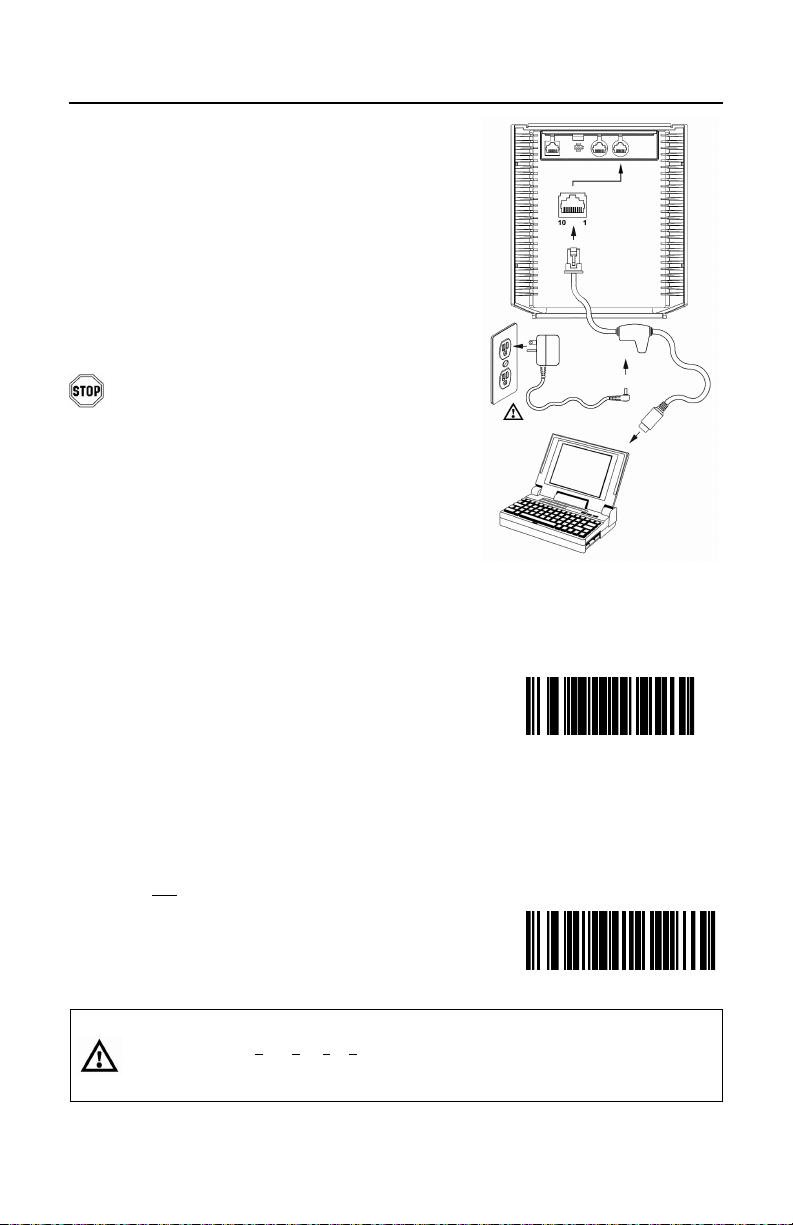

Figure 3: Stand-Alone Keyboard

Interface

Autres manuels pour MS7320 InVista Series

Table des matières

Autres manuels Metrologic Lecteur de codes-barres

Metrologic

Metrologic IS4225 ScanGlove Manuel utilisateur

Metrologic

Metrologic MS2020 Stratos Manuel utilisateur

Metrologic

Metrologic MK3780-31A62 Manuel utilisateur

Metrologic

Metrologic MS 1690 Focus Series Manuel utilisateur

Metrologic

Metrologic IS4220 ScanGlove Manuel utilisateur

Metrologic

Metrologic MS1890 Focus Manuel utilisateur

Metrologic

Metrologic StratosS MS2222 Manuel utilisateur

Metrologic

Metrologic MK9520-37A38 Manuel utilisateur

Metrologic

Metrologic IS3480 QuantumE Manuel utilisateur

Metrologic

Metrologic Orbit MS7100 Manuel utilisateur

Metrologic

Metrologic MS7600 Manuel utilisateur

Metrologic

Metrologic MS9500 Voyager Series Manuel utilisateur

Metrologic

Metrologic Stratos MS2422 Manuel utilisateur

Metrologic

Metrologic Fusion MS3780 Manuel utilisateur

Metrologic

Metrologic Fusion MS3780 Manuel utilisateur

Metrologic

Metrologic Stratos MS2xxx Series Instructions d'installation et d'utilisation

Metrologic

Metrologic MS7320 InVista Series Manuel utilisateur

Metrologic

Metrologic MLPN 2159 Manuel utilisateur

Metrologic

Metrologic MS 1690 Focus Series Manuel utilisateur

Metrologic

Metrologic S4800 microQuest Series Manuel utilisateur

Metrologic

Metrologic Stratos MS2420 Manuel utilisateur

Metrologic

Metrologic MS1633 FocusBT Manuel utilisateur

Metrologic

Metrologic StratosS MS2220 Manuel utilisateur

Metrologic

Metrologic MK9535-79C5M38 - Metrologic MS9535 VoyagerBT Manuel utilisateur

Manuels Lecteur de codes-barres populaires d'autres marques

POSMicro

POSMicro Datalogic PowerScan D7100 Manuel utilisateur

Marson

Marson MT780 Guide de configuration rapide

NCR

NCR RealPOS Manuel utilisateur

Motorola

Motorola SE3300 Guide de configuration rapide

Element

Element P130BT Manuel utilisateur

Motorola

Motorola Symbol LS3008 Manuel d'installation et d'exploitation

Meec tools

Meec tools OBD-II / VAG Manuel utilisateur

SICK

SICK CLP 100 Manuel utilisateur

Royal Tag SA

Royal Tag SA I-Read Manuel utilisateur

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuel utilisateur

Meteor

Meteor 8310 Manuel utilisateur

Denso

Denso BHT-500B Manuel utilisateur

Datalogic

Datalogic Heron HD3130 Manuel utilisateur

Motorola

Motorola MP6000 Instructions de montage

Newland

Newland NLS-HR15-BT Manuel utilisateur

ARTDEV

ARTDEV AS-1310 Manuel utilisateur

Aopos

Aopos AS290 Manuel utilisateur

ENS

ENS 367-5455 Manuel utilisateur
