MD SPORTS 1639634 Manuel utilisateur

MODEL:1639634

VM Innovations

ASSEMBLY INSTRUCTIONS

ATTENTION

DO NOT RETURN

TO THE STORE

Contact

MD Sports

Customer Service

* For additional resources and Frequently

Ask Questions, please visit us at

themdsports.com

www.themdsports.com

1639634 1

(Continued on the next page.)

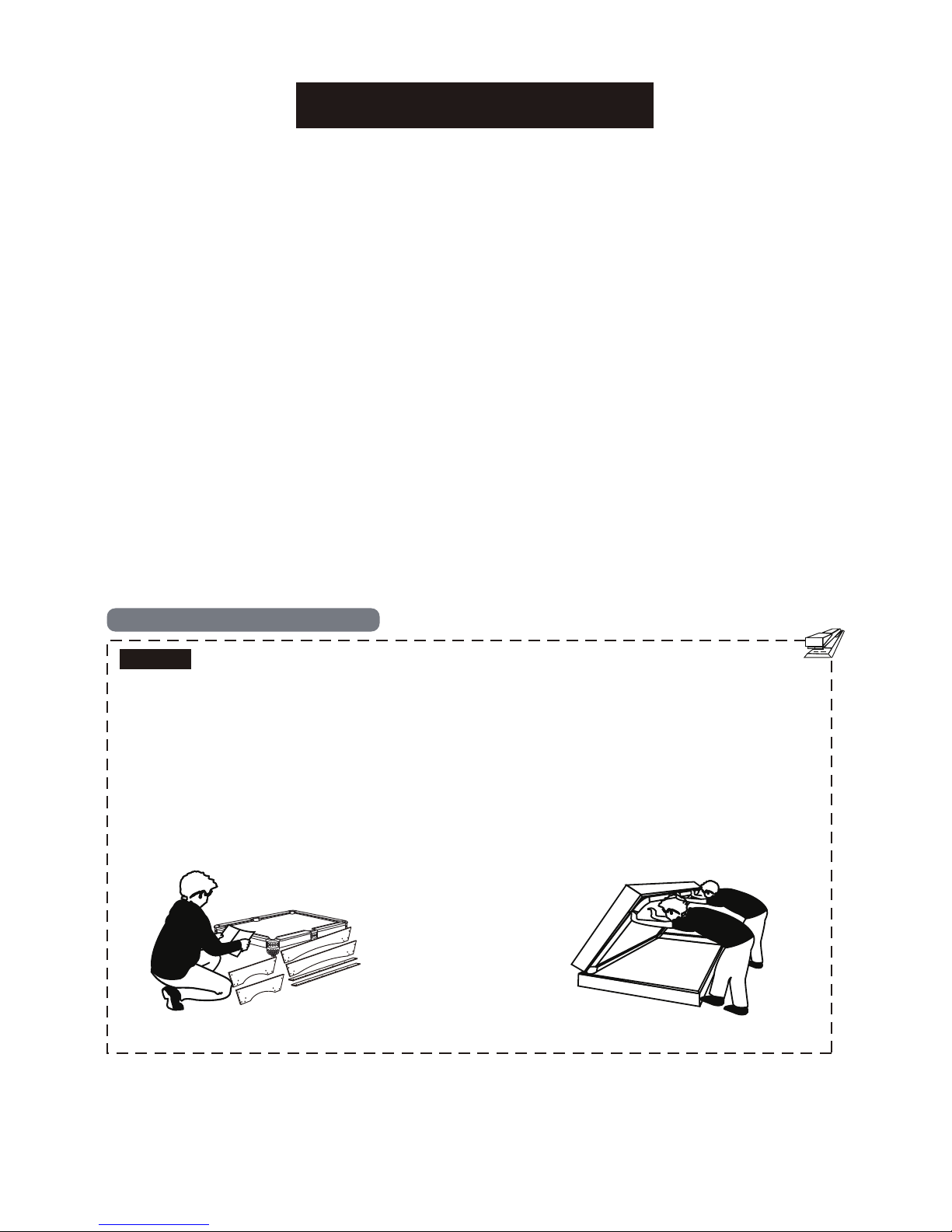

This product is covered by a limited warranty that is effective for 90 days from the date of purchase. If,

during the limited warranty period, a part is found to be defective or breaks, we will offer replacement part

at no cost to you, the customer. The only exceptions to the warranty include main frames, table tops,

playing surfaces, batteries or tools.

The above warranty will not apply in cases of damages due to improper usage, alteration, misuse, abuse,

accidental damage or neglect.

This Limited Warranty gives you specific legal rights and you may also have other rights which vary from

one State (province) to another.

A PURCHASE RECEIPT (or other proof of purchase date) will be required before any warranty service is

initiated. All requests for warranty service, please feel free to contact our Consumer Service Department at :

Please be aware of your product’s Limited Warranty for the return/refund policy from the store, We, at Medal

Sports, can not handle the product which is out of product’s limited warranty since we only provide available

parts. Thank you!

PLEASE CONTACT US BEFORE RETURNING

THE PRODUCT TO THE STORE.

WEBSITE: www.themdsports.com

NOTICE!

STAPLE YOUR RECEIPT HERE

1 - Please leave your name, address, phone number, model number, parts needed on the answering

machine if there is no attendant. Failure to do so will result in a delay in shipping parts to you.

2 - Please review the replacement parts list and make sure that you have all your parts before beginning

assembly. For questions that may arise or for missing/damaged parts, please contact us.

3 - Since you build all tables upside down, please inspect tabletops or playing surfaces right away before

putting together, all damaged table tops/playing surfaces need to be returned to the store. Please

contact with retailer for their return policy.

LIMITED 90 DAYS WARRANTY

www.themdsports.com

1639634 2

(Continued on the next page.)

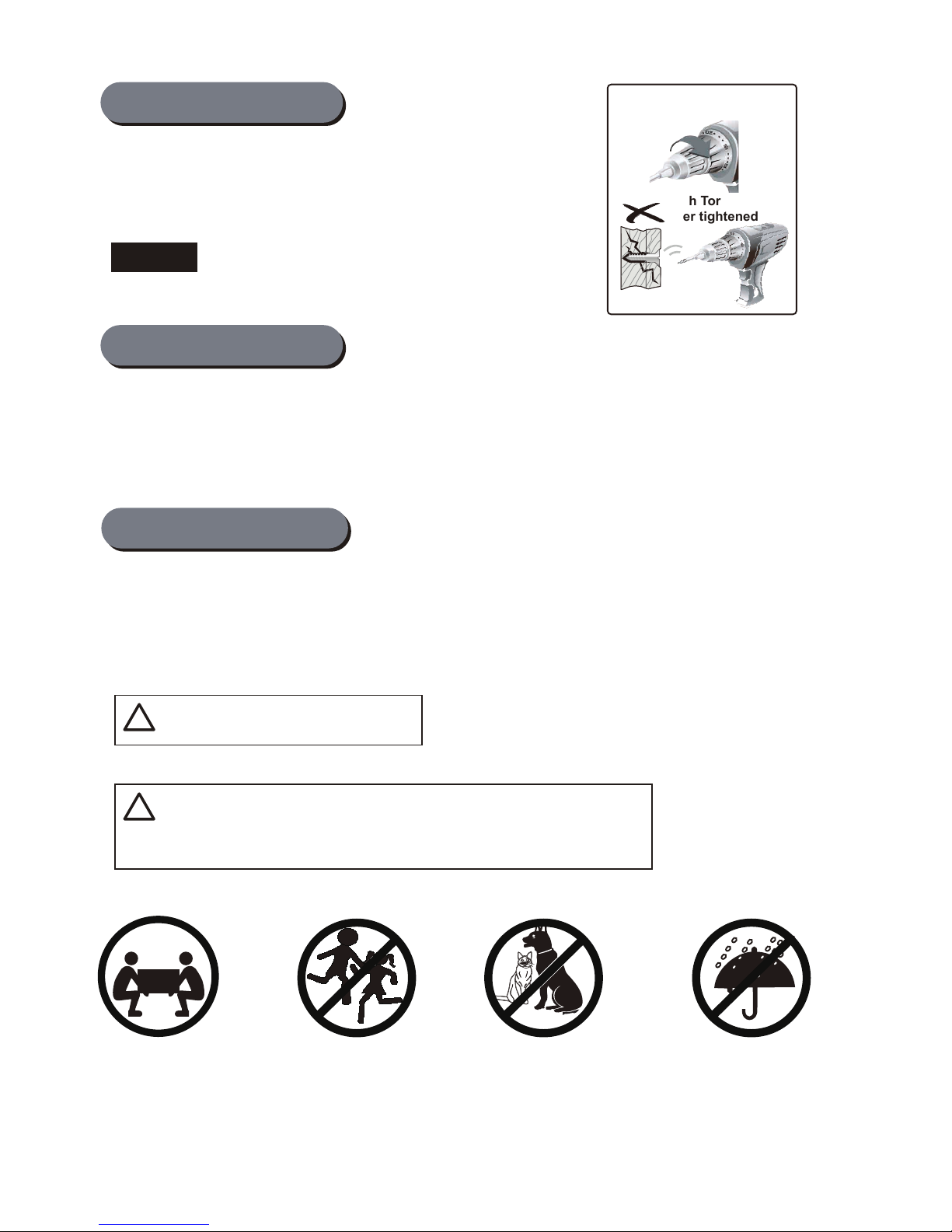

Strong Adults Needed No Children in

Assembly Area

Keep away from pets Do not use or keep product

outdoors. For indoor use only.

No wet/humid conditions.

Power Tools

- Set Low Torque

High Torque

over tightened

TOOLS REQUIRED:

Phillips Screwdriver - Not Included

Standard (Flat Head Screwdriver) - Not Included

Wrench - Included

Allen Key - Included

CAUTION !

Electric Screwdrivers may be helpful during assembly;

however, please set a low torque and use extreme

caution.

WARNING:





WARNING: Adult Assembly Required.

ASSEMBLY TIPS:

1 - Please read the instructions carefully, and follow all assembly, operation or safety instructions properly in order to

avoid damage or injury. For the assembly, at least two adults are required.

2 - Some figures or drawings may not look exactly like your product. Please read and understand the text before

beginning each assembly step.

1 - This product is intended for INDOOR use only.

2 - Please Do Not sit, climb or lean on the product.

3 - Please Do Not drag the table when moving it in order to avoid the damaged on the legs.

4 - Please only use spray furniture polish to clean the exterior surfaces on the product.

5 - This is not a child's toy, adult supervision is required for children playing this game.

IMPORTANT NOTICE!

www.themdsports.com

1639634 3

(Continued on the next page.)

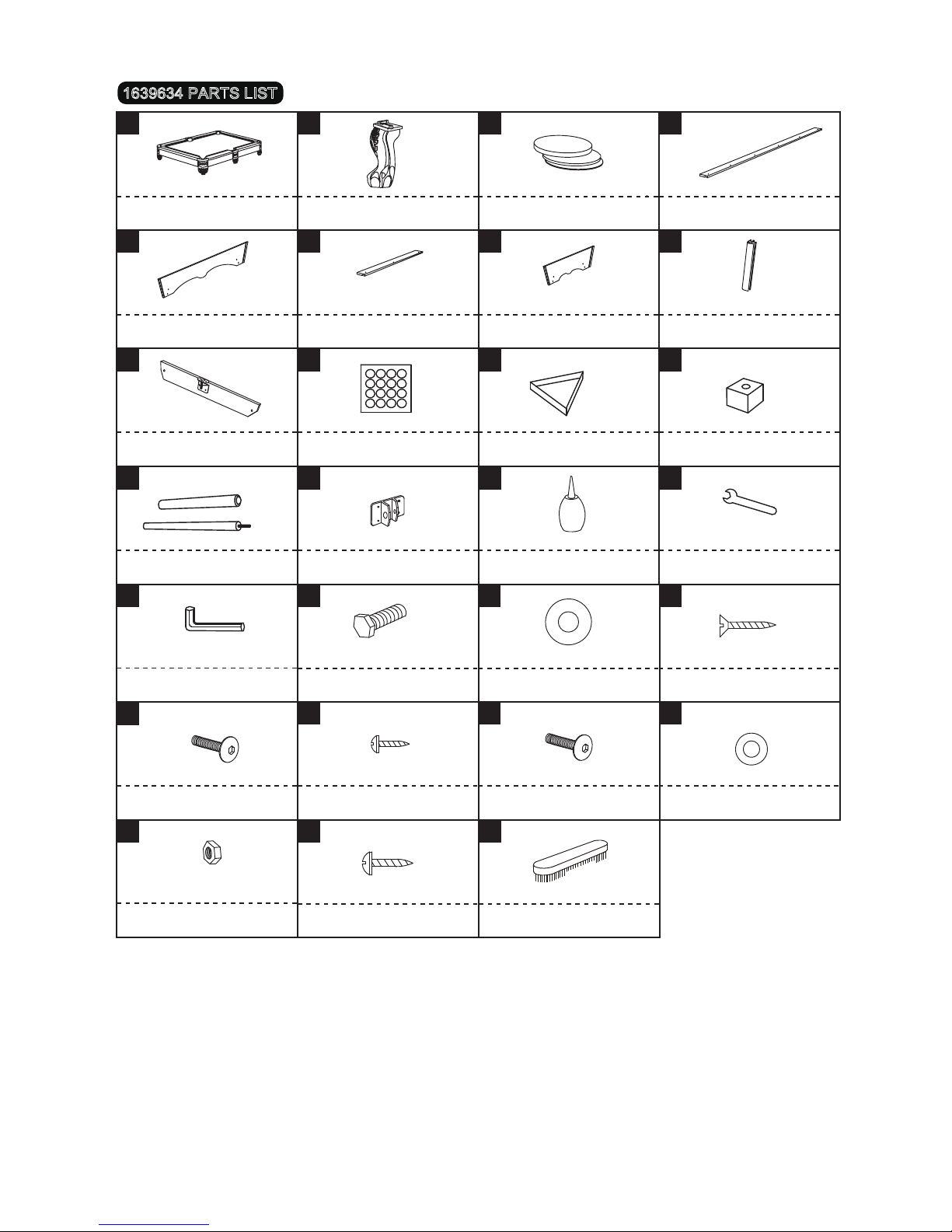

Lower Side Apron Lower End Apron Apron Corner

Support Board

2-1/4” Billiard Ball

Set

2-1/4” Triangle Chalk

End Top Board

910 11 12

13 14 15 16

Glue Wrench

“U” Plastic Bracket57” Cue

Leg Shim Side Top Board

2 3 4

Mainframe

x1 x4 x9 x2

6 7 85

x2 x2 x4

x2 x1 x1 x2

x2 x4 x1 x1

Allen Key

18 19 20

5/16” Washer

5/16”x1-1/2” Bolt F4x1-1/2” Screw

x16 x16 x18

1/4”x1” Bolt

22 23 24

1/4”x 1-1/2” Bolt

T4x5/8” Screw 1/4” Washer

x20 x4 x4

x18

1/4” Nut

T4x1/2” Screw

1639634 PARTS LIST

Brush

1. Find a clean, level place to begin the assembly of your Billiard Table. The table will be assembled upside down

and then turned over on its legs once the assembly is completed. This game table is heavy, and turning it over

will require at least four strong adults.

2. Remove all the parts from the box and verify that you have all of the listed parts as shown on the parts list

pages. Carefully cut or tear the four corners of the box so that the bottom of the box can be used as your

work surface.

ASSEMBLY INSTRUCTIONS:

www.themdsports.com

1639634 4

(Continued on the next page.)

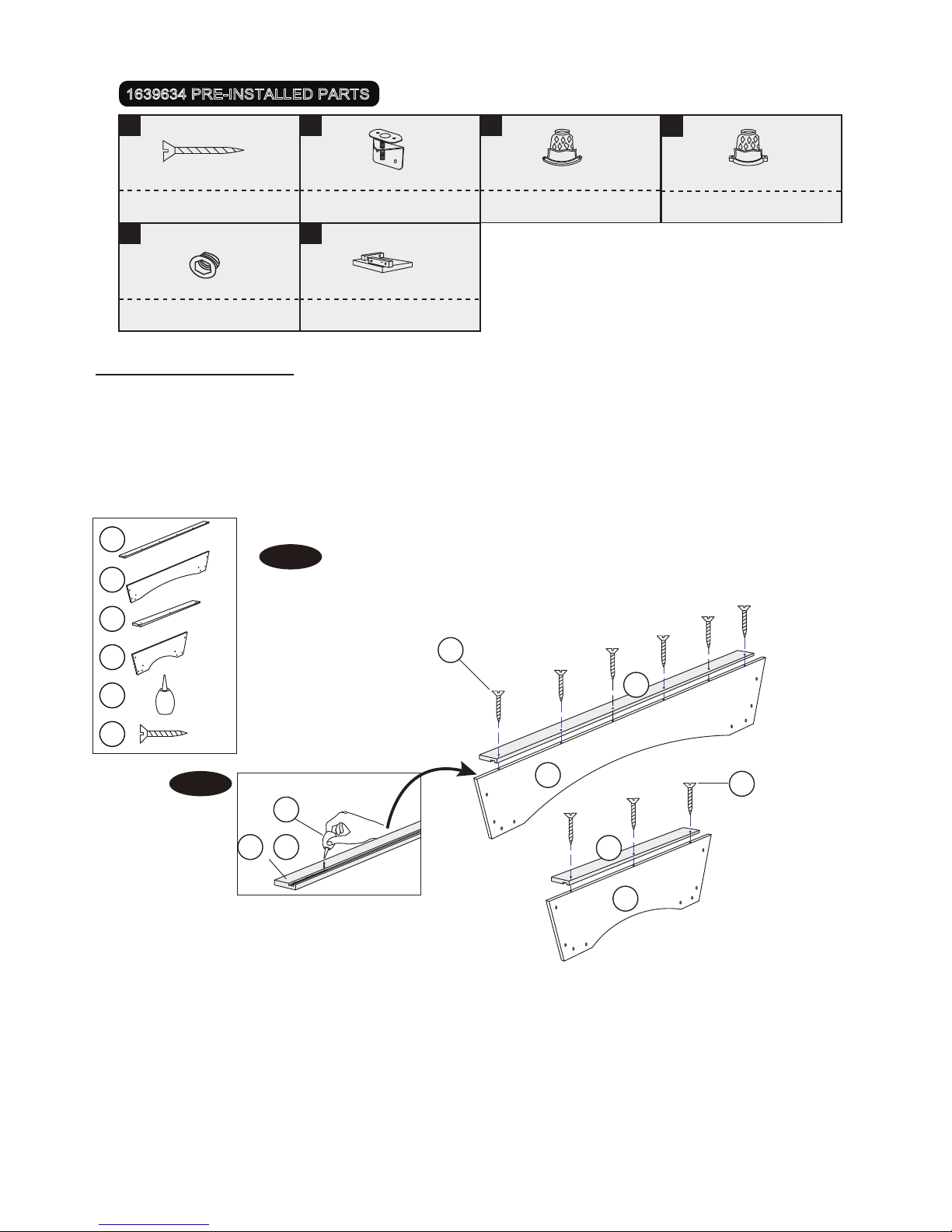

1639634 PRE-INSTALLED PARTS

F5x2-1/2” Screw Corner PocketAdjustable “L” Bracket

P1 P2

x16 x2 x4

Side Pocket

5/16” Nut

P5 P6

x16

Leg Top Board

FIG.1

3. Apply the Glue (#15) into the grooves of the Side and End Top Boards (#4 and #6). See FIG. 1A.

4. Reverse the Side Top Boards (#4) and attach to the Lower Side Aprons (#5) using six Screws (#20) per Side

Top Board. See FIG. 1.

5. Reverse the End Top Boards (#6) and attach to the Lower End Aprons (#7) using three Screws (#20) per End

Top Board. See FIG. 1.

FIG. 1

X 2

X 1

X 18

4 6

FIG. 1A

www.themdsports.com

1639634 5

(Continued on the next page.)

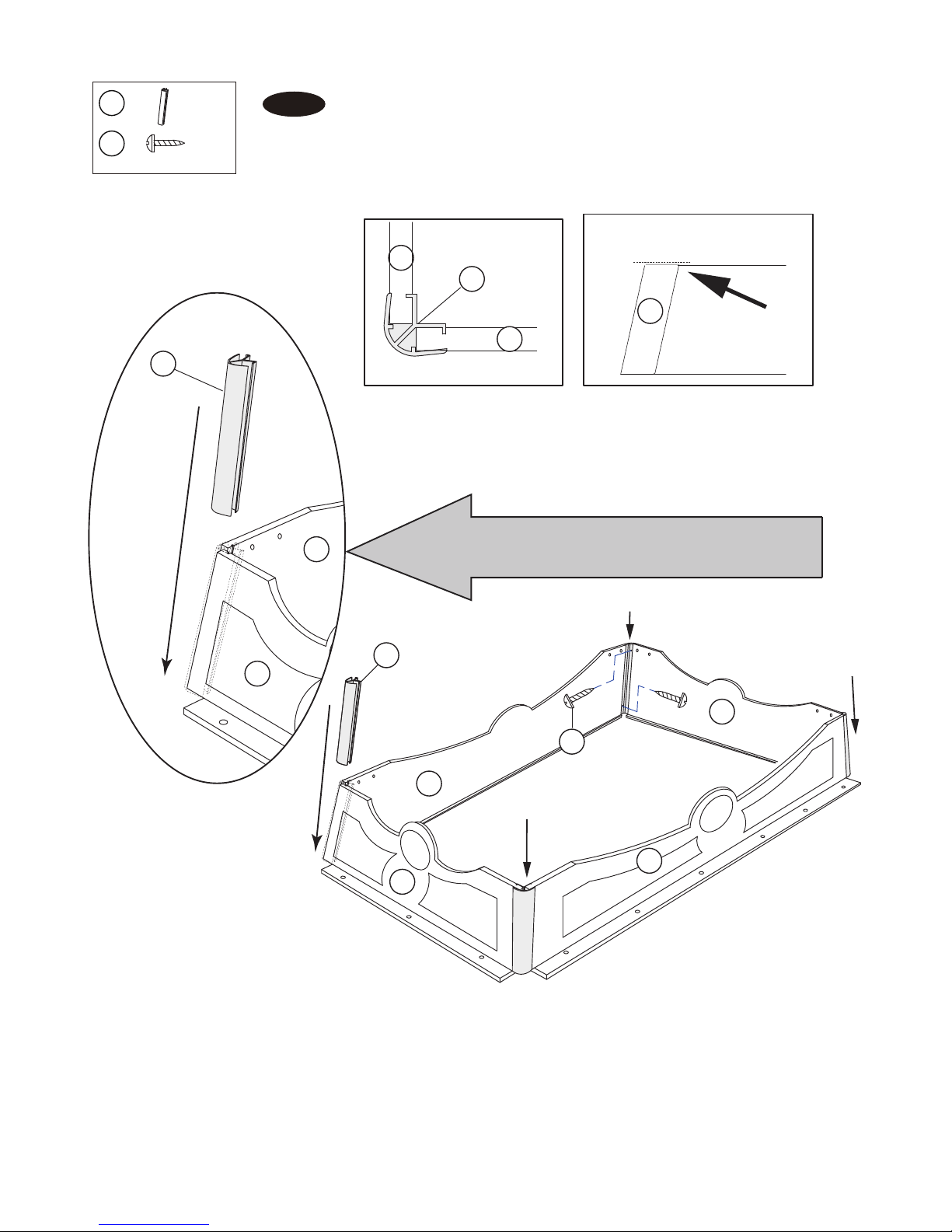

FIG.2

6. Align the Lower Side and End Aprons with Top Boards (pre-assembled, See FIG. 1) as shown in FIG. 2. Slide the

Apron Corners (#8) onto the Lower Side and End aprons (#5 and #7) and then attach it using two Screws (#26)

per Apron Corner.

FIG. 2

X 4

X 8

NOTE: Arrow on backside of corner brace shows direction to

slide corner brace down.

Top View: part #8 Side View: part #8

NOTE: Flush with Aprons

www.themdsports.com

1639634 6

(Continued on the next page.)

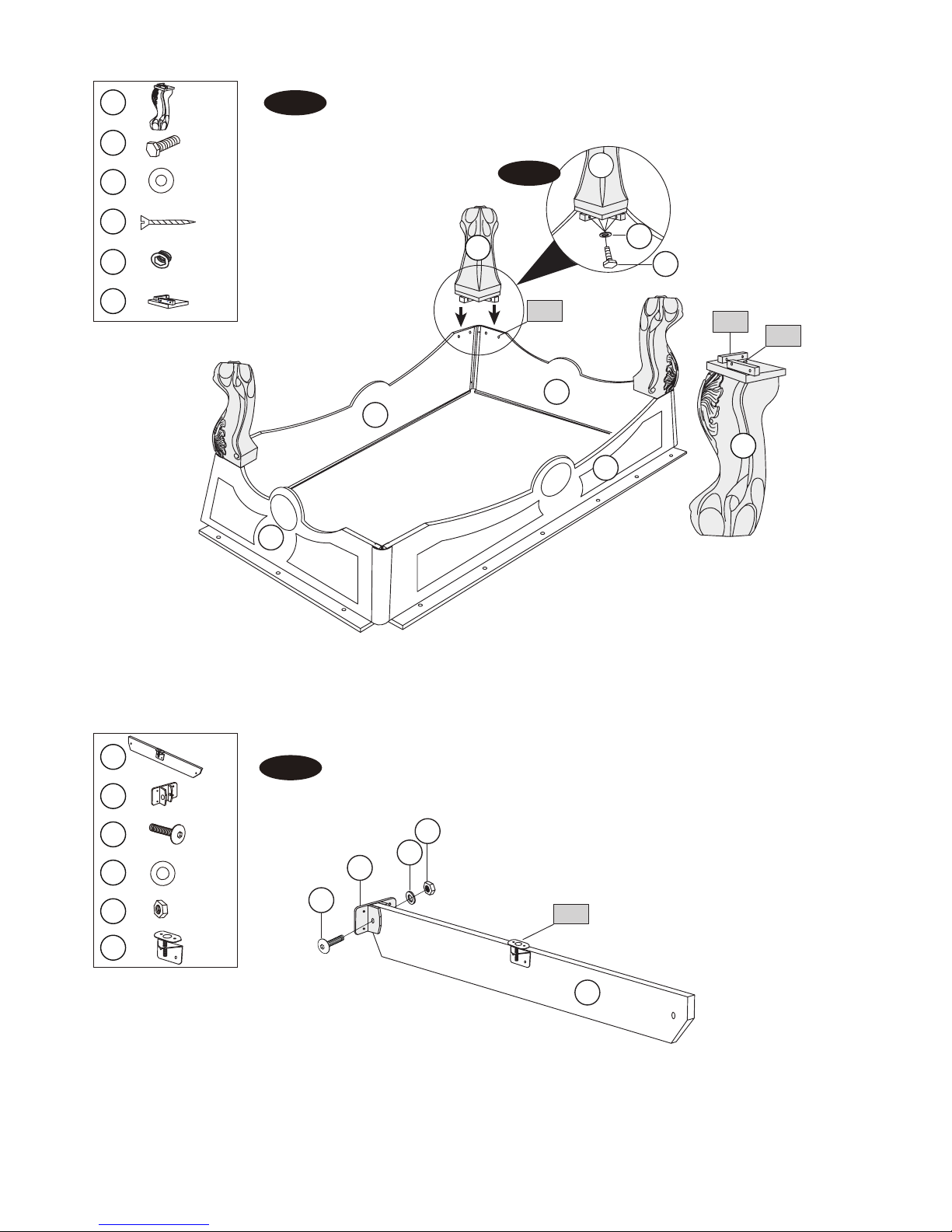

FIG.3

7. Attach the Legs (#2) to the Lower Side and End Aprons (#5 and #7) using four Bolts (#18) and four Washers (#19)

per Leg. See FIG. 3 and 3A.

FIG. 3

X 4

X 16

X 4

FIG.4

8. Attach the “U” Plastic Brackets (#14) to the Support Boards (#9) using one Bolt (#23), one Washer (#24) and one

Nut (#25) per “U” Plastic Bracket. See FIG. 4.

FIG. 4

X 2

X 4

X 2

P5 P6

FIG. 3A

www.themdsports.com

1639634 7

(Continued on the next page.)

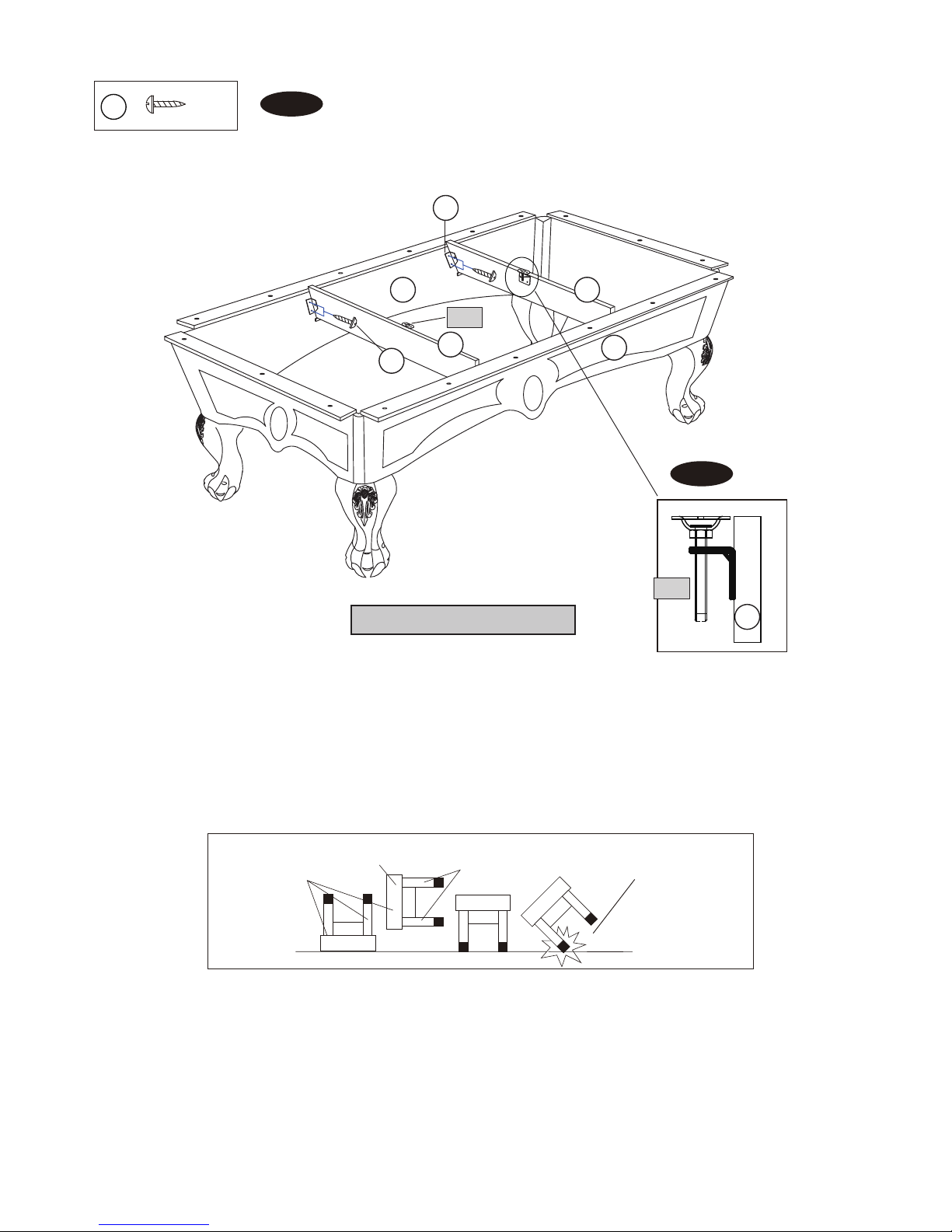

DO NOT LEAN THE

TABLE ON ITS LEGS

HOLD TABLE

HOLD TABLE DO NOT HOLD THE LEGS

CAUTION: Four strong adults are recommended to turn

the table over as shown.

1. Lift the table off of the ground.

2. Turn the table over.

3. Place it on all four feet at the same time on the ground.

FIG.5

9. Lift the Lower Aprons/Legs assembly (See FIG. 3) from the floor with four strong adults, turn it over, and set the

table on its legs in the location where you will play.

10. Place the Support Boards (#9) between the Lower Side Aprons (#5) as shown in FIG. 5. Attach the “U” Plastic

Brackets (#14) to the Lower Side Aprons (#5) using four Screws (#22) per “U” Plastic Bracket.

Please note the Adjustable “L” Brackets (P2) and the Support Boards (#9) must be parallel as shown

in FIG. 6A.

FIG. 5

X 16

Notice: Adjust the playfield level.

FIG. 5A

www.themdsports.com

1639634 8

(Continued on the next page.)

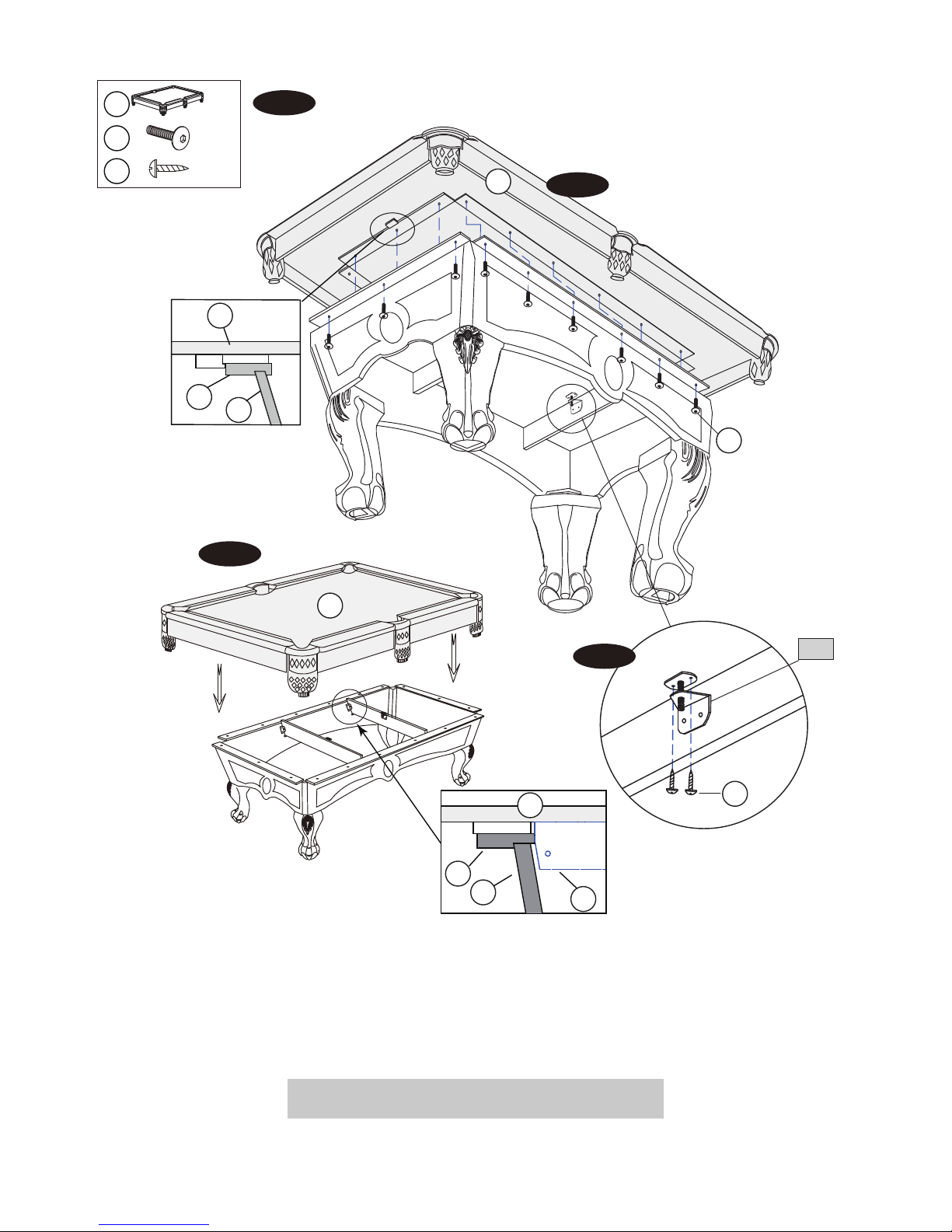

FIG.6

X 1

X 4

X 18

FIG.6

11. Place the Mainframe (#1) on the top of the pre-assembled Lower Table assembly (See FIG. 5). Underneath the

Mainframe (#1), assemble the Mainframe (#1) to the Side and End Top Boards (#4 and #6) using eighteen bolts

(#21). See FIG. 6A and 6B.

12. Attach the Adjustable "L" Brackets (#P2) to the backside of the Mainframe (#1) using two screws (#22) per

Adjustable "L" Bracket. See FIG. 6B.

Go back and make sure that all connections are tight.

FIG. 6A

FIG. 6C P2

FIG. 6B

www.themdsports.com

1639634 9

(The last page)

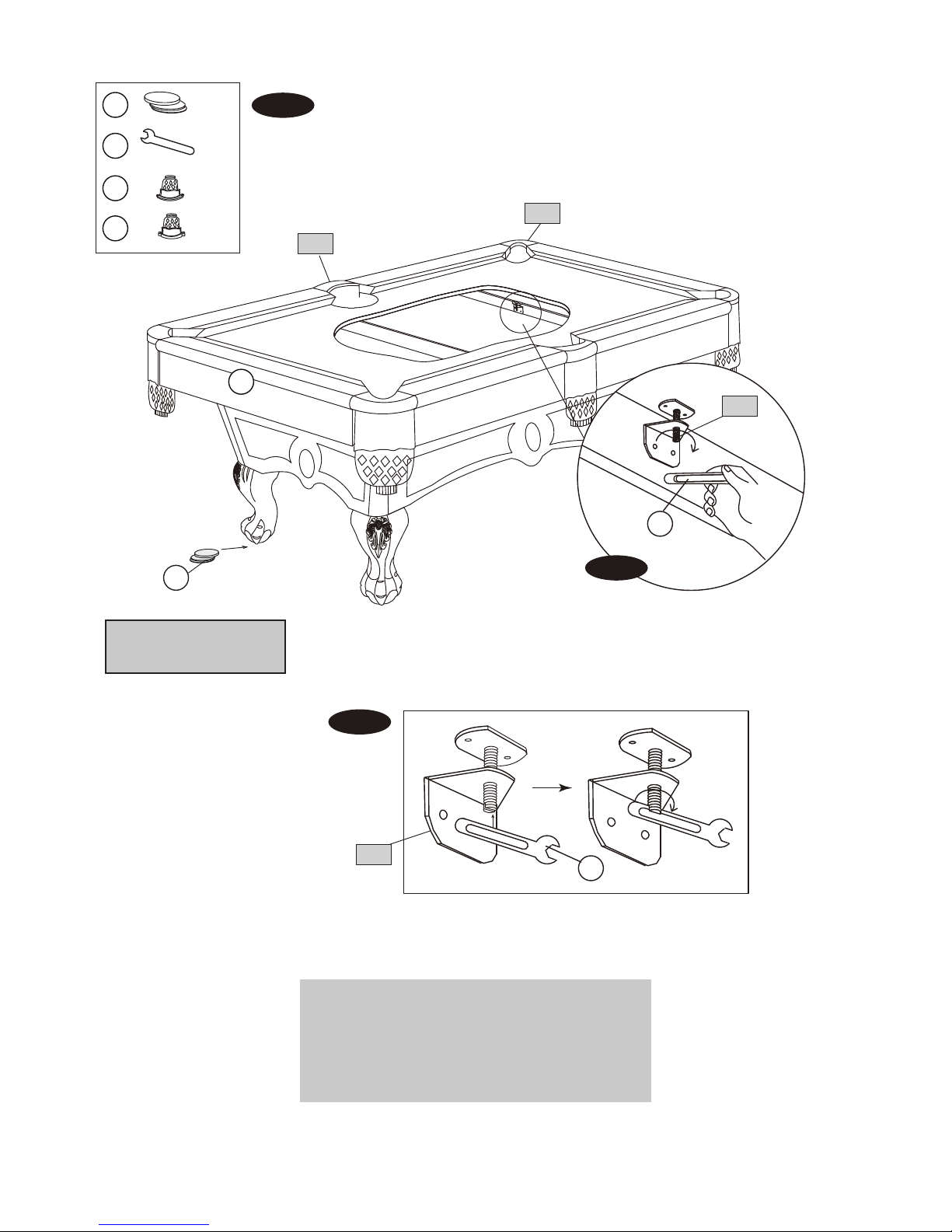

FIG.7

13. Under the Mainframe (#1), adjust the Adjustable "L" Brackets (#P2) in order to level the playfield of the

Mainframe (#1). See FIG. 7A and 7B.

FIG.7

Note: Utilize shims (#3) if

needed (as shown) to level

the table.

X 1

X 9

X 4

X 2

FIG. 7A

FIG. 7B

YOU ARE NOW READY TO PLAY!

NOTE: DO NOT lift the table by the pockets.

If you move the table, do not lift it by placing

your hands beneath the pockets and do not

lean or put pressure on them. Do not lean

or sit on the end or side rails as this may

damage the table.
