D/N 1080P60 IR IP Camera
D/N 1080P60 HD Auto Focus IR IP Camera
66-LSR8122CSM
Quick Installation Guide
ZHR8182
D/N 4K Ultra HD Auto Focus IR IP Camera
CAUTION
Do not drop or strike this equipment
Do not install the equipment near any naked flames or heat
sources
Do not expose this unit to rain, moisture, smoke or dust
environment
Do not cover the opening of the cabinet with cloth and plastic
or to install this unit in poor ventilated places. Allow 10cm
between this unit and its surroundings
Do not continue to operate the unit under abnormal conditions
such as detection of smoke, strange smell or no display on
screen while power is turned on
Do not touch the power connection with wet hands
Do not damage the power cord or leave it under pressure
Do not operate this unit near magnet, speaker system, etc., to
avoid unnecessary magnetic interference
Connection cables should be grounded properly
The ITE is to be connected only to PoE networks without
routing to the outside plant.
L’ITE ne doit être connecté que sur un réseau PoE sans
routage vers l’alimentation extérieure.
-1-
English

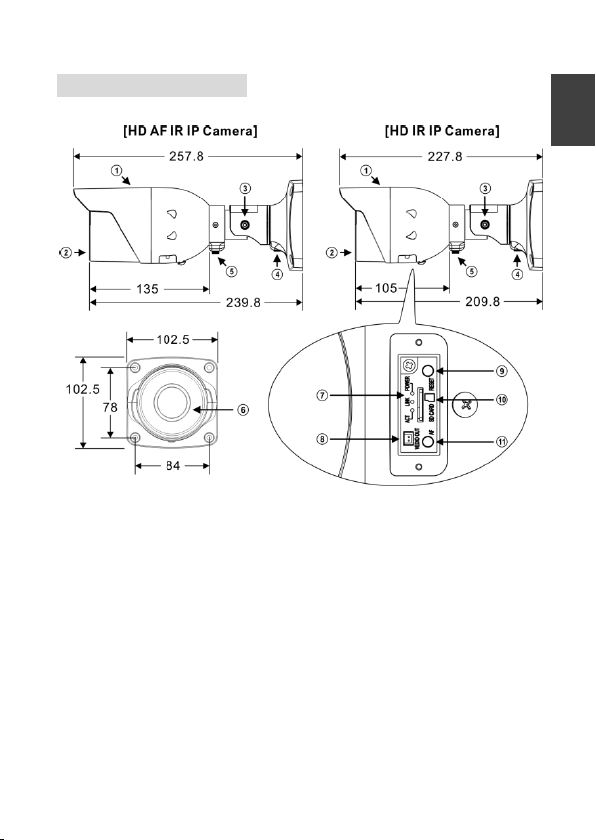

Product Overview
①Camera Body
②Window
③Adjustment Screw A
④Adjustment Screw B
⑤Adjustment Screw C
⑥Lens
⑦LED Indicators
Green (Power): Indicates system status.
Green (LINK): Illuminates when the camera is connected to a
network.
Orange (ACT): Flashes when data communication is in process.
Unit: mm
-2-
English
⑧Live Video Output
⑨Reset Key
Restores the camera back to factory default settings.
⑩Micro SD Card Slot
⑪AF Key [Auto Focus Model Only]
The IP camera will automatically adjusts the camera lens to
obtain focus after pressing the AF (Auto Focus) button
continuously for 2 seconds. User can adjust the image view by
using zoom in/out button via web access, and refocus using the
Auto-Focus link on the main Web page.
Installation
1. Remove the camera from the Box. Connect the Ethernet cable,
video cable, and power cable to the camera’s RJ-45 network
connector, video output connector respectively, and DC power-in
connector (FIG.1). Secure the camera to the wall (FIG.2).
Connect the RJ-45 network cable with a waterproof connector
-3-
English

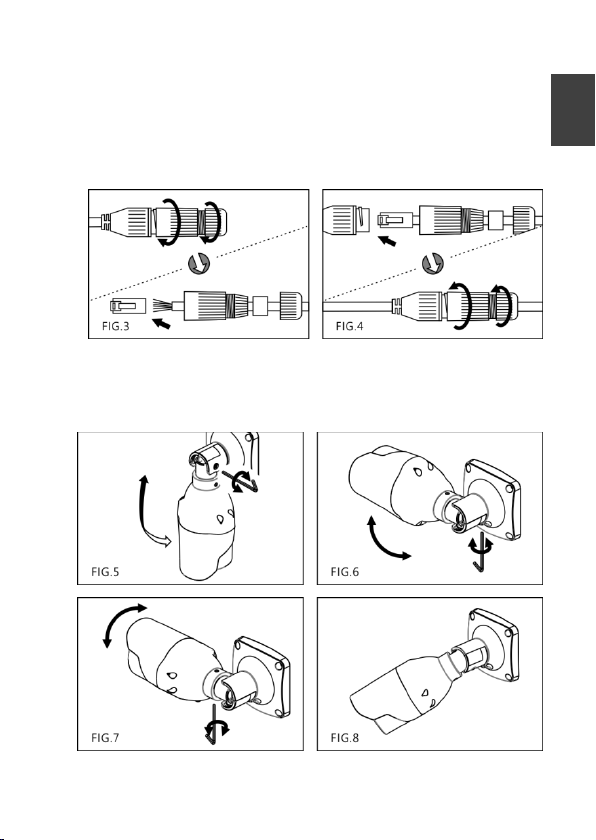

First, remove the waterproof connector and loosen the
waterproof nut. Insert the Ethernet cable and use a tool to
connect the RJ-45 connector (FIG.3). Connect the RJ-45
connector to the camera, and then secure the waterproof nut
after securing the waterproof connector (FIG.4).
2. Loosen the three adjustment screws on the bracket to change
the camera direction according to different needs. Be sure to
tighten the screws after the adjustment is completed (FIG.5–10).
-4-
English
Install the Camera with a Junction Box (Optional)
A. Choose a desired position for the junction box, and secure the
truss head screws enclosed in the box to the holes marked as
“a” (FIG.11 & 12) on the junction box.
B. Insert the Ethernet cable, video cable, and power cable
through the 1/2”PT tube (FIG.13), and rotate to secure the
tube to the holes on the lateral or bottom of the junction box
(FIG.14). The conjuction between the tube and the hole must
be airtight, and the opening of the hole must point downward.
-5-
English
C. Attach the safety cable to the hole at the bottom of the junction
box (FIG.15), and connect the Ethernet cable, video cable,
and power cable to the camera’s RJ-45 connector, video
output, and power input respectively (FIG.16). Please refer to
“1.” For more wiring instructions.
D. Use the screws (M5.0x12L) included in the box to secure the
camera to the junction box, and tighten the screws (FIG.17 &
18).
-6-
English
Change the Outlet Position for the Ethernet and Power
Cables
1. Loosen the threaded plug at the bottom of the junction box
and secure it to the lateral hole (FIG.19).
2. Insert the Ethernet cable, video cable, and power cable
through the opening at the bottom of the junction box
(FIG.20) and connect them to the camera’s RJ-45 connector,
video output, and power input respectively (refer to “1” for
more instructions on wiring).
System Architectures
For connecting HD IP cameras to the network, please follow one of
the system architectures:
(1). Use a DC12V power adapter and a network switch to connect to
the network.
