IPC0522
1080P HD Door Station IP Camera
66-IPC0522CSM
Quick Installation Guide
CAUTION
Do not drop or strike this equipment
Do not install the equipment near any naked flames or heat
sources
Do not expose this unit to rain, moisture, smoke or dust
environment
Do not cover the openin of the cabinet with cloth and plastic
or to install this unit in poor ventilated places. Allow 10cm
between this unit and its surroundin s
Do not continue to operate the unit under abnormal conditions
such as detection of smoke, stran e smell or no display on
screen while power is turned on
Do not touch the power connection with wet hands
Do not dama e the power cord or leave it under pressure
Do not operate this unit near ma net, speaker system, etc., to
avoid unnecessary ma netic interference
Connection cables should be rounded properly
The ITE is to be connected only to PoE networks without
routing to the outside plant.
L’ITE ne doit être connecté que sur un réseau PoE sans
routage vers l’ali entation extérieure.
-1-
English
Product Overview
①
Front cover
②
Main body
③ Rear housin
④ Lens
⑤ IR LED
⑥ Microphone
⑦ Li ht sensor
⑧ PIR
⑨ White LED
⑩ Speaker
⑪
Doorbell button
Unit: mm
-2-
English
Installation
1. Loosen the screws and open the front metal cover with a torx
wrench (FIG.1). Then, detach the main plastic body from the rear
housin usin a Philips screwdriver (FIG.2).
2. Drill holes on the wall accordin to the mountin position sticker
(FIG.3).
Note: a 6.3mm (1/4”) drill bit is recommended.
3. Insert an RJ-45 network cable and a DC12V power cable throu h
the rear housin (FIG.4). Secure the rear housin to any desired
position by ti htenin 4 screws on the rear bracket of the
housin (FIG.5).
-3-
English
4. Connect the RJ-45 network connector and DC12V power input
terminal separately (FIG.6). Then ensure the main plastic body
and the rear housin are ali ned and assembled properly before
securin the screws (FIG.7).
5. Close the front metal cover, and ti hten the two screws to secure
the device (FIG.8).
-4-
English
System Overview
Descriptions of input/output devices
①
Micro SD Card Slot
②
Reset Key
③
Wi-Fi Setup Button (Wi-Fi Model Only)
1.Press and hold the button for 2–5 seconds to enter the QR
Scan Mode.
2.Press and hold the button for more than 6 seconds to enable
the AP mode.
④
Wi-Fi Antenna Plu (Wi-Fi Model Only)
⑤
Video Output Connector
⑥
Alarm In/Out and RS-485 Terminal
⑦
DC12V Power Input terminal (DC12V±10%)
⑧
RJ-45 Network Connector
⑨
Tamper Alarm Switch
-5-
English
System Architectures
To connect the HD Door Station to the network, please deploy one
of the followin system architectures:
(1). Use a DC12V power adapter and a network switch to connect to
the network.
(2). Use a PoE network switch to connect to the network.
(3). Use a PoE power injector and a network switch to connect to
the network.
HD Door Station
HD Door Station
HD Door Station
-6-
English
Emergency Factory Default
To restore the hardware to factory default settin s, please follow
these steps:
1.Press and hold “RESET Key” for 10 seconds and release.
2.Wait for about 40 seconds, and the network LED li ht should turn
off, and o back on a ain.
3.The camera is now restored to factory default settin s, and will
reboot automatically.
4.Search for the IP device usin the IPScan software.
5.Start the IP device via an Internet browser.
6.Enter the default username “admin” and password “pass” to
operate.
NOTE: For your convenience, the IP address will revert to the default
settin of 192.168.0.200.
Before Accessing IP Cameras
Before accessin the IP camera, make sure that the camera’s RJ-45
network, audio, and power cables are properly connected. To set the
IP address, consult your network administrator for an available IP
address. The default IP address for each IP camera is 192.168.0.200.
Users can use the default IP address for verifyin the camera’s
network connection.
Software Requirements

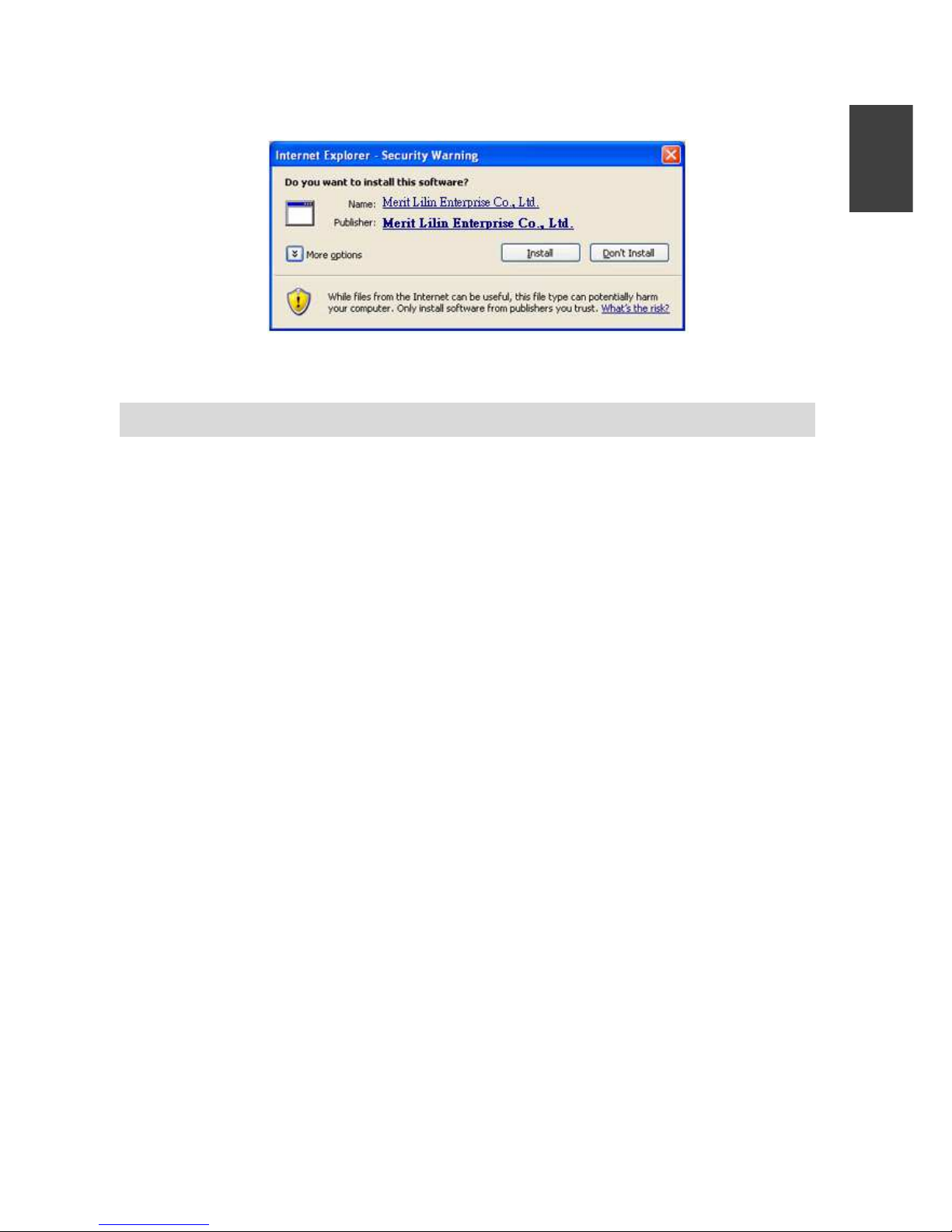

Merit LILIN Universal ActiveX software components are required for
web interface display of JPEG or H.264 Full HD video. When you
lo in to the IP camera by Internet Explorer, the security warnin
dialo box will prompt the installation of the LILIN Universal ActiveX.
Click Install to download it.
-7-
English
Configuring IP Addresses with IPScan Software
To confi ure an IP address usin the IP scan tool, you can copy the
IPScan software from the installation CD, and paste to your
computer. Alternatively, you can execute the IPScan software from
the installation CD, or download the software from the Merit LILIN
website (www.meritlilin.com). To chan e the settin s of the IP
address, subnet mask, ateway, or HTTP port, you can follow the
steps below:
1. Run the IPScan software.
2. Click Refresh. All available devices should be listed in the device
list.
3. Select your device from the list provided.
4. Chan e the IP address, subnet mask, ateway, or HTTP port for
the IP camera.
5. Click Apply to submit the settin s.
6. Click Refresh to verify the settin s.
-8-
English
Configuring IP Addresses via Web Interface
To chan e an IP address via web interface, type the default IP
address (192.168.0.200) in the Internet browser and follow the steps
below:
1. Lo in to the H.264 Full HD IP camera by the default username
“admin” and default password “pass”
2. Click Basic Mode confi uration hyperlink.
3. Click Network->General hyperlink.
4. Chan e the IP address, subnet mask, ateway, or HTTP port for
the IP camera.
5. Click Sub it to verify the settin s.
Internet Browser Settings & Application Required
Make sure your Internet browser allows the si ned ActiveX plu -in
to work on your computer. Set “Download Si ned ActiveX plu -in
controls” to “Prompt” and “Run ActiveX control and plu -in” to
“Enable”. You can set this option via Internet Explorer-> Tools->
Options-> Security Settin s.
