MR6422X/6422AX/6442X/6442AX
SR6422X
MR6322/6322A/6342/6342A
D/N 2MP(4MP) HD Vari-Focal Dome IR IP Camera
D/N 1080P60 HD Vari-Focal Dome IR IP Camera
D/N 2MP(4MP) HD Dome IR IP Camera
66-MR6322CSM
Quick Installation Guide
CAUTION
Do not drop or strike this equipment
Do not install the equipment near any naked flames or heat
sources
Do not expose this unit to rain, moisture, smoke or dust
Do not cover the opening of the cabinet with cloth and plastic
or to install this unit in poorly ventilated places. Allow 10cm
between this unit and its surroundings
Do not continue to operate the unit under abnormal conditions
such as detection of smoke, strange smell or malfunctioned
screen while power is on
Do not touch the power connection with wet hands
Do not damage the power cord or leave it under pressure
Do not operate this unit near magnet, speaker system, etc., to
avoid magnetic interference
Connection cables should be grounded properly
The ITE is to be connected only to PoE networks without
routing to the outside plant.
L’ITE ne doit être connecté que sur un réseau PoE sans routage
vers l’alimentation extérieure.
-1-
English
Product Overview
①Bottom bracket
②Upper cover
③Transparent cover
④Lens
⑤RJ-45 Ethernet connector (supports PoE)
⑥Power jack (DC12V ±10%)
⑦Audio in/out terminal (available only for A & AX suffixes)
⑧Alarm in/out terminal (available only for A & AX suffixes)
⑨Micro SD card slot
⑩Factory default button
Unit: mm
-2-
English
Installation
1. Retrieve the camera and remove the bottom bracket from the
upper cover with a hex key (FIG.1).
2. Use the included screws (M4.0x25) through the holes marked as
“a,” and fix the camera in the desired location (FIG.2 & FIG.3).
-3-
English

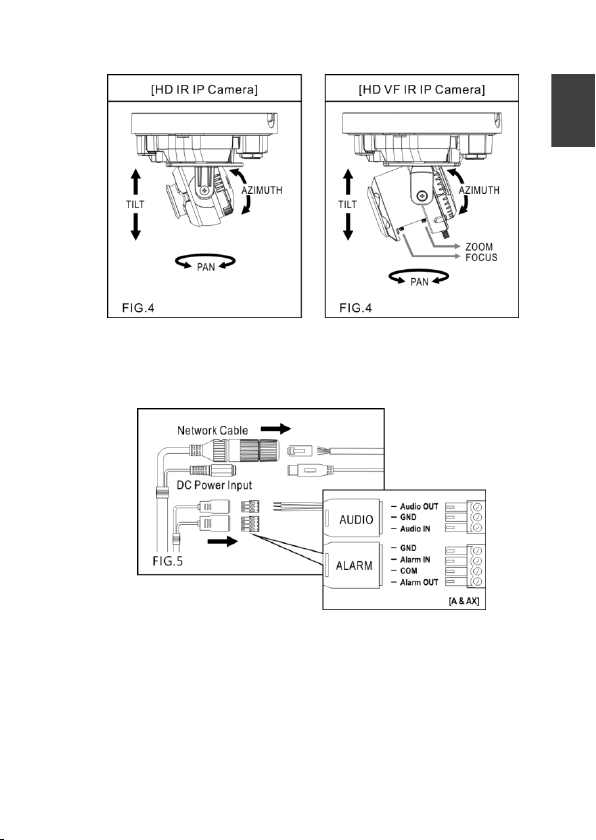

3. Adjust the pan, tilt, and azimuth of the camera to the desired
location (FIG.4).
Adjust the zoom and focus for the best image, and tighten the
screws after the adjustment for manual varifocal models (FIG.4).
-4-
English
4. Attach the Ethernet and power cables to the RJ-45 connector and
the DC-in connector, respectively (FIG.5).

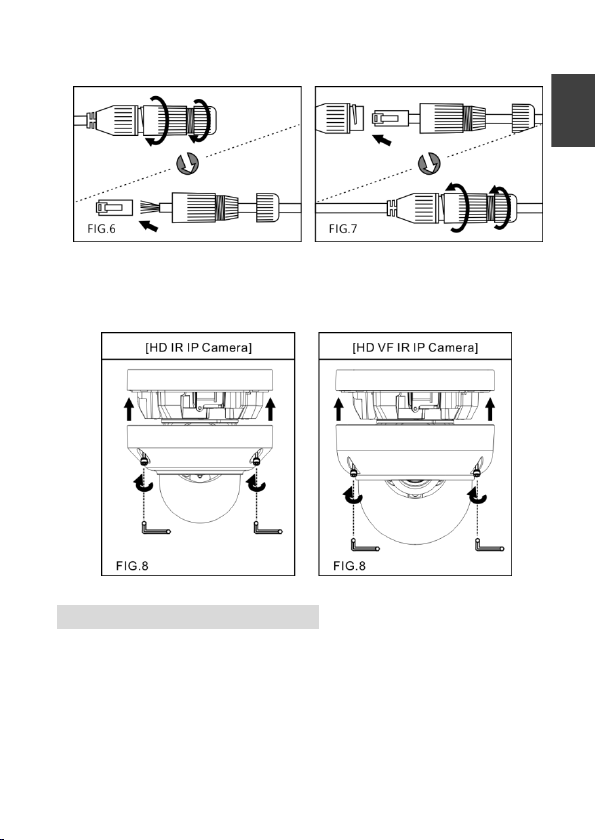

Connect the RJ-45 Ethernet cable with a waterproof connector
First, remove the waterproof connector and unscrew the
waterproof nut. Insert the Ethernet cable and connect to the
RJ-45 connector with proper tools (FIG.6). Then, tighten the
waterproof connector and nut before the RJ-45 connector is
connected to the camera (FIG.7).
-5-
English
5. Secure the upper cover to the bottom bracket with a hex key
(FIG.8).
Wall Mount IR Adjustment [for HD VF IR IP cameras]
When wall mounting the Varifocal Dome IR Camera, remember to
adjust the infrared beam (FIG.9).
-6-
English
System Architectures
To connect HD IP cameras to the network, please follow one of the
system architectures:
(1). Use a DC12V power adapter and a network switch to connect to
the network.
(2). Use a PoE network switch to connect to the network.
(3). Use a PoE power injector and a network switch to connect to
the network.
DC12V Power Supply
-7-
English
Emergency Factory Default
To restore the hardware to factory default settings, please follow
these steps:
1.Press and hold “RESET Key” for 10 seconds and release.
2.Wait for about 40 seconds, and the network LED light should turn
off, and go back on again.
3.The camera is now restored to factory default settings, and will
reboot automatically.
4.Search for the IP device using the IPScan software.
5.Start the IP device via an Internet browser.
6.Enter the default username “admin” and password “pass” to
operate.
NOTE: For your convenience, the IP address will revert to the default
setting of 192.168.0.200.
Before Accessing IP Cameras
Before accessing the IP camera, make sure that the camera’s RJ-45
network, audio, and power cables are properly connected. To set the
IP address, consult your network administrator for an available IP
address. The default IP address for eachIP camera is 192.168.0.200.
Users can use the default IP address for verifying the camera’s
network connection.
Software Requirements
Merit LILIN Universal ActiveX software components are required for
web interface display of MJPEG or H.264 Full HD video. When you
log in to the IP camera using Internet Explorer, a security warning
dialog box will prompt the installation of the LILIN Universal ActiveX.
Click Install to download and install the required software.
-8-
English
Configuring IP Addresses with IPScan Software
To configure an IP address using the IP scan tool, you can copy the
IPScan software from the installation CD, and paste to your computer.
Alternatively, you can execute the IPScan software from the
installation CD, or download the software from the Merit LILIN
website (www.meritlilin.com). To change the settings of the IP
address, subnet mask, gateway, or HTTP port, you can follow the
steps below:
1. Run the IPScan software.
2. Click Refresh. All available devices should be listed in the
device list.
3. Select your device from the list provided.
4. Change the IP address, subnet mask, gateway, or HTTP port for
the IP camera.
5. Click Apply to submit the settings.
6. Click Refresh to verify the settings.
