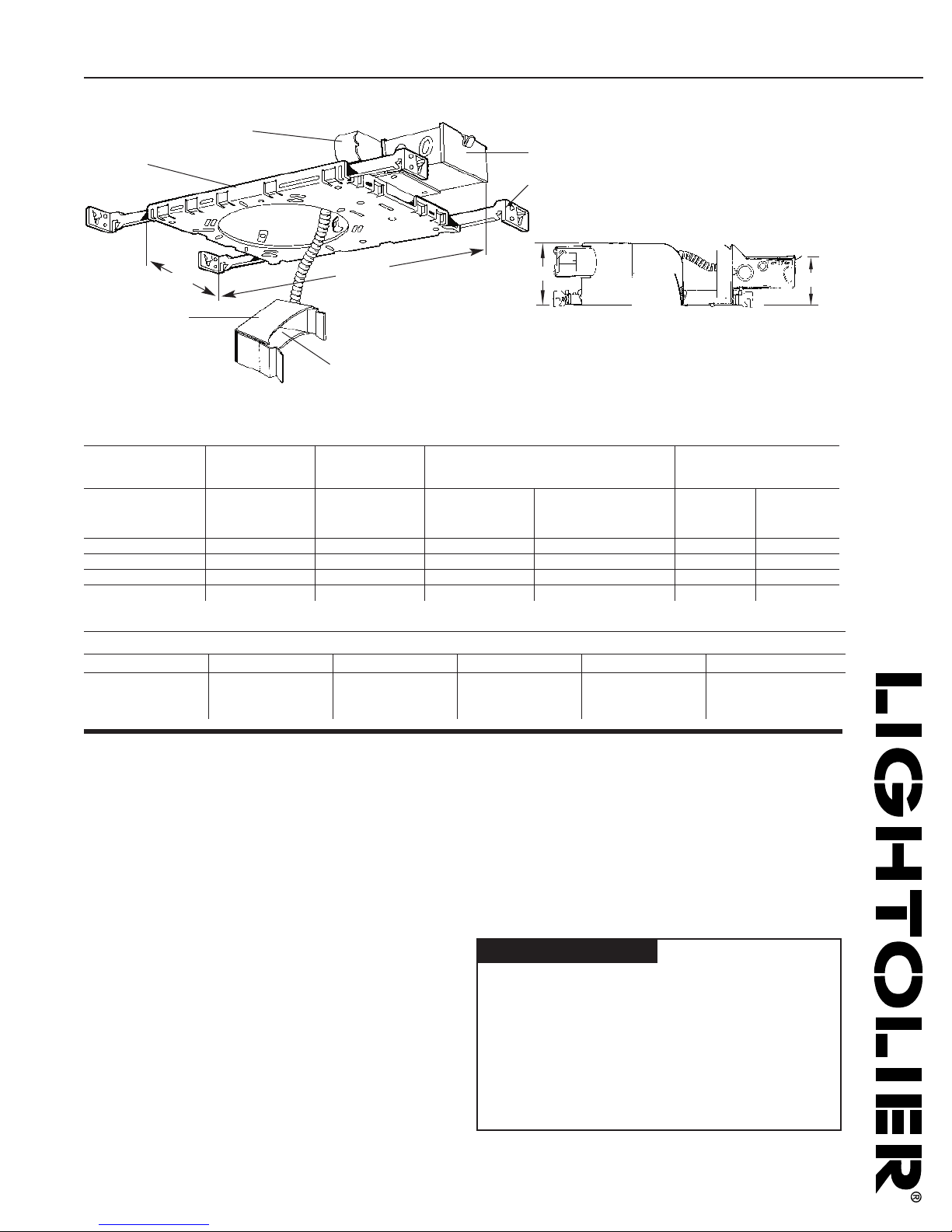

Lytecaster®Recessed Downlighting 1102T

Page 1 of 1 Fluorescent Frame-In Kit 6 3/ ” Aperture Low Profile 2 Lt.

Features

1. Mounting Frame: #20 ga. galvanized steel. Accommodates ceiling up to 1”

thick. Push-in/twist-out rotoclips hold reflector flush to ceiling.

2. Junction Box: #1 ga. galvanized steel. Rated for 8 #12 AWM through

branch circuit wires suitable for 90° C, for end of run 75° C. Quick release

“L” shaped cover for access to wiring. Integral cable clamps permit attach-

ment of non-metallic Romex®or armored cable without the need for separate

connectors.

3. Mounting Bars: Die-formed steel, 16 ga. Four bars, 13” long, extend to

27”, permit off-center mounting; bars rotate 90° and lock in both directions;

integral nailer for wood joists, locking tabs for T-bar runners.

4. Socket Housing: 22 ga. galvanized spring steel; snap-in quick assembly for

precise lamp location.

5. Socket: Molded thermoplastic; prewired with #18 AWM leads to ” X 3

1/2” X 2” junction box.

6. Thermally Protected Ballast: Single 2 lamp magnetic or universal voltage

electronic, Class-P Rated. Insulation must be kept 3” away from fixture sides

and wiring compartment and must not be placed above fixture as to entrap

heat.

Options and Accessories

Plaster Ceiling Ring: 1961 - 7/8” depth for wet plaster ceiling.

Remodeler Anchor Clip: 1985S

Labels

UL (Suitable for Damp Locations), I.B.E.W.

2

3

5

1

4

15 11/16”

9”

6

3 13/16”

3 7/8”

Ceiling Opening

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit Ballast Voltage Lamp Type Electrical

Input Wattage Input Current

1102T1 NPF Magnetic 120V 2 Pin (Gx23) 13W Twin Tube 35W .600A

1102TH1 HPF Magnetic 120V 2 Pin (Gx23) 13W Twin Tube 32W .280A

1102TH2 HPF Magnetic 277V 2 Pin (Gx23) 13W Twin Tube 32W .160A

1102TH1R (Remodel)* HPF Magnetic 120V 2 Pin (Gx23) 13W Twin Tube 31W .280A

1102T13U HPF Electronic 120V/277V 4 Pin (G24q-1) 13W Quad Tube 33W .28/.12A

1102T18U HPF Electronic 120V/277V 4 Pin (G24q-2) 18W Quad Tube 40W .34/.15A

1102T26U HPF Electronic 120V/277V 4 Pin (G24q-3) 26W Quad Tube 56W .47/.21A

Reflector Trims See Individual Reflector Trim Specification Sheets

Alzak® Cone Step Baffle Cross Blade Fresnel Lens Enclosed Diffuser Wall Washer

1113TGD 1105T 1132T 1126T 1128T 1135T

1113TCL 1105TWH 1178T 1135TWH

Romex®is a registered trademark of General Cable Industries Inc.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 67 - 710

We reserve the right to change details of design, materials and finish.

© 2011 Genlyte Group LLC • C0711
