Lightolier CCLRD01 Mode d’emploi

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Architectural Decorative IS:CCLRD01

Page 1 of 3 Instruction Sheet for Assembly and Installation

Read and understand these instructions before installing luminaire

This luminaire control is intended for installation in accordance with the National Electrical Code and local regulations. To assure full compliance with local codes

and regulations, check with your local electrical inspector before installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

Introduction

Color rotary dial control is a digital lighting controller that features eight

pre-programmed effects, plus OFF. Effect selection and modification is

easy with the rotary knob. Push to cycle through the effects and turn to

vary the color or speed. Color rotary dial control is packaged in an easy to

use, wall-mount assembly.

Included in this box:

Color Rotary Dial Control

Knob

Note: Face Plate (supplied by others)

Fig. 1

• Color rotary dial control assembly

• Knob

• (2) 6-32 Phillips flat head screws

Additional items needed:

• Single or multi gang wall box

• CAT 5 data cable, unshielded twisted pair, flying lead/RJ-45

• 18 AWG power cable with flying leads or 18 AWG power cable with

BNC connector and coupling. Refer to the wiring diagrams to deter-

mine your installation requirement.

• Face Plate

Identification and Warnings of Safety Hazards

In accordance with ANSI Z535.4 the following system of identifying the

severity of the hazards associated with the products is used:

“Danger” Imminently hazardous situation which, if not avoided, will

result in death or serious injury.

“Warning” Potentially hazardous situation that, if not avoided, could

result in death or serious injury.

“Caution” Potentially hazardous situation that, if not avoided, may

result in minor or moderate injury or property damage.

Warning: Ensure that main power supply is off before installing, wiring,

or servicing the color rotary dial control. Failure to adhere to these

instructions can result in death or serious injury.

Warning: The color rotary dial control must be installed by a qualified

professional in accordance with NEC and relevant local codes. Failure to

comply can result in death, serious injury, or property damage.

Warning: Do not attempt to install or use the color rotary dial control

until you read and understand the installation instructions and safety

labels. Failure to adhere to these instructions could result in serious injury

or property damage.

Caution: Do not modify or alter the color rotary dial control. Doing so will

void the warranty.

Caution: Color rotary dial control has no user serviceable parts. Do not

open. Doing so will void the warranty.

Owner/User Responsibilities

It is the responsibility of the contractor, installer, purchaser, owner, and

user to install, maintain, and operate the color rotary dial control in such

a manner as to comply with all state and local laws, ordinances, regula-

tions, and the American National Standard Institute Safety Code.

Architectural Decorative IS:CCLRD01

Page 2 of 3 Instruction Sheet for Assembly and Installation

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Installation

The color rotary dial control shall be installed by a qualified electrician in

accordance with NEC and relevant local codes for power supplies with

Class 2 outputs.

Data +

Ground

+24 VDC

Data -

Mode Selection

ON: Enabled OFF: Disabled

Mounting Holes

WARNING: Ensure that power is off before installing the color rotary dial control.

Enable/Disable

DIP Switches

Fig. 2

Five-position

Terminal Block

Color Rotary Dial Control Back

Data +

Ground

Shield

+24 VDC

Data -

Modes:

1. Fixed color

2. Color wash

3. Rainbow (4)

4. Rainbow (8)

5. Rainbow (12)

6. Random

7. Random fade

8. White

Mode Selection

ON: Enabled OFF: Disabled

Wiring the color rotary dial control (refer to Fig. 3 wiring diagram)

1. Using the 18 AWG power cable, connect 24 VDC and ground from

power supply to the screw terminal located on the back of the color

rotary dial control.

2. Using the CAT 5 data cable, connect data from the color rotary dial

control power/data supply to the screw terminal located on the back

of the color rotary dial control.

To Disable Effects:

When you receive your color rotary dial control, eight light effects are

preprogrammed and enabled. If you wish to limit the number of effects in

the cycle, or if you know of effects that you will not use, you can disable

the them prior to physically installing the color rotary dial control into the

wall box.

• To disable an effect, set its corresponding dip switch to OFF.

1. Fixed Color

2. Color Wash

3. Chasing Rainbow (4 lights wide)

4. Chasing Rainbow (8 lights wide)

5. Chasing Rainbow (12 lights wide)

6. Random Color

7. Random Fade

8. White

Note: Keep in mind that any effects you disable prior to installation can

only be re-enabled by physically removing the color rotary dial control

from the wall box and turning on the appropriate switch.

Mounting the color rotary dial control:

Now that you have wired the color rotary dial control, and disabled/

enabled the desired effects, you are ready to mount it.

1. Using screws provided, align the mounting holes to a one gang wall

box, or a single area of a multi gang wall box, and attach.

2. Attach face plate.

3. Attach knob by aligning the collar with the rotation shaft and press.

Operating color rotary dial control

Using the color rotary dial control is as simple as pressing and turning.

Press the dial to cycle through the eight effect modes and OFF.

Turn the dial to vary the effects.

In Fixed Color mode, turning the dial changes the color. While in White

mode, turning the dial changes the intensity. In all other modes, turning

the dial adjusts the speed. Color rotary dial control remembers your set-

tings and recalls them each time you return to the effect.

Turn the dial clockwise to increase, and counter-clockwise to decrease,

the speed. The first three revolutions of the dial varies the speed between

approximately 1/2 second to about 2 minutes. After which, each click of

the dial doubles the speed clock-wise or decreases by half counter-clock-

wise. When in this range, the lights snap to a new color with each click

for visual confirmation of changes.

Note: In Chasing Rainbow, the speed of a single pass through the color

spectrum ranges from 1/2 second to 5 hours. After the third rotation of

the dial, the speed is reduced to the point that color changes are not

immediately visible.

The color rotary dial control outputs data for light addresses 1 through 60.

After the first 12 addresses, the data is repeated. For installations with

more than 12 lights you can either sequentially address the lights past 12,

up to 60, or repeat the addresses starting from 1. The effects will appear

the same. Below is an example of light addressing with 24 lights.

1 2 4 11 12 13 14 21 22 23 24

1 2 4 11 12 1 2 9 10 11 12

... ...

Sequential Addressing

Repeat Addressing

Architectural Decorative IS:CCLRD01

Page 3 of 3 Instruction Sheet for Assembly and Installation

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A Glossary of Terms

Color Factors: The impact of light source colors is determined by the

combination of three factors: hue, saturation, and luminance. Hue indi-

cates whether a color looks red, orange, yellow, green, blue, violet, etc.

Saturation represents how pure a color is, and luminance (brightness)

identifies how strong the color is.

Fixed Color: Fixed Color Effect is a static display of one color.

Color Wash: A Color Wash Effect produces a smooth transition in hue,

progressing through the visible color spectrum: red, orange, yellow, green,

blue, indigo, violet.

Cycle Direction: The sequence in which colors move through the spec-

trum: red, orange, yellow, green, blue, indigo, violet.

Chasing Rainbow: Chasing Rainbow makes a smooth transition from

color to color through the color spectrum. When applied to a group of

lights the colors appear to follow each other from light to light.

Random Color: Random Color Effect is an abrupt transition of 128 ran-

domly generated colors at specified intervals. Colors jump from one hue

to the next in spectrum increments of at least 25% so no two succes-

sive colors have similar values.

Random Fade: Random Color Fade is a smooth transition of 128 ran-

domly generated colors at specified intervals. Colors jump from one hue

to the next in spectrum increments of at least 25% so no two succes-

sive colors have similar values.

Speed: Determines the duration of an Effect. In Color Wash, Speed is

defined as the amount of time which elapses between the initial display

of the Starting Color in cycle one, and its next display which begins cycle

two. In Cross Fade, Speed is defined as the amount of time which elapses

between the initial display of the Starting Color to the display of the

Ending Color and back again (round trip). In Random Color, Speed is

defined as the amount of time a color is displayed before it jumps to the

next color. In Variable Color Strobe, speed determines how fast the colors

advance around the spectrum which in turn affects what color will be

flashed at each strobe.

Stand-Alone: (built-in or on board) Refers to a method of Control. Stand

Alone means that the unit is controlled by the built-in microprocessor,

thus utilizing on-board Effects. Stand Alone differs from Networked in that

the unit is controlling itself versus taking direction from an external source

such as a DMX512 controller.

CCLPS602P

BACK VIEW

CORRECT WRONG

SHIELD (GRN/WHT)

DATA - (ORN/WHT)

DATA + (ORN)

+24 VDC (RED)

GROUND (BLK)

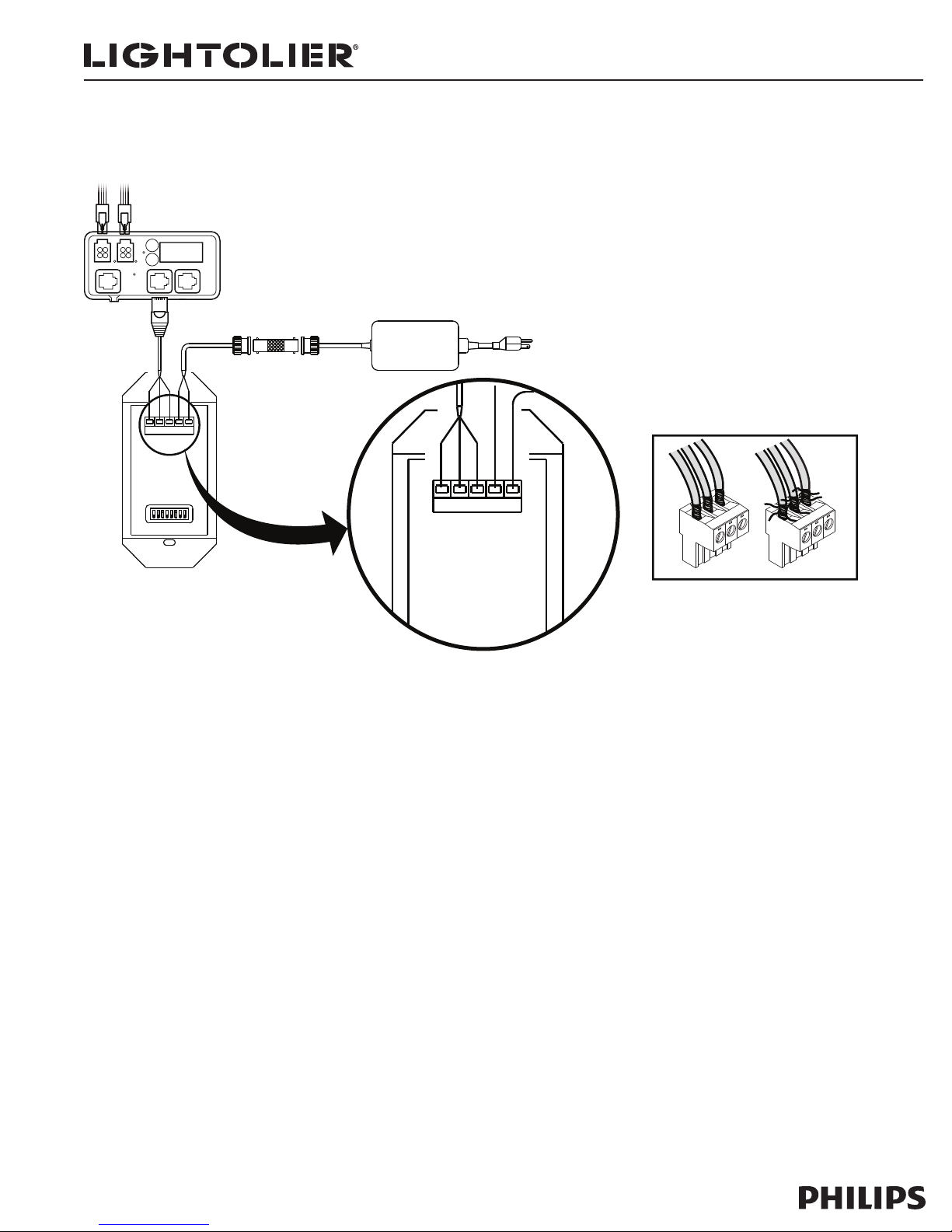

Installation Using RJ45 Connector

CCLPS602P

Front View

100-240VAC (1A)

CCLRDPS60

PWR SUPPLY

F-F PWR

COUPLER

To Luminaires

OUT 1

OUT 2

ENET IN

DMX IN

DMX OUT

DMX IN DMX OUT

Fig. 3

Table des matières

Autres manuels Lightolier Luminaire

Lightolier

Lightolier Lytecaster 1182 Manuel utilisateur

Lightolier

Lightolier CORD AND PLUG CONNECTOR Instructions d'utilisation

Lightolier

Lightolier STEM KIT Manuel utilisateur

Lightolier

Lightolier ProSpec 28B70E Manuel utilisateur

Lightolier

Lightolier Decorative Arco 4839 Manuel utilisateur

Lightolier

Lightolier AGO Manuel utilisateur

Lightolier

Lightolier Lytecaster 604MR Manuel utilisateur

Lightolier

Lightolier Lytecaster 322X Manuel utilisateur

Lightolier

Lightolier Calculite Evolution Non-IC Airseal C3ALV Manuel utilisateur

Lightolier

Lightolier SC Series Manuel utilisateur

Lightolier

Lightolier VR PARABOLIC VRA2G16LV2FT Manuel utilisateur

Lightolier

Lightolier Lytecaster 2000 series Manuel utilisateur

Lightolier

Lightolier ProSpec PA1A1175 Manuel utilisateur

Lightolier

Lightolier Calculite ProSpec PA3A7050 Manuel utilisateur

Lightolier

Lightolier Calculite ProSpec PA3A1175 Manuel utilisateur

Lightolier

Lightolier Calculite ProSpec PB4H3039 Manuel utilisateur

Lightolier

Lightolier D13 Manuel utilisateur

Lightolier

Lightolier H9S2GLR214 Manuel utilisateur

Lightolier

Lightolier Lytespan 9170 Manuel utilisateur

Lightolier

Lightolier Lytecel 6 LIA6GPNXR154 Manuel utilisateur

Lightolier

Lightolier Lytecaster 1000P1 Manuel utilisateur

Lightolier

Lightolier 1104F2632ES Manuel utilisateur

Lightolier

Lightolier SOF-TECH Instructions d'utilisation

Lightolier

Lightolier C4AICLV Manuel utilisateur

Manuels Luminaire populaires d'autres marques

Emos

Emos CLASSIC ZY1431T Manuel utilisateur

Westinghouse

Westinghouse Outdoor Lighting Fixture Manuel utilisateur

Hedler

Hedler C 12 silent Manuel utilisateur

Blizzard Lighting

Blizzard Lighting Puck: CSI Manuel utilisateur

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manuel utilisateur

Lightmaxx

Lightmaxx Shaft 5R Manuel utilisateur

Triarch

Triarch 31083 Manuel utilisateur

Philips

Philips 32614 Series Manuel utilisateur

IKEA

IKEA TIVED Manuel utilisateur

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manuel utilisateur

Martin

Martin MAC 250 Krypton Manuel utilisateur

Cooper Lighting

Cooper Lighting Halo L3232E Manuel utilisateur

Stageline

Stageline ODW-2410RGBW Manuel utilisateur

Light Sky

Light Sky Tornado Series Manuel utilisateur

ArtFox

ArtFox Beam 15R extreme Manuel utilisateur

GLG

GLG multispot 330 Manuel utilisateur

Home Accents Holiday

Home Accents Holiday TY052-1924-1 Manuel utilisateur

SELF Electronics

SELF Electronics FLEX Manuel utilisateur
