Flanged Trimless

24"L x 6"W Opening

39 1/2"L x 10"W

6" OC 6" OC 6" OC

8 3/4"

Depth

1 3/4"

42 1/4"

13"

8"9

111 2

Top View

Calculite®ProSpec®Linear Downlight PB4P3075

Page 1 o 2 4 Light PAR30 Series B

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details o design, materials and inish.

Features

1. Aperture Frame: Provides clean support or lamp holders and overlapping

lange or trimless installation. Extruded aluminum. Rigidly welded together

on all corners.

2. Media Cartridge: Allows convenient loading and removal o one accessory.

Easily installed and removed or lamping with a simple twisting motion.

Constructed o die- ormed aluminum.

3. Adjustable Ring: Allows 360° horizontal and min. 40°, max., 45° (on length);

40° (on width) vertical adjustment.

4. Tortiontite Spring: For easy installation o aperture rame.

5. Housing: Die- ormed 22 ga. steel. Finish: Black.

6. Mounting Brac ets: Adjustable vertically rom outside o housing.

7. Thermal Protector: Meets NEC, UL, and CSA requirements.

8. Lampholder: Porcelain medium based; nickel plated screw shell. Prewired

with #18 SF-1 leads to junction box.

9. Junction Box: 14 ga. steel, 4” x 3 1/2” x 2" box. Allows inspection rom

below.

10.Lamp and Accessory Support: .032" steel, lared or easy entry o Media

Cartridge.

11.Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.

Electrical

UL/cUL listed or through branch circuit wiring with maximum o (8) no. 12 AWG,

90°C.

Ceiling Cutout: 25 1/16" L x 7 3/16"W

Ordering Information: PAR30 Series B

Cat. No. Lamp Ceiling Trim Aperture Finish

PB4P3075BL (4) 75W PAR30* Overlap Black with White Flange

PB4P3075WL (4) 75W PAR30* Overlap White with White Flange

PB4P3075BTL (4) 75W PAR30* Trimless Black

PB4P3075WTL (4) 75W PAR30* Trimless White

*Short neck only

Finish

All painted inishes are powder coated baked enamel.

Options and Accessories

Accessories: 3 3/4" dia. series, ilters, lenses, screens, and louvers. (1) max.

Label

UL/cUL (Suitable or Damp Locations), I.B.E.W.

PB4P3075BL = (Flanged) Black/White

PB4P3075WL = (Flanged) White

PB4P3075BTL = (Trimless) Black

PB4P3075WTL = (Trimless) White

Calculite®ProSpec®Linear Downlight PB4P3075

Page 2 o 2 4 Light PAR30 Series B

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details o design, materials and inish.

Job Information Type:

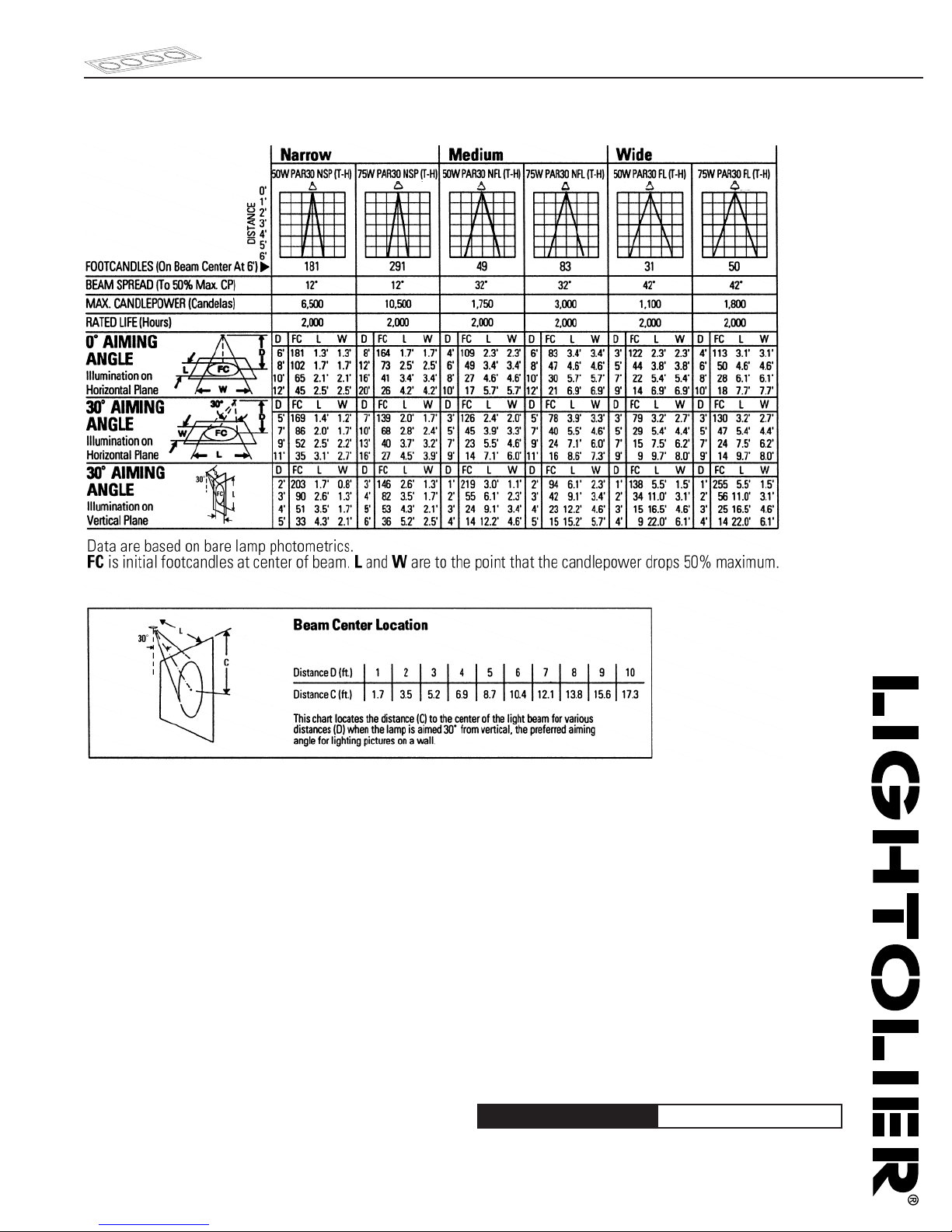

Lighting Performance Data
