Lytecaster®Recessed Downlighting 1124

Page 1 of 2 6 3/4" Aperture Cratere Dome Diffuser Reflector Trim

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

1124/1102P1

Standard Incandescent

6 3/4"

2 3/4"

8 1/8"

1 1/4" Max.

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

1124

Doubled

Etched

LED Fluorescent

Frame-In Kit Ceiling Type Lamping Height Frame-In Kit Installation Type Lamping Height

1101LED

1100LEDREM

L56LED

Non-IC

Non-IC Remodeler

Non-IC Retrofit

LED

6 3/4"

6 3/4

1101F18U Series UniFrame™

Non-IC

(1) Quad/Triple 18W (GX24q-2)

5 7/8"

1101F2642U

Series

UniFrame™

Non-IC

(1) Quad/Triple 26W (GX24q-3)

(1) Triple 32W (GX24q-3)

(1) Triple 42W (GX24q-3)

5 7/8"

Incandescent 1104F13 Series IC

(1) Quad/Triple 13W (GX24q-1)

7 1/2"

1102P1

1103R

Non-IC

Non-IC Remodeler

100W A19 6 3/4"

6 3/4" 1104F18 Series IC

(1) Quad/Triple 18W (GX24q-2)

7 1/2"

1100IC

1100AICM

1100DICM

1100DAICM

1104ICX/N

AirSeal®IC

Deep IC

Deep AirSeal®IC

AirSeal®IC

60W A19 7 5/16"

7 5/16"

9 1/4"

7 1/4"

1104F26 Series IC

(1) Quad/Triple 26W (GX24q-3)

7 1/2"

1100FTU Series Non-IC

(1) Triple 26/32W (GX24q-3)

6 3/4"

1104IC/N

1104ICR

AirSeal® IC

IC Remodeler

40W A19 7 1/4"

7 1/2"

1100AICMFT AirSeal®IC

(1) Triple 26W (GX24q-3)

6 7/8"

1104IC/N

1104ICR

Non-IC

Non-IC Remodeler

75W A19 7 1/2"

7 1/2"

1101F18ICU/N Performance IC

(1) Quad/Triple 18W (GX24q-2)

7 1/4"

1101LED

1100LEDREM

1156LED

Non-IC

Non-IC Remodeler

Non-IC Retrofit

LED

6 3/4"

6 3/4

1101F2642ICU

1101F2642IUN

Performance IC

(1) Quad/Triple 26W (GX24q-3)

(1) Triple 32W (GX24q-3)

7 1/4"

1101FDICMX1/N Performance IC

Advance Mark10

Dimming 120v

(1) Quad/Triple 26W (GX24q-3)

(1) Triple 32W (GX24q-3)

7 1/4"

1101FDICMX2/N Performance IC

Advance Mark10

Dimming 277v

(1) Quad/Triple 26W (GX24q-3)

(1) Triple 32W (GX24q-3)

7 1/4"

1910XFH1 Conversion Kit

(1) Quad 13W (GX23-2)

6 3/4"

1910XDH1 Conversion Kit

(2) Quad 13W (GX23-2)

6 3/4"

7 1/2"

1124/1103R

0™

Non-IC

Remodeler Ring

6 3/4"

1124/1100

DEEP IC Series

Incandescent

Insulated Ceiling

9 1/4"

Features

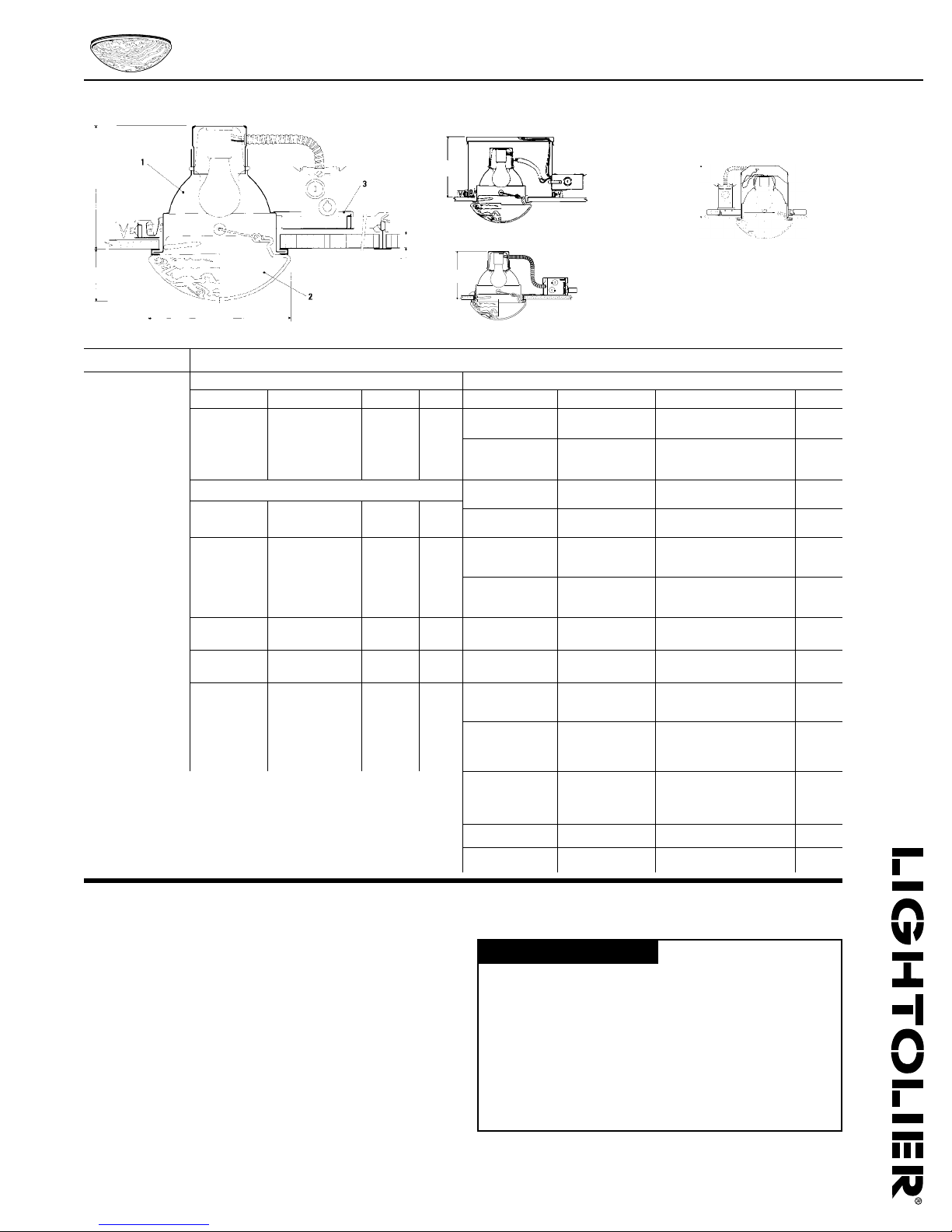

1. Reflector: Hydroformed aluminum, .040 minimum thickness; Anobrite®

(anodic-processed) semi-specular finish for permanent reflectivity.

2. Diffuser: Textured double etched glass; twist tight to reflector trim.

Neoprene (captive on flange of reflector) seals unit under pressure of twist

lock. Concealed wire-hinge supports glass enclosure for quick servicing.

3. Frame-In Kit: (1102P1 standard frame shown). Other frames listed above

and shown on the right. See Frame-In Kit specification sheets for more

details.

Meets NEC®requirements for Spas and Hot Tubs.

Options & Accessories

Retaining Clips: 1955 - For installing in existing ceiling.

Labels

UL (Suitable for Wet Locations - Covered Ceiling Only), I.B.E.W.

NEC®is a registered trademark of the National Fire Protection Association.

1124/1104IC/N

0™

IC/Non-IC

Convertible

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lytecaster®Recessed Downlighting 1124

Page 2 of 2 6 3/4" Aperture Cratere Dome Diffuser Reflector Trim

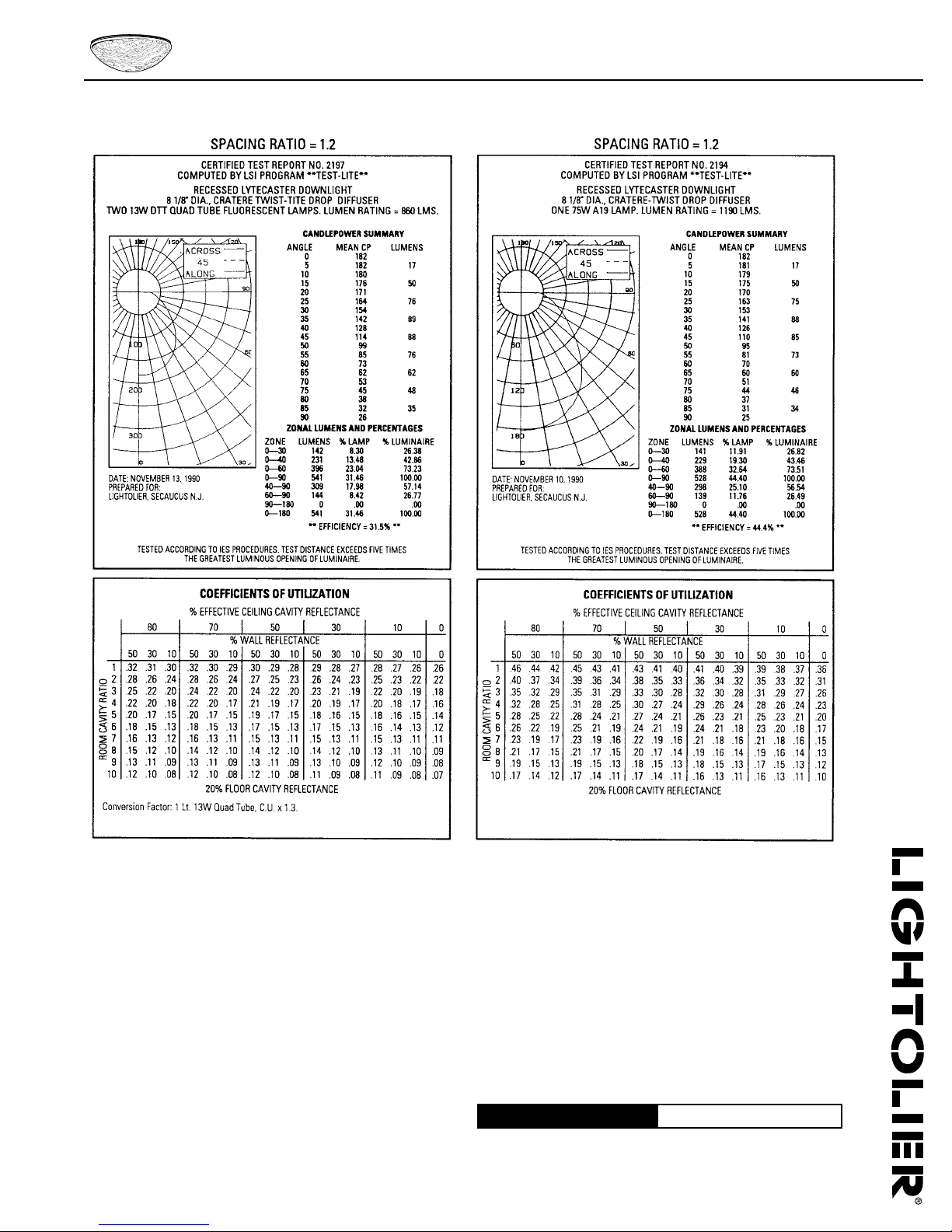

To convert lighting data for a lower wattage incandescent lamp of the same type, multiply the footcandle (or candlepower) values by the ratio of the lumens of the two lamps.

The coefficients of utilization remain the same.
