Usage scenario memo: S000097989EN-1-ManualON/AutoOFF-DALI Updated: Created: 09/06/2017

Cat. No(s): H4651

0 026 98

0 489 18

4-channel control unit/2-DALI output actuator/Sensor

Manual ON/auto OFF operation, light regulation,

control unit status and brightness control

1. EXAMPLE OF USE

Meeting rooms/office suites

2. DESCRIPTION

ON/OFF control and continuous regulation of DALI luminaires associated with a KNX sensor.

Manual ON/Auto OFF operation of actuator output 1 (group 1) (control unit button 1).

• Pressing button 1 on Cat. No. H4651 controls the lighting and activates regulation.

• Light regulation (adaptation to fixed daylight setpoint).

• The luminaires will switch off automatically if there is sufficient natural light or after people leave (+ end of sensor time delay).

• Luminaires switched off by pressing button 2 on Cat. No. H4651 (OFF override).

Manual ON/Auto OFF operation of actuator output 1 (group 2) (control unit button 3).

• Pressing button 3 on Cat. No. H4651 controls the lighting and activates regulation.

• Light regulation (adaptation to fixed daylight setpoint).

• The luminaires will switch off automatically if there is sufficient natural light or after people leave (+ end of sensor time delay).

• Luminaires switched off by pressing button 4 on Cat. No. H4651 (OFF override).

Push-button 3Push-button 1

Push-button 2 Push-button 4

Note:

It is very easy to change combinations or types of control unit by changing the settings on Cat. No. H4651.

CONTENTS PAGE

1. Example of use...........................1

2. Description ..............................1

3. Wiring diagram ..........................2

4. KNX wiring diagram......................2

5. KNX project ..............................2

6. Settings for H4651 PB - Addr: 1.1.1 .......3

7. Settings for actuator 002698 - Addr: 1.1.2 3

8. Settings for sensors 1.1.3 & 1.1.4 ..........4

9. KNX links ................................5

10. Commissioning . . . . . . . . . . . . . . . . . . . . . . . . .5

11. Monitoring .............................7

0 489 180 026 98 H4651

2/7

CONTENTS

Usage scenario memo: S000097989EN-1-ManualON/AutoOFF-DALI Updated: Created: 09/06/20017

Cat. No(s): H4651

0 026 98

0 489 18

4-channel control unit/2-DALI output actuator/Sensor

Manual ON/auto OFF operation, light regulation,

control unit status and brightness control

3. WIRING DIAGRAM

0 035 12

H4651

0 489 180 489 18

0 026 98

4. KNX WIRING DIAGRAM

Sensor 1

0 489 18

Controller

0 026 98

Group1

Manual control

H4651

Channel 1 & 2

Synchro regulation

Sensor 2

0 489 18

Controller

0 026 98

Group2

Manual control

H4651

Channel 3 & 4

Synchro regulation

Level Status

Switch Status

5. KNX PROJECT

This project UC020_Manuel ON/Auto OFF DALI.knxproj is available on www.legrandoc.com and can be imported into ETS.

The project can be set up in advance (offline).

x 64

max.

x 64

max.

3/7

CONTENTS

Usage scenario memo: S000097989EN-1-ManualON/AutoOFF-DALI Updated: Created: 09/06/20017

Cat. No(s): H4651

0 026 98

0 489 18

4-channel control unit/2-DALI output actuator/Sensor

Manual ON/auto OFF operation, light regulation,

control unit status and brightness control

7. SETTINGS FOR ACTUATOR 002698  ADDR: 1.1.2

7.1 General settings

7.2 Creating groups (Oine programming)

7.3 Group settings

Note:

Do not put adimming timeof > 5seconds.

6. SETTINGS FOR H4651 PB  ADDR: 1.1.1

6.1 LED conguration

6.2 Push-button conguration

4/7

CONTENTS

Usage scenario memo: S000097989EN-1-ManualON/AutoOFF-DALI Updated: Created: 09/06/20017

Cat. No(s): H4651

0 026 98

0 489 18

4-channel control unit/2-DALI output actuator/Sensor

Manual ON/auto OFF operation, light regulation,

control unit status and brightness control

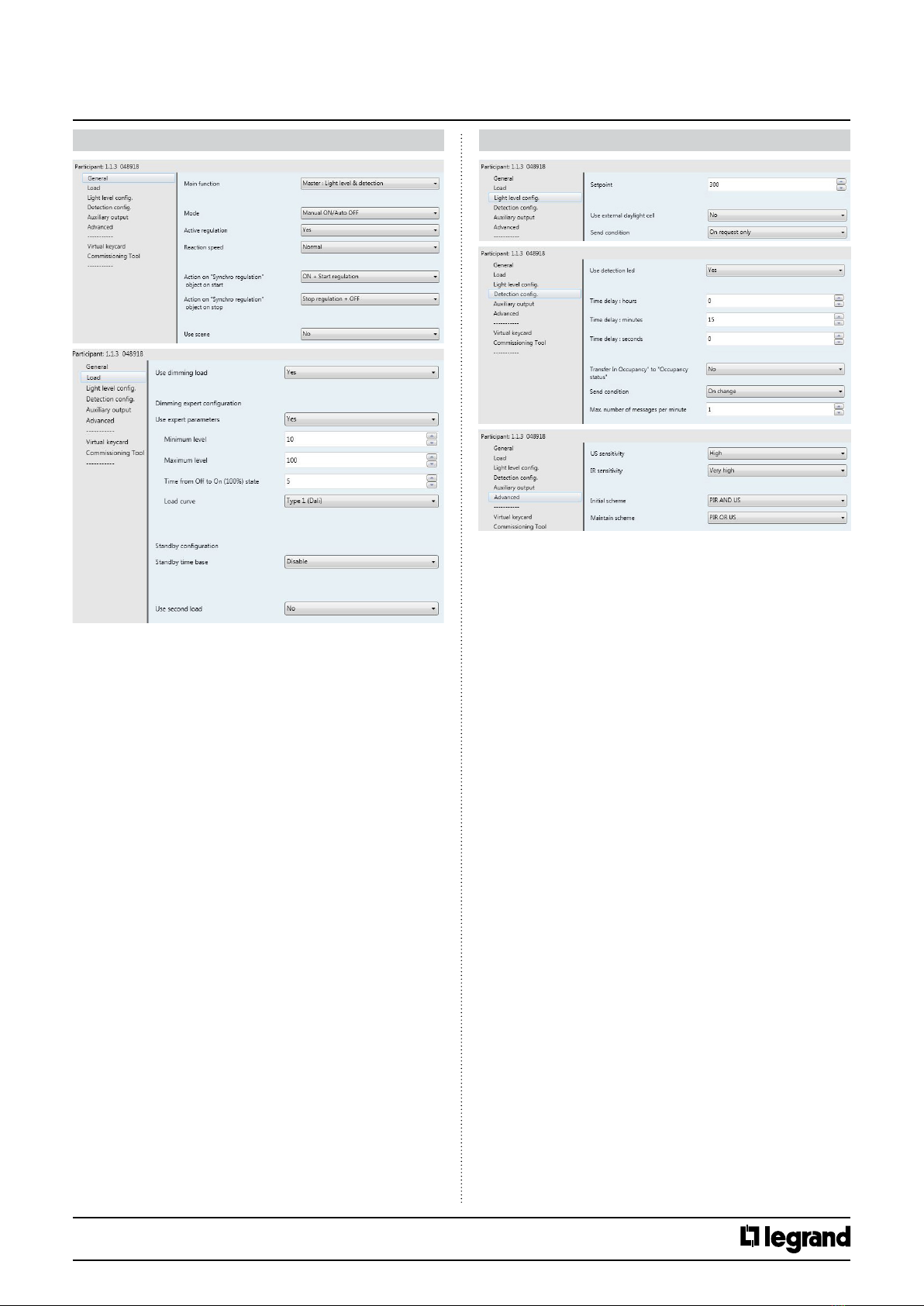

8. SETTINGS FOR SENSORS 1.1.3 & 1.1.4 8. SETTINGS FOR SENSORS 1.1.3 & 1.1.4 continued

5/7

CONTENTS

Usage scenario memo: S000097989EN-1-ManualON/AutoOFF-DALI Updated: Created: 09/06/20017

Cat. No(s): H4651

0 026 98

0 489 18

4-channel control unit/2-DALI output actuator/Sensor

Manual ON/auto OFF operation, light regulation,

control unit status and brightness control

9. KNX LINKS

10. COMMISSIONING

10.1 Addressing luminaires (Search)

10.2 Drag and Drop (Add Automatically)

6/7

CONTENTS

Usage scenario memo: S000097989EN-1-ManualON/AutoOFF-DALI Updated: Created: 09/06/20017

Cat. No(s): H4651

0 026 98

0 489 18

4-channel control unit/2-DALI output actuator/Sensor

Manual ON/auto OFF operation, light regulation,

control unit status and brightness control

10. COMMISSIONING continued

10.3 Testing and identifying luminaires

10.4 Associating luminaires with groups

7/7

CONTENTS

Usage scenario memo: S000097989EN-1-ManualON/AutoOFF-DALI Updated: Created: 09/06/20017

Cat. No(s): H4651

0 026 98

0 489 18

4-channel control unit/2-DALI output actuator/Sensor

Manual ON/auto OFF operation, light regulation,

control unit status and brightness control

11. MONITORING

Note:

Monitoring incorporates a 1-minute time delay.
