Recall a recorded scene

1. Press the appropriate scene button.

2. Watch the scene smoothly transition from the previous lighting state.

You can recall the same scene from any house scene controller assigned to

the same set of house scenes (see More Scenes, below).

Modify the light levels of a house scene

1. Recall the recorded scene.

2. Change lighting levels as desired by pressing or on individual devices.

3. Press and hold the scene button until the LED flashes once (approximately 2

seconds) to save the new settings.

Modify a previously recorded house scene

Use the Record a Whole-house Scene procedure to modify the devices assigned to

an existing house scene.

More Scenes

You can increase the number of house scenes to 10 by adding a second DRD5 to

the house, then changing the “scene set assignment” on one of them. The DRD5

scene set assignment is 1-5 when shipped. Changing the second DRD5 scene set

assignment to 6-10 allows you to record another 5 scenes that can be accessed by

any house scene controller (DRD5 and MRH5G) that has a scene set assignment

of 6-10.

All house scene controllers that have the same scene set

assignment operate the 5 scenes in the same way as all

other house scene controllers programmed for the same

set (1-5 or 6-10).

To assign the controller for scenes 6-10, simultaneously

press and button B for 2 seconds.

To change the assignment back to scenes 1-5,

simultaneously press and button A for 2 seconds.

A = scenes 1-5 (default)

B = scenes 6-10

Power Fail Memory

After a power failure, all Miro devices automatically return to the state they

were in immediately prior to loss of power. All house binding and scene control

information is preserved.

Assigning the DRD5

for scene set 6-10

Lock House Configuration

The Lock Configuration function operates from a wireless Miro house scene

controller, and prevents the Miro wireless devices in the system from being

reprogrammed. Normal operations such as dimming, switching, scene recall and

scene light level modifications are not affected.

When the configuration is locked, if the rocker paddle on any Miro wireless

device is pressed and held (- -), the selected device’s LED flashes red, and the

command is ignored.

To lock the configuration:

Go to any house scene controller. Simultaneously press and buttons

Band Efor 2 seconds to toggle in and out of Lock Configuration mode.

 • Ifthemodechangesfromunlockedtolocked,theLEDflashesredfor2

seconds, indicating that configuration is now locked.

 • Ifthemodechangesfromlockedtounlocked,theLEDflashesgreenfor

2 seconds, indicating that configuration is now unlocked.

CLEANING

Clean using a cloth dampened only with water and a little mild detergent. Use of

solvents or hydrocarbon-based cleaners may cause permanent damage.

TROUBLESHOOTING

During Set House ID, the LED is not flashing on some Wireless Miro

devices.

• If LED is solid green before initiating House ID binding:

ThedevicealreadyhasanotherHouseID.Resetittothefactorydefaultso

thatitcanbeboundtothedesiredHouseID.Resettingtofactorydefaultsis

describedinthe“Ineedtostartover”issue.

• If LED is solid yellow after initiating House ID binding:

The device may be out of range of the initiating device. Add a MRR2G Wire-

less Miro Repeater to boost signal range.

I made a configuration mistake. I need to start over.

You can reset any wireless Miro device to factory default settings by press-

ing and holding until the LED changes to solid yellow (approximately 10

seconds). During the process, the LED flashes yellow and when complete,

it changes to solid yellow. The device can then be reconfigured, exactly like

any new device.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation.Ifthisequipmentdoescauseharmfulinterferencetoradioor

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipmentandreceiver.

• Connecttheequipmenttoanoutletonacircuitdifferentfromthattowhichthe

receiver is connected.

• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Caution: Any changes or modiﬁcations to this device not explicitly approved by

manufacturer could void your authority to operate this equipment.

WARRANTY INFORMATION

Manufacturer warranties its products to be free of defects in materials and

workmanship for a period of ﬁve (5) years. There are no obligations or liabilities

on the part of manufacturer for consequential damages arising out of, or

in connection with, the use or performance of this product or other indirect

damages with respect to loss of property, revenue or proﬁt, or cost of removal,

installation or reinstallation.

Please

Recycle

Legrand Customers contact: Vantage Customers contact:

1061 South 800 East

Orem, UT 84097

Phone: 800.555.9891

www.vantagecontrols.com

07478r39/2007

301 Fulling Mill Road Suite G

Middletown, PA 17057

Phone: 800.321.2343

www.legrand.us/onq

Patents pending

DRD5 v2

Wireless House Scene Controller

Installation Instructions

Specifications

OperatingVoltage .....................120/277VAC,60Hz

Operating Temperature . . . . . . . . 32°F to 104°F (0°C to 40°C)

UNIT DESCRIPTION

The Miro Decorator DRD5 Wireless House Scene Controller provides instant

recall of five user-recorded lighting scenes (or presets) across the entire

house.TheDRD5isawhole-housecontroller.Itisusedincombinationwithany

number of Miro Decorator wireless dimming or non-dimming devices.

The DRD5 can be differentiated from a Wireless Room Scene

Controller by the icon on its front, which resembles the outline of a

house exterior.

Typical locations for installing Miro Decorator wireless scene controllers are

inside the front door, the door from the garage, and the master bedroom. With

two or more controllers, you can control up to ten scenes in the house (see

OPERATIONsection).Youcaninstalladditionalhousescenecontrollersto

control those scenes from other locations in the house.

The Miro Decorator wireless house scene controller works as part of a Miro

Decoratorwirelesssystem.ItcancontrolavarietyofMiroDecoratorwireless

devices including dimmers, switches, appliance plugs and lamp plugs to create

up to five scenes. For example:

• Setthehousetosleep,turnlightsoffdownstairsbutleavelow-levelpathway

lighting for the kids to find the bathroom.

• Lightupthewholehouseforapartysetting.

• Createalightingtrailtogetyouthroughyourmorningandeveningroutines,

turning on the lights in dressing rooms, hallways and the kitchen, and perhaps

aTVorradiosoyoucanlistentothenews.

Note: To control a single room, use a Miro Decorator wireless room scene

controller (a wall mounted DRD6 or a handheld MRH6G remote).

Miro Wireless

Miro wireless devices use radio signals to communicate with each other to

control lighting and other types of electric loads in selected areas. Miro wireless

devicesusethe900MHzbandforhigh-speedcontrolcommunication.Usingthe

patented “frequency-agile” Top Dog™ technology, Miro wireless devices avoid

interferencewithother900MHzdevices,suchascordlessphonesandbaby

monitors.

Application Assistance

The Miro Installation Guide provides more information about configuring scenes

andpresets.Instructionsforinstallationanduseareincludedwiththerelevant

Miro wireless devices. Application support information and the Miro Installation

Guide are available on-line.

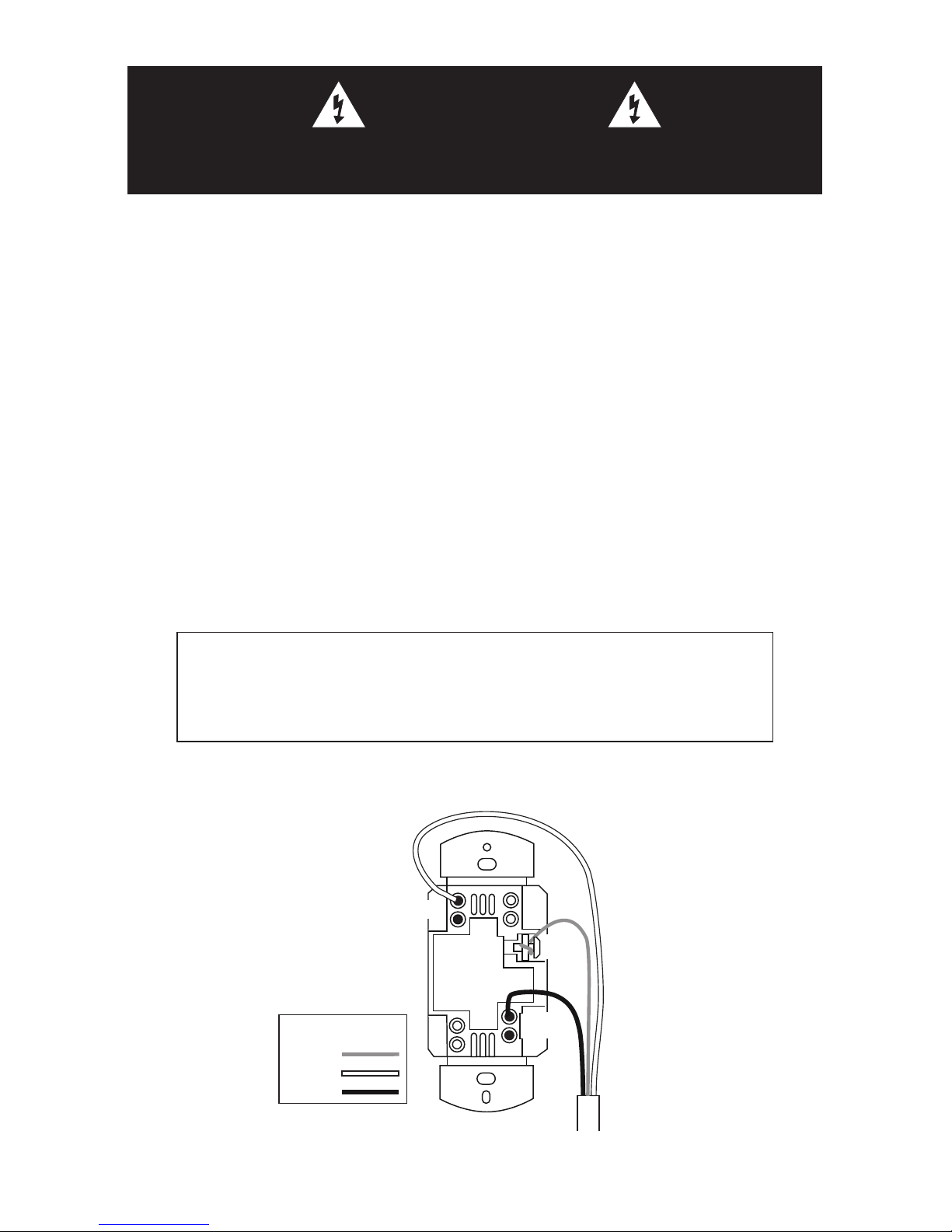

Wire Legend

Ground

Line

Neutral

GND

LINE

NEUT

SUPPLY

WIRES

INSTALLATION

For ease of installation, manufacturer recommends use of a deep

wall box. The device is equipped with flying leads to simplify installation,

however, if desired, they may be removed by loosening the screw terminals.

1. Disconnect power to circuit by turning circuit breaker OFF before installation.

2. Remove existing wall plate and switch.

3. Stripexistingwires1/2”.Iftwowireswillbeconnectedtothesameterminal

on a Miro device, both wires must be the same gauge (12AWG

or 14AWG).

4. WiretheLINE(black),NEUTRAL(white)andGNDsupplywirestothe

correspondingly marked screw terminals, according to the wiring diagram.

5. Attach the wall plate.

6. Switch the circuit breaker back ON.

INSTALL IN COMPLIANCE WITH ALL APPLICABLE

CODES & STANDARDS.

Failure to follow these instructions may cause

personal injury or equipment damage.

CAUTION

TURN THE POWER OFF AT THE CIRCUIT BREAKER

BEFORE INSTALLING THE DEVICE.

SET HOUSE ID

All Miro wireless devices installed in the same home must acquire the same

uniqueHouseIDbeforeuse.Thisprocessisknownashousebinding.EachMiro

wireless device is bound to all other Miro wireless devices in the house.

New Installation

1. Withalldevicesinstalledandenergized,makesurethateveryMirowireless

deviceLEDisyellow.IfanyLEDisoff,besurethecircuitbreakerisonandthe

device is correctly installed.

2. Press on any device paddle

until the LED flashes yellow (about

2 seconds). This indicates that it has

acquiredauniqueHouseID.

3. Make sure that all other Miro wireless

device LEDs are flashing green,

indicating that they have acquired the

sameHouseID.

4. Return to the device used in step 2, which is still flashing yellow. Press

until the LED changes to solid green (about 2 seconds). All device LEDs in the

house change to solid green, indicating house binding is complete.

Adding a Device to an Existing Installation

Ifyou’readdingorreplacingadeviceinaMirowirelessinstallationthatis

alreadyoperating,thenewdevicemustacquirethesameHouseIDastheother

Miro wireless devices in the house. After the new device is powered up, the LED

shouldbesolidyellow.ThisindicatesthatithasnotyetacquiredaHouseID.To

acquiretheHouseIDfortheexistingsystem:

1. Press on any previously bound device until the LED flashes yellow (about 2

seconds).

2. VerifythatthenewlyaddeddeviceLEDisflashinggreen,indicatingthatithas

acquiredtheHouseID.

3. Return to the same previously bound device used in step 1 and press until

the LED changes to solid green (about 2 seconds). All device LEDs should now

be solid green.

When you see

in the instructions,

firmly press and

hold both the top

and bottom of

the paddle until

the LED changes

(about 2 seconds).

OPERATION

Button and Paddle Functions

The rocker paddle has a house icon on it. Use it to begin and end binding and

scenerecordingfunctions.ItcanalsobeprogrammedasanON/OFFswitch,

using steps 1-3 of the Record a Whole-House Scene process described below.

Once programmed: Tap to switch or fade included devices to on (dimming

devices go to full bright). Tap to switch or fade included devices to off.

The smaller buttons, labeled A—E in the illustrations, are used to record and

recall scenes. Extra labels are provided so that you can relabel these buttons to

better suit your application.

Default Settings: InanewDRD5,whenyoutap or the E button, ALL Miro

Wirelessdevicesinthehouseturnoff.If,however,thenewDRD5isaddedtoan

existing house, it acquires the same scenes as any other DRD5 or MRH5G that is

assigned to the same set of scenes (see More Scenes).

Record a Whole-House Scene

1. Go to the DRD5 and press until the LED begins flashing (about 2 seconds).

Pressthedesiredscenebutton,ortaptheON/OFFpaddlethatyouwishto

program. The LEDs on all the Wireless Miro devices begin to flash. You now

have 10 minutes to complete this process.

2. To include or exclude a device in the scene press on the device until the

LED changes color. YellowflashingLED=Includedintheactivescene

Green flashing LED = NOT included in the active scene

 IfyougettoadeviceanditisNOTflashing,the10minutebindingprocess

timer may have expired. Go back to step 1 and repeat.

NOTE: You must include devices that are off in the house scene if you want

them to turn off when that scene is recalled.

3. Return to the DRD5 used in step 1. Press for 2 seconds — the status LED

stops flashing, then all the status LEDs in the house revert to green.

4. Go around the house and adjust light levels by pressing and holding or

on the devices that you want to adjust.

5. Go back to the DRD5 used in step 1 and press and hold the same scene button

until the LED flashes once (about 2 seconds). Scene recording for this button

is complete. Repeat this process for each scene button.

When you see

in the instructions,

touch the top of the

paddle as directed.

When you see in the

instructions, touch the

bottom of the paddle

as directed.

4-FOLD

•Print:2-sides

•InkColor:Black

•Paper:White16lb(60g/msq)

Uncoated, prefer recycled stock

•Finaltrimsize:16”(Wide)x6”(High).

•Four(4)fold.

•Finalfoldedsize:4”(Wide)x6”(High).

TITLE BOX PAGE ONLY.

DO NOT MAKE FILM • DO NOT PRINT

SANTA CLARA, CALIFORNIA

Title: DRD5 v2 Installation Instructions

IFYOUHAVEANYQUESTIONSREGARDINGSPECIFICATIONSORREQUIRE

ADDITIONALFILEFORMATTING,PLEASECONTACTMaryJoSowinski.

Phone: 408-486-7511

Email: [email protected]

Drawing #:

07478

Orig. Drawing Date: 16 MAR 07 Rev. #:

Revision Date: 24 SEP 07

SOWINSKI

Scale: 1:1

All information in this drawing is the property of Watt Stopper/Legrand and cannot be copied or

used without the written approval of Watt Stopper/Legrand.

Drawn by

PLM

MarCom

Engineering

TITLE BOX PG

REV DESCRIPTION INT: REV. DATE APPROVED

1 ECO#C01933 MJS 3/28/07 CG

2 EC0#C02227 MJS 4/23/07 CG

3 ECO#C02411 MJS

Table des matières

Autres manuels LEGRAND Unité de contrôle

LEGRAND

LEGRAND 0 677 55L Manuel utilisateur

LEGRAND

LEGRAND 67217 Manuel utilisateur

LEGRAND

LEGRAND AC1058 Manuel utilisateur

LEGRAND

LEGRAND 7 521 82 Manuel utilisateur

LEGRAND

LEGRAND Wattstopper TDFC-1A Manuel utilisateur

LEGRAND

LEGRAND IC5010 Manuel utilisateur

LEGRAND

LEGRAND Wattstopper ELCU-200 Manuel utilisateur

LEGRAND

LEGRAND Eliocad 766 88 Manuel utilisateur

LEGRAND

LEGRAND Galion TV - R- SAT Manuel utilisateur

LEGRAND

LEGRAND 674 56 Manuel utilisateur

LEGRAND

LEGRAND 739 60 Manuel utilisateur

LEGRAND

LEGRAND Mosaic VDI 0 332 80 Manuel utilisateur

LEGRAND

LEGRAND EMDX AMS Manuel utilisateur

LEGRAND

LEGRAND 0 648 85L Manuel utilisateur

LEGRAND

LEGRAND 7756 24 Manuel utilisateur

LEGRAND

LEGRAND 5 742 43 Manuel utilisateur

LEGRAND

LEGRAND 4 121 73 Manuel utilisateur

LEGRAND

LEGRAND Wattstopper LMIN-104 Manuel utilisateur

LEGRAND

LEGRAND 0 677 23L Manuel utilisateur

LEGRAND

LEGRAND 6338 53 Manuel d'instructions

LEGRAND

LEGRAND 882 04 Manuel utilisateur

LEGRAND

LEGRAND 0 676 94 Manuel utilisateur

LEGRAND

LEGRAND 4 149 29 Mode d’emploi

LEGRAND

LEGRAND 0 676 94 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
