LaserLiner LaserRangeMaster Pocket Manuel utilisateur

LaserRangeMaster Pocket

1/4"

LaserRangeMaster Pocket

x·y=m2

x·y·z=m3

LaserRangeMaster Pocket

2.8.

4.6.

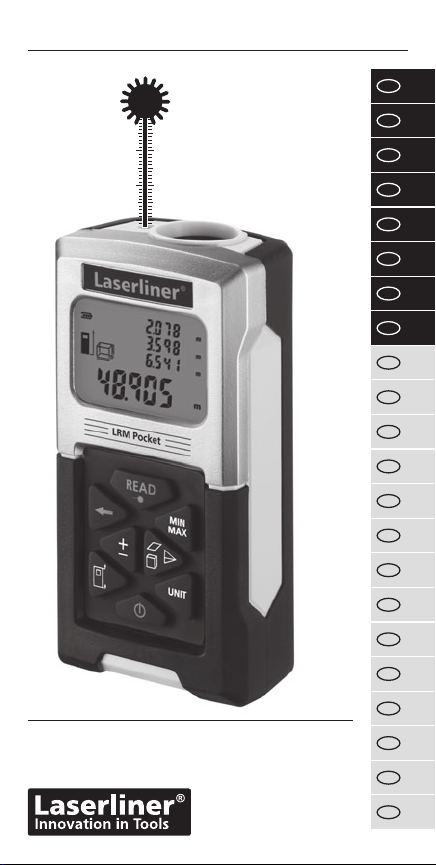

KEYPAD:

Measure / Continuous measurement

min / max continuous measurement

length, area, volume, Pythagoras

Unit of measure m/mm/ft/inch

ON/OFF

Measurement point (reference)

rear / tripod / front / pin

addition / subtraction of

lengths, areas, volumes

delete last measurement values

DISPLAY:

Measurement point (reference)

rear / tripod / front / pin

Display length, area / volume /

Pythagoras 1 / Pythagoras 2

Measurement values /

Measurement results

Unit m/mm/ft/inch

Intermediate values / min/max values

Battery symbol

min / max measurement

Important notices:

• Caution: Do not look directly into the beam. Lasers must be kept out

of reach of children. Never intentionally aim the device at people.

• The laser points to the location that will be measured. No objects may

get into the laser‘s line of measurement.

• The device compensates the measurement for different room

temperatures. Therefore allow the device a brief adaptation period

when changing locations with large temperature differences.

• The device is only conditionally useable in outdoor areas and cannot be

used in strong sunlight.

• The device cannot be used in strong sunlight.

• The measurement results of outdoor measurements may be influenced

or falsified by rain, fog and snow.

• In unfavourable conditions, e.g. with poorly reflecting surfaces, the

maximum deviation may be greater than 3 mm.

• Carpeting, upholstery or curtains will not reflect the laser optimally.

Measure to flat surfaces.

• Measurements made through glass (window panes) can falsify mea-

surement results.

• An energy-saving function switches the device off automatically.

• Clean with a soft cloth. Water may not be allowed to penetrate the

housing.

Continuous measurement: Use the ON/OFF button (5) to turn the

device on and press the READ button (1) for about 4 seconds. The device

now measures continuously and displays the smallest value (min), the

largest value (max) and the current value. Another brief press of the READ

button (1) will interrupt continuous measurement or restart it again.

3 sec

1x 2x

1x 2x 3x

3x2x1x

1x 2x 3x 4x

Change measurement function:

length area volume Pythagoras 1&2

Change measurement point (reference):

rear tripod front pin

Delete the last measured

value:

Change unit of measure:

m / mm / ft / inch

Switch on, measure and switch off:

device on laser on measure device off

Length measurement:

device on laser on measure

Area measurement:

area laser on 1. measurement 2. measurement

LaserRangeMaster Pocket

1x 2x 4x3x

1x 2x

+–

1x 2x

+–

1x 2x

+–

3x 4x

2x 3x 4x1x

Volume measurement:

volume laser on 1. 2. 3. measurement

Addition and subtraction of lengths:

length laser on 1. length +/- etc.

Area calculation:

area laser on 1. area +/- etc.

Volume calculation:

volume laser on 1. volume +/- etc.

1x 2x

min max

2x 3x

min

2x 3x

min

1x 2x

1x 2x 3x

1x 2x 3x 4x

MIN / MAX function:

length MIN or MAX laser on start stop

Example: MIN / MAX function for areas:

Note: The MIN / MAX function can be used to find the shortest or

longest distance. MIN is used to determine verticals and horizontals,

MAX is used to determine diagonals. This function can also be used

for area and volume measurements as well as for the Pythagoras

function (see example below).

Pythagoras function 1:

Pythagoras 1 laser on 1. 2.

measurement

result:

height

Pythagoras function 2:

Pythagoras 2 laser on 1. 2. 3. measurement result:

height

LaserRangeMaster Pocket

Warranty:

The warranty period is 2 years from the date of purchase. The warranty covers

all material or manufacturing defects occurring during this time. The following

are excluded from warranty: Damage due to improper use (e.g. operation with

wrong type of current/voltage, connection to unsuitable power source, fall onto

hard surface, etc.) or improper storage, normal wear and tear, and defects which

only insigniﬁcantly impair the value or suitability for use. Any tampering by

unauthorised persons will render this warranty void. In the event that you need to

claim warranty, please take the complete device together with all information and

the invoice to one of our dealers or send it in to Umarex-Laserliner.

Error codes:

Too much ambient light.

The target is too far away.

Target is too dark or too much ambient light.

Use a reﬂecting material as target for the measurement.

Temperature is too high: > 40 °C.

Temperature is too low: < 0 °C

Replace the battery.

The device is moving too much to measure.

Pythagoras parameter error: The hypotenuse is shorter as one

side of a right triangle.

Err001:

Err002:

Err003:

Err004:

Err005:

Err006:

Err007:

Err008:

Laser radiation!

Do not stare into the beam!

Class 2 laser

< 1 mW · 635 nm

EN 60825-1:2007-10

Inside measurement range O,3 m - 40 m

Accuracy +2 mm

Laser class 2 < 1mW

Laser wavelength 635 nm

Power supply 4 x AAA 1,5 Volt batteries

Dimensions 112 x 59 x 35 mm

Weight 190 g

Auto switch-off 20 s for laser / 5 min for device

Operating temperature 0°C – 40°C

Storage temperature -20°C – 70°C

Article number 080.942A

Technical data: (Subject to technical change without notice 06.2009)

LaserRangeMaster Pocket

SERVICE

Umarex GmbH & Co KG

– Laserliner –

Möhnestraße 149, 59755 Arnsberg, Germany

Tel.: +49 2932 638-300, Fax: +49 2932 638-333

[email protected]

Umarex GmbH & Co KG

Donnerfeld 2

59757 Arnsberg, Germany

Tel.: +49 2932 638-300, Fax: -333

www.laserliner.com

080.942A / Rev.0609
