TP-145, XGA / Audio / Data Line Transmitter

TP-146, UXGA / Audio / Data Line Receiver

Contents

1Introduction 1

2Getting Started 1

2.1 Quick Start 2

3Overview 2

3.1 Shielded Twisted Pair/Unshielded Twisted Pair 3

3.2 Defining the EDID 3

3.3 Recommendations for Achieving the Best Performance 4

4Defining the TP-145/TP-146 4

4.1 Defining the TP-145 XGA/Audio/Data Line Transmitter 4

4.2 Defining the TP-146 UXGA/Audio/Data Line Receiver 5

4.2.1 Internal Polarity and Sync Mode Switches 7

5Connecting the TP-145 and the TP-146 7

5.1 Transmitting via RS-232 9

5.2 Wiring the Twisted Pair RJ-45 Connectors 9

6Acquiring the EDID 10

7Technical Specifications 11

Figures

Figure 1: TP-145 XGA/Audio/Data Line Transmitter Front and Rear Panels 5

Figure 2: TP-146 UXGA/Audio/Data Line Receiver Front and Rear Panels 6

Figure 3: TP-146 Internal Polarity Switches 7

Figure 4: Connecting the UXGA/Audio/Data Line Transmitter/Receiver System 8

Figure 5: RS-232 Pinout Connection 9

Figure 6: TP Connector 10

Tables

Table 1: TP-145 XGA/Audio/Data Line Transmitter Front and Rear Panel Features 5

Table 2: TP-146 UXGA/Audio/Data Line Receiver Front and Rear Panel Features 6

Table 3: TP-146 Internal Polarity Switches and Descriptions 7

Table 4: RS-232 Pinout Connection 9

Table 5: TP Connector Pinout 10

Table 6: Technical Specifications of the TP-145 and TP-146 11

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better! Our 1,000-plus different models now

appear in 11 groups1

Thank you for purchasing the Kramer TOOLS TP-145 XGA/Audio/Data Line

Transmitter

that are clearly defined by function.

•Presentation and multimedia applications

, and/or TP-146 UXGA/Audio/Data Line Receiver which are ideal for:

•Long range graphics distribution for schools, hospitals, security, and stores

Each package includes the following items:

•TP-145 or TP-146

•Power adapter (12V DC output)

•This user manual3

This user manual describes the following Kramer TOOLS™:

•TP-145 XGA/Audio/Data Line Transmitter (see Section 4.1)

•TP-146 UXGA/Audio/Data Line Receiver (see Section 4.2)

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high-performance high-resolution cables4

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:

Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan

Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack

Adapters; GROUP 11: Sierra Products

2 Up to WUXGA resolution 1920 x 1200

3 Download up-to-date Kramer user manuals from http://www.kramerelectronics.com

4 The complete list of Kramer cables can be found at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

3 Overview

The TP-145 and TP-146 are high-performance, Twisted Pair (TP) transmitter and

receivers for computer graphics video (including HDTV), unbalanced stereo audio,

and RS-232 control commands.

The TP-145 converts computer graphics video, unbalanced stereo analog audio,

and RS-232 control commands to a TP signal. The TP-146 converts the TP signal

back into computer graphics video, unbalanced stereo and S/PDIF digital audio,

Overview

and RS-232 control signals. The TP-145 and TP-146 together form a computer

graphics/audio/control data line transmitter/receiver system.

More specifically, the products feature:

•Resolution up to WUXGA 1920 x 1200

•HDTV compatibility

•EDID capture and status indication (TP-145)

•Simultaneous unbalanced stereo and S/PDIF (24-bit 48kHz) audio outputs

(TP-146)

•Level (gain) and EQ (peaking) controls (TP-146)

•Full duplex RS-232 transmission

•Increased level of protection against noise, spikes, and interference in adverse

environments

•System range up to 200m (656ft)

3.1 Shielded Twisted Pair/Unshielded Twisted Pair

We recommend that you use Shielded Twisted Pair (STP) cable. There are

different categories of STP cable available and we advise you to use the best

quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP

is intended for digital signals and for analog signals where skewing is not an issue.

For cases where there is skewing, our Unshielded Twisted Pair (UTP) skew-free

cable, Kramer BC-XTP, may be used. Bear in mind though, that we advise using

STP cables where possible, since the compliance to electromagnetic interference

has been tested using STP cables.

Although UTP cable might be preferred for long range applications, the UTP cable

should be installed as far as possible from electric cables, motors, and so on, which

often create electrical interference.

However, since the use of UTP cable might cause non-conformity to

electromagnetic standards, Kramer does not commit to meeting the standard with

UTP cable.

3.2 Defining the EDID

EDID (Extended Display Identification Data1

The EDID includes information, such as, the name of the manufacturer, product

type, timing data supported by the display, display size, luminance data, and (for

digital displays only) the pixel mapping data.

) is a data-structure that the display

provides to describe its capabilities to a graphics card connected to the display’s

source. The EDID enables the source, such as a PC, to “know” what kind of

monitor is connected to the output.

1 EDID is defined by a standard published by the Video Electronics Standards Association (VESA)

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Defining the TP-145/TP-146

The TP-145 can store and recall EDID data in non-volatile memory, allowing

convenient and reliable connection to the source.

3.3 Recommendations for Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables1

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality, and position your Kramer TP-145/TP-146 away

from moisture, excessive sunlight and dust

to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low-quality cables)

4 Defining the TP-145/TP-146

This section defines the:

•TP-145, XGA/Audio/Data Line Transmitter (see Section 4.1)

•TP-146, UXGA/Audio/Data Line Receiver (see Section 4.2)

4.1 Defining the TP-145 XGA/Audio/Data Line Transmitter

The TP-145 is a high-performance transmitter that accepts:

•A computer graphics input signal

•An unbalanced stereo analog audio signal

•RS-232 control commands

The TP-145 encodes the signals and transmits them over TP cable to a TP-146

receiver. The stereo analog audio signal is converted to a digital audio (S/PDIF)

stream before transmission, thus preserving the quality of the audio source signals.

Commands and data can flow in both directions simultaneously via the RS-232

interface, allowing status requests and control of the destination unit.

When the TP-145 is connected to a display device and the EDID CAPTURE

button is pressed, the TP-145 reads and stores the EDID (Extended Display

Identification Data) from the display device. This prevents the problem whereby a

1 Available from http://www.kramerelectronics.com

Defining the TP-145/TP-146

source (for example, a PC), fails to output video because it was not connected to

the display device when attempting to read its EDID.

Figure 1 and Table 1 define the TP-145.

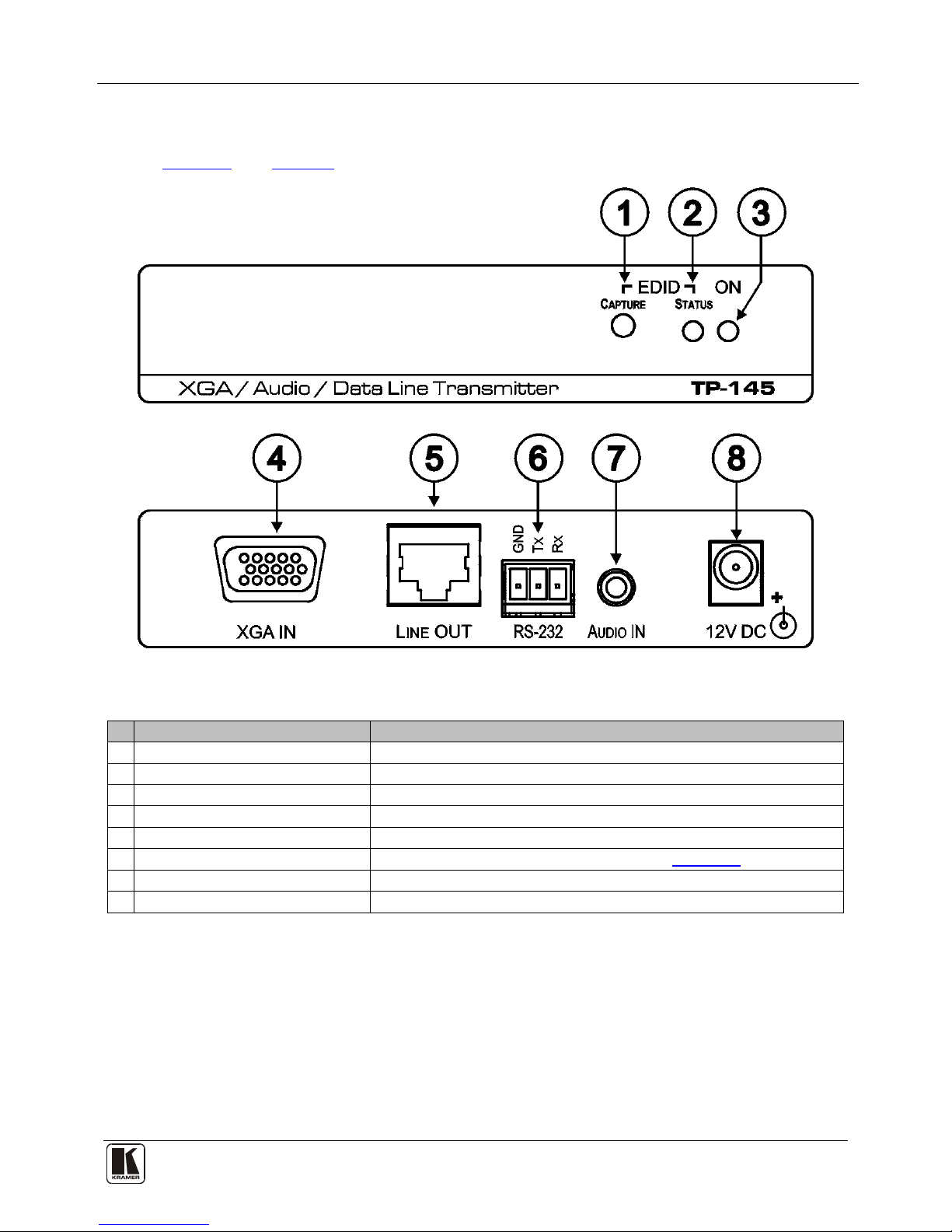

Figure 1: TP-145 XGA/Audio/Data Line Transmitter Front and Rear Panels

Table 1: TP-145 XGA/Audio/Data Line Transmitter Front and Rear Panel Features

# Feature Function

1 EDID CAPTURE Button Press to capture the EDID

2 EDID STATUS LED Lights Green when the EDID has been successfully captured

3 ON LED Lights Green when the unit receives power

4 XGA IN 15-pin HD (F) Connector Connect to the UXGA source

5 LINE OUT RJ-45 Connector Connect to the LINE IN RJ-45 connector on the TP-146

6 RS-232 Terminal Block Connect to the PC or the Remote Controller (see Section 5.1)

7 AUDIO IN 3.5mm Mini Connector Connect to the analog audio source

8 12V DC Power Connector Connect to the supplied +12V DC power adapter. Center conductor positive

4.2 Defining the TP-146 UXGA/Audio/Data Line Receiver

The TP-146 is a high-performance receiver that accepts the computer graphics

signal/audio/control data from the Kramer TP-145 via TP cabling at its RJ-45

LINE IN input. The TP-146 outputs a computer graphics signal, an unbalanced

stereo analog audio signal, a converted digital audio (S/PDIF) signal, and bi-

directional RS-232 control commands and data. The RS-232 interface makes it

possible to control virtually any device over a transmission range of up to 200m

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Defining the TP-145/TP-146

(660ft) with a Kramer TP-141/145 transmitter over TP cabling. In addition, the

TP-146 features:

•Level and Equalization control for the UXGA signal

•The capability to change the polarity of the vertical and horizontal sync signals

•24 bit 48kHz S/PDIF digital audio

Figure 2 and Table 2 define the TP-146 UXGA/Audio/Data Line Receiver.

Figure 2: TP-146 UXGA/Audio/Data Line Receiver Front and Rear Panels

Table 2: TP-146 UXGA/Audio/Data Line Receiver Front and Rear Panel Features

# Feature Function

1 LINK LED Lights green when a link is established

2 LEVEL Trimmer Adjusts the output signal level

3 EQ.

Adjusts the cable compensation equalization levelTrimmer

4 ON LED Lights green when the unit receives power

5 UXGA OUT 15-pin HD (F) Connector Connect to the UXGA acceptor

6 LINE IN RJ-45 Connector Connect to the LINE OUT RJ-45 connector

7 on the TP-145

RS-232 Terminal Block Connect to the controlled unit

8 AUDIO

OUT

ANALOG 3.5mm Mini

Connector Connect to the analog audio acceptor

9 S/PDIF RCA Connector Connect to the digital audio acceptor

10 12V DC Connector Connect to the supplied +12V DC power adapter. Center pin

positive

1 Degradation and UXGA signal loss can result from using long cables (due to stray capacitance), sometimes leading to a total loss of

sharpness in high-resolution signals

2 Using a TP cable with RJ-45 connectors at both ends (pinout is defined in Figure 6 and Table 5)

Connecting the TP-145 and the TP-146

4.2.1 Internal Polarity and Sync Mode Switches

Figure 3 and Table 3 define the internal horizontal and vertical polarity switches of

the TP-146.

Note: You need to open the TP-146 unit to gain access to the Hs and Vs polarity

and video selection switches which are located on the lower part of the printed

circuit board next to the ON LED. After setting the switches, close the TP-146.

Figure 3: TP-146 Internal Polarity Switches

Table 3: TP-146 Internal Polarity Switches and Descriptions

Switch/Jumper Function

SW1 Horizontal Sync Switch Slide up to set the H Sync to positive polarity

Slide down to set the H Sync to negative polarity

Default = up (positive polarity)

SW2 Vertical Sync Switch Slide up to set the V Sync to positive polarity

Slide down to set the V Sync to negative polarity

Default = up (positive polarity)

SW3 Video Selection Switch Slide left to set the video to RGBHV/VGA

Slide right to set the video to Component/Composite video with sync

Default = left (RGBHV/VGA video)

5 Connecting the TP-145 and the TP-146

You can use the TP-145 UXGA/Audio/Data Line Transmitter and the TP-146

UXGA/Audio/Data Line Receiver to configure a TP transmitter and receiver system

that transmit video, audio, and RS-232 control signals via TP cable.

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Connecting the TP-145 and the TP-146

Figure 4: Connecting the UXGA/Audio/Data Line Transmitter/Receiver System

To connect the TP-145 and the TP-146 to create a TP transmitter and receiver

system, as illustrated in Figure 4:

1. On the TP-145, connect:

A UXGA source (for example, the graphics card on a laptop) to the

UXGA IN 15-pin HD (F) connector

An audio source to the AUDIO IN 3.5mm mini connector, for example,

using a Kramer C-GMA/GMA cable (VGA 15-pin HD (M) +Audio jack

to VGA 15-pin HD (M) +Audio jack)1

An RS-232 cable with a 9-pin D-sub connector at one end to the laptop, and a

3 pin terminal block connector at the other end to the TP-145 RS-232 port

2. On the TP-146, connect:

The UXGA OUT 15-pin HD (F) connector to the AV display system

The S/PDIF AUDIO OUT RCA connector to a digital AV Receiver

1 Not supplied. The full list of Kramer cables is available from http://www.kramerelectronics.com. Alternatively, you can connect a

UXGA source to the UXGA IN 15-pin HD (F) connector, and a separate audio source to the AUDIO IN 3.5mm mini connector

2 As defined in Figure 5 and Table 4

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kramer Émetteur

Kramer

Kramer SID-X3N Manuel d'installation et d'exploitation

Kramer

Kramer TP-202 Manuel utilisateur

Kramer

Kramer 617T Manuel utilisateur

Kramer

Kramer PT-571 Manuel utilisateur

Kramer

Kramer 610T Manuel utilisateur

Kramer

Kramer DigiTOOLS KW-11T Manuel utilisateur

Kramer

Kramer KW-14T Manuel utilisateur

Kramer

Kramer Cobra T2 Manuel utilisateur

Kramer

Kramer PT-571HDCP Manuel utilisateur

Kramer

Kramer SID-X3N Manuel utilisateur

Kramer

Kramer VP-300THD Manuel utilisateur

Kramer

Kramer TP-121EDID Manuel utilisateur

Kramer

Kramer TWA Manuel utilisateur

Kramer

Kramer VP-428H2 Manuel utilisateur

Kramer

Kramer TP-185 Manuel utilisateur

Kramer

Kramer WP-789T Manuel utilisateur

Kramer

Kramer VA-1USB-T Manuel utilisateur

Kramer

Kramer DIP-20 Manuel utilisateur

Kramer

Kramer VP-300THD Manuel utilisateur

Kramer

Kramer 650T Manuel utilisateur

Kramer

Kramer TP-15 Manuel utilisateur

Kramer

Kramer SID-X2N Manuel d'installation et d'exploitation

Kramer

Kramer VP-5R Manuel utilisateur

Kramer

Kramer TP-780T Manuel utilisateur

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
