ENGLISH

CL2200

Instruction Manual

GENERAL SPECIFICATIONS

The Klein Tools CL2200 is a True RMS, auto-ranging clamp meter. It

measures AC /DC voltage, AC /DC current, resistance, capacitance,

frequency and duty cycle. It can also test non-contact voltage, diodes, and

continuity.

•

Operating Altitude:

2000 meters

•

Humidity:

80% max

•

Operating Temperature:

0°C /32°F to 45°C /113°F

•

Storage Temperature:

-20°C /-4°F to 60°C /140°F

•

Dimensions:

7.65" x 2.56" x 1.375"

•

Weight:

11.9oz.

•

Calibration:

Accurate for one year

•

CAT Rating:

CAT IV 600V

•

Accuracy:

± (% of reading + # of least signiﬁcant digits)

WARNINGS

To ensure safe operation and service of the tester, follow these instructions.

Failure to observe these warnings can result in severe injury or death.

•

Before each use, verify meter operation by measuring

a known voltage or current.

•

Never use the meter on a circuit with voltages that exceed the

category based rating of this meter.

•

Do not use the meter during electrical storms, or in wet weather.

•

Do not use the meter or test leads if they appear to be damaged.

•

Ensure meter leads are fully seated, and keep ﬁngers away from

the metal probe contacts when making measurements.

•

Do not open the meter to replace batteries while the probes

are connected.

•

Use caution when working with voltages above 60V DC,

or 25V AC RMS. Such voltages pose a shock hazard.

•

To avoid false readings that can lead to electrical shock,

replace batteries if a low battery indicator appears.

•

Unless measuring voltage or current, shut off and lock out

power before measuring resistance or capacitance.

•

Always adhere to local and national safety codes. Use individual

protective equipment to prevent shock and arc blast injury where

hazardous live conductors are exposed.

SYMBOLS

AC Alternating Current Warning or Caution

DC Direct Current Dangerous levels

DC/AC Voltage or Current Double Insulated Class II

Ground Safe for disconnect

from live conductors

AC Source

FEATURE DETAILS

A. Use CAT IV rated leads or higher.

Do not attempt to measure more than 1000V DC or 750V AC or 2000µA.

B. Keep hands below line when measuring high current levels.

C. Auto Power-Off (Apo)

•

Device will power off after 30 minutes non-use.

•

Turn the dial or press a button to wake.

•

Disabled during Max / Min function.

•

Holding Select button while turning on disables Auto Power-Off.

D. Select Functionality Button

•

Switch between AC and DC.

•

Switch between

and

•

Press for 2 seconds to switch between AC, frequency, and duty cycle.

•

Press for 2 seconds to zero the display (DC clamp current only).

E. Hold /Backlight /Worklight

•

Press to hold the current input on the display.

•

Press again to return to live reading.

•

Press for 2 seconds to enable /disable lights.

•

Using lights drains the battery signiﬁcantly.

F. Auto /Manual Range

•

Press repeatedly to cycle through manual ranges.

•

Press for 2 seconds to return to auto ranging mode.

•

is displayed on LCD only during auto ranging mode.

G. Max /Min Hold

•

Press to enter Max /Min mode; the largest and smallest values

will be saved while in this mode.

•

Press repeatedly to alternate between the maximum and minimum readings.

•

Press for 2 seconds to return to live reading and clear the stored

maximum and minimum values.

2200

600V

400V

CATIII

600V

400V

CATIII

2200

PRESS

1. AC/DC Current (large):

600A

Features:

2. AC /DC Current (small):

2000µA

Features:

MAX/MINRANGEHOLD

H. I. Battery Replacement

•

When

indicator is displayed on the LCD, batteries must be

replaced.

•

Remove the back screw and replace 2 x AAA batteries.

J. Magnetic Back

•

Attach instrument to metal for hands-free use.

K. Bar Graph

•

The bar graph shows an approximate analog representation

of a measurement.

•

The bar graph responds much faster than the digital display.

•

The scale of the bar graph is zero to the maximum reading of

the selected range.

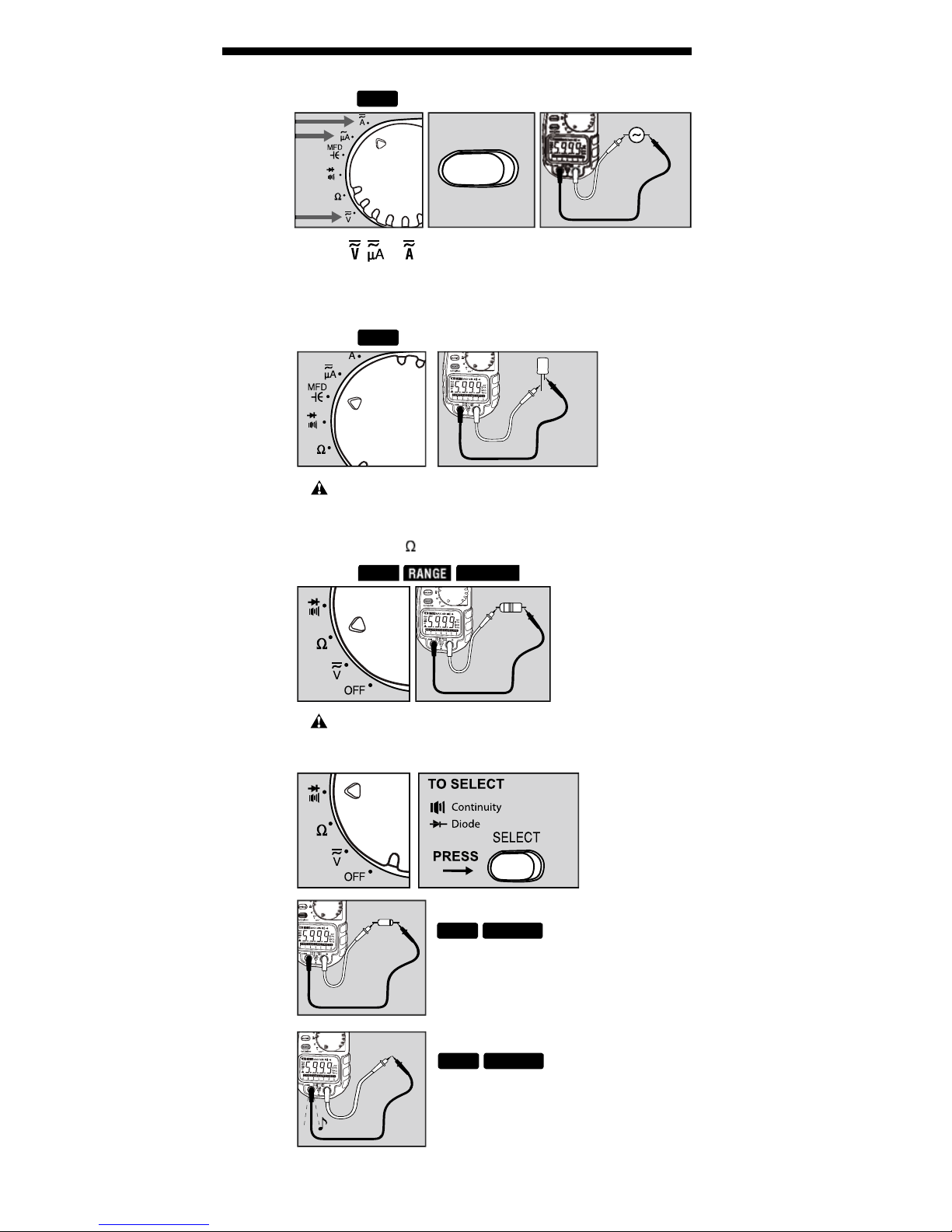

FUNCTION INSTRUCTIONS

•

Select AC or DC current source.

•

Current above 2000µA will damage instrument.

•

Select AC or DC voltage source.

MAX/MINRANGEHOLD

•

Center wire in guides for best accuracy.

•

Opposing currents cancel

(use line-splitter when necessary)

3. AC /DC Voltage:

750V AC or 1000V DC

Features:

MAX/MINRANGEHOLD

ZERO (DC)

PRESS & HOLD

SELECT

Hz/Duty/Zero

4. Frequency (Hz) /Duty Cycle

(See Feature Details)

Features:

HOLD

•

Select

,or

setting.

5. Capacitance:

6000µF

Features:

HOLD

•

Safely discharge capacitor before measurement.

•

Reading may take up to 60 seconds for large capacitors.

6. Resistance:

60M

Features:

MAX/MINRANGEHOLD

•

Do not

measure resistance on a live circuit.

7. Diode / Continuity

Display shows:

•

Forward voltage drop if forward biased.

•

“O.L.” if reverse biased.

Diode

Features:

HOLD MAX/MIN

•

Display shows resistance.

•

Buzzer sounds if less than 40

Ω.

Continuity

Features:

HOLD MAX/MIN

ENGLISH

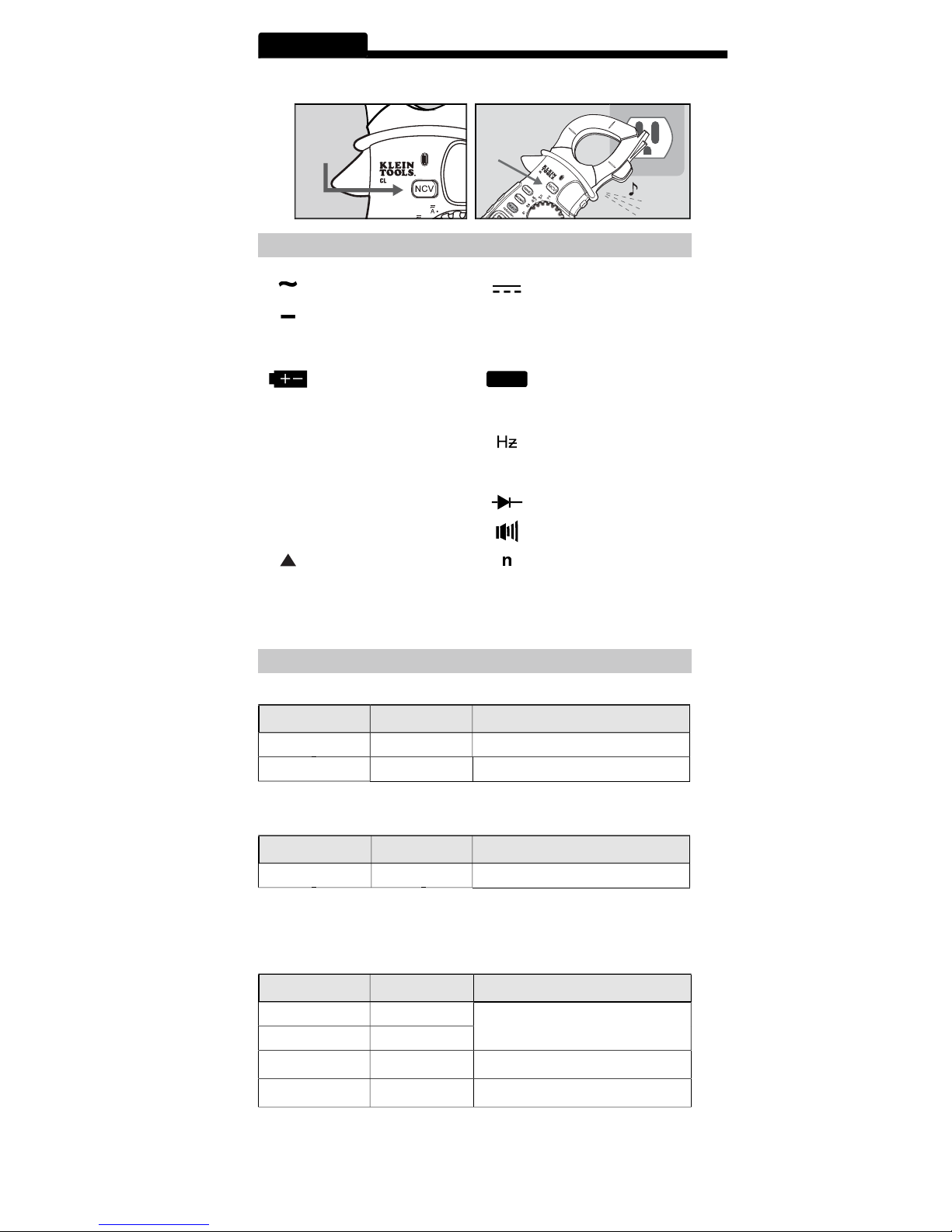

SYMBOLS USED ON LCD

AC Measurement DC Measurement

Negative DC Value

Auto Range Active

.L.

Overload: Range Exceeded

Apo

Auto Power-Off Active

Low Battery

HOLD

Hold Active

MIN

Minimum Reading

Maximum Reading

Duty Cycle Mode Frequency Mode

Voltage Measurement

Current in Amps

Resistance in Ohms Diode Test

Capacitance in Farads Continuity Test

Relative / Zero Mode

Nano 10

-9

Milli 10

-3

Micro 10

-6

Mega 10

Kilo 10

8. Non Contact Voltage (NCV): > 25V AC

ELECTRICAL SPECIFICATIONS

DC Voltage Measurement

Range Resolution Accuracy

600mV

600V

0.1mV

100mV

± (0.5% + 4 digits)

1000V

± (0.8% + 10 digits)

Overload Protection:

1000V

AC Voltage Measurement

Range Resolution Accuracy

600mV

750V

0.1mV

± (2.0% + 5 digits)

Overload Protection:

750V RMS

Frequency Response:

45 to 400 Hz

Minimum Voltage for Frequency Measurement:

200mV

Response:

True RMS

DC Current Measurement

Range Resolution Accuracy

600µA

0.1µA

± (1.2% + 3 digits)

2000µA

1µA

60A 0.01A ± (2.5% + 15 digits)

600A 0.1A ± (1.5% + 8 digits)

Overload Protection:

• Voltage:

600V RMS

• Current:

(Leads)

2000µA

(Clamp)

600A

2200

PRESS

and

HOLD

1200

PRESS

and

HOLD

AC Current Measurement

Range Resolution Accuracy

600µA

0.1µA

± (2.0% + 5 digits)

2000µA

1µA

± (1.5% + 5 digits)

60A

0.01A

± (2.9% + 15 digits)

600A

0.1A

± (1.9% + 8 digits)

Overload Protection:

• Voltage:

600V RMS

• Current:

(Leads)

2000µA

(Clamp)

600A

Frequency:

45 to 400Hz

Minimum Current for Frequency Measurement:

400µA or 20A

Minimum Current for Clamp Measurement:

0.2A

Response:

True RMS

Resistance Measurement

Range Resolution Accuracy

600

˜6M

0.1

˜1k

± (1.0% + 4 digits)

60M

10k

± (2.0% + 4 digits)

Overload Protection:

600V RMS

Capacitance Measurement

Range Resolution Accuracy

60nF

6000µF

˜6000µF

0.01nF

1µF

˜1µF

± (3.5% + 6 digits)

Overload Protection:

600V RMS

Frequency Measurement (Voltage)

Range Resolution Accuracy

99.99Hz

499.9kHz

˜499.9kHz

0.01Hz

100Hz

˜100Hz

± (0.1% + 4 digits)

Overload Protection:

600V RMS

Sensitivity:

2.5V RMS

Duty Cycle Measurement

Range Resolution Accuracy

99%

˜99%

0.1%

± (0.1% + 5 digits)

Overload Protection:

600V RMS

Sensitivity:

1.2Vpp ~ 50Vpp

Frequency Range:

< 500 Hz

Diode Test

Overload Protection Range Test Current Open Circuit Voltage

600V RMS

6.0V

Appx. 0.25mA

1.8V DC

Continuity Test

Overload Protection Open Circuit Voltage

600V RMS

0.44V

Non Contact Voltage Detector

On Voltage

Appx. 25V AC

Speciﬁcations subject to change.

CUSTOMER SERVICE

KLEIN TOOLS, INC.

450 Bond Street

Lincolnshire, IL 60069

1-877-775-5346

www.kleintools.com

139704

WARRANTY

This product is warranted to be free from defects in materials and workmanship

for a period of two years from the date of purchase. During this warranty period,

Klein Tools has the option to repair or replace or refund the purchase price of

any unit which fails to conform to this warranty under normal use and service.

This warranty does not cover damage which occurs in shipment or failure which

results from alteration, tampering, accident, misuse, abuse, neglect, or improper

maintenance. Batteries and damage resulting from failed batteries are not

covered by warranty. A purchase receipt or other proof of original purchase date

will be required before warranty repairs will be rendered.

Any implied warranties, including but not limited to implied warranties of

merchantability and ﬁtness for a particular purpose, are limited to the express

warranty. Klein Tools shall not be liable for loss of use of the instrument or other

incidental or consequential damages, expenses, or economic loss, or for any

claim or claims for such damage, expenses or economic loss.

Some states or countries laws vary, so the above limitations or exclusions may

not apply to you. This warranty gives you speciﬁc legal rights, and you may also

have other rights which vary from state to state. If your Klein product requires

repair or for information on how to exercise your rights under the terms of this

warranty, please contact Klein Tools at 1-877-775-5346.

CLEANING

Turn instrument off and disconnect test leads. Clean the instrument by using

a damp cloth. Do not use abrasive cleaners or solvents.

STORAGE

Remove the batteries when instrument is not in use for a prolonged period of

time. Do not expose to high temperatures or humidity. After a period of storage

in extreme conditions exceeding the limits mentioned in the Speciﬁcations

section, allow the instrument to return to normal operating conditions before

using it.

DISPOSAL /RECYCLE

Caution:

This symbol indicates that equipment and its accessories

shall be subject to a separate collection and correct disposal.



www.kleintools.com

Manual de

Instrucciones

For Professionals...Since 1857

CL2200

2200

•

VALOR EFICAZ (RMS)

VERDADERO

•

RETENCIÓN

DE DATOS

•

LUZ DE FONDO

•

PROBADOR DE

TENSIÓN SIN

CONTACTOS

•

GRÁFICO DE BARRAS

•

MAX

MIN

•

LUZ DE TRABAJO

•

INTERVALO

AUTO / MANUAL

•

PANTALLA DE

LCD DE 5999

CONTEOS CON

DÍGITOS DE 3-5/6

ESPAÑOL

CL2200

Manual de Instrucciones

ESPECIFICACIONES GENERALES

El CL2200 de Klein Tools es un multímetro de pinza con determinación

automática del intervalo con valor eﬁcaz (RMS) verdadero. Mide tensión

de CA / CC, corriente CA / CC, resistencia, capacitancia, frecuencia y ciclo

de servicio. También puede probar tensión, diodos y continuidad sin

contactos.

•

Altitud de funcionamiento:

2000 metros

•

Humedad:

80% máx

•

Temperatura de funcionamiento:

0°C /32°F a 45°C /113°F

•

Temperatura de almacenamiento:

-20°C /-4°F a 60°C /140°F

•

Dimensiones:

7,65 x 2,56 x 1,375 pulgadas

•

Peso:

11,9 onzas

•

Calibración:

Precisa durante un año

•

Caliﬁcación CAT:

CAT IV 600V

•

Precisión:

± (% de la lectura + No. de dígitos menos signiﬁcativos)

ADVERTENCIAS

Para asegurar un funcionamiento y servicio seguros del probador, siga

estas instrucciones. Si no se hace caso de estas advertencias, el resultado

puede ser lesiones graves o muerte.

•

Antes de cada uso, veriﬁque el funcionamiento del multímetro midiendo

una tensión o una corriente conocida.

•

No utilice nunca el multímetro en un circuito con tensiones que excedan

la capacidad nominal basada en la categoría de este multímetro.

•

No utilice el multímetro durante tormentas eléctricas ni en tiempo mojado.

•

No utilice el multímetro ni los conductores de prueba si parecen estar

dañados.

•

Asegúrese de que los conductores de prueba del multímetro estén

completamente asentados y mantenga los dedos alejados de los contactos

metálicos de los conductores de prueba cuando haga mediciones.

•

No abra el multímetro para reemplazar las pilas mientras los conductores

de prueba estén conectados.

•

Tenga precaución cuando trabaje con tensiones superiores a 60 V CC, o 25 V

CA de valor eﬁcaz (RMS). Dichas tensiones presentan un peligro de descarga.

•

Para evitar lecturas falsas que pueden llevar a descargas eléctricas, reemplace

las pilas si aparece un indicador de pila baja.

•

A menos que mida tensión o corriente, apague y bloquee el suministro

eléctrico antes de medir resistencia o capacitancia

•

Cumpla siempre con los códigos de seguridad locales y nacionales.

Utilice equipo de protección individual para evitar las descargas eléctricas

y las lesiones por intensas corrientes de arco donde los conductores con

corriente peligrosos estén al descubierto.

SÍMBOLOS

CA Corriente alterna Advertencia o precaución

CC Corriente continua Niveles peligrosos

Tensión o corriente CC/CA Conexión a tierra

Con aislamiento

doble de Clase II

Seguro para desconectar

de conductores con

corriente

Fuente de CA

Autres manuels pour CL2200

Table des matières

Langues :

Autres manuels Klein Tools Instrument de mesure

Klein Tools

Klein Tools CL210E Manuel utilisateur

Klein Tools

Klein Tools ET450 Manuel utilisateur

Klein Tools

Klein Tools 93LDM100C Manuel utilisateur

Klein Tools

Klein Tools MM6000 Manuel utilisateur

Klein Tools

Klein Tools ET180 Manuel utilisateur

Klein Tools

Klein Tools CL110 Manuel utilisateur

Klein Tools

Klein Tools VDV512-110 Manuel utilisateur

Klein Tools

Klein Tools NCVT-1 Manuel utilisateur

Klein Tools

Klein Tools VDV500-705 Manuel utilisateur

Klein Tools

Klein Tools 93MCLG Manuel utilisateur

Klein Tools

Klein Tools CL2000 Manuel utilisateur

Klein Tools

Klein Tools ET160 Manuel utilisateur

Klein Tools

Klein Tools CL2000 Manuel utilisateur

Klein Tools

Klein Tools CL390 Manuel utilisateur

Klein Tools

Klein Tools IR2000A Manuel utilisateur

Klein Tools

Klein Tools ET130 Manuel utilisateur

Klein Tools

Klein Tools MM2000 Manuel utilisateur

Klein Tools

Klein Tools Ranger TDR VDV501-090 Manuel utilisateur

Klein Tools

Klein Tools CL120 Manuel utilisateur

Klein Tools

Klein Tools Probe-Pro Manuel utilisateur

Klein Tools

Klein Tools CL800A Manuel utilisateur

Klein Tools

Klein Tools CL3000 Manuel utilisateur

Klein Tools

Klein Tools CL390 Manuel utilisateur

Klein Tools

Klein Tools LAN Scout Jr. 2 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
