Keysight Technologies N5244BU-679 Manuel utilisateur

INSTALLATION GUIDE

)

Keysight

Add 4-Port Capability

For Version 7, Dual-

Source Synthesizers

(For Models With

Direct Digital

Synthesis (Only))

Upgrade Kit

To Upgrade PNA-X N5244B or

N5245B Option 219 to Option 419

Upgrade Kit Order Number:

N5244BU-679 and N5245BU-679

Keysight Kit Number: N5245-60133

This is an Installation Note for the N5244/45B Option 219 to 419 Microwave

Vector Network Analyzers with Version 7 synthesizers.

Notices

2009-2022

No part of this manual may be

reproduced in any form or by any

means (including electronic storage

and retrieval or translation into a

foreign language) without prior

agreement and written consent from

Keysight Technologies, Inc. as

governed by United States and

international copyright laws.

Trademark Acknowledgments

Manual Part Number

N5245-90133

Edition

Edition 1, November 2022

Printed in USA/Malaysia

Published by:

Keysight Technologies

1400 Fountaingrove Parkway

Santa Rosa, CA 95403

Warranty

THE MATERIAL CONTAINED IN THIS

DOCUMENT IS PROVIDED “AS IS,”

AND IS SUBJECT TO BEING

CHANGED, WITHOUT NOTICE, IN

FUTURE EDITIONS. FURTHER, TO

THE MAXIMUM EXTENT PERMITTED

BY APPLICABLE LAW, KEYSIGHT

DISCLAIMS ALL WARRANTIES,

EITHER EXPRESS OR IMPLIED WITH

REGARD TO THIS MANUAL AND

ANY INFORMATION CONTAINED

HEREIN, INCLUDING BUT NOT

LIMITED TO THE IMPLIED

WARRANTIES OF

MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE.

KEYSIGHT SHALL NOT BE LIABLE

FOR ERRORS OR FOR INCIDENTAL

OR CONSEQUENTIAL DAMAGES IN

CONNECTION WITH THE

FURNISHING, USE, OR

PERFORMANCE OF THIS

DOCUMENT OR ANY INFORMATION

CONTAINED HEREIN. SHOULD

KEYSIGHT AND THE USER HAVE A

SEPARATE WRITTEN AGREEMENT

WITH WARRANTY TERMS

COVERING THE MATERIAL IN THIS

DOCUMENT THAT CONFLICT WITH

THESE TERMS, THE WARRANTY

TERMS IN THE SEPARATE

AGREEMENT WILL CONTROL.

Technology Licenses

The hardware and/or software

described in this document are

furnished under a license and may be

used or copied only in accordance

with the terms of such license.

U.S. Government Rights

The Software is “commercial

computer software,” as defined

by Federal Acquisition Regulation

(“FAR”) 2.101. Pursuant to FAR

12.212 and 27.405-3 and

Department of Defense FAR

Supplement (“DFARS”) 227.7202,

the U.S. government acquires

commercial computer software

under the same terms by which

the software is customarily

provided to the public.

Accordingly, Keysight provides

the Software to U.S. government

customers under its standard

commercial license, which is

embodied in its End User License

Agreement (EULA), a copy of

which can be found at

http://www.keysight.com/find/sweula

The license set forth in the EULA

represents the exclusive authority

by which the U.S. government

may use, modify, distribute, or

disclose the Software. The EULA

and the license set forth therein,

does not require or permit,

among other things, that

Keysight: (1) Furnish technical

information related to

commercial computer software

or commercial computer

software documentation that is

not customarily provided to the

public; or (2) Relinquish to, or

otherwise provide, the

government rights in excess of

these rights customarily provided

to the public to use, modify,

reproduce, release, perform,

display, or disclose commercial

computer software or

commercial computer software

documentation. No additional

government requirements

beyond those set forth in the

EULA shall apply, except to the

extent that those terms, rights, or

licenses are explicitly required

from all providers of commercial

computer software pursuant to

the FAR and the DFARS and are

set forth specifically in writing

elsewhere in the EULA. Keysight

shall be under no obligation to

update, revise or otherwise

modify the Software. With

respect to any technical data as

defined by FAR 2.101, pursuant

to FAR 12.211 and 27.404.2 and

DFARS 227.7102, the U.S.

government acquires no greater

than Limited Rights as defined in

FAR 27.401 or DFAR 227.7103-5

(c), as applicable in any technical

data.

Safety Notices

A CAUTION notice denotes a

hazard. It calls attention to an

operating procedure, practice, or

the like that, if not correctly

performed or adhered to, could

result in damage to the product

or loss of important data. Do not

proceed beyond a CAUTION

notice until the indicated

conditions are fully understood

and met.

A WARNING notice denotes a

hazard. It calls attention to an

operating procedure, practice, or

the like that, if not correctly

performed or adhered to, could

result in personal injury or death.

Do not proceed beyond a

WARNING notice until the

indicated conditions are fully

understood and met.

Keysight Add Option 419 Upgrade Kit

Upgrade Kit Number: N5245-60133

Installation Note

Description of the Upgrade

This upgrade converts your N5244B or N5245B Option 219 2-port analyzer to

a N5244B or N5245B Option 419 4-port analyzer by adding:

— an additional source

— a x4 direct digital synthesizer (DDS) assembly

— two additional doublers

—anadditionalmixerbrick

— two additional reference couplers

— two additional test port couplers

— two additional bias tees

— two additional source attenuators

— two additional receiver attenuators

—asplitter

— a modified front panel

—manynewcables

Refer to “Overview of the Installation Procedure” on page 16.

If you had an A model PNA-X with Option 219/419 with Option H85 that

was upgraded to a B model, please refer to Options 217/417. If you had an

A model PNA-X with Option 224/423 with Option H85 that was upgraded

to a B model then refer to Option 222/422.

This repair must be done at a service center or a self-maintainer service

center! Refer to “Getting Assistance from Keysight” on page 6.

This upgrade kit is for upgrading 2-port Option 219 models with (x2) direct

digital synthesis (DDS) to a 4-port Option 419 with DDS only.

6 Installation Note N5245-90133

Description of the Upgrade

Getting Assistance from Keysight

Installing this upgrade kit requires special skills and experience. If you think

you may not be qualified to do the work, or need advice, contact Keysight.

Contacting Keysight

Assistance with test and measurements needs and information on finding a

local Keysight office are available on the Web at:

http://www.keysight.com/find/assist

If you do not have access to the Internet, please contact your Keysight field

engineer.

If You Have Problems With the Upgrade Kit Contents

Keysight stands behind the quality of the upgrade kit contents. If you have

problems with any item in the kit, refer to www.keysight.com and the Contact

Keysight ()link.

In any correspondence or telephone conversation, refer to the Keysight

product by its model number and full serial number. With this information,

the Keysight representative can determine whether your product is still

within its warranty period.

Installation Note N5245-90133 7

Description of the Upgrade

Getting Prepared

To successfully install this upgrade kit, you will need the following:

—Alicensekey-referto“License Key Redemption” below.

— A PDF copy or a paper copy of the PNA-X Service Guide - refer to

“Downloading the Online PNA-X Service Guide” below.

— An ESD-safe work area - refer to “Protecting Your Workspace from

Electrostatic Discharge” below.

— Correct tools - refer to “Tools Required for the Installation” on page 11.

— Enough time - refer to “About Installing the Upgrade” on page 11.

— Test equipment for the post-upgrade adjustments and full instrument

calibration. To view the equipment list, click the Chapter 3 bookmark “Tests

and Adjustments” in the PDF Service Guide1.

The PNA-X contains extremely sensitive components that can be ruined if

mishandled. Follow instructions carefully when making cable connections,

especially wire harness connections.

The person performing the work accepts responsibility for the full cost of

the repair or replacement of damaged components.

IMPORTANT!

—This document contains references to legacy and new A25 HMA26.5

Multiplier/Amplifier and A27/A28 mixer brick assemblies. Your model

instrument may have either legacy assemblies or the new parts

installed.

—To verify your instrument’s A25 HMA26.5 Multiplier/Amplifier, refer to

“Verify the Model/Version of HMA26.5 Installed” on page 9.

—The A27/A28 mixer bricks might be a legacy part number 5087-7323

(with (x2) discrete 3dB attenuators, 08490-60010) or new part number

5087-7417 (with integrated 3 dB attenuators).

—See also your instrument’s PDF Service Guide a.

a. See “Downloading the Online PNA-X Service Guide” on page 10.

1. See “Downloading the Online PNA-X Service Guide” on page 10.

8 Installation Note N5245-90133

Description of the Upgrade

Getting Prepared

License Key Redemption

To enable the option product(s), you must request license key(s) file from the

Keysight Software Manager:

http://www.keysight.com/find/softwaremanager:

To complete the request, you will need to gather the following information:

— From the certificate

— Order number

— Certificate number

— From your instrument

— Model number

— Serial number

Using the information just gathered, you must request license key(s) from the

Keysight Software Manager:

http://www.keysight.com/find/softwaremanager.

You will need to provide an email address, to which Keysight will promptly

email your license key file. Refer to “License Key Redemption” on page 8.

Verify the License Contents

Refer to the license message you received from Keysight:

If the model number, serial number, or option number do not match those on

the license message you received from Keysight, you will not be able to install

the license key file. If this is the case you received from Keysight, you will not

be able to install the license key file. If this is the case, contact Keysight for

assistance. Refer to “Getting Assistance from Keysight” on page 6.

Ensure that you are connected to an external server, before attempting to

download your email and license key file.

If you are unfamiliar with the licensing process, refer to

https://www.keysight.com/us/en/assets/9018-04534/installation-guides

/9018-04534.pdf (N5242-90024).

The enclosed Software Entitlement Certificate is a receipt, verifying that

you have purchased a licensed option for the PNA-X of your choice. You

must now use a Keysight Web page to request a license key file for the

instrument that will receive the option.

Installation Note N5245-90133 9

Description of the Upgrade

Getting Prepared

Verify the Model/Version of HMA26.5 Installed

This upgrade kit contains components for use with PNA-X models using the

legacy HMA26.5 part number 5086-7765. If your PNA-X has the newer

HMA26.5 part number N5240-60101 installed you may discard these parts:

— A26 splitter 5067-4086

— W52 N5245-20013

— W53 N5245-20023

— W54 N5245-20022

(If you have the legacy 5087-7765 HMA26.5, please discard the N5245-20195

semi-rigid cables. Refer to Figure 1 on page 9.)

The new N5240-60101 HMA26.5 has the splitter integrated into the assembly.

Refer to Figure 1 on page 9.

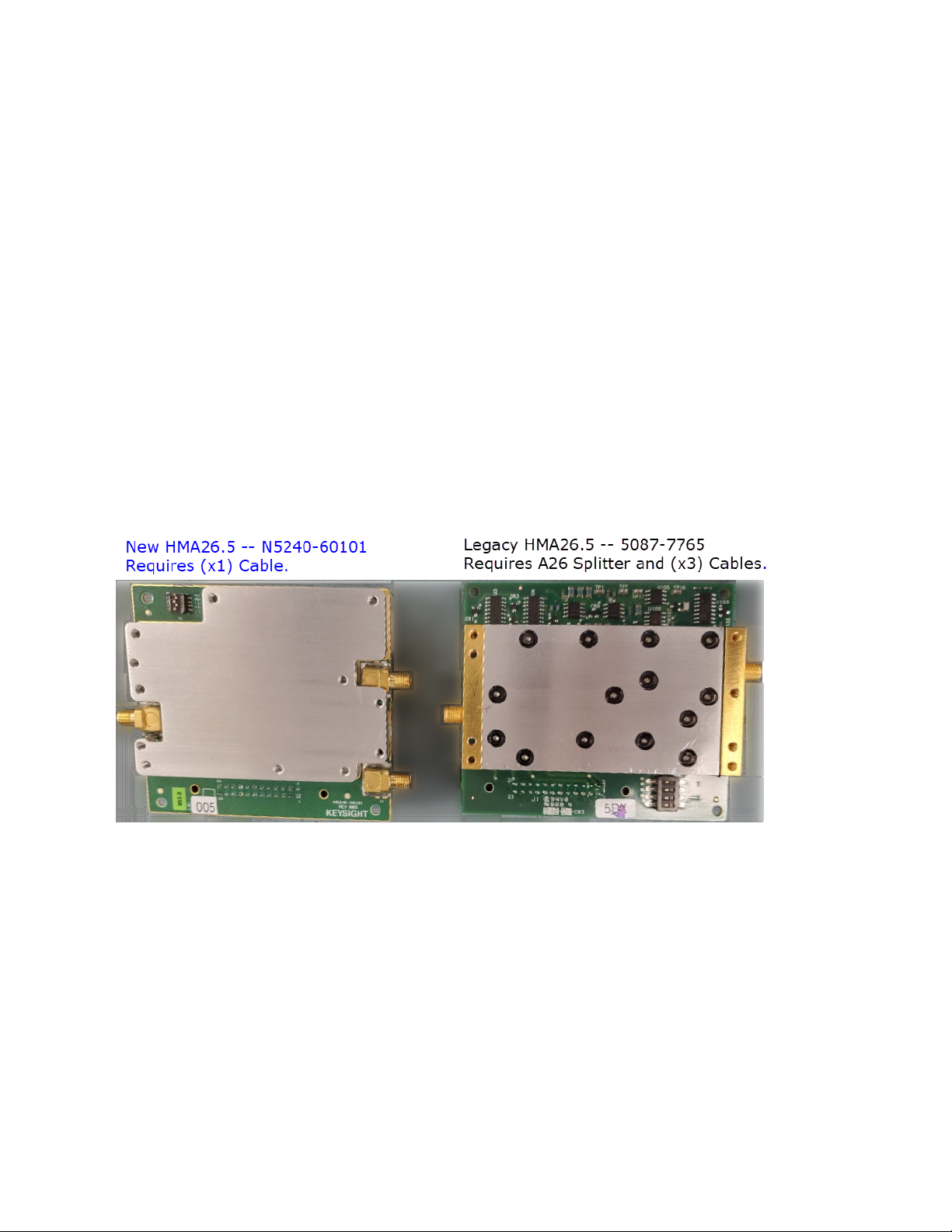

Figure 1 Comparison of Legacy HMA26.5 (5087-7765) and New HMA26.5

(N5240-60101)

10 Installation Note N5245-90133

Description of the Upgrade

Getting Prepared

Downloading the Online PNA-X Service Guide

To view the online Service Guide for your PNA-X model number, use the

following steps:

1. Go to www.keysight.com.

2. In the Search box, enter the model number of the analyzer (e.g., N5225B)

and click Search.

3. Click Support > Keysight Product Support.

4. In the Search Support area type your instrument’s model number (e.g.,

N2225B).

5. Press Enter.

6. Scroll down to the PRINT DOCUMENTATION section and click to select

Service Manual.

The Service Manual for your instrument will be displayed near the top of

the right column.

7. Click the hyperlink of the Service Guide title to download the PDF file.

8. When the PDF of the Service Guide is displayed, scroll through the

Contents section bookmarks to locate the information needed.

Protecting Your Workspace from Electrostatic Discharge

For information, click on the Chapter 1 bookmark, “Electrostatic Discharge

Protection” in the PDF Service Guide1.

ESD Equipment Required for the Installation

1. See “Downloading the Online PNA-X Service Guide” on page 10.

Description Keysight Part Number

ESD grounding wrist strap 9300-1367

5-ft grounding cord for wrist strap 9300-0980

2 x 4 ft conductive table mat and 15-ft grounding wire 9300-0797

ESD heel strap (for use with conductive floors) 9300-1308

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Keysight Technologies Instrument de mesure

Keysight Technologies

Keysight Technologies FieldFox B Series Manuel utilisateur

Keysight Technologies

Keysight Technologies 34134A Manuel utilisateur

Keysight Technologies

Keysight Technologies N9000B Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies N5222B Guide de démarrage rapide

Keysight Technologies

Keysight Technologies M9485A Guide de l'utilisateur

Keysight Technologies

Keysight Technologies N5250C PNA Series Manuel utilisateur

Keysight Technologies

Keysight Technologies P Series Manuel utilisateur

Keysight Technologies

Keysight Technologies PNA Series Manuel utilisateur

Keysight Technologies

Keysight Technologies N6705C Manuel de service

Keysight Technologies

Keysight Technologies i7090 Manuel utilisateur

Keysight Technologies

Keysight Technologies N9320A RF Manuel utilisateur

Keysight Technologies

Keysight Technologies B2980A Series Manuel utilisateur

Keysight Technologies

Keysight Technologies X Series Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies B2901A Manuel utilisateur

Keysight Technologies

Keysight Technologies N5251A Series Manuel utilisateur

Keysight Technologies

Keysight Technologies N9040B Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies U8903B Manuel utilisateur

Keysight Technologies

Keysight Technologies FieldFox N9913A Manuel utilisateur

Keysight Technologies

Keysight Technologies E8364-60108 Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies M9602A Manuel utilisateur

Keysight Technologies

Keysight Technologies E5052B Manuel du propriétaire

Keysight Technologies

Keysight Technologies N9030A Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies X Series Manuel du propriétaire

Keysight Technologies

Keysight Technologies N9030B Manuel d'installation et d'exploitation

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
