Interlogix TruVision Line Feuille d'instructions

TruVision Analog PTZ

Camera Configuration

Manual

P/N 1072658A-EN • REV 1.0 • ISS 11OCT13

2013 UTC Fire & Security Americas Corporation, Inc.

Interlogix is part of UTC Climate Controls & Security, a unit of United

Technologies

Trademarks and

patents

he TruVision and Interlogix names and logos are trademarks of

United Technologies.

Other trade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective

products.

Manufacturer

UTC Fire & Security Americas Corporation, Inc.

2955 Red Hill Avenue, Costa Mesa, CA 92626

-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Contact information

For contact information

, see www.interlogix.com or

www.utcfssecurityproducts.eu

Customer suppor

www.interlogix.com/customer

-support

TruVision Analog PTZ Camera Configuration Manual i

Content

Chapter 1 Introduction 5

Power-up action 5

System-defined presets 6

Chapter 2 Programming 7

Access the OSD menu 7

View system information 8

Change system settings 8

System information settings 8

Camera address settings 10

Soft baud rate settings 10

Pelco checksum 10

System time 10

Zero point (initial position) setting 11

Display settings 11

Fan control 12

EIS (Electronic image stabilization) function 12

Preset direct focus 12

Protocol and RS-485 settings 12

Camera settings 13

Focus 13

Zoom limit 14

Day/Night mode 14

BLC and WDR functions 15

Exposure mode 15

Iris value 16

Shutter speed 16

Gain value 16

Exposure compensation function 16

White balance 16

Image flip 16

Focus limit 17

Image quality parameters 17

Noise reduction 17

HLC (high light compensation) 17

Privacy masking 17

PTZ control parameters 19

Proportional panning 19

Dwell time and actions 20

Freeze image 20

Limit stops 20

Presets 21

Preset tours 23

ii TruVision Analog PTZ Camera Configuration Manual

Shadow tours 25

Schedules and tasks 27

Zones 29

Clear PTZ control settings 30

Alarms 31

Alarm inputs and linked actions 31

Alarm parameters 32

Auxiliary alarm output 32

Password 33

Tracking settings 34

Restore default camera settings 35

Reboot the camera 35

KTD-405 and DVR control feature list 36

TruVision Analog PTZ Camera Configuration Manual iii

TruVision Analog PTZ Camera Configuration Manual 5

Chapter 1

Introduction

Before programming, ensure that the PTZ camera has the power, control, video

cables correctly connected. For information on installing the PTZ camera, please

refer to the “Truvision Analog PTZ camera Installation Manual” supplied with the

PTZ camera.

The PTZ camera is programmed through the on-screen (OSD) menus. You can

access to the OSD menu of a PTZ camera by using a control device, such as a

keypad, DVRs, etc. For the control cable connection and communication settings

with a control device, please see the correspondent user manual of the control

device.

Power-up action

When the unit is powered up, the PTZ camera will perform a series of self-test

actions. Meanwhile, a splash screen appears that displays important system

information for two minutes, as shown below.

The system information may change depending on user’s settings or models.

Chapter 1: Introduction

6 TruVision Analog PTZ Camera Configuration Manual

System-defined presets

The camera has some system-defined presets with special functions. These

presets cannot be edited but can be called through a control device, such as a

DVR or keypad. Please refer to below table for details.

Table 1: Predefined presets

Preset N

o. Function Preset No. Function

Auto-flip 93 Set manual limit stops

Return to home position 94 Remote reboot

Preset Tour 1 95 Access main menu

Preset Tour 2 96 Stop scanning

Preset Tour 3 97 Start random scanning

Preset Tour 4 98 Start frame scanning

IR cut filter in 99 Start pan scanning

IR cut filter out 100 Start tilt scanning

Shadow Tour 1 101 Start panorama scanning

Shadow Tour 2 102 Preset Tour 5

Shadow Tour 3 103 Preset Tour 6

Shadow Tour 4 104 Preset Tour 7

Enable limit stops 105 Preset Tour 8

Note: Please ensure that the baud rate, data bit, and address have been

configured for the camera are the same as those in the control device.

Chapter 2: Programming

TruVision Analog PTZ Camera Configuration Manual 7

Chapter 2

Programming

This chapter explains how to program the cameras through a control device. The

connections or procedure may vary depending on the control device. The following

instructions show how to program using a DVR.

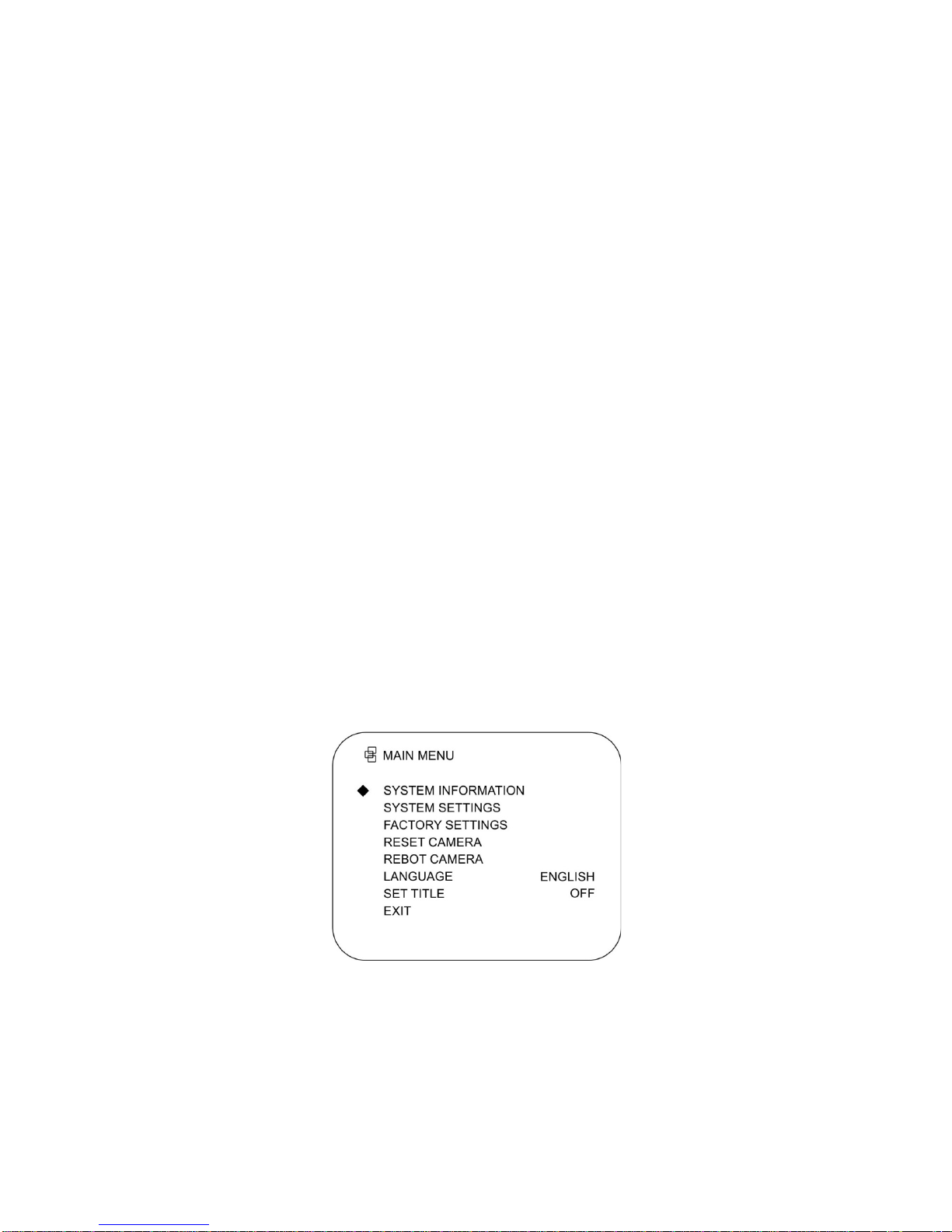

Access the OSD menu

To enter the main menu:

1. Connect the camera’s video and RS-485 cables to a DVR.

2. Access the DVR via its web browser or OSD menu.

3. View the live video of the PTZ camera.

4. Call preset 95 from the preset list in the PTZ control panel of the DVR to access the

OSD menu.

To move the cursor and select an item:

1. Move the cursor up/down: In live view mode, click the UP/DOWN buttons or the

FOCUS + and FOCUS-buttons in the PTZ control panel to move the cursor up and

down.

Chapter 2: Programming

8 TruVision Analog PTZ Camera Configuration Manual

2. Enter/Exit: In the live view window, click IRIS+to enter a submenu. Move the cursor to

Exit and click IRIS+to exit.

To select and change an item in a menu:

1. Move the cursor to the target item and click the IRIS+ button.

2. Click the UP/DOWN or LEFT/RIGHT buttons in the PTZ control panel to choose the

value from the selectable value list.

3. Click IRIS+to confirm the change, or click IRIS-to cancel and restore the original value.

View system information

The System Information menu displays the current system information of the PTZ camera,

including model number, address, protocol, etc.

Figure 1: System information

Note: The information displayed cannot be edited. The temperature shown refers to the

internal temperature.

To view the system information:

1. Go to Main Menu >System Information. The System Information menu appears.

Change system settings

System information settings

You can check and edit the system settings on address, communication, protocol, time, etc.

in the System Information Settings menu.
