Intel®Celeron®Processor

Specification Update

Release Date: August 2007

Document Number: 243748-051

The Intel®Celeron®processor may contain design defects or errors known as errata, which may cause the

product to deviate from published specifications. Current characterized errata are documented in this

Specification Update.

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL®PRODUCTS. NO LICENSE,

EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED

BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH

PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED

WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES

RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT,

saving, or life sustaining applications.

Intel may make changes to specifications and product descriptions at any time, without notice.

Designers must not rely on the absence or characteristics of any features or instructions marked “reserved” or “undefined.”

Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising

from future changes to them.

The Mobile Intel® Celeron® Processor may contain design defects or errors known as errata which may cause the product

to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product

order.

Intel, Pentium, Celeron, Intel Xeon and the Intel logo are trademarks or registered trademarks or registered trademarks of

Intel Corporation or its subsidiaries in the United States and other countries*Other names and brands may be claimed as the

property of others.

CONTENTS

REVISION HISTORY....................................................................................................................................... ii

PREFACE ....................................................................................................................................................... vi

Specification Update for the Intel®Celeron®Processor................................................................................... 1

GENERAL INFORMATION.............................................................................................................................. 1

Intel®Celeron®Processor and Boxed Intel®Celeron®Processor Markings (S.E.P. Package).................... 1

Intel®Celeron®Processor and Boxed Intel®Celeron®Processor Markings (PPGA Package).................... 2

Intel®Celeron®Processor and Boxed Intel®Celeron®Processor Markings (FC-PGA/FC-PGA2 Package) 3

IDENTIFICATION INFORMATION .................................................................................................................. 4

SUMMARY OF CHANGES............................................................................................................................ 11

Summary of Errata ..................................................................................................................................... 12

Summary of Documentation Changes ....................................................................................................... 21

Summary of Specification Clarifications..................................................................................................... 23

Summary of Specification Changes ........................................................................................................... 24

ERRATA ........................................................................................................................................................ 25

DOCUMENTATION CHANGES .................................................................................................................... 79

SPECIFICATION CHANGES......................................................................................................................... 99

INTEL®CELERON®PROCESSOR SPECIFICATION UPDATE

REVISION HISTORY

Date of Revision Version Description

April 1998 -001 This document is the first Specification Update for the Intel®

Celeroncprocessor.

May 1998 -002 Added Errata 24 through 28.

June 1998 -003 Updated S-spec Table. Updated Summary Table of Changes.

Updated Erratum 2 and 26. Added Errata 29 and 30. Added

Documentation Changes 7 through 12. Added Specification

Clarification 6 and 7.

July 1998 -004 Updated S-spec Table. Added Documentation Changes 13 through

16. Added Specification Clarifications 7 through 12. Added

Specification Change 1.

August 1998 -005 Updated Summary Table of Changes. Changed numbering in order

to maintain consistency with other product Specification Updates.

Updated Errata 6 and 38. Added Errata 56 through 59. Updated

Specification Clarification 5.

September 1998 -006 Updated S-spec table. Updated Erratum 56. Added Errata 60

through 62.

October 1998 -007 Implemented new numbering nomenclature. Updated Errata C1 and

C27. Added Errata C37 through C39. Added Specification

Clarification C15. Added Specification Change C2.

November 1998 -008 Updated Erratum C23. Added Erratum C40. Updated Documentation

Change C10. Added Documentation Changes C17 and C18. Added

Specification Change C3.

December 1998 -009 Added the Celeron processor (PPGA) markings. Added the Mb0

stepping to the Processor Identification Information table and the

Table of Changes. Added Errata C41 and C42.

December 1998 -010 Updated Identification Information table

January 1999 -011 Added Erratum C3AP. Added Documentation Changes C19 and

C20. Updated Processor Identification Information table.

February 1999 -012 Updated Processor Identification Information table.

March 1999 -013 Updated Processor Markings, Summary Table of Changes,

Documentation Changes, Specification Clarifications, and

Specification Changes sections. Added Specification Change C1.

May 1999 -014 Updated the Processor Identification Information table. Added

Erratum C43.

June 1999 -015 Added Erratum C44. Added Documentation Change C1. Added

Specification Clarifications C2 and C3. Added Specification Change

C1.

July 1999 -016 Added Erratum C45.

INTEL®CELERON®PROCESSOR SPECIFICATION UPDATE

iii

REVISION HISTORY

Date of Revision Version Description

August 1999 -017 Added Documentation Change C2. Updated Preface paragraph.

Updated Codes Used in Summary Table. Updated column heading

in Errata, Documentation Changes, Specification Clarifications and

Specification Changes tables.

October 1999 -018 Added ‘Brand Id’ to Identification Information table. Updated

Processor Identification Information Table. Added Errata C46.

November 1999 -019 Added Errata C47 and C48. Added Documentation Change C3.

December 1999 -020 Added Errata C49. Added Documentation Change C4. Added

Specification Clarification C4.

January 2000 -021 Added Errata C50 and C51. Added Documentation Change C5.

February 2000 -022 Added Documentation Change C6. Updated Summary of Changes

product letter codes.

March 2000 -023 Updated Erratum C47. Updated the CPUID/Stepping information in

the Summary of Changes section.

May 2000 -024 Updated the Intel®Celeron®Processor Identification Information

table. Added Errata C52 – C69. Updated the Summary of Errata,

Summary of Documentation Changes, Summary of Specification

Clarifications and Summary of Changes tables. Added Specification

Change C2.

June 2000 -025 Added Specification Change C3.

July 2000 -026 Added Errata C70 and C71.

August 2000 -027 Updated Processor Identification Information table. Added Erratum

C72.

September 2000 -028 Updated the Intel

Celeron®Processor Identification Information

table. Added Erratum C73. Updated Errata C33 ,C47 and C51.

Added Documentation changes C7 and C8.

October 2000 -029 Added Erratum C74. Added Documentation Changes C9 and C10

November 2000 -030 Updated the Intel®Celeron®Processor Identification Information

table Added Errata C75 and C76.

December 2000 -031 Updated Specification Update product key to include the Intel®

Pentium® 4 processor, Updated Erratum C2. Added Documentation

changes C11, C12, C13, C14, C15 and C16.

January 2001 -032 Updated the Intel®Celeron®Processor Identification Information

table, Updated Erratum C2. Added Documentation changes C17 and

C18.

February 2001 -033 Updated Documentation change C17. Added Documentation change

C19.

March 2001 -034 Updated Summary of Errata, Summary of Documentation Changes,

Summary of Specification Clarifications and Summary of

Specification Changes tables. Added Errata C77 and C78.

INTEL®CELERON®PROCESSOR SPECIFICATION UPDATE

REVISION HISTORY

Date of Revision Version Description

July 2001 -035 Updated the Intel®Celeron®Processor Identification Information

table. Updated the Summary of Errata table.

August 2001 -036 Added Errata C79 and C80. Updated the Summary of changes

section.

August 2001 -037 Out of cycle release. Updated the Intel®Celeron®Processor

Identification Information table

October 2001 -038 Updated the identification information section with 0.13 micron

Celeron processor details. Updated Processor Identification

Information Table. Updated Summary of Errata Table. Updated

Summary of Documentation Changes Table. Updated Summary of

Specification Clarifications Table. Updated Summary of

Specifications Changes Table. Added Errata C81 and C82.

December 2001 -039 Added Documentation Changes C1, C2, C3, C4 and C5. Updated

Processor Identification Information Table.

January 2002 -040 Updated Processor Identification Information Table.

January 2002 -041 Added the 1A and 1.10A GHz specifications.

February 2002 -042 Added the 566 MHz at 1.75 VID specifications.

March 2002 -043 Updated Erratum C79. Added Erratum C83. Added Doc change C1.

Updated Processor Identification Information table.

April 2002 -044 Added Documentation change C1

May 2002 -045 Updated Erratum C67. Added Doc changes C1-C3. Updated

Processor Identification Information Table.

July 2002 -046 Added Erratum C84. Added Documentation Changes C1 - C12.

Added/updated CPUID 0x6B4 processor.

September 2002 -047 Updated Processor Identification Information Table. Updated

Summary of Errata Table. Added Documentation Changes C3 – C24.

December 2006 -048 Added Erratum C85, C86, C87, C88, C89, C90, C91, C92, C93, C94,

C95, C96, C97 C98, C99, C100, C101, C102, C103, C104, C105,

C106, C107, C108, C109. Update Summary Table of Changes.

Updated the names and document numbers of the Software

Developers Manual. Updated Processor Identification Table.

January 2007 -049 Added Erratum C110.

May 2007 -050 Updated Summary Table of Changes.

INTEL®CELERON®PROCESSOR SPECIFICATION UPDATE

REVISION HISTORY

Date of Revision Version Description

August 2007 -051 Updated Summary Table of Changes. Added Erratum C111.

INTEL®CELERON®PROCESSOR SPECIFICATION UPDATE

PREFACE

This document is an update to the specifications contained in the following documents:

•Pentium®II Processor Developer’s Manual (Order Number 243502)

•P6 Family of Processors Hardware Developer’s Manual (Order Number 244001)

•Intel®Celeron® Processor Datasheet (Document Number 243658)

•Intel® 64 and Intel IA-32 Architectures Software Developer’s Manual, Volumes 1, 2-A, 2-B, 3-A and 3-B

(Document numbers 253665, 253666, 253667, 253668, and 253669, respectively.)

It is intended for hardware system manufacturers and software developers of applications, operating systems,

or tools. It contains S-Specs, Errata, Documentation Changes, Specification Clarifications and, Specification

Changes.

Nomenclature

S-Spec Number is a five-digit code used to identify products. Products are differentiated by their unique

characteristics, e.g., core speed, L2 cache size, package type, etc. as described in the processor identification

information table. Care should be taken to read all notes associated with each S-Spec number.

Errata are design defects or errors. Errata may cause the Celeron processor’s behavior to deviate from

published specifications. Hardware and software designed to be used with any given processor must assume

that all errata documented for that processor are present on all devices unless otherwise noted.

Documentation Changes include typos, errors, or omissions from the current published specifications. These

changes will be incorporated in the next release of the specifications.

Specification Clarifications describe a specification in greater detail or further highlight a specification’s

impact to a complex design situation. These clarifications will be incorporated in the next release of the

specifications.

Specification Changes are modifications to the current published specifications for the Celeron processor.

These changes will be incorporated in the next release of the specifications.

Specification Update for the Intel®Celeron®Processor

GENERAL INFORMATION

Intel®Celeron®Processor and Boxed Intel®Celeron®Processor

Markings (S.E.P. Package)

im©’98

celeron ™

Static White Silkscreen marks

266/66 COA

FFFFFFFF SYYYY

Dynamic laser mark area

NOTES:

•SYYYY = S-spec Number.

•FFFFFFFF = FPO # (Test Lot Traceability #).

COA = Country of Assembly.

INTEL®CELERON® PROCESSOR SPECIFICATION UPDATE

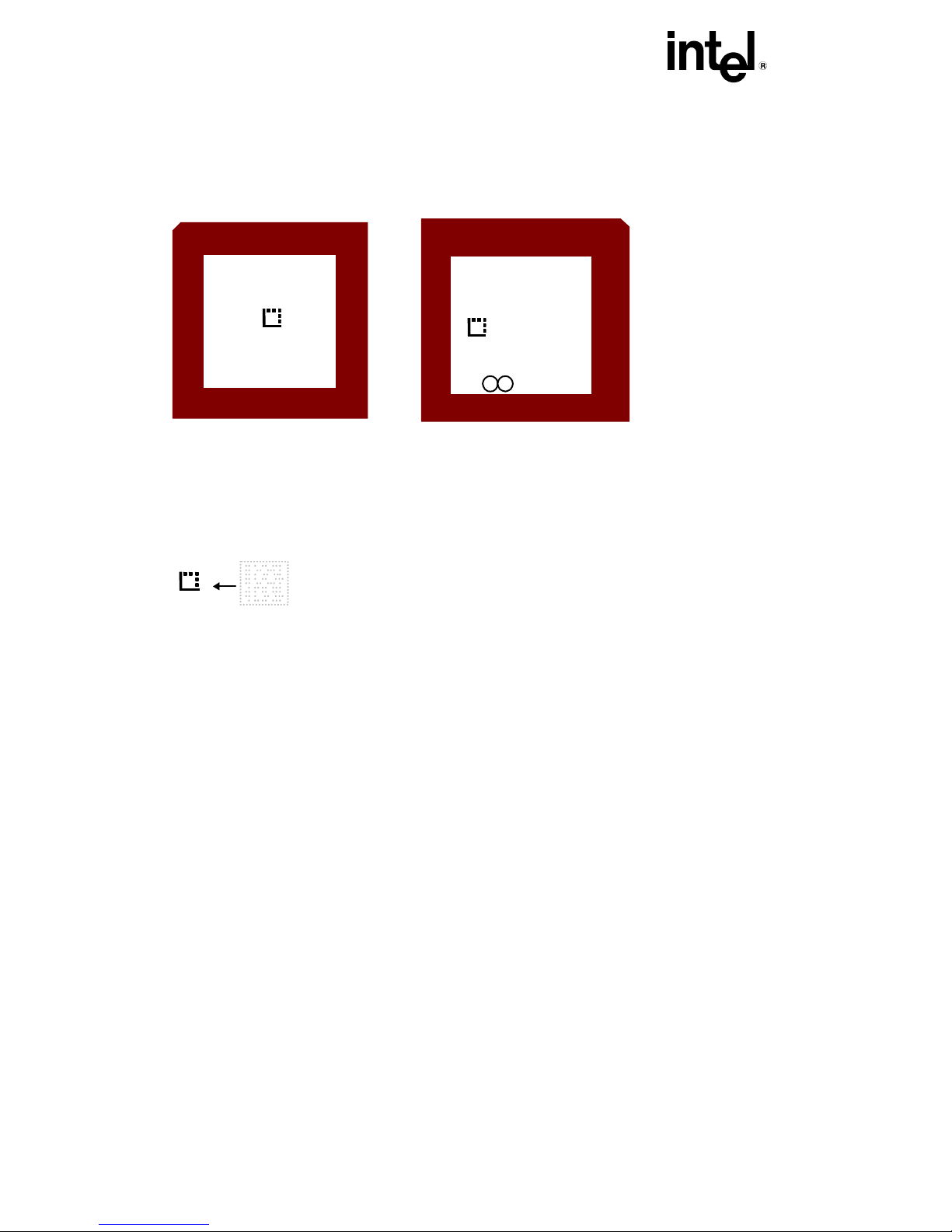

Intel®Celeron®Processor and Boxed Intel®Celeron®Processor

Markings (PPGA Package)

celeron

AAAAAAAZZZ

LLL SYYYY

Country of Origin

FFFFFFFF-XXXX

M C

’98

Top Bottom

int l

NOTES:

AAAAAAA = Product Code

ZZZ = Processor Speed (MHz)

LLL = Integrated Level-Two Cache Size (in Kilobytes)

SYYYY = S-Spec Number

FFFFFFFF-XXXX = Assembly Lot Tracking Number

•

2-D Matrix Mark

Intel UCC#

Order Code (Product - speed)

S Number

Lot Number (date, factory)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Intel Matériel informatique

Intel

Intel EM64T - Celeron D 336 Boxed Ena Manuel utilisateur

Intel

Intel BV80605001914AG - Processor - 1 x Xeon X3430 Manuel utilisateur

Intel

Intel BX80623I52500K Manuel utilisateur

Intel

Intel 80C186EC Manuel utilisateur

Intel

Intel HH80552PG0962M - Pentium 4 3.4 GHz Processor Manuel utilisateur

Intel

Intel NUC7i5BNH Manuel utilisateur

Intel

Intel SRCU42X Manuel d'installation

Intel

Intel RMS3JC080 Manuel utilisateur

Intel

Intel BOXNUC5i7RYH Manuel utilisateur

Intel

Intel RS2BL080 - RAID Controller Manuel d'installation

Intel

Intel MFS5520VI - Multi-Flex Server Compute Module Manuel utilisateur

Intel

Intel 80960KB Manuel utilisateur

Intel

Intel LGA1155 SOCKET - THERMAL MECHANICAL S AND DESIGN GUIDELINES... Manuel utilisateur

Intel

Intel AXXRAKSAS2 Manuel utilisateur

Intel

Intel BX80605I5760 Manuel utilisateur

Intel

Intel BX80569Q9550 - Core 2 Quad 2.83 GHz... Manuel utilisateur

Intel

Intel BX80616I3540 Mode d’emploi

Intel

Intel DG45ID - CARACTERISTIQUES TECHNIQUES Manuel utilisateur

Intel

Intel 855GM Mode d’emploi

Intel

Intel SRCSASRB - RAID Controller Manuel d'installation

Intel

Intel E5420 - CPU XEON QUAD CORE 2.50GHZ FSB1333MHZ 12M LGA771 HALOGEN FREE... Manuel utilisateur

Intel

Intel RS2BL080 - RAID Controller Manuel utilisateur

Intel

Intel Core 2 Duo Processor Manuel utilisateur

Intel

Intel 80C186XL Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

Advantech

Advantech ASMB-935 Series Manuel utilisateur

Jupiter

Jupiter RAM PACK Manuel utilisateur
