Intel NUC 11 Extreme Kit NUC11BTMi9 Manuel utilisateur

NUC11BTMi7, NUC11BTMi9

User Guide – August 2021

Intel® NUC 11 Extreme Kit NUC11BTMi7

Intel® NUC 11 Extreme Kit NUC11BTMi9

User Guide

August 2021

NUC11BTMi7, NUC11BTMi9

User Guide – August 2021

You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products

described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject

matter disclosed herein.

No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.

All information provided here is subject to change without notice. Contact your Intel representative to obtain the latest Intel product

specifications and roadmaps.

The products described may contain design defects or errors known as errata which may cause the product to deviate from published

specifications. Current characterized errata are available on request.

Copies of documents which have an order number and are referenced in this document may be obtained by calling 1-800-548-4725 or by

visiting: http://www.intel.com/design/literature.htm.

Intel technologies' features and benefits depend on system configuration and may require enabled hardware, software or service activation.

Performance varies depending on system configuration. No computer system can be absolutely secure.

Intel and the Intel logo are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.

*Other names and brands may be claimed as the property of others.

NUC11BTMi7, NUC11BTMi9

User Guide – August 2021

Contents

1.0 Introduction ............................................................................................................................. 5

1.1 Before You Begin ........................................................................................................................................... 5

1.2 Installation Precautions ............................................................................................................................. 5

1.3 Observe Safety and Regulatory Requirements ......................................................................... 6

2.0 Open the Chassis ................................................................................................................... 7

3.0 System Memory ....................................................................................................................13

4.0 Change the M.2 SSD ...........................................................................................................16

5.0 Close the Chassis .................................................................................................................20

6.0 Connect Power ......................................................................................................................26

7.0 Install an Operating System .........................................................................................28

8.0 Install the Latest Device Drivers and Software ................................................29

NUC11BTMi7, NUC11BTMi9

User Guide – August 2021

Revision History

Date Revision Description

August 2021 1.0 Initial release.

NUC11BTMi7, NUC11BTMi9

User Guide – August 2021

1.0 Introduction

This User Guide provides step-by-step installation instructions for these products:

 Intel® NUC 11 Extreme Kit NUC11BTMi7

 Intel® NUC 11 Extreme Kit NUC11BTMi9

1.1 Before You Begin

CAUTIONS

The steps in this guide assume you’re familiar with computer terminology and

with the safety practices and regulatory compliance required for using and

modifying computer equipment.

Disconnect the computer from its power source and from any network before

performing any of the steps described in this guide.

Failure to disconnect power, telecommunications links, or networks before you open

the computer or perform any procedures can result in personal injury or equipment

damage. Some circuitry on the board can continue to operate even though the front

panel power button is off.

Follow these guidelines before you begin:

 Always follow the steps in each procedure in the correct order.

 Create a log to record information about your computer, such as model,

serial numbers, installed options, and configuration information.

 Electrostatic discharge (ESD) can damage components. Perform the

procedures described in this chapter only at an ESD workstation using an

antistatic wrist strap and a conductive foam pad. If such a station isn’t

available, you can provide some ESD protection by wearing an antistatic wrist

strap and attaching it to a metal part of the computer chassis.

1.2 Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the

installation instructions.

To avoid injury, be careful of:

NUC11BTMi7, NUC11BTMi9

User Guide – August 2021

 Sharp pins on connectors

 Sharp pins on circuit boards

 Rough edges and sharp corners on the chassis

 Hot components (such as SSDs, processors, voltage regulators, and heat sinks)

 Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing

to qualified technical personnel.

1.3 Observe Safety and Regulatory Requirements

If you don’t follow these instructions, you increase your safety risk and the possibility

of noncompliance with regional laws and regulations.

NUC11BTMi7, NUC11BTMi9

User Guide – August 2021

2.0 Open the Chassis

1. Unscrew the four screws on the rear side of the chassis and shift the cover:

2. Remove back panel:

NUC11BTMi7, NUC11BTMi9

User Guide – August 2021

3. Remove the both side panels:

NUC11BTMi7, NUC11BTMi9

User Guide – August 2021

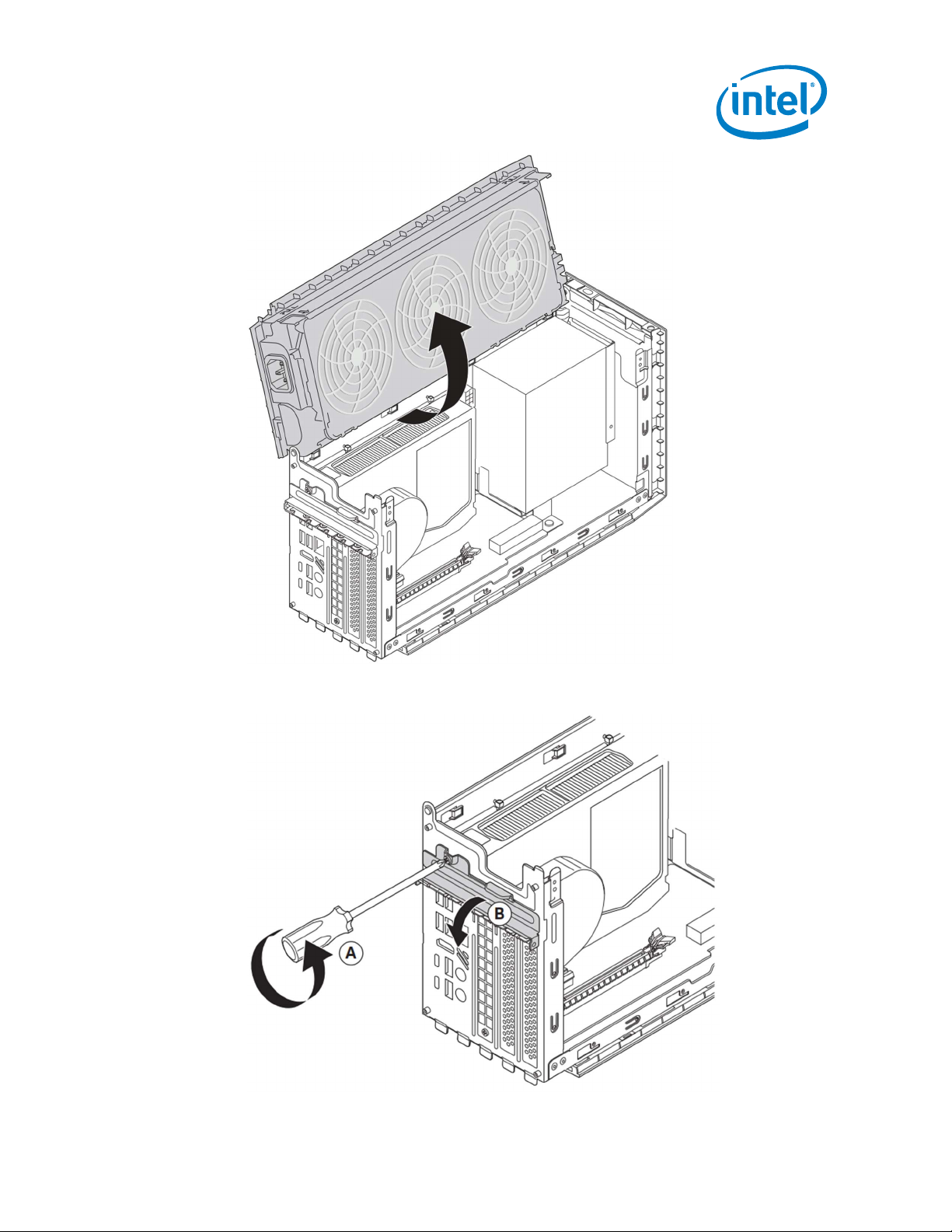

4. Flip the top fan lid:

NUC11BTMi7, NUC11BTMi9

User Guide – August 2021

5. Flip PCIe bracket holder down:
