IHP DUALBURNER24N Manuel utilisateur

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 1

P/N 901164-00

Rev. NC 06/2021

HEARTH PRODUCTS

KITS AND ACCESSORIES

LOG SET INSTALLATION

INSTALLATION INSTRUCTIONS FOR PLACEMENT OF ASHTON WHITE BIRCH 24”, 30” AND 36” LOG SETS.

INSTALLER:

Leave instructions with the appliance.

CONSUMER:

Retain instructions for future reference.

GENERAL INFORMATION

THE FIREPLACE MUST BE OFF AND COLD BEFORE

BEGINNING.

READ ALL OF THE STEPS BEFORE STARTING THE

INSTALLATION.

PACKAGING LIST

1 ea. Complete Log Set

1 ea. Installation Instructions

TOOLS/SUPPLIES NEEDED

Safety Glasses

Protective Work Gloves

Heat Resistant Gloves

Installation and service must be performed by a quali-

ﬁed installer, service agency or the gas supplier.

Any safety screen, guard, or barrier removed for ser-

vicing an appliance must be replaced prior to operat-

ing the heater. The ﬁreplace screen or guard designed

for this appliance must be installed prior to operation.

IMPORTANT: Read the owner’s manual carefully and

completely before trying to assemble, operate or ser-

vice this ﬁreplace. Improper use of this ﬁreplace can

cause serious injury or death from burns, ﬁre, explo-

sion, electrical shock and carbon monoxide poisoning.

THESE LOG PLACEMENT INSTRUCTIONS ARE A SUP-

PLEMENT TO THE LOG BURNER INSTRUCTIONS. LOG

BURNER INSTRUCTIONS MUST BE READ AND FOL-

LOWED TO THEIR ENTIRETY TO ASSURE SAFE AND

PROPER INSTALLATION AND OPERATION. THE LOG

BURNER INSTRUCTIONS ARE INCLUDED SEPARATELY

INSIDE THE CARTONED LOG BURNER ASSEMBLY.

PFS

If your gas log burner is not listed above, please

refer to your owners manual or contact IHP Tech Sup-

port/Customer Service for further assistance.

Log sets shall not be used with any other manufactur-

ers log burners.

1. Remove the entire Log Set provided and check for

damage. If damaged, STOP!!! Contact dealer or IHP.

2. If you currently have a log set installed: Remove

the entire Log Set that is currently installed on your

Gas Log Burner and discard entire set.

3. Follow the steps found beginning on the next page

for installation of your new complete Log Set.

This is a complete Log Set and shall not be used oth-

erwise. This log set shall not be used for replacement

of single logs.

It is very important to install these logs exactly as

instructed. DO NOT MODIFY LOGS.

Failure to position the parts in accordance with these

instructions or failure to use only parts speciﬁcally

approved with this appliance may result in property

damage or personal injury.

CAUTION: Burn hazard! Logs will remain hot after

use. If you need to reposition any log to maintain the

proper layout, use heat resistant gloves or allow logs

adequate time to cool before handling.

24” log sets

shall only

be used with

burners

30” log sets

shall only

be used with

burners

36” log sets

shall only

be used with

burners

DUALBURNER24N

DUALBURNEROD24N

DUALBURNER24NE

DUALBURNER24PE

DUALBURNER30N

DUALBURNEROD30N

DUALBURNER30NE

DUALBURNER30PE

DUALBURNER36N

DUALBURNEROD36N

DUALBURNER36NE

DUALBURNER36PE

INSTALLATION OF LOGS ON ANY OTHER BURNER IS

STRICKLY PROHIBITED.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

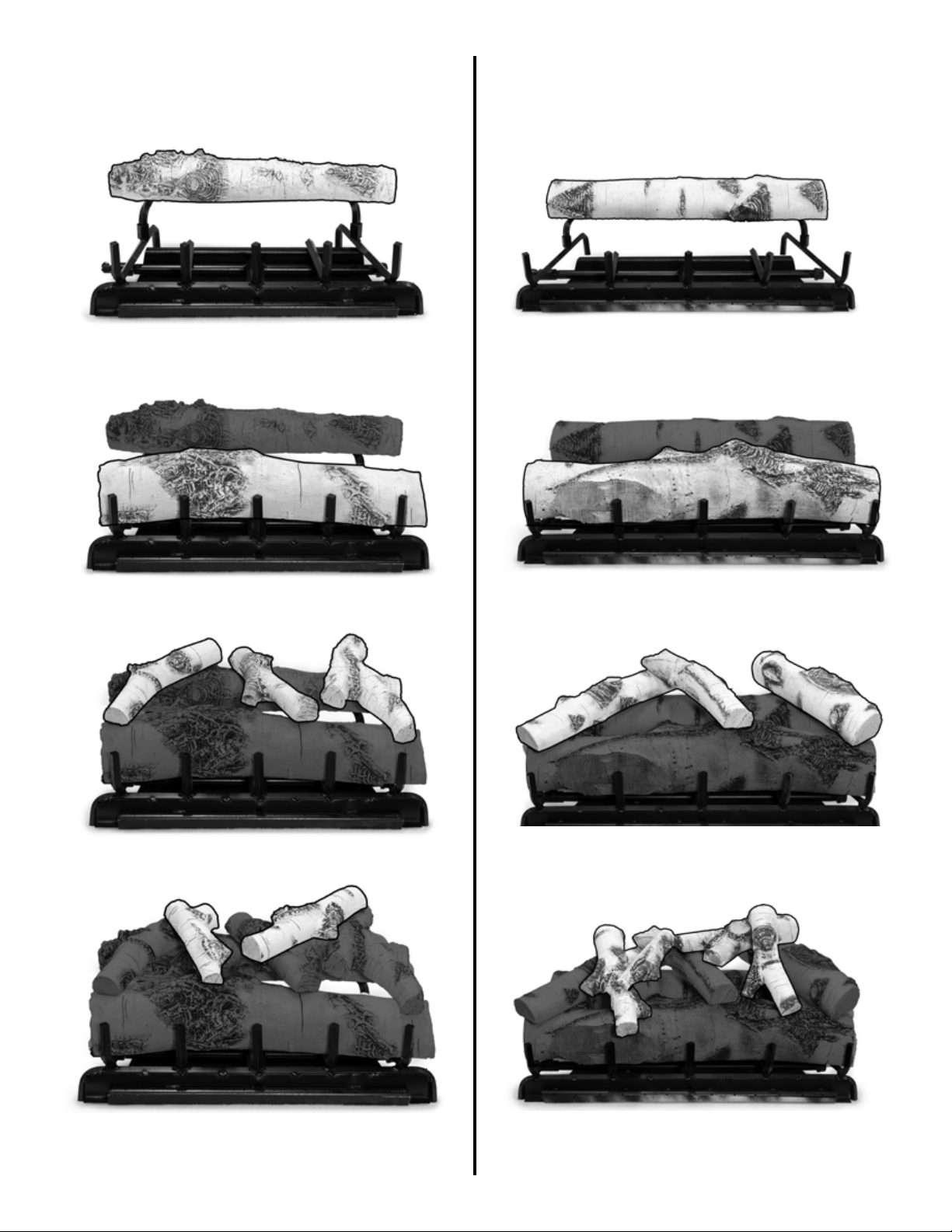

ASHTON WHITE BIRCH 24” ASHTON WHITE BIRCH 30”

1. Place rear log on rear horizontal grate bars as shown

below.

2. Place front log as far forward as possible. It should con-

tact front grate ﬁngers as shown below.

3. Place the 3 middle logs as shown below.

4. Place the 2 top logs as shown below.

1. Place rear log on rear horizontal grate bars as shown

below.

2. Place front log as far forward as possible. It should con-

tact front grate ﬁngers as shown below.

3. Place the 3 middle logs as shown below.

4. Place the 4 top logs as shown below.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 3

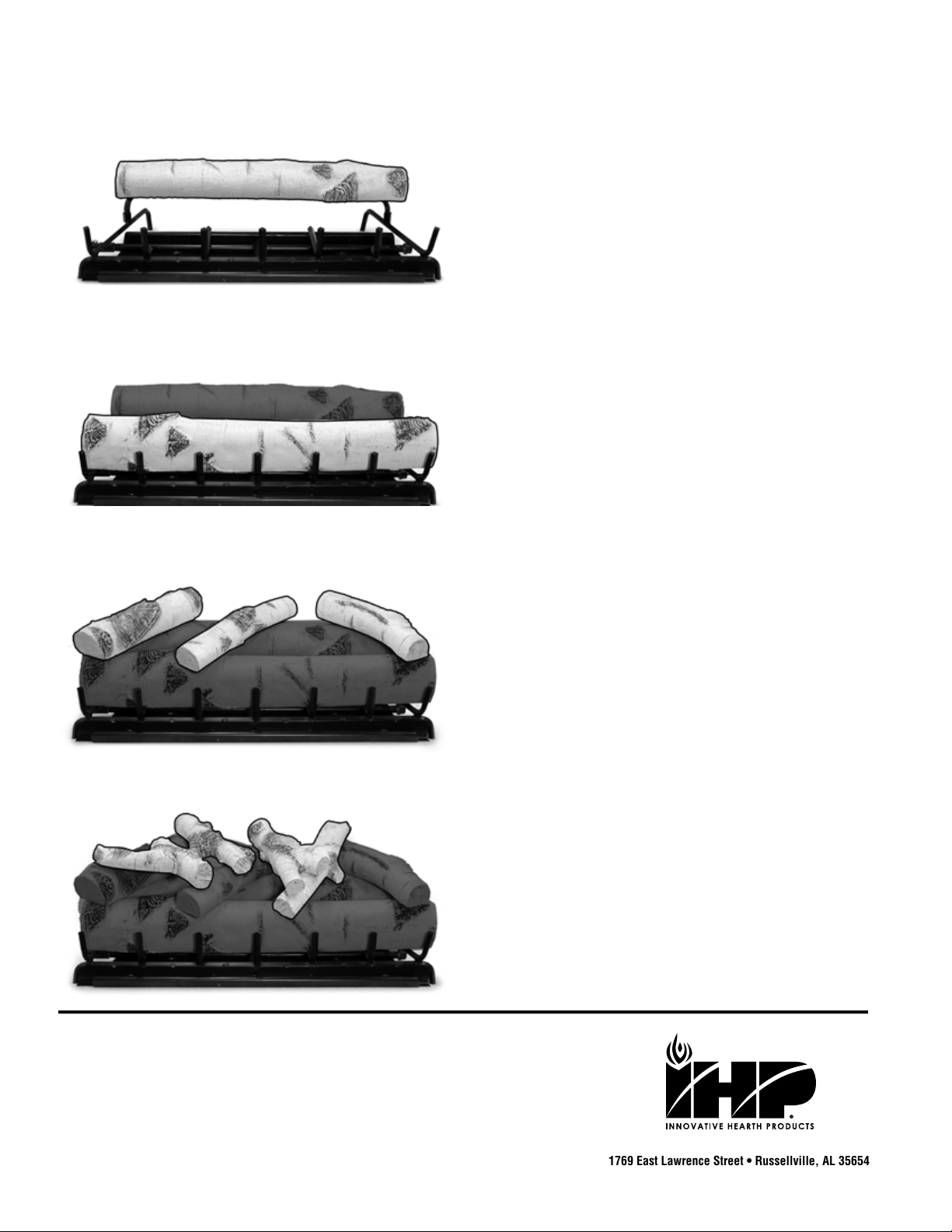

ASHTON WHITE BIRCH 36”

1. Place rear log on rear horizontal grate bars as shown

below.

2. Place front log as far forward as possible. It should con-

tact front grate ﬁngers as shown below.

3. Place the 3 middle logs as shown below.

4. Place the 4 top logs as shown below.

P/N 901164-00 REV.NC 06/2021

Innovative Hearth Products (IHP) reserves the right to make changes at any time, without

notice, in design, materials, speciﬁcations, prices and also to discontinue colors, styles and

products. Consult your local distributor for ﬁreplace code information.

1769 East Lawrence Street • Russellville, AL 35654
