CHARRED OAK AND DRIFTWOOD LOG SETS

P/N 900796-00

Rev. NC, 09/2016

HEARTH PRODUCTS

KITS AND ACCESSORIES

KIT CONTENTS

1 ea. Log Set

1 ea. Instruction Sheet

TOOLS NEEDED

None

INSTALLATION INSTRUCTIONS FOR INSTALLING DRIFTWOOD AND CHARRED OAK* LOG SETS FOR USE WITH

SCORPIO AND DRT3500 SERIES DIRECT-VENT GAS FIREPLACES

GENERAL INFORMATION

This log placement guide has been prepared to present detailed log

placement illustrations and provide instruction to assist in the placement

of logs at the initial (new appliance) setup and after the annual cleaning

and inspection cycles. The information provided here is to be used in

conjunction with the Installation and Operation Instructions provided

with the appliance.

If you encounter any problems, need clariﬁcation of these instructions or

are not qualiﬁed to properly install this kit, contact your local distributor

or dealer.

Read this instruction sheet in its entirety before beginning the installation.

DO NOT attempt to install the logs until the appliance installation has

been completed, the gas line connected and tested for leaks and the

initial burner operation has been checked out.

The logs have notches/tabs to assist proper positioning. Upper logs rest

on lower logs via notches/tabs. Proper log placement is critical to prevent

sooting. Place the logs in the gaps between ﬂame peaks, so they do not

impinge the ﬂames. Follow the log placement instructions precisely.

ALL WARNINGS AND PRECAUTIONS IN THE INSTALLATION AND

OPERATION MANUAL PROVIDED WITH THE APPLIANCE APPLY TO

THESE INSTRUCTIONS.

SHUT DOWN THE APPLIANCE AND ALLOW IT TO COMPLETELY COOL

BEFORE PROCEEDING.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

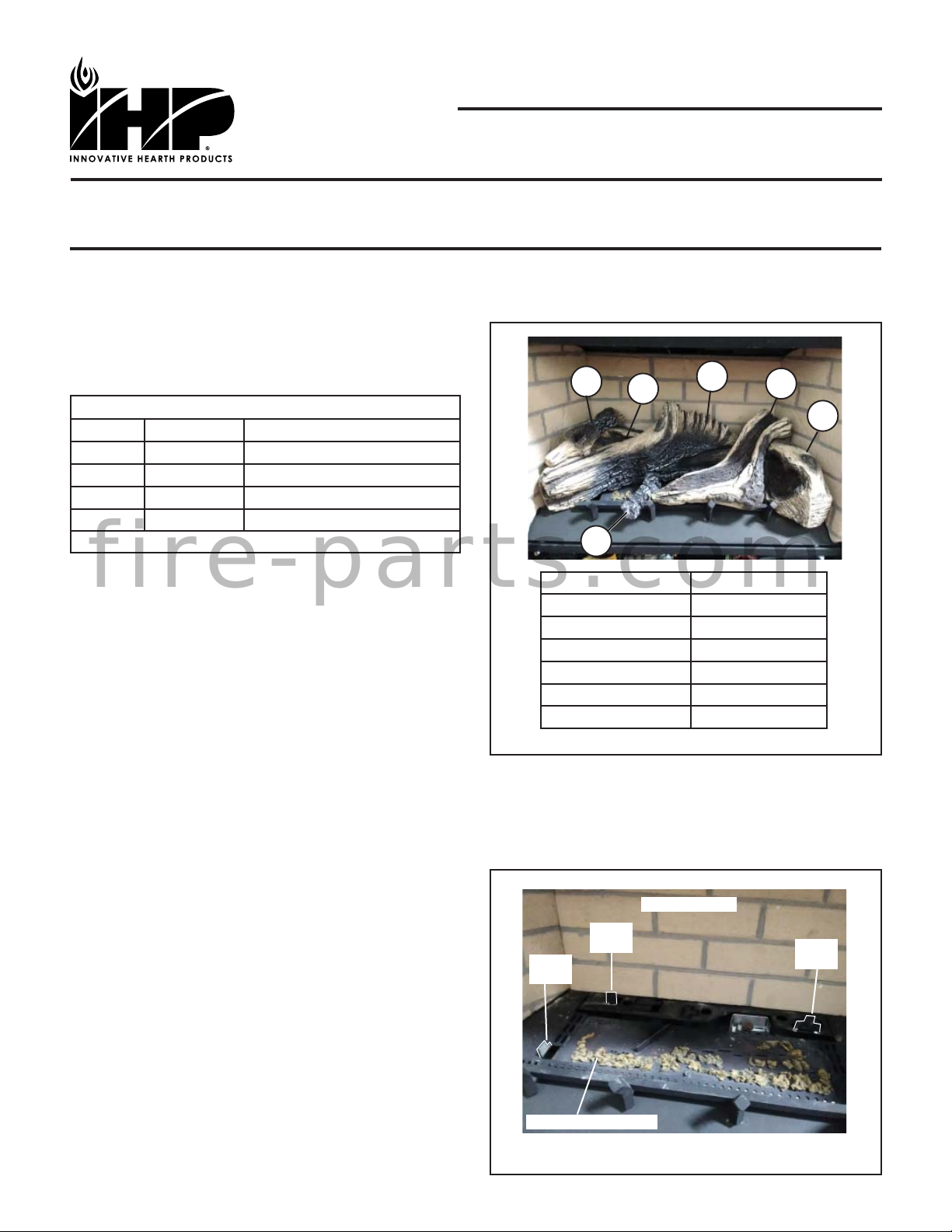

Figure 1

Log Sets - Traditional Models *

Cat. No. Model Description

F2876 CHAROAK35 35” Charred Oak Log Set

F2877 CHAROAK40-45 40” and 45” Charred Oak Log Set

F2878 DFTWOOD35 35” Driftwood Log Set

F2879 DFTWOOD40-45 40” and 45” Driftwood Log Set

Table 1

INSTALLATION INSTRUCTIONS - 35/40/45 DRIFTWOOD LOG SET

(Scorpio series only)

Figure 2 - Locate the log placement tabs

Log Location Tabs

Place Glowing Embers

Tab for

Log #2

Tab for

Log #1 Tab for

Log #2

1. If necessary, remove the glass door per instructions in the

Installation and Operation Manual. Locate the placement tabs

(Figure 2).

2. Bend up the log placement tabs (Figure 2). Place glowing embers

and other media (see Figure 2).

Log Number Description

1 Left Rear Log

2 Rear Log

3 Left Top Log

4 Right Bottom Log

5 Right Top Log

6 Front Ember Log

* DRT3500 Series ﬁreplaces are approved for use with the Charred Oak Log Sets only.

fire-parts.com

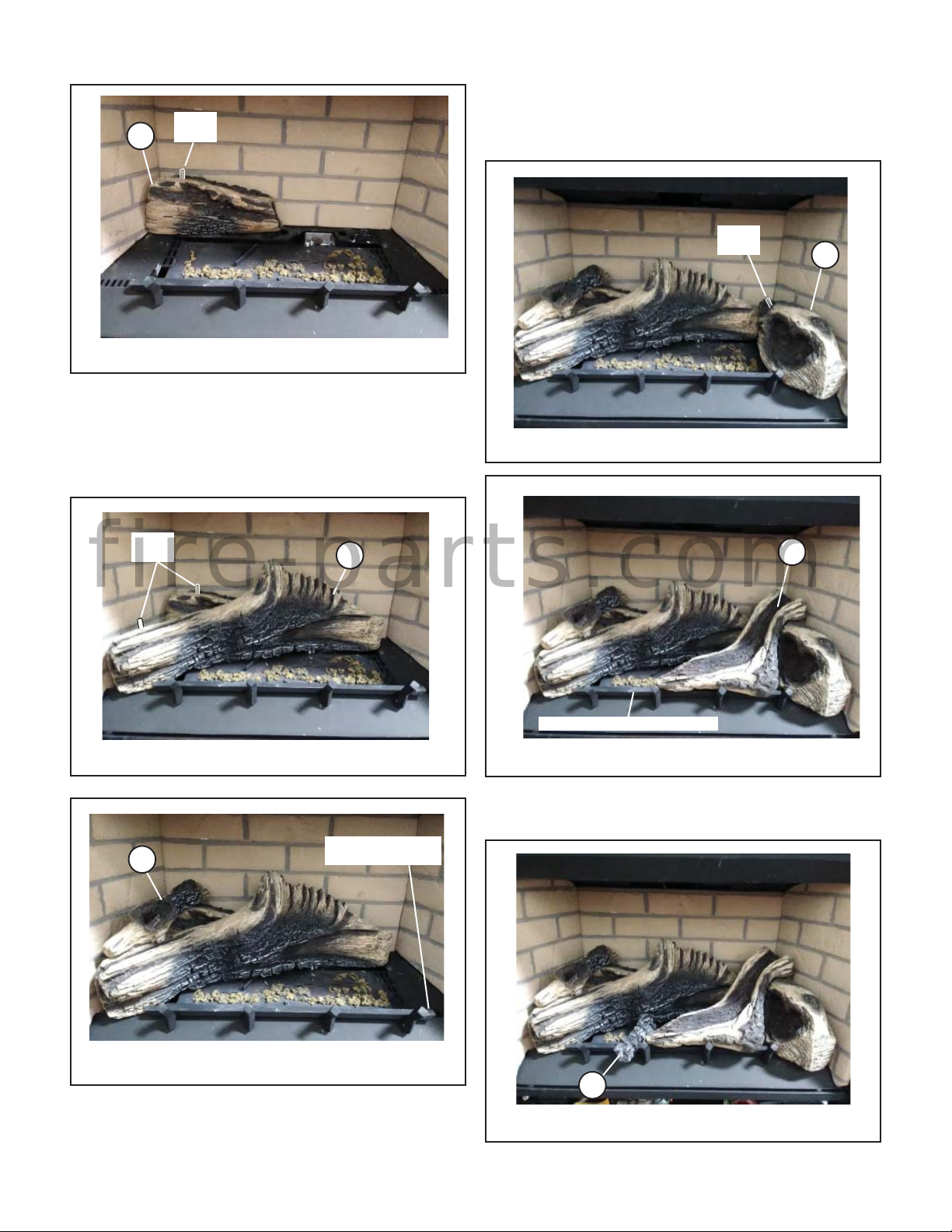

Figure 3 - Place log #1

3. Align the notches in the left rear log (1) with the left rear locating tab

(Figures 2 and 3).

4. Position the Rear Log (2) on the left front and right rear log

placement locating tabs (Figures 2 and 4).

5. Position the left top log (3), shown in Figure 5 on locating pins

outlined in Figure 4.

Figure 4 - Place log #2

Figure 5 - Place log #3

Pin for

Log #3

4th Log will be placed

on the corner of grate.

Pins for

Log #3

6. Position the right bottom log (4) on the corner of the grate (Figure 5)

and as shown in Figure 6.

7. Position the right top log (5) on the pin shown in Figure 6 and as shown

in Figure 7.

Figure 6 - Place log 4

Pin for

Log #5

6th Log will be placed on the grate

Figure 7 - Place log 5

8. Position the front ember log (6) on the grate called out in Figure

7and as shown in Figure 8.

Figure 8 - Place log #6

fire-parts.com

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Figure 9 - 35 Charred Oak Log Set

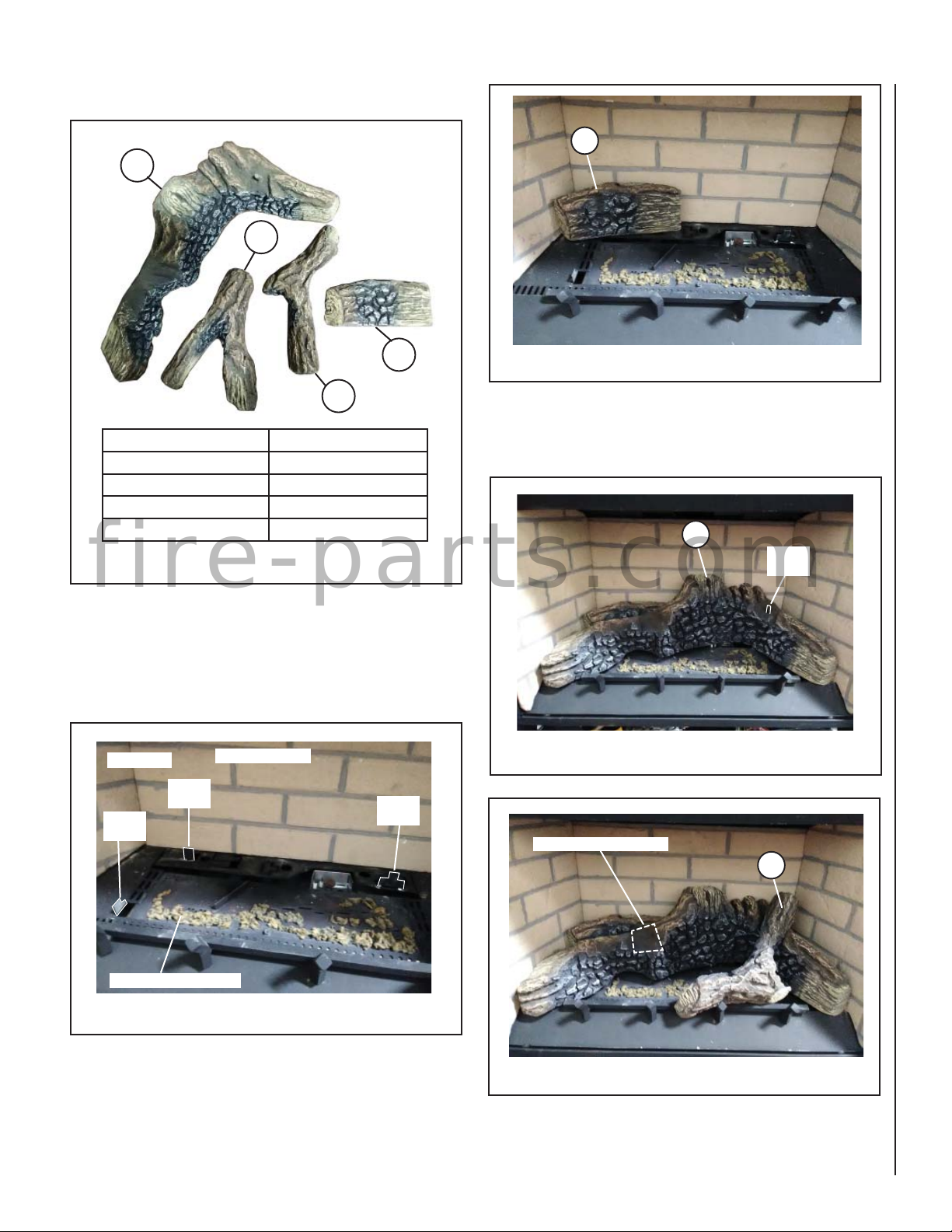

INSTALLATION INSTRUCTIONS - 35 CHARRED OAK LOG SET

Log Number Description

1 Left Rear Log

2 Rear Log

3 Top Front Right Log

4 Top Front Left Log

1. If necessary, remove the glass door per instructions in the

Installation and Operation Manual. Locate the placement tabs

(Figure 10).

2. Bend up the log placement tabs (Figure 10). Place glowing embers

(see Figure 10).

3. Align the notches in the left rear log (1) with the left rear locating

tab (Figures 10 and 11).

Figure 10 - Locate the log placement tabs, 35”

Figure 12 - Place log #2

Figure 11 - Place log #1

Figure 13 - Place log #3

4. Position the Rear Log (2) on the left front and right rear placement

locating tabs (Figures 10 and 12).

5. Position the top front right log (3), as shown in Figure 13 on the

locating pin outlined in Figure 12.

Place Glowing Embers

Tab for

Log #1

Tab for

Log #2

Log Location Tabs

Tab for

Log #2

Pin for

Log #3

Landing area for Log #4

35” Models

fire-parts.com

4NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

6. Position the Top Front Left Log (4), shown in Figure 14 on the

landing area outlined in Figure 13.

Figure 14 - Place log #4

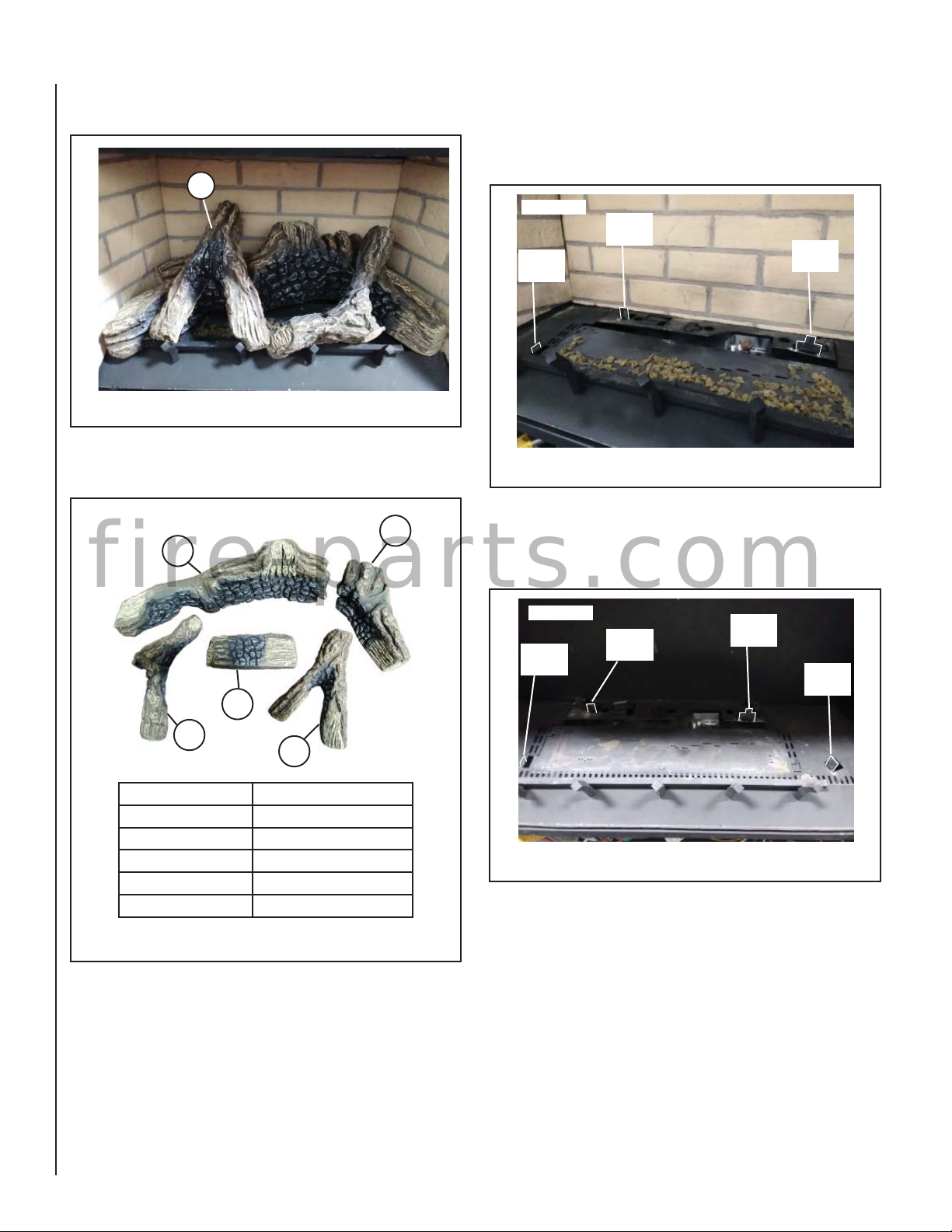

Figure 15 - 40/45 Charred Oak Log Set

INSTALLATION INSTRUCTIONS - 40/45 CHARRED OAK LOG SET

Log Number Description

1 Left Rear Log

2 Rear Log

3 Front Right Log

4 Top Front Right Log

5 Top Front Left Log

3. Align the notches in the left rear log (1) with the left rear locating

tab (Figures 16 and 17).

4. Position the Rear Log (2) on the left front and right rear placement

locating tabs (Figures 16 and 18).

Figure 16B - Locate log placement tabs, 45”

Figure 1 - Locate log placement tabs, 40”

Figure 16A

1. If necessary, remove the glass door per instructions in the

Installation and Operation manual. Locate the placement tabs

(Figure 16A or 16B).

2. Bend up the log placement tabs (Figure 16A or 16B). Place glowing

embers and other media (Figure 16A).

Tab for

Log #1 Tab for

Log #2

Tab for

Log #2

40” Models

45” Models

Tab for

Log #1

Tab for

Log #2

Tab for

Log #2 Tab for

Log #3

fire-parts.com

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

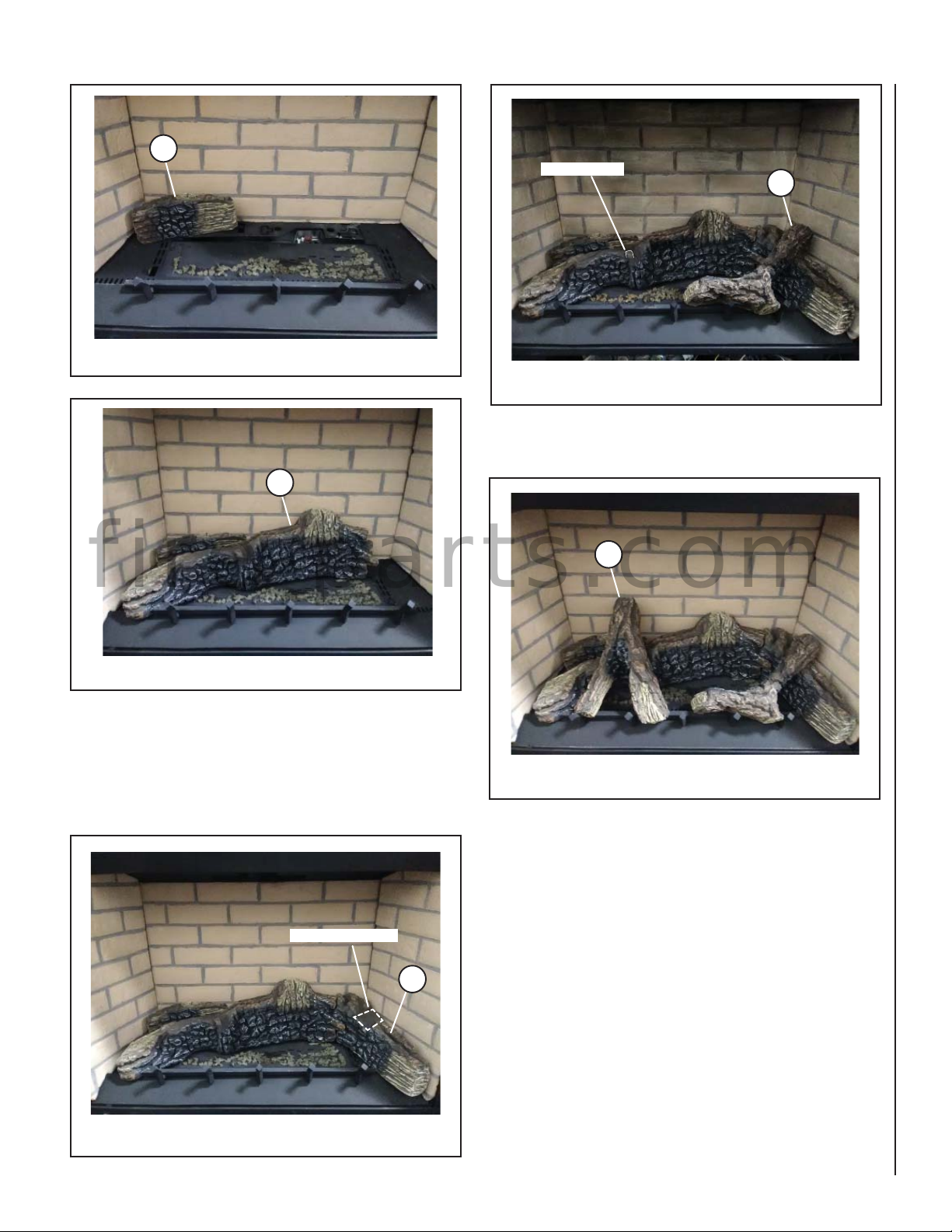

Figure 17 - Place log #1

Figure 18 - Place log #2

Figure 19 - Place log #3

5. 40” Models - The front right log (3) butts up against the grate as

shown in Figures 19.

45” Models - Align the notch on the bottom of the front right log

(3) over the front right locating tab. See Figures 16 and 19.

6. Position the top front right log (4), as shown in Figure 20 on the

landing outlined in Figure 19.

Figure 20 - Place log #4

Pin for Log #5

Landing for Log #4

Figure 21 - Place log #5

7. Position the Top Front Left Log (5), shown in Figure 21 on the pin

outlined in Figure 20.

fire-parts.com

P/N 900796-00 Rev. NC 09/2016

IHP reserves the right to make changes at any time, without notice, in design, materials,

speciﬁcations, prices and also to discontinue colors, styles and products. Consult your local

distributor for ﬁreplace code information.

1508 Elm Hill Pike, Suite 108 • Nashville, TN 37210

fire-parts.com
